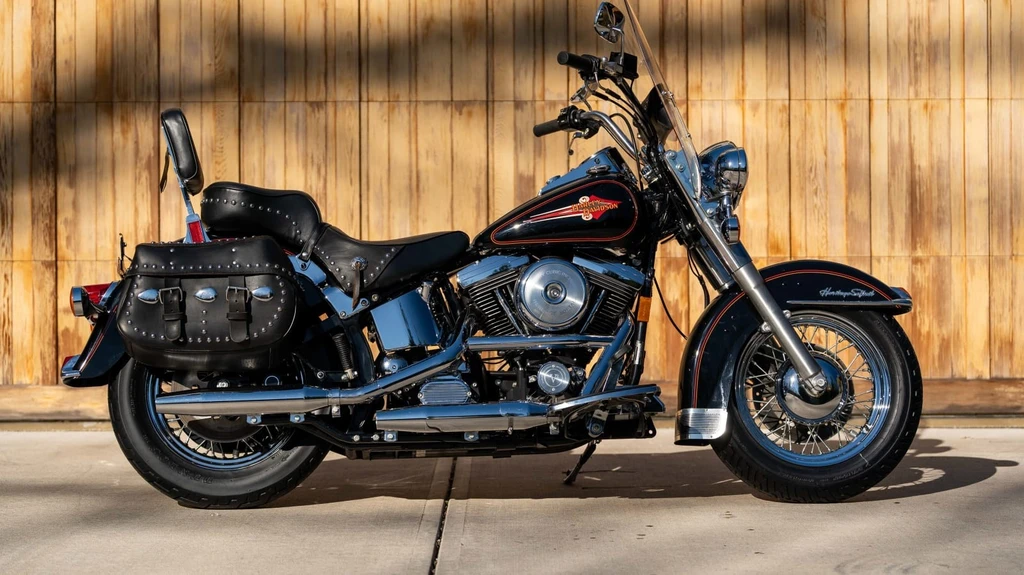

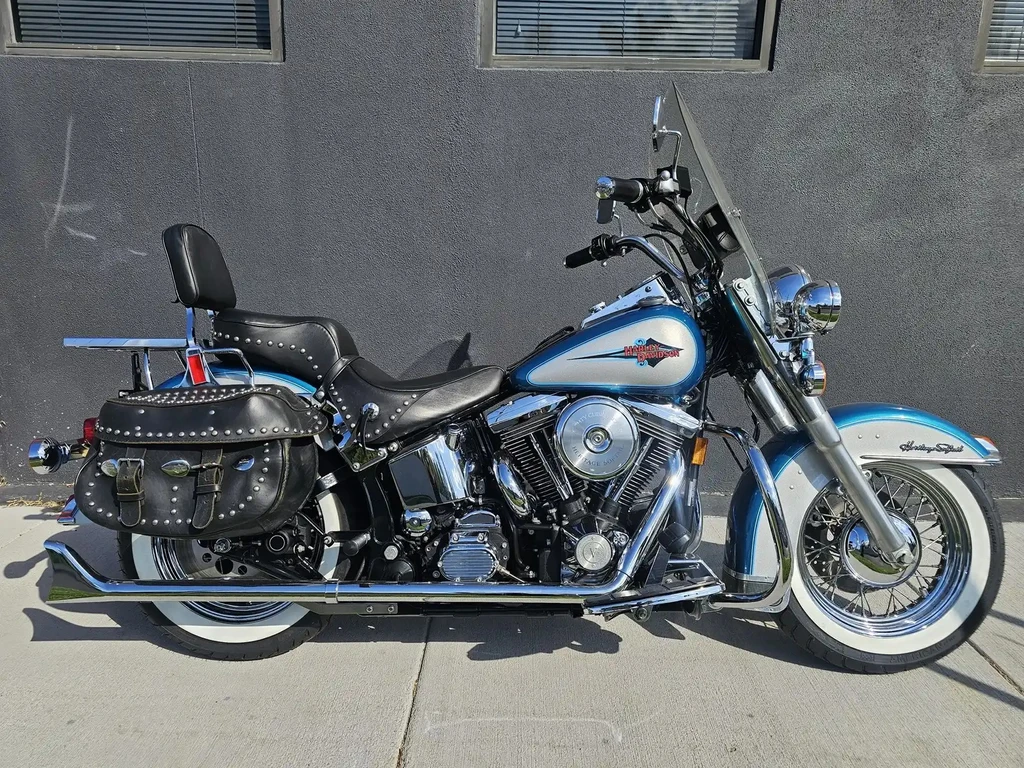

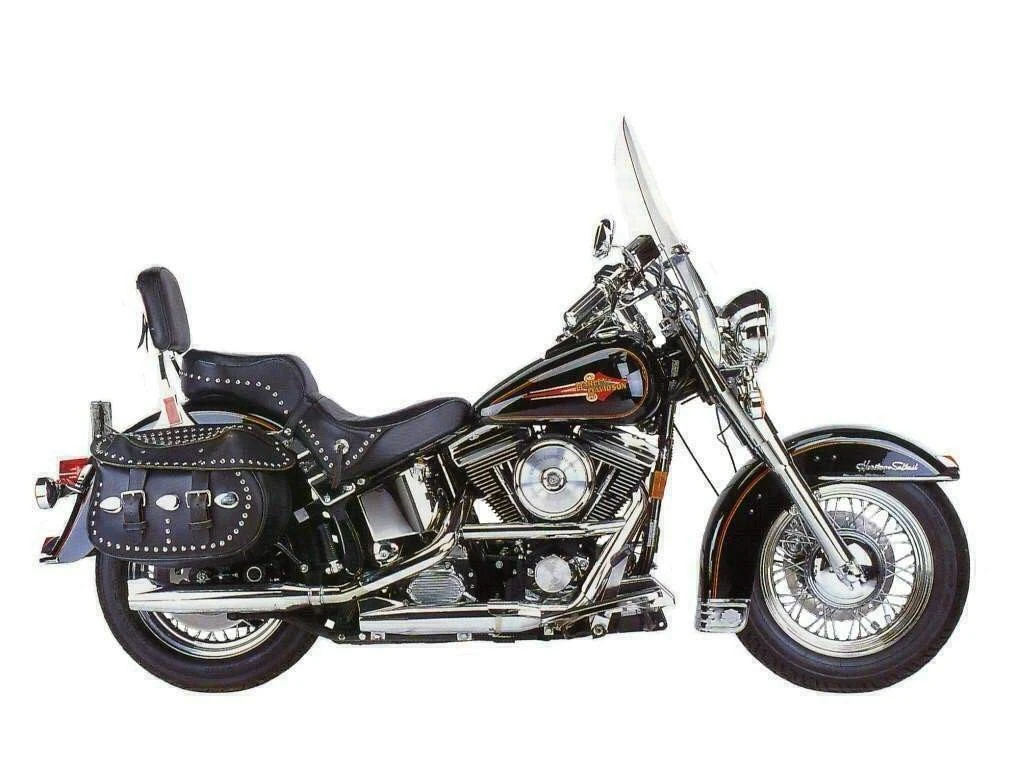

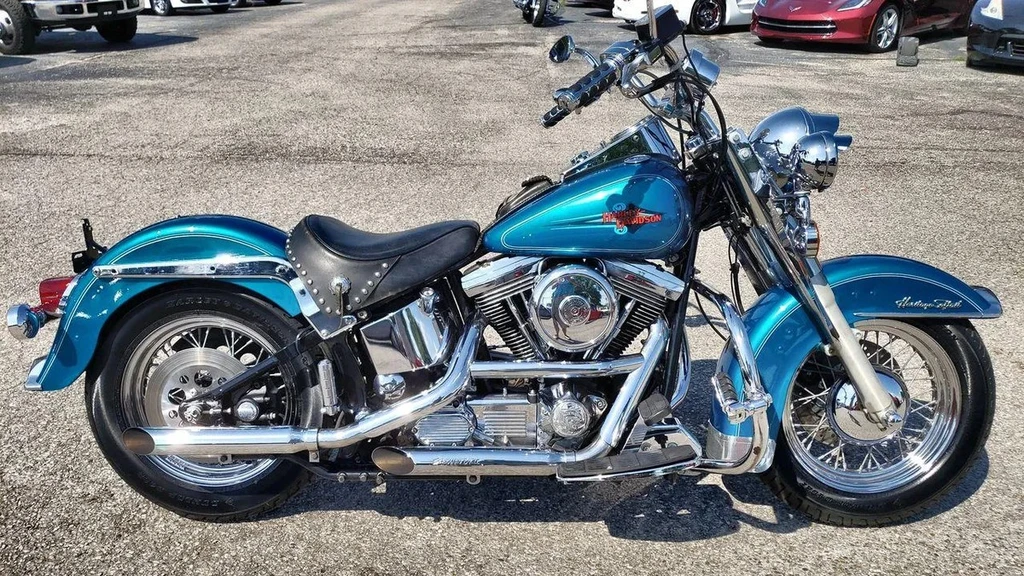

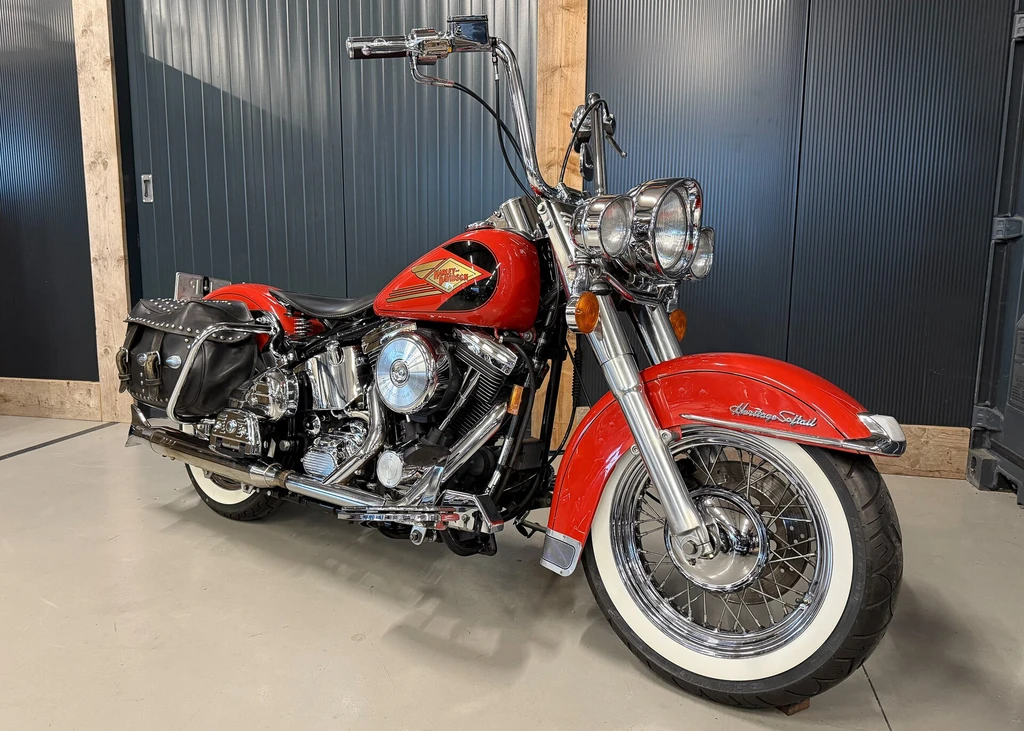

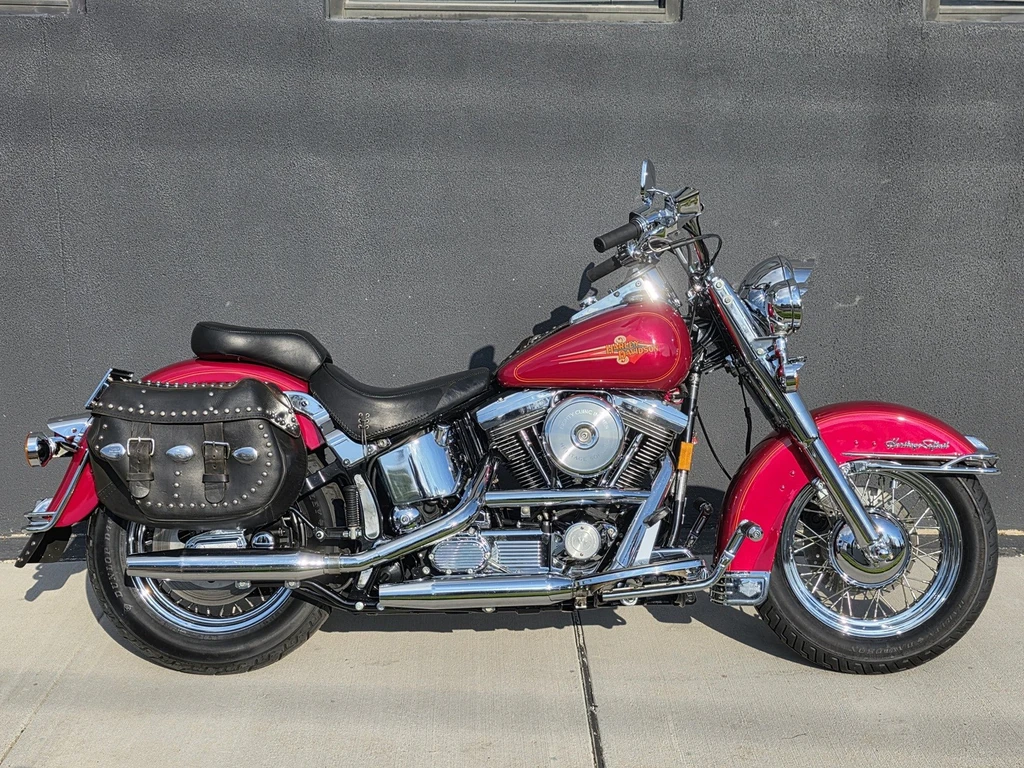

Harley Davidson FLSTC 1340 HeritageSoftail Classic (1994 -)

Harley Davidson FLSTC 1340 HeritageSoftail Classic (1994 -)

The Harley-Davidson FLSTC 1340 Heritage Softail Classic embodies the essence of American motorcycling heritage. This iconic bike boasts a robust 1340cc V-twin engine, producing a commanding 73 horsepower and 87 lb-ft of torque.

Its rich exhaust note and subtle power delivery evoke a deep sense of connection to the road, inviting riders to revel in its smooth, effortless performance. The FLSTC’s heritage design aesthetic is unmistakable, with a timeless combination of chrome accents, vintage-inspired paint schemes, and classic lines that speak to the soul of motorcycling tradition.

Whether cruising down the highway or navigating twisty backroads, this Softail Classic delivers an unparalleled riding experience: a symphony of power, style, and character that leaves riders wanting more. The 1994 Harley-Davidson FLSTC 1340 Heritage Softail Classic is an enduring testament to the art of motorcycling craftsmanship.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity81.5 cubic inches / 1337 cc
Max Power67 hp / 48.9 kW @ 6000 rpm
Max Torque71.5 ft-lb / 97 nm
Fuel Tank Capacity4.2 US gallons / 16.0 L
Seat Height673 mm / 26.5 lbs
Harley Davidson FLSTC 1340 HeritageSoftail Classic (1994 -)

All Specifications

Make & Model

ModelHarley Davidson FLSTC 1340 HeritageSoftail Classic
Year1994 –

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement81.5 cubic inches / 1337 cc
Bore x Stroke88.8 x 108 mm
Compression Ratio8.5:1
Max Horsepower67 hp / 48.9 kW @ 6000 rpm
Max Torque71.5 ft-lb / 97 nm
Engine Management System38mm Keihin carburetor
Lubrication SystemDry sump
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchDry, multiple discs, cable operated
Gearbox5 Speed
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSteel, Double cradle frame
Front SuspensionTelescopic forks
Rear SuspensionDual shocks

Wheels & Brakes

Front Tire Size140/90-16
Rear Tire Size140/90-16
Front BrakesSingle 292mm disc
Rear BrakesSingle 292mm disc

Dimension & Weights

Seat Height673 mm / 26.5 lbs
Fuel Tank Capacity4.2 US gallons / 16.0 L
Dry Weight317 kg / 698.9 lbs

Features

  • Anti-lock braking system (ABS)
  • Chrome-plated exhaust with chrome-plated heat shields
  • Electronic Throttle Control
  • Fat Boy style tank console and gauges
  • Harley-Davidson Security System
  • High-output charging system
  • Low seat height
  • Milwaukee-Eight 107 engine
  • Progressive Suspension
  • Smart security system
  • Softail model with a rigid rear suspension
