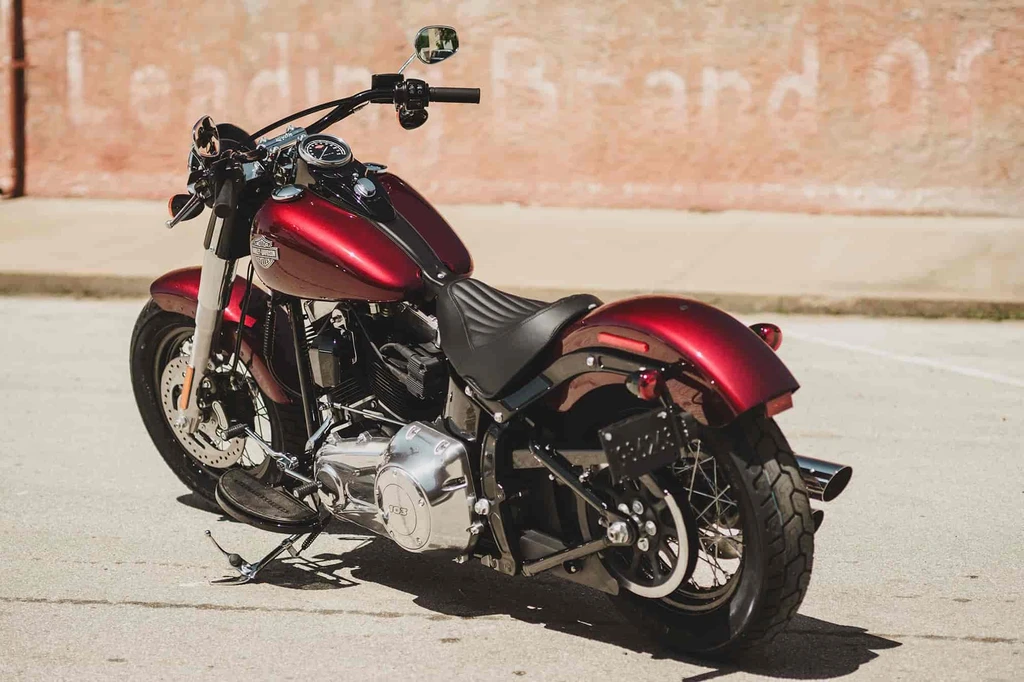

Harley Davidson FLS Softail Slim (2016 - 2017)

The Harley-Davidson FLS Softail Slim embodies the perfect blend of classic, raw bobber style and contemporary power. This modern ride boasts an unmistakable old-iron attitude, while its streamlined design and reduced weight create a more agile and responsive riding experience.

With its air-cooled, 1690 cc Twin Cam 103B engine, this bike packs a punch, delivering 97.4 ft-lbs of peak torque at 3000 rpm. The rigid powertrain ensures a solid connection between the rider and the motorcycle, while the Softail rear suspension mimics the clean lines of a vintage hardtail frame.

Whether you’re cruising down the highway or carving up twisty roads, the FLS Softail Slim is an absolute joy to ride. Its comfortable seat height and generous footboards make it accessible to riders of all sizes, while its classic styling ensures that this bike stands out from the crowd. Whether you’re a seasoned rider or just starting out, the Harley-Davidson FLS Softail Slim is the ultimate ride for anyone who craves freedom on two wheels.

Key Specifications

Engine Type	Four stroke, Twin Cam 103B Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	132 Nm / 13.5 kgf-m / 97.4 ft/lb @ 3250 rpm
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Weight (Wet/Kerb)	708 lbs / 321 kg
Seat Height	23.8 inches / 605 mm

*n/a – information not provided by manufacturer

Harley Davidson FLS Softail Slim (2016 - 2017)

All Specifications

Make & Model

Model	Harley Davidson FLS Softail Slim
Year	2016 – 2017

Engine

Engine Type	Four stroke, Twin Cam 103B Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	9.6:1
Max Torque	132 Nm / 13.5 kgf-m / 97.4 ft/lb @ 3250 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air-cooled
Exhaust	Chrome, over/under shotgun exhaust with slash-cut mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Suspension	41.3 mm telescopic, beer can covers
Rear Suspension	Hidden, horizontal-mounted, coil-over
Rake	32
Trail	Length 2350 mm / 92.5 in

Wheels & Brakes

Front Wheel/Rim Size	Black, Laced Steel
Front Tire Size	MT90B16 72H
Rear Wheel/Rim Size	Black, Laced Steel
Rear Tire Size	MU85B16 77H
Front Brakes	Single 292 mm discs, 4 piston caliper
Rear Brakes	Single 292 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	23.8 inches / 605 mm
Wheelbase	64.3 inches / 1635 mm
Ground Clearance	115 mm / 4.5 in
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight	708 lbs / 321 kg
Dry Weight	308 kh / 679 lbs

Features

23.8-inch seat height
Rider footboards
Softail rear suspension with hidden under-chassis design
Rigid powertrain for solid connection between rider and engine
New, more comfortable seat
Paint color options
Powertrain finished in Black powdercoat with polished covers
Hollywood handlebar with cross-brace
Gloss Black, round air cleaner cover
Black cats eye console holds electronic speedometer with retro-style face
Chopped rear fender
Chrome, over/under shotgun exhaust with slash-cut mufflers
Classic 5.0-gallon Fat Bob fuel tank
Dunlop 16-inch (MT90B16) front and (MU85B16) rear tires
Black, Steel Laced wheels
Gloss black headlamp with chrome trim ring
Half-moon footboards with retro-style foot control pads
Rigid-mounted, air-cooled, 1690 cc Twin Cam 103B counter-balanced engine with Automatic Compression Release (ACR)
6-speed Cruise Drive transmission
Optional Smart Security System with proximity-based, hands-free security fob
Optional Anti-lock Braking System (ABS)
