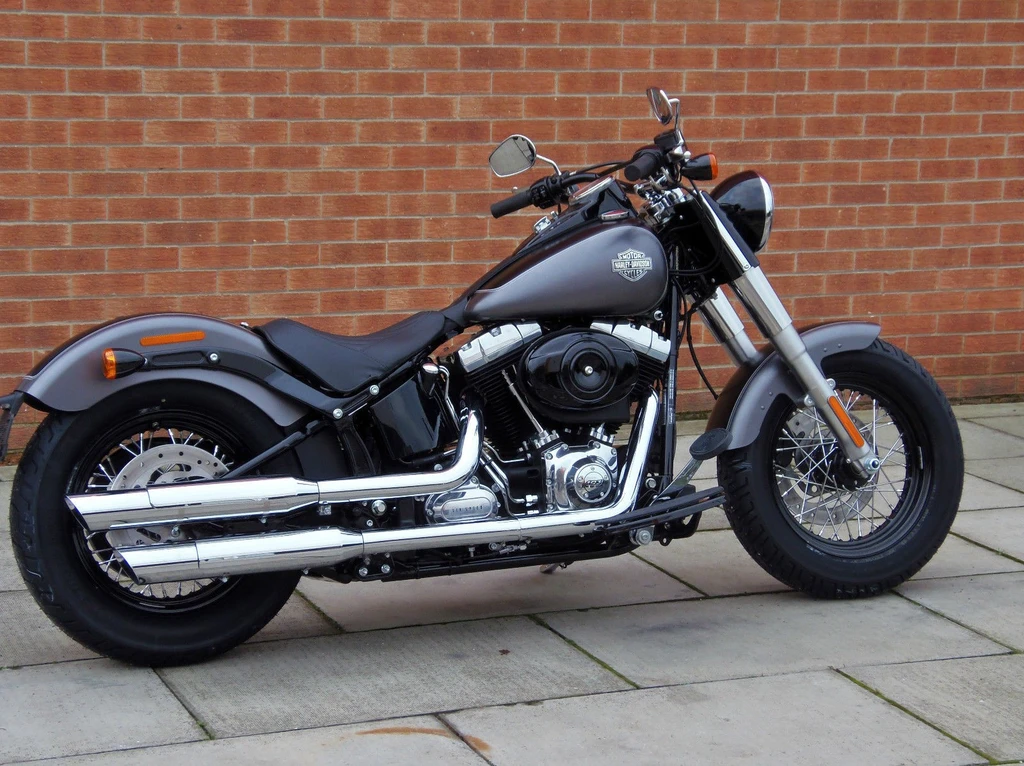

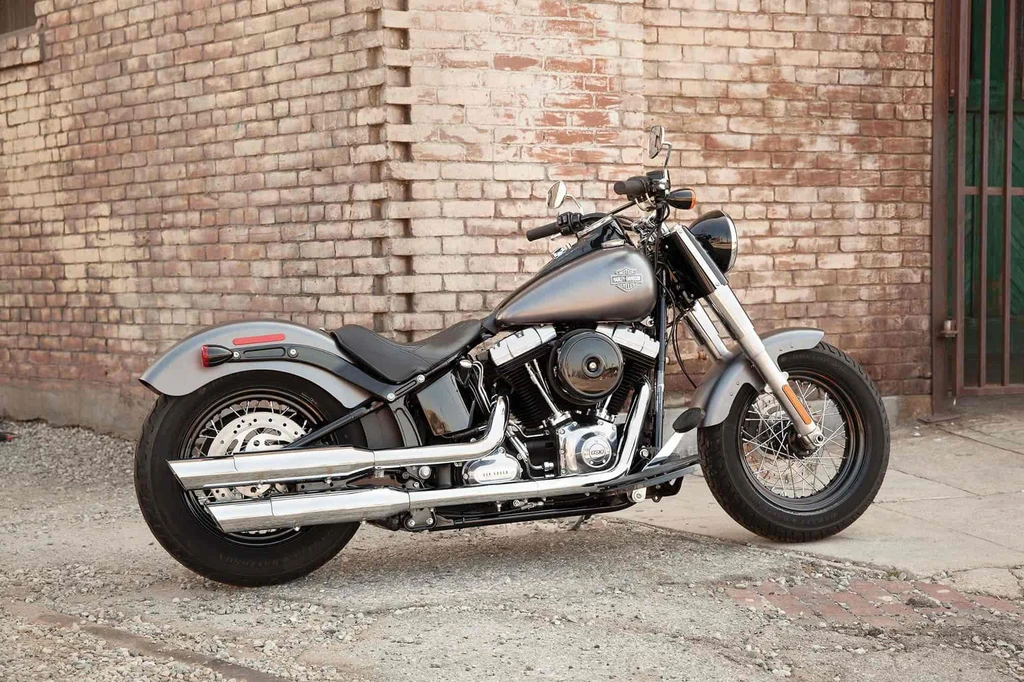

The Harley-Davidson FLS Softail Slim is a masterclass in minimalist design, channeling the spirit of 1950s custom bobbers while still delivering exceptional comfort and ride quality.
Its narrow rear end and trimmed front fender create a sleek, streamlined appearance, while the solo seat and minimal chrome trim evoke a sense of simplicity and elegance. The Softail Slim’s ergonomic design ensures a comfortable fit for riders of all shapes and sizes, thanks to its 23.8-inch seat height and spacious rider footboards.
Underneath its vintage-inspired exterior lies a robust powertrain, featuring Harley-Davidson’s air-cooled 1690cc Twin Cam 103B engine with Automatic Compression Release (ACR). This potent combination produces an impressive 97.4 ft-lbs of peak torque at 3000 rpm, making the Softail Slim a thrill to ride.
Whether you’re carving through twisties or cruising down the highway, the Softail Slim delivers a unique riding experience that’s both authentic and accessible.
Key Specifications
Engine Type
Four stroke, Twin Cam 103B Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity
1690 cc / 103.1 cub in.
Max Torque
132 Nm / 13.5 kgf-m / 97.4 ft/lb @ 3250 rpm
Fuel Tank Capacity
5.0 US gallons / 18.9 L
Weight (Wet/Kerb)
708 lbs / 321 kg
Seat Height
23.8 inches / 605 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FLS Softail Slim
Year
2014 – 2015
Engine
Engine Type
Four stroke, Twin Cam 103B Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement
1690 cc / 103.1 cub in.
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Max Torque
132 Nm / 13.5 kgf-m / 97.4 ft/lb @ 3250 rpm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System
Air-cooled
Exhaust
Chrome, over/under shotgun exhaust with slash-cut mufflers
