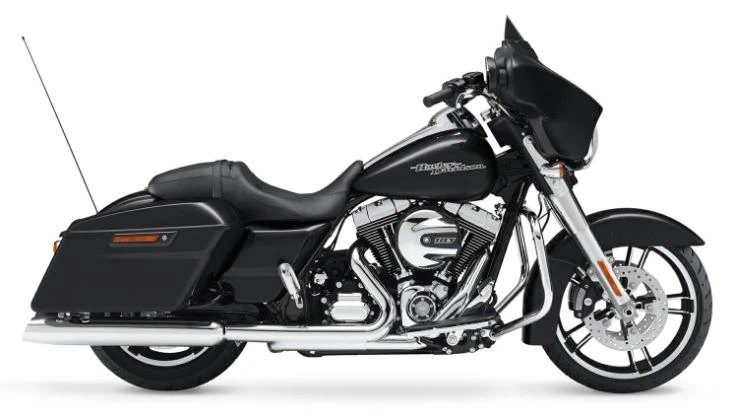

Harley Davidson FLHX Street Glide (2016)

Harley Davidson FLHX Street Glide (2016)

The 2016 Harley-Davidson FLHX Street Glide is the epitome of touring motorcycles, engineered for riders who crave speed, comfort, and style.

Its High Output Twin Cam 103 engine is the heartbeat of this machine, unleashing a torrent of power that’s as smooth as it is exhilarating. Whether you’re carving through twisties or cruising down the highway, the Street Glide’s responsive performance will keep your adrenaline pumping.

But what truly sets the Street Glide apart is its attention to detail – every component, from the sleek Project RUSHMORE front fender to the chrome exhaust, has been carefully crafted to create an immersive riding experience. With features like Reflex Linked Brakes with ABS and Daymaker LED headlamps, you’ll feel more connected to the road than ever before.

The result is a bike that’s both a beast on the open road and a luxury vehicle for long-distance touring. And when you ride one, you’ll understand why Harley-Davidson has been pushing the boundaries of motorcycle design and engineering for decades – the Street Glide is an invitation to see how good you can be, written in Milwaukee steel.

Key Specifications

Engine TypeFour stroke, V-Twin, Twin Cam 103 with Integrated Oil-Cooler
Engine Capacity1690 mm / 103 cu. in
Max Torque142 Nm / 14.5 kgf-m / 104.7 ft/lb @ 3250 rpm
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)810 lbs / 372 kg
Seat Height26.1 inches / 663 mm
Harley Davidson FLHX Street Glide (2016)

All Specifications

Make & Model

ModelHarley Davidson FLHX Street Glide
Year2016

Engine

Engine TypeFour stroke, V-Twin, Twin Cam 103 with Integrated Oil-Cooler
Displacement1690 mm / 103 cu. in
Bore x Stroke98.4 x 111.3 mm
Compression Ratio9.7:1
Max Torque142 Nm / 14.5 kgf-m / 104.7 ft/lb @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 / 2nd 6.421 / 3rd 4.774 / 4th 3.926 / 5th 3.279 / 6th 2.790:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping,
Front Suspension Travel4.6 inches / 117 mm
Rear SuspensionShort, air-adjustable shock,
Rear Suspension Travel2.0 inches / 51 mm
Rake26
Trail170 mm / 6.7 in.

Wheels & Brakes

WheelsOptional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel/Rim SizeBlack, Slotted 5-Spoke Cast Aluminum
Front Tire SizeD408F BW 130/70B18 63H
Rear Wheel/Rim SizeBlack, Slotted 5-Spoke Cast Aluminum
Rear Tire SizeD407 BW 180/65B16 81H
Front Brakes2 x 292 mm disc, 4 piston caliper
Rear BrakesSingle 292 mm disc, 4 piston caliper

Dimension & Weights

Seat Height26.1 inches / 663 mm
Wheelbase63.5 inches / 1613 mm
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight810 lbs / 372 kg
Dry Weight355 kg / 775 lbs

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • High Output Twin Cam 103 engine
  • Twin-Cooled system
  • Reflex Linked Brakes with ABS
  • Daymaker LED headlamps and fog lamps
  • Brighter Tour-Pak luggage carrier lighting
  • Brighter turn signals
  • Brighter brake lights
  • Stiffer front forks
  • Big, full-color touch screens for infotainment
  • Voice activation for music, phone, and GPS
  • Improved aerodynamics
  • Optimized touring ergonomics for rider and passenger
