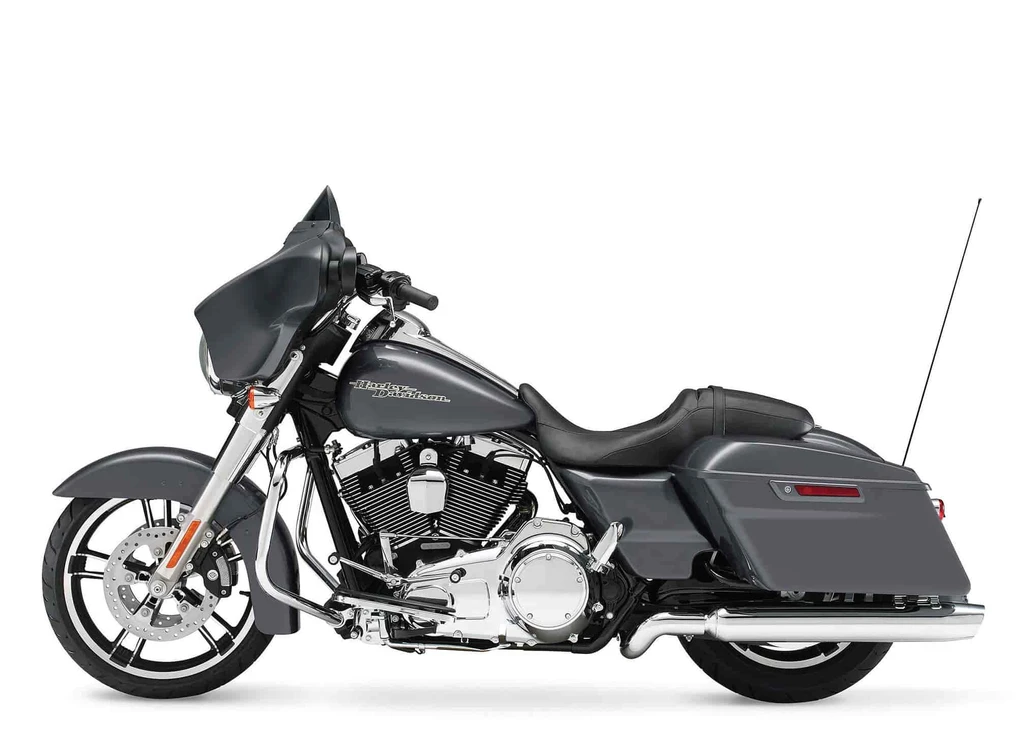

Harley Davidson FLHX Street Glide (2014)

Harley Davidson FLHX Street Glide (2014)

The Harley-Davidson FLHX Street Glide is a road-hugging behemoth that embodies the spirit of freedom on two wheels. Its stripped-down, chrome-trimmed design exudes an unapologetic street attitude, while its low suspension and blackened wind deflector cut through the air with ease.

Underneath the sleek exterior lies a powerhouse of a machine, courtesy of Harley-Davidson’s innovative Twin Cam 103 engine. This 6-speed torque monster churns out 102 ft-lbs of peak torque at just 3500 rpm, making it perfectly suited for both urban and long-haul touring duties.

The Street Glide’s chassis geometry and suspension are finely tuned to deliver confident handling and comfort on the road, with responsive maneuverability and long-haul durability. And with its new “tubeless” Chrome Lace Aluminum Wheel option, tire replacement and repair have never been easier.

Key Specifications

Engine TypeFour stroke, V-Twin, Twin Cam 103 with Integrated Oil-Cooler
Engine Capacity1690 mm / 103 cu. in
Max Torque142 Nm / 104.7 ft/lb @ 3250 rpm
Fuel Tank Capacity22.7 Litres / 6.0 gal
Weight (Wet/Kerb)810 lbs / 372 kg
Seat Height26.1 inches / 663 mm
Harley Davidson FLHX Street Glide (2014)

All Specifications

Make & Model

ModelHarley Davidson FLHX Street Glide
Year2014

Engine

Engine TypeFour stroke, V-Twin, Twin Cam 103 with Integrated Oil-Cooler
Displacement1690 mm / 103 cu. in
Bore x Stroke98.4 x 111.3 mm
Compression Ratio9.7:1
Max Torque142 Nm / 104.7 ft/lb @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 2nd 6.421 3rd 4.774 4th 3.9265th 3.279 6th 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping,
Front Suspension Travel4.6 inches / 117 mm
Rear SuspensionShort, air-adjustable shock,
Rear Suspension Travel2.0 inches / 51 mm
Rake26
Trail170 mm / 6.7 in.

Wheels & Brakes

WheelsOptional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel/Rim SizeBlack, Slotted 5-Spoke Cast Aluminum
Front Tire SizeD408F BW 130/70B18 63H
Rear Wheel/Rim SizeBlack, Slotted 5-Spoke Cast Aluminum
Rear Tire SizeD407 BW 180/65B16 81H
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.1 inches / 663 mm
Wheelbase63.5 inches / 1613 mm
Fuel Tank Capacity22.7 Litres / 6.0 gal
Wet (kerb/curb) Weight810 lbs / 372 kg
Dry Weight355 kg / 775 lbs

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Twin Cam 103 V-Twin engine
  • Heated O2 sensors
  • Electronic Throttle Control (ETC)
  • Tubeless Chrome Aluminum Profile Laced wheel option
  • Paint color options
  • Harley-Davidson Smart Security System with hands-free fob and Anti-lock Braking System (ABS) as part of the Security Package Option
  • 18-inch front wheel with a lower-profile, 130/80B18 tire
  • 2-into-1 exhaust and single, four-inch-diameter chrome muffler
  • Red stop/turn/tail lights with chrome bracket
  • Black powder-coated powertrain with chrome covers
  • Black, Slotted Disc cast aluminum wheels
  • Lowered rear suspension
  • Bat-wing, fork-mounted fairing with smoke, mini wind deflector and fairing-mount mirrors
  • Chrome, low-profile fuel tank console
  • Deep FL front fender with no trim
  • Stainless steel, classic touring handlebar
