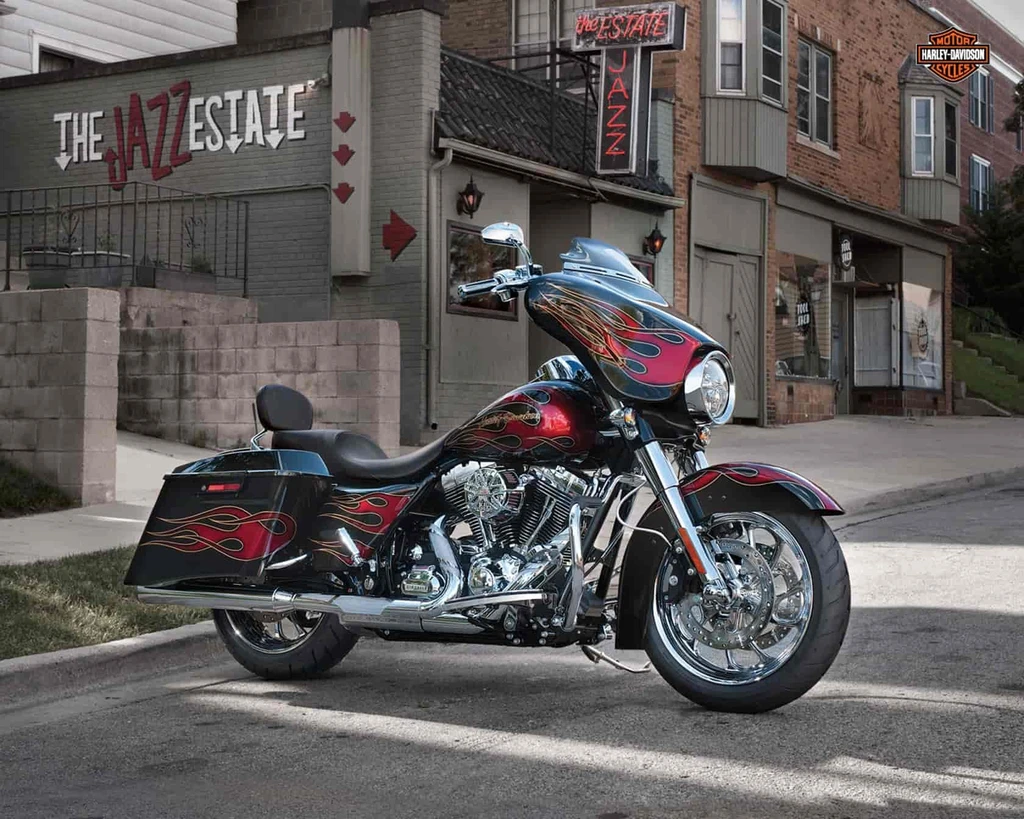

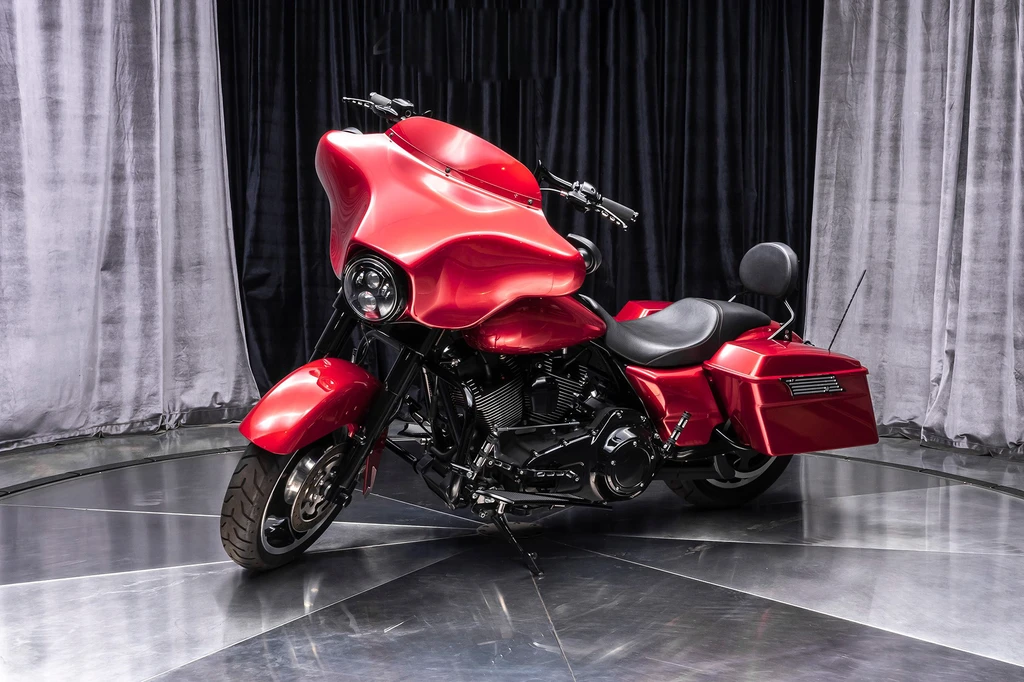

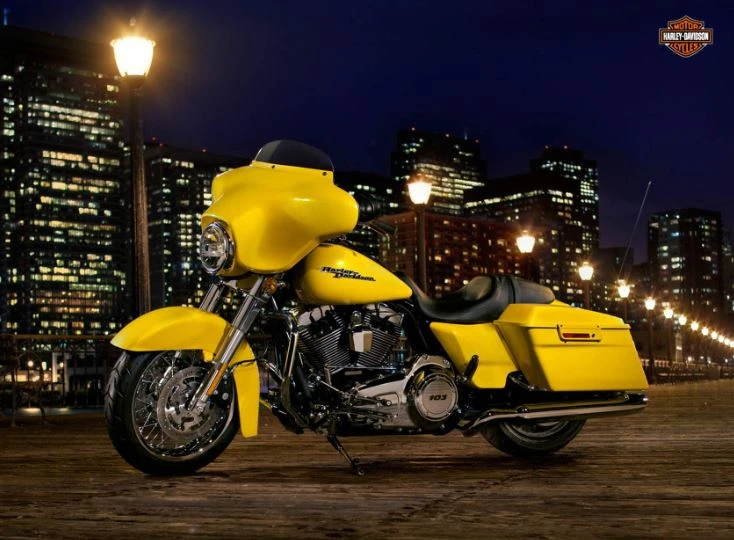

Harley Davidson FLHX Street Glide (2013)

Harley Davidson FLHX Street Glide (2013)

The 2013 Harley-Davidson FLHX Street Glide is a masterclass in touring motorcycles, blending street-wise attitude with long-haul capability. Its potent 103ci V-twin engine pumps out a staggering 102ft-lbs of torque at just 3500rpm, making it perfectly suited for both urban cruising and high-speed touring.

The ride experience is further enhanced by the Harley-Davidson Touring chassis, featuring a single-spar frame and two-piece swingarm designed to deliver responsive handling and durability. A low suspension setup and stripped-back styling complete the Street Glide’s aggressive aesthetic.

With its Electronic Sequential Port Fuel Injection system and 41.3mm front forks providing exceptional damping control, this bike is ready to devour any road with unbridled enthusiasm – and it looks every bit as good doing it.

Key Specifications

Engine TypeFour stroke, V-Twin, Twin Cam 103 with Integrated Oil-Cooler
Engine Capacity1690 mm / 103 cu. in
Max Torque134 Nm / 98.8 ft/lbs @ 3500 rpm
Fuel Tank Capacity22.7 Litres / 6.0 gal
Weight (Wet/Kerb)822 lbs / 373 kg
Seat Height26.1 inches / 663 mm
Harley Davidson FLHX Street Glide (2013)

All Specifications

Make & Model

ModelHarley Davidson FLHX Street Glide
Year2013

Engine

Engine TypeFour stroke, V-Twin, Twin Cam 103 with Integrated Oil-Cooler
Displacement1690 mm / 103 cu. in
Bore x Stroke98.4 x 111.3 mm
Compression Ratio9.6:1
Max Torque134 Nm / 98.8 ft/lbs @ 3500 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 2nd 6.421 3rd 4.774 4th 3.9265th 3.279 6th 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping, 117mm wheel travel
Rear SuspensionShort, air-adjustable shock, 51mm wheel travl.
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

Front Tire SizeD408F BW 130/70B18 63H
Rear Tire SizeD407 BW 180/65B16 81H
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.1 inches / 663 mm
Wheelbase63.5 inches / 1613 mm
Fuel Tank Capacity22.7 Litres / 6.0 gal
Wet (kerb/curb) Weight822 lbs / 373 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • 41.3 mm telescopic, cartridge-style damping front forks
  • 117mm wheel travel
  • Short, air-adjustable shock
  • 51mm wheel travel rear suspension
  • Harley-Davidson Touring chassis with single-spar, rigid backbone frame
  • Twin Cam 103TM engine with Automatic Compression Release and integrated oil cooler
  • 6-Speed Cruise DriveTM transmission
  • Isolated Drive System for smooth power delivery
  • Rubber-mounted engine
  • Electronic Throttle Control (ETC)
  • Heated O2 sensors
  • Tubeless Chrome Aluminum Profile Laced wheel option
  • Paint color options including six new colors or colour combinations
  • Security Package Option with Harley-Davidson Smart Security System and ABS
  • Sculpted seat for added comfort and easier straddling
  • Custom floorboard for comfort and confidence
  • 18-inch front wheel with lower-profile, 130/80B18 tire
