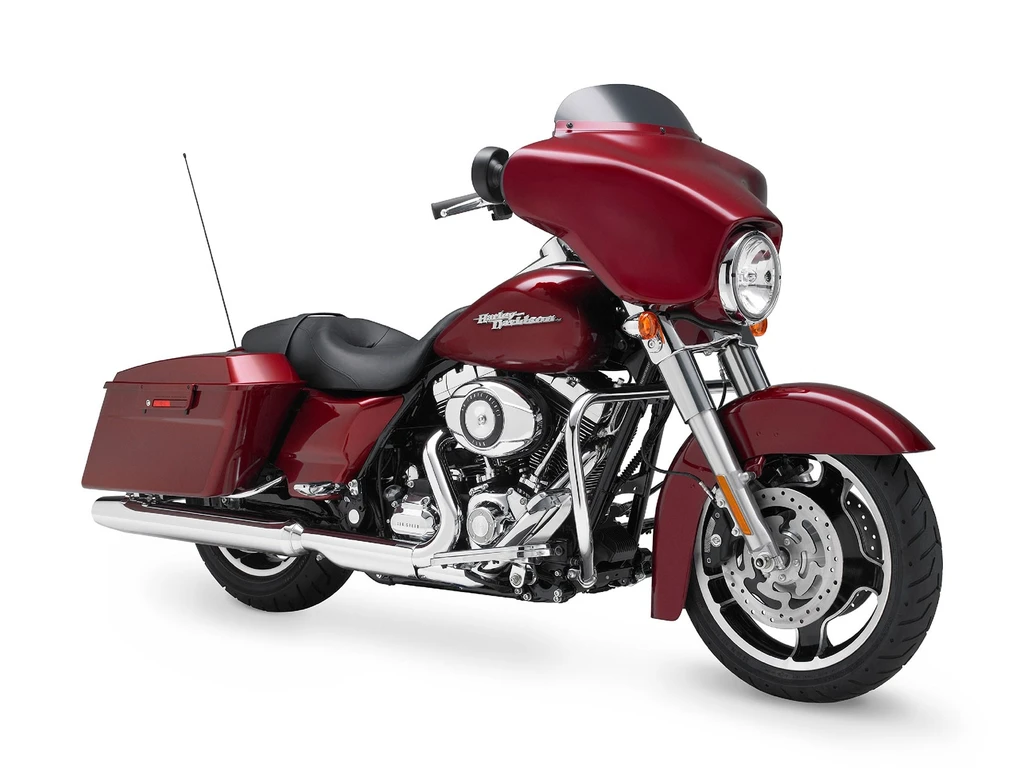

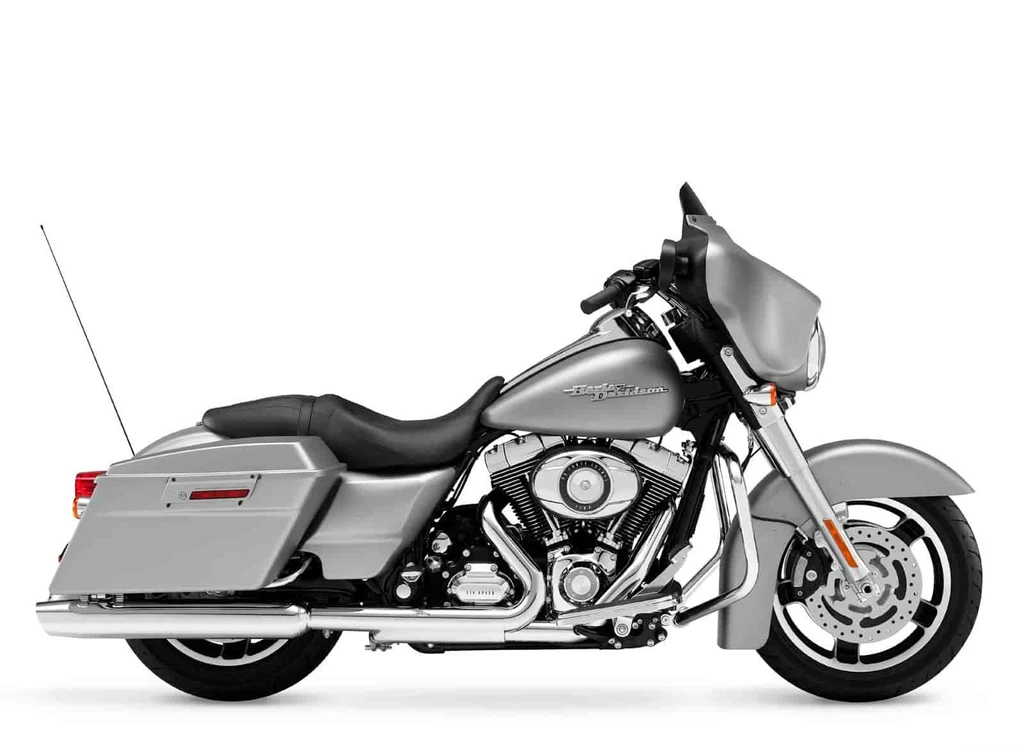

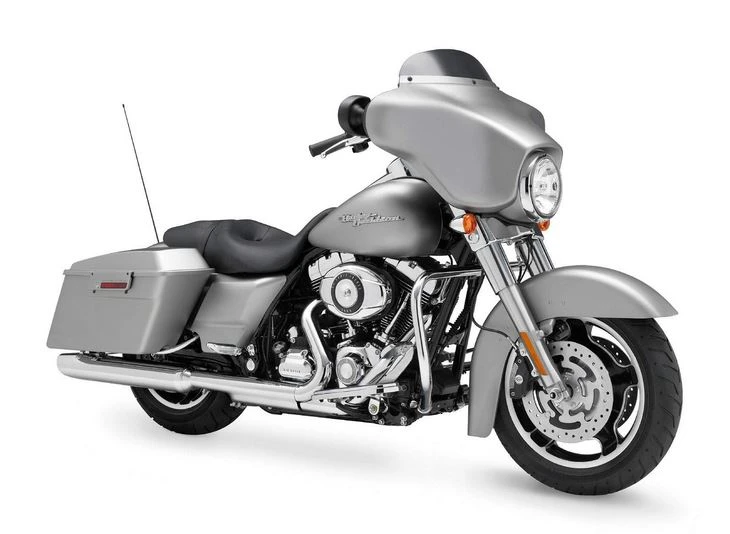

Harley Davidson FLHX Street Glide (2009)

Harley Davidson FLHX Street Glide (2009)

The Harley-Davidson FLHX Street Glide is a masterclass in understated elegance, its lowered rear suspension and smoked mini-wind deflector creating a sleek, lean profile that belies the sheer power lurking beneath. The 1584cc Twin Cam 96 engine, boasting Electronic Sequential Port Fuel Injection (ESPFI), delivers a rich, throaty growl as it devours the road ahead.

A symphony of thoughtful design touches completes the package: the Advanced Audio System by Harman/Kardon, Streamliner footboards, and Brembo triple-disc brake system all contribute to an unrivaled riding experience. But it’s not just about looks – the Street Glide’s new chassis is engineered for precise handling and increased comfort, making long hauls a breeze.

From its powerful engine to its carefully crafted features, the FLHX Street Glide is a tour de force of Harley-Davidson ingenuity, precision, and passion, delivering an unforgettable riding experience that will leave you breathless.

Key Specifications

Engine TypeFour stroke, V-Twin, ‘Twin Cam 96’
Engine Capacity96.6 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)810 lbs / 367 kg
Seat Height26.3 inches / 668.0 mm
Harley Davidson FLHX Street Glide (2009)

All Specifications

Make & Model

ModelHarley Davidson FLHX Street Glide
Year2009

Engine

Engine TypeFour stroke, V-Twin, ‘Twin Cam 96’
Displacement96.6 cubic inches / 1584 cc
Bore x Stroke95.25 x 111.25 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.9265th 3.279 3.279 3.279 6th 2.790 2.790 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

Front Tire SizeMT90B16
Rear Tire SizeMU85B16
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.3 inches / 668.0 mm
Wheelbase63.5 inches / 1613 mm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight810 lbs / 367 kg

Features

  • Rubber mounted 1584cc Twin Cam 96 engine with ESPFI
  • 6-speed Cruise Drive transmission
  • Black powder-coated engine with chrome covers
  • Brembo triple-disc brake system
  • Six-gallon fuel tank
  • Electronic Throttle Control
  • NEW 2-1-2 exhaust system
  • NEW engine isolation system
  • NEW Isolated Drive System
  • NEW frame and swingarm
  • Black Slotted Disc Cast Aluminum wheels, 17-inch front/16-inch rear
  • Dunlop D407 Multi-Tread 180/65-16 rear tire
  • Dunlop D407 130/80-17 front tire
  • Low-mount license plate bracket with LED illumination
  • Batwing fork-mounted fairing
  • Smoked mini wind deflector
  • Fairing-mounted rear view mirrors
  • Custom bucket seat with perforated insert
  • Silver face gauges
