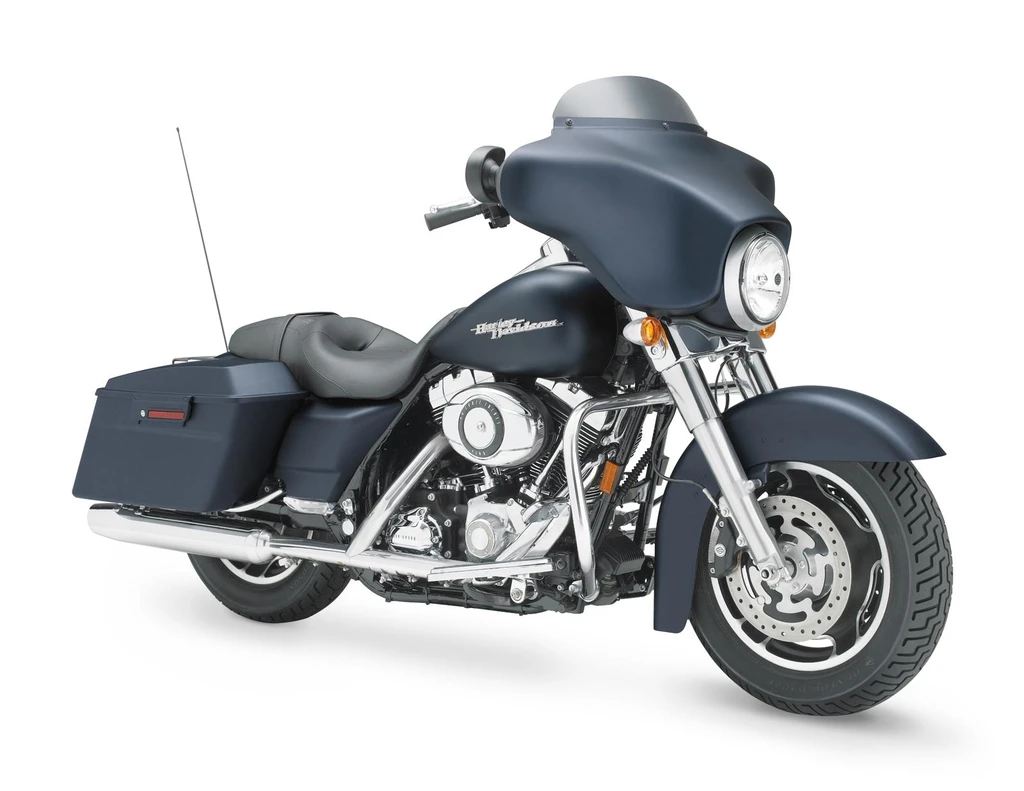

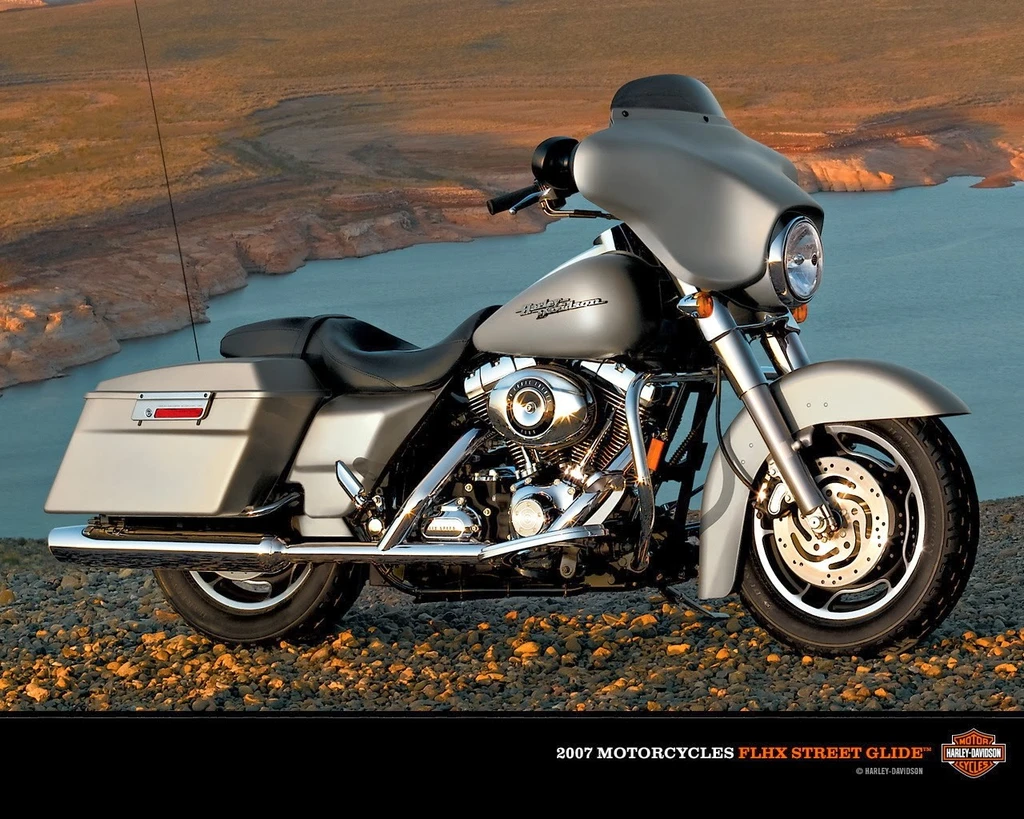

Harley Davidson FLHX Street Glide (2007)

Harley Davidson FLHX Street Glide (2007)

The Harley-Davidson FLHX Street Glide is a stunning example of American touring muscle, expertly blending custom styling with full-fledged touring capability. Its “bat wing” fairing and sleek lines evoke the classic Electra Glide design, while its modern amenities like Harman/Kardon’s 40-watt Advanced Audio System ensure that riders stay entertained on long journeys.

At its heart lies a potent Twin Cam 96 engine, fed by Electronic Sequential Port Fuel Injection (ESPFI) for seamless power delivery. This 1584cc powerhouse is paired with a smooth-shifting 6-speed Cruise Drive transmission, making short work of even the longest stretches of open road. The result is an unparalleled riding experience that’s equal parts comfort and thrills.

Whether cruising down Main Street or carving through twisties on a mountain pass, the FLHX Street Glide exudes confidence and control, its low profile and sleek lines slicing through air with ease. With its advanced ergonomics, premium amenities, and legendary Harley-Davidson heritage, this bike is ready to take riders wherever their hearts desire – and back again, in style.

Key Specifications

Engine TypeFour stroke, V-Twin, ‘Twin Cam 96’
Engine Capacity96.6 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity22.7 Litres / 6.0 gal
Weight (Wet/Kerb)810 lbs / 367 kg
Seat Height26.3 inches / 668.0 mm
Harley Davidson FLHX Street Glide (2007)

All Specifications

Make & Model

ModelHarley Davidson FLHX Street Glide
Year2007

Engine

Engine TypeFour stroke, V-Twin, ‘Twin Cam 96’
Displacement96.6 cubic inches / 1584 cc
Bore x Stroke95.25 x 111.25 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.9265th 3.279 3.279 3.279 6th 2.790 2.790 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

Front Tire SizeMT90B16
Rear Tire SizeMU85B16
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.3 inches / 668.0 mm
Wheelbase63.5 inches / 1613 mm
Fuel Tank Capacity22.7 Litres / 6.0 gal
Wet (kerb/curb) Weight810 lbs / 367 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • 1584cc Twin Cam 96 engine
  • New redesigned football shape air cleaner
  • 40-watt Advanced Audio System by Harman/Kardon
  • Silver face gauges
  • Batwing fork-mounted fairing with smoked mini wind deflector
  • Fairing-mounted rear view mirrors
  • Clean front fender
  • Black, Slotted Disc Cast Aluminum wheels
  • Smoked chrome 3-D tank emblem
  • Custom bucket seat with perforated insert
  • Streamliner footboards, brake pedal and passenger pegs
  • Low Profile rear suspension
  • Rear fender ground effects
  • Lockable GTX Nylon hard saddlebags with color-matched latches
  • Tri-line LED lighting to the bottom of the rear fender
