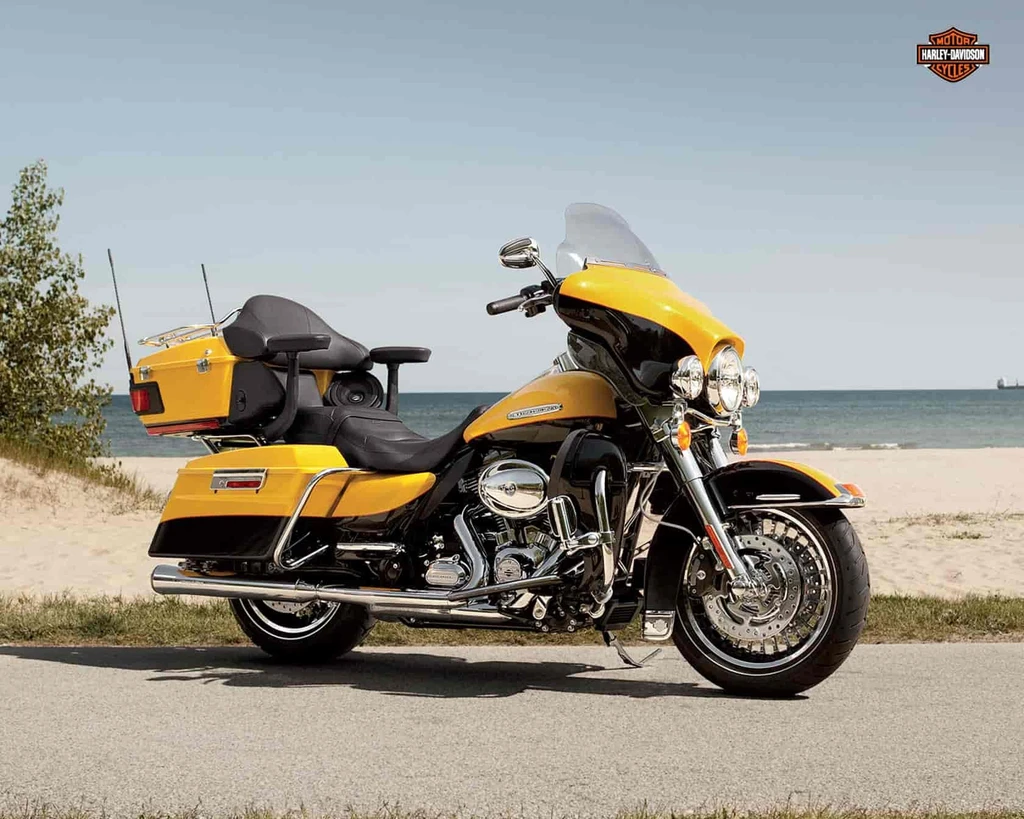

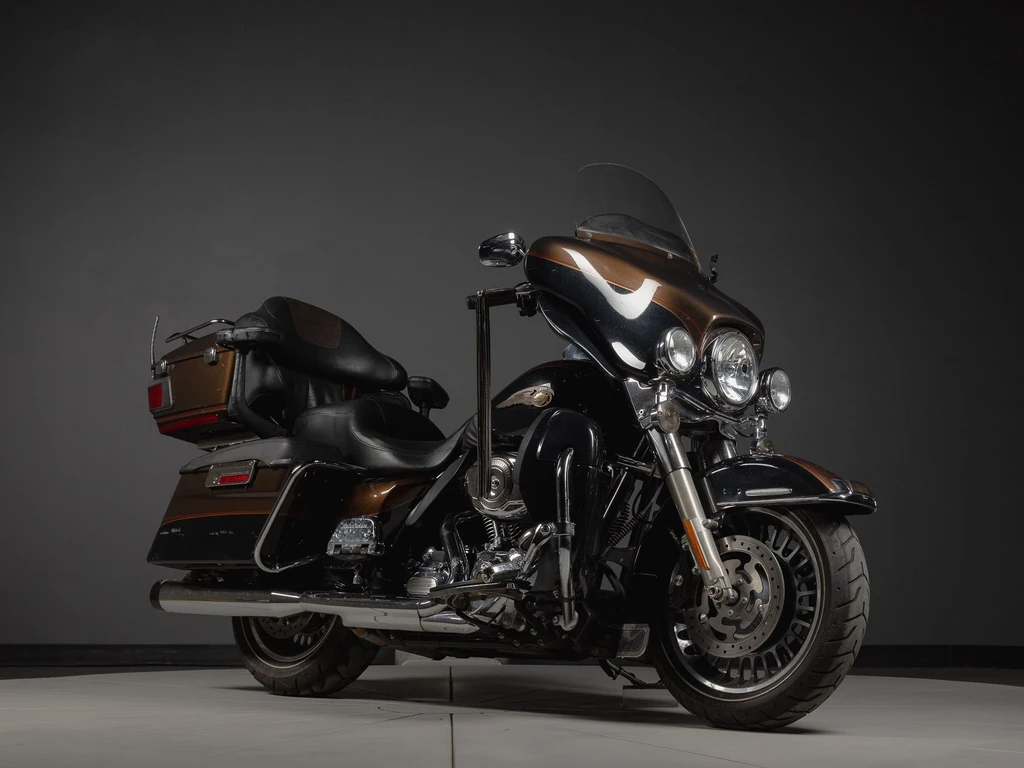

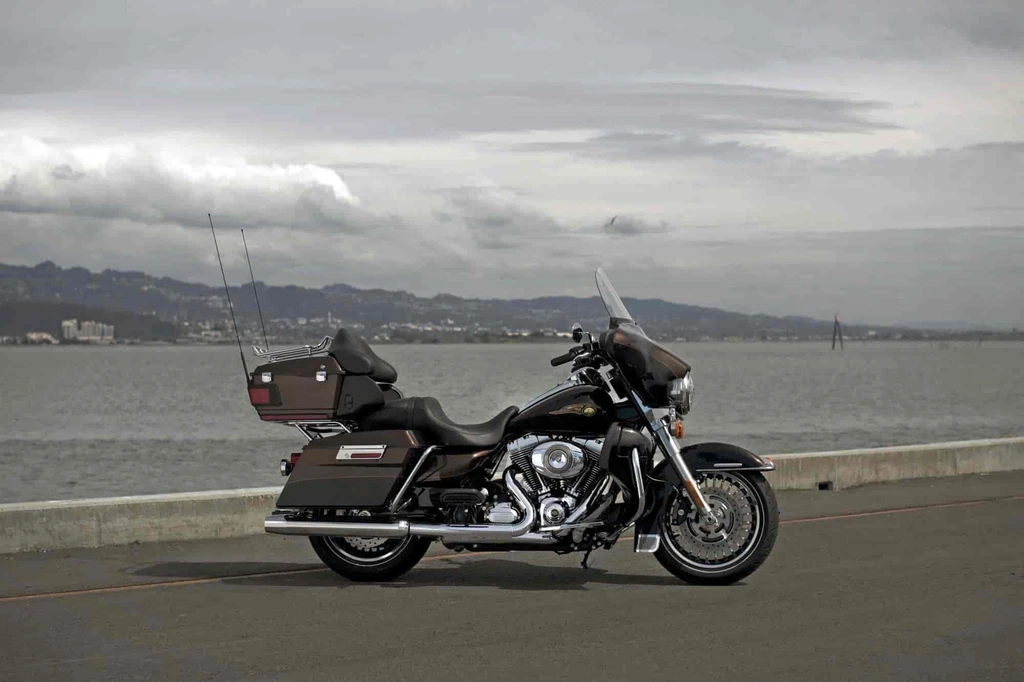

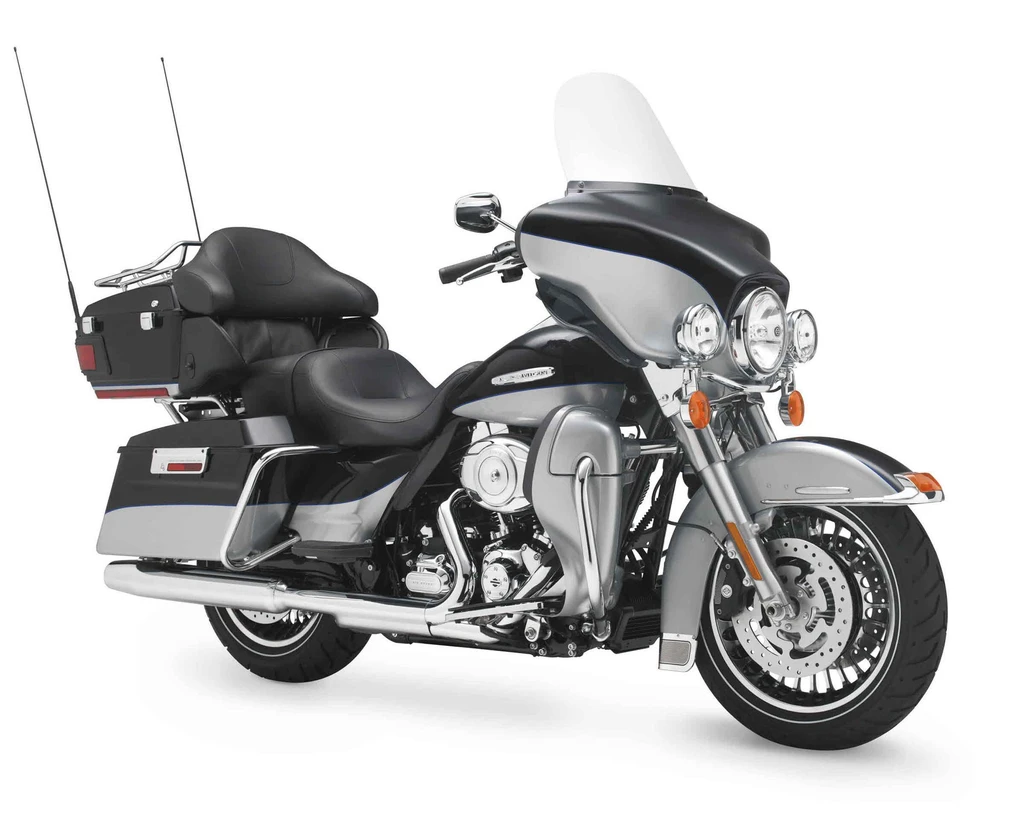

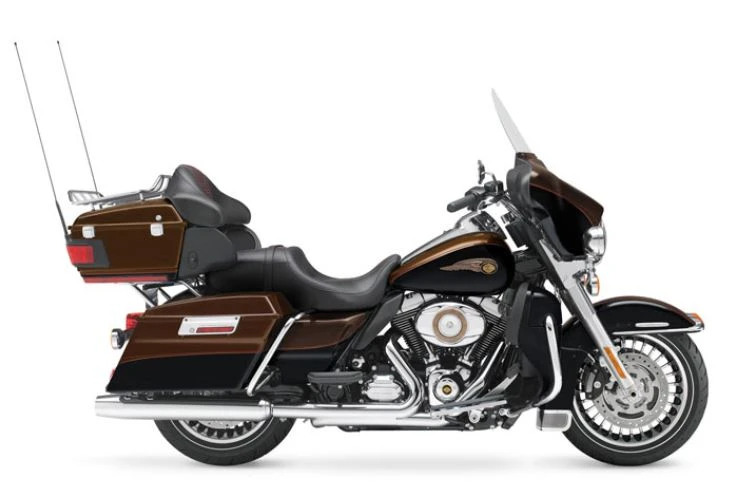

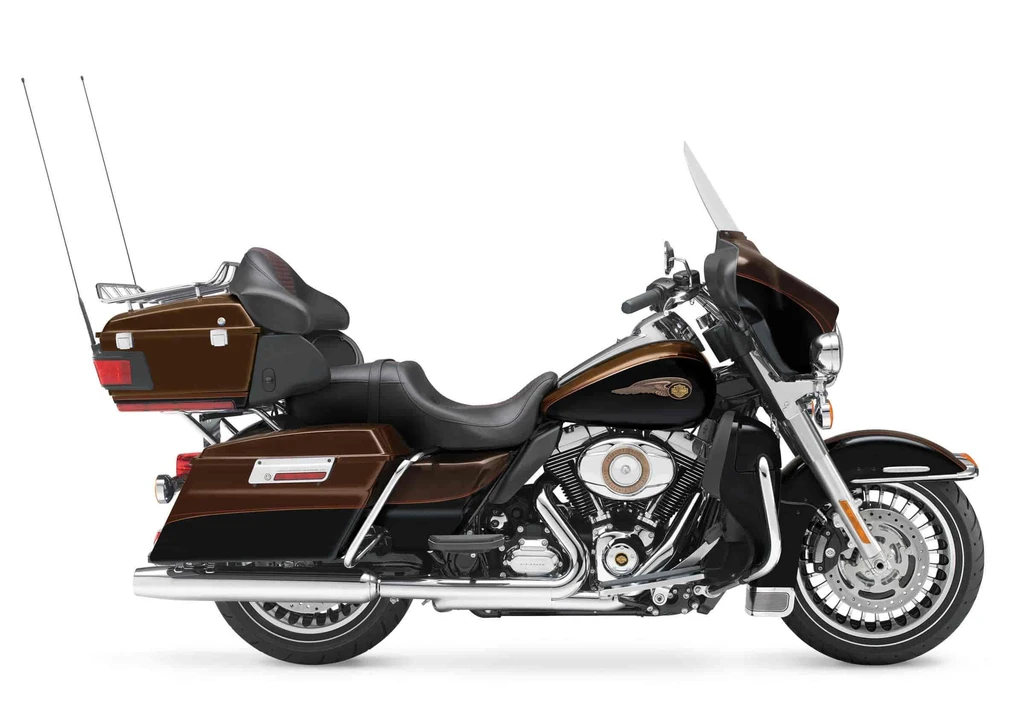

Harley Davidson FLHTK Electra Glide Ultra Limited110th Anniversary (2013)

Harley Davidson FLHTK Electra Glide Ultra Limited110th Anniversary (2013)

The Harley-Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary Edition is a masterpiece of touring motorcycles. Powered by the potent Twin Cam 103TM engine, producing 102 ft-lbs of peak torque at 3500 rpm, this bike is built for long-haul comfort and exceptional performance on any road.

The Twin Cam 103TM engine’s smooth power delivery is courtesy of the 6-Speed Cruise Drive transmission, while the Isolated Drive System ensures that every twist of the throttle translates to pure riding pleasure. The Electra Glide Ultra Limited features a robust chassis with a single-spar, rigid-backbone frame and two-piece swingarm, delivering responsive maneuverability and long-haul durability.

The bike’s exceptional comfort is further enhanced by the air-adjustable rear shocks, 41.3 mm telescopic front forks, and ample storage compartments throughout the vented removable lower fairings. The Electra Glide Ultra Limited 110th Anniversary Edition is a limited production model, with only 3,750 motorcycles available worldwide.

With its rich heritage and unparalleled touring capabilities, the Harley-Davidson FLHTK Electra Glide Ultra Limited 110th Anniversary Edition is sure to create unforgettable riding experiences for years to come.

Key Specifications

Engine TypeFour stroke, Twin Cam 103 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity1690 cc / 103.1 cub in.
Max Torque143 Nm / 105.4 ft/lb @ 3750 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)896 lbs / 414 kg
Seat Height27.3 inches / 695 mm
Harley Davidson FLHTK Electra Glide Ultra Limited110th Anniversary (2013)

All Specifications

Make & Model

ModelHarley Davidson FLHTK Electra Glide Ultra Limited110th Anniversary
Year2013

Engine

Engine TypeFour stroke, Twin Cam 103 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement1690 cc / 103.1 cub in.
Bore x Stroke98.4 x 111.25 mm
Compression Ratio10.0:1
Max Torque143 Nm / 105.4 ft/lb @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir/Liquid cooled,
ExhaustChrome, 2-1-2 dual exhaust with tappered mufflers

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionSwingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable
Rake26
Trail170 mm / 6.6 IN

Wheels & Brakes

Front Tire SizeBW 130/80B17 65H
Rear Tire SizeBW 180/65B16 81H
Front Brakes2x 300mm disc 4 piston caliper ABS
Rear BrakesSingle 300mm disc 4 piston caliper ABS

Dimension & Weights

Seat Height27.3 inches / 695 mm
Wheelbase64 inches / 1625 mm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight896 lbs / 414 kg

Features

  • Twin Cam 103TM engine with Automatic Compression Release
  • Integrated oil cooler
  • Produces 102 ft. lbs. of peak torque at 3500 rpm
  • 6-Speed Cruise DriveTM transmission
  • 41.3 mm telescopic front forks
  • Air-adjustable rear shocks
  • Isolated Drive System for smooth power delivery
  • Single-spar, rigid-backbone frame
  • Two-piece swingarm designed for responsive manoeuvrability and long-haul durability
  • Chassis geometry calibrated for confident handling and comfort
  • “Tubeless” Chrome Lace Aluminium Wheel option for ease of tire replacement
  • Contrasting paint color options
  • 28-spoke Cast Aluminum wheels with narrow whitewall tires
  • Black powder-coated powertrain with chrome covers
  • Chrome 2-1-2 dual exhaust with tapered mufflers
  • Bat-wing, fork-mounted fairing with clear, Lexan windshield
  • Smoked Lexan adjustable fairing-mounted air deflectors
  • Vented removable lower fairings with integral storage compartments
