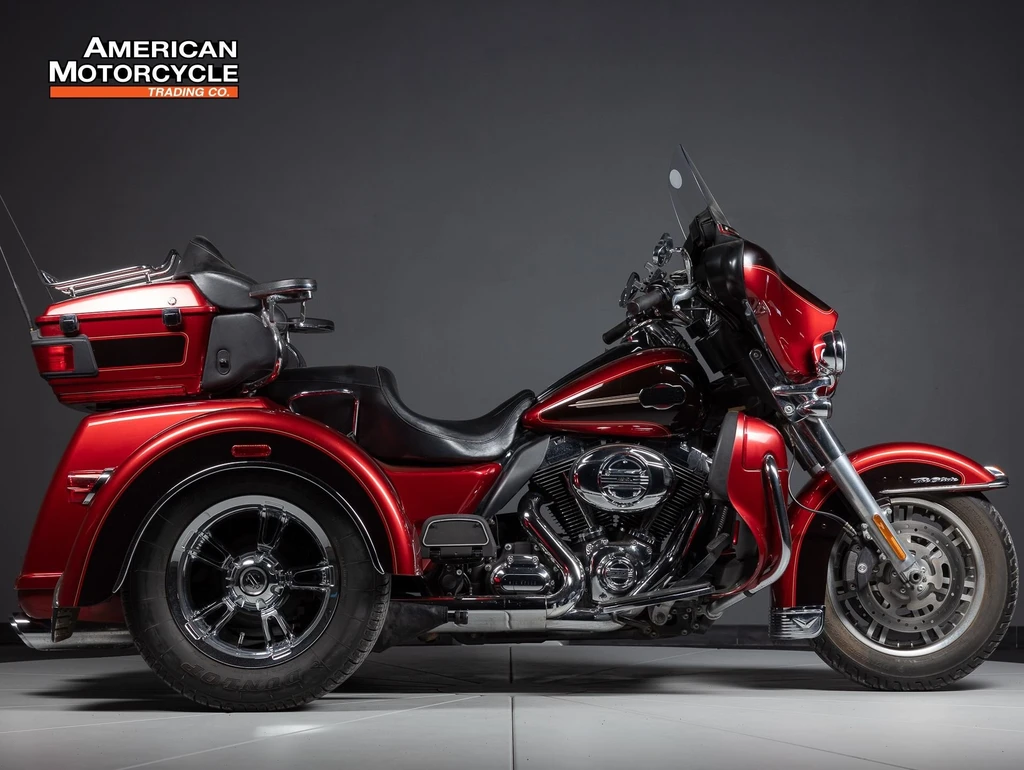

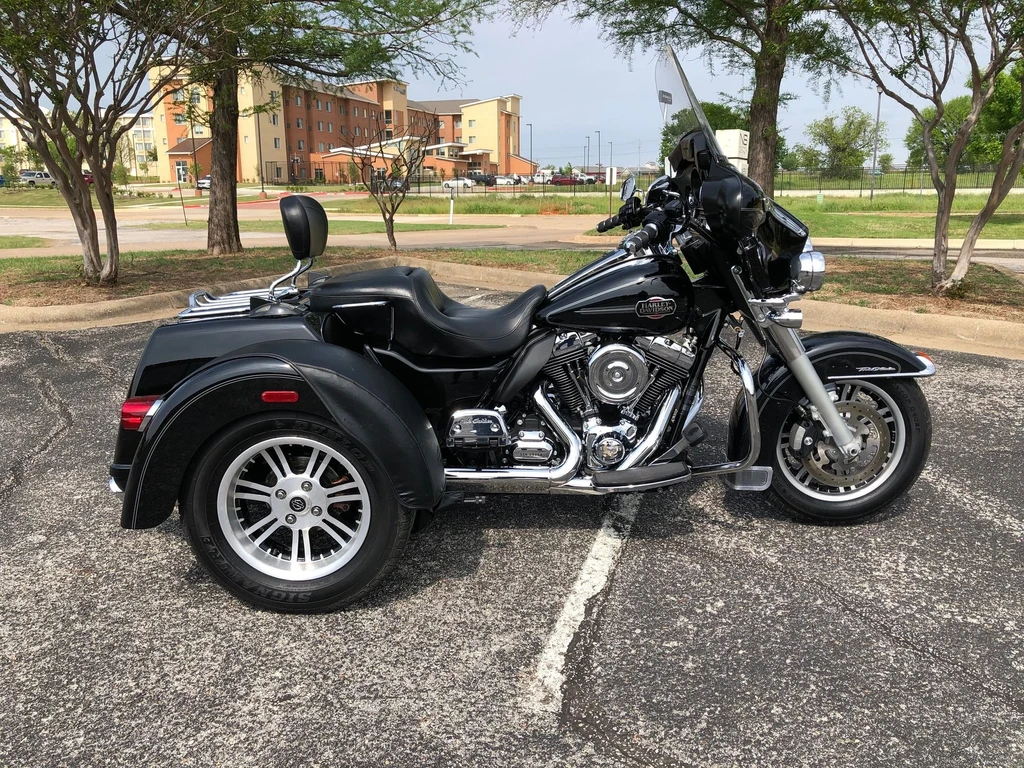

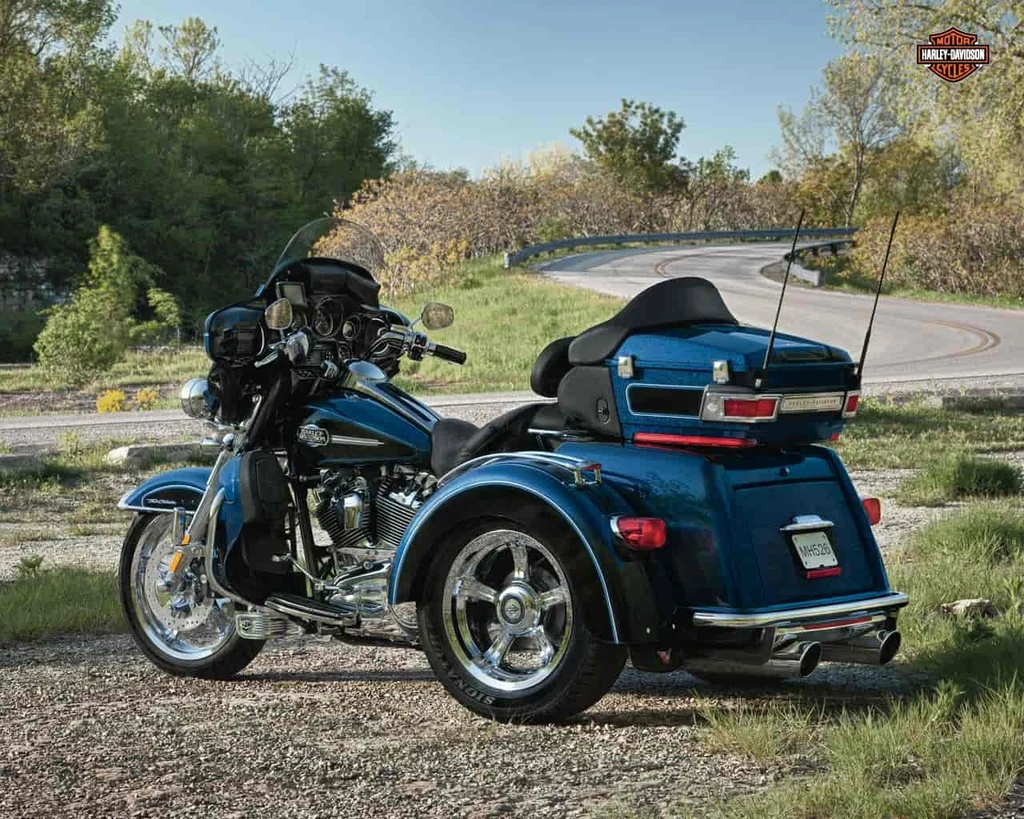

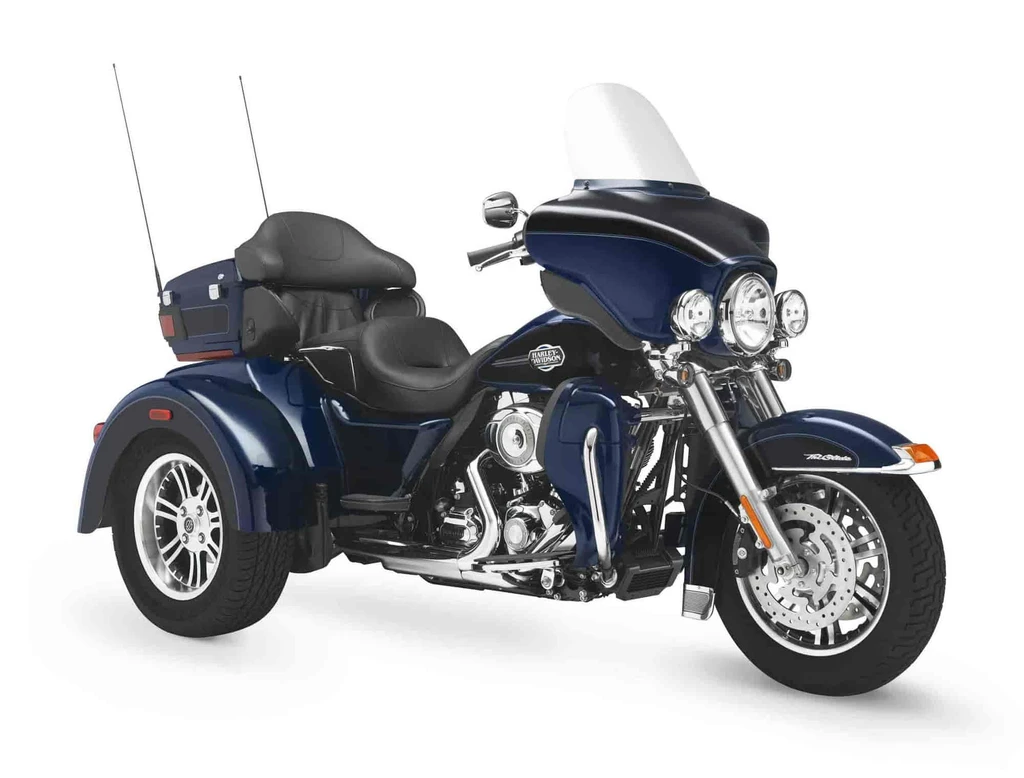

Harley Davidson FLHTCUTG Tri Glide Ultra Classic (2012)

The Harley-Davidson FLHTCUTG Tri Glide Ultra Classic is the ultimate expression of freedom on three wheels. This full-featured touring trike combines long-haul comfort with a potent Twin Cam 103 engine, delivering authentic Harley-Davidson performance and excitement.

Its frame and chassis structure are specifically engineered to handle the demands of a three-wheel vehicle, providing a stable platform for confident riding. The Tri Glide Ultra Classic features a range of amenities, including a deluxe Tour-Pak carrier and integrated trunk, perfect for extended tours or daily commutes.

The Tri Glide Ultra Classic is equipped with cutting-edge technology, including a 4-speaker, 80-watt Harmon/Kardon Advanced Audio System and electronic cruise control. The electric reverse drive system makes navigating tight spaces effortless.

With its powerful engine, advanced features, and unmistakable style, the Harley-Davidson FLHTCUTG Tri Glide Ultra Classic is ready to redefine long-haul riding experiences.

Key Specifications

Engine Type	Four stroke, Twin Cam 103 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	138 Nm / 14.1 kgf-m / 101.8 ft/lb / @ 3750 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	1235 lbs / 560 kg
Seat Height	28.3 inches / 720 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHTCUTG Tri Glide Ultra Classic (2012)

All Specifications

Make & Model

Model	Harley Davidson FLHTCUTG Tri Glide Ultra Classic
Year	2012

Engine

Engine Type	Four stroke, Twin Cam 103 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	10.0:1
Max Torque	138 Nm / 14.1 kgf-m / 101.8 ft/lb / @ 3750 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air/water cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 10.537 / 2nd 7.303 / 3rd 5.423 / 4th 4.392 / 5th 3.741 / 6th 3.157:1
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded
Front Suspension	41.3 mm telescopic, triple-circuit damping,
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Air-adjustable
Rear Suspension Travel	2.9 inches / 76 mm
Rake	26
Trail	100 mm / 3.94 in

Wheels & Brakes

Front Wheel/Rim Size	Black, 7-spoke cast aluminium
Front Tire Size	MT90B16 72H
Rear Tire Size	2x P205/65R15
Front Brakes	2 x 300mm disc, 4 piston caliper
Rear Brakes	2 x 229mm disc, 1 piston caliper

Dimension & Weights

Seat Height	28.3 inches / 720 mm
Wheelbase	65.8 inches / 1670 mm
Ground Clearance	135 mm / 5.3 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	1235 lbs / 560 kg
Dry Weight	545 kg / 1202 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Large Twin Cam 103 engine
Lengthened and raked front fork with steering damper
Deluxe Tour-Pak carrier
Integrated trunk for 6.5 cubic feet of storage
4-speaker, 80-watt Harmon/Kardon Advanced Audio System
Electronic cruise control
Electric reverse drive
Bat-wing, fork-mounted fairing with clear, Lexan windshield
Smoked Lexan adjustable fairing-mounted air deflectors
Vented removable lower fairings with integral storage compartment
Chrome, low-profile fuel tank console
Fairing-mounted electronic speedometer and tachometer
40-watt CB radio and intercom system
One-piece, two-up Ultra Classic Electra Glide comfort stitch seat
Injection Molded hard Tour-Pak with soft luggage liners
Passenger backrest and arm rests

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
