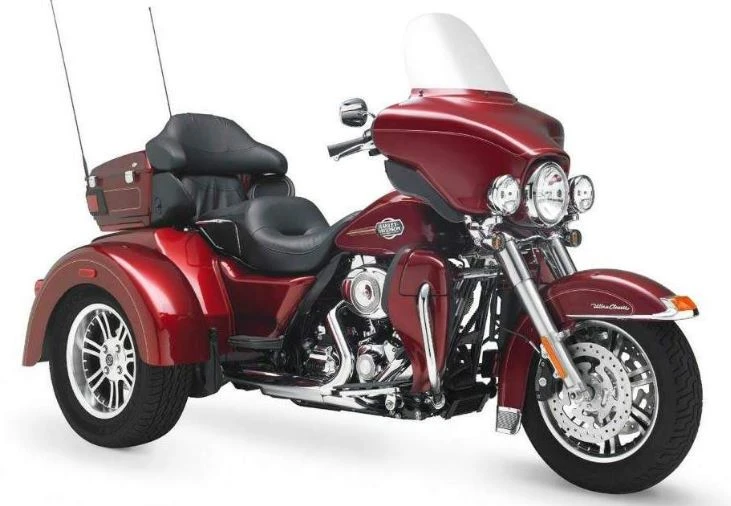

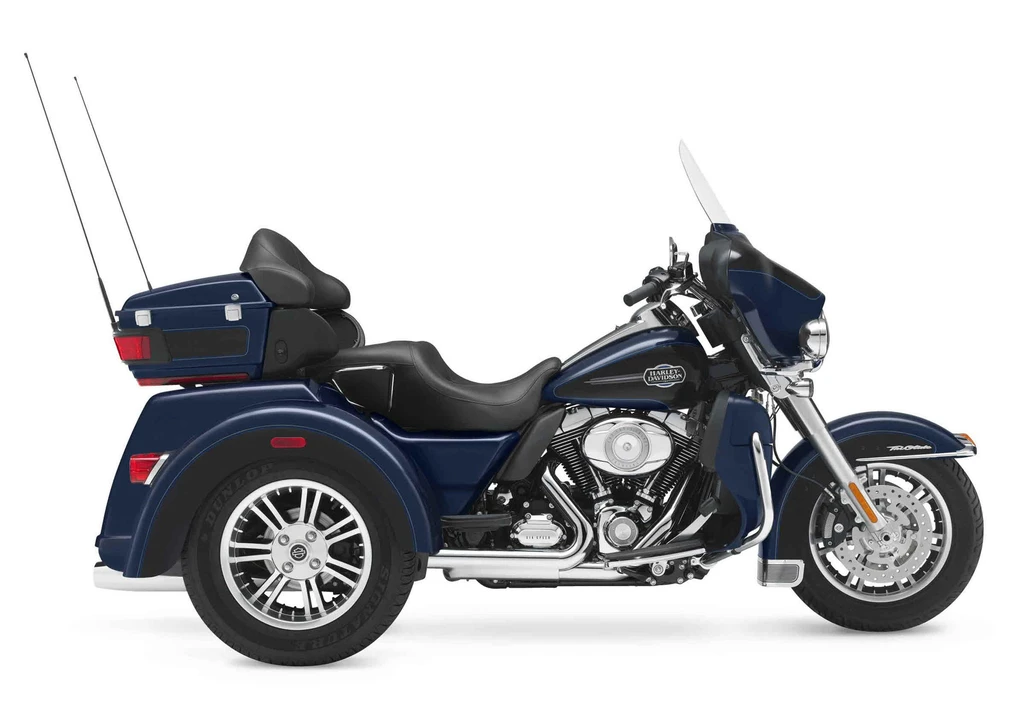

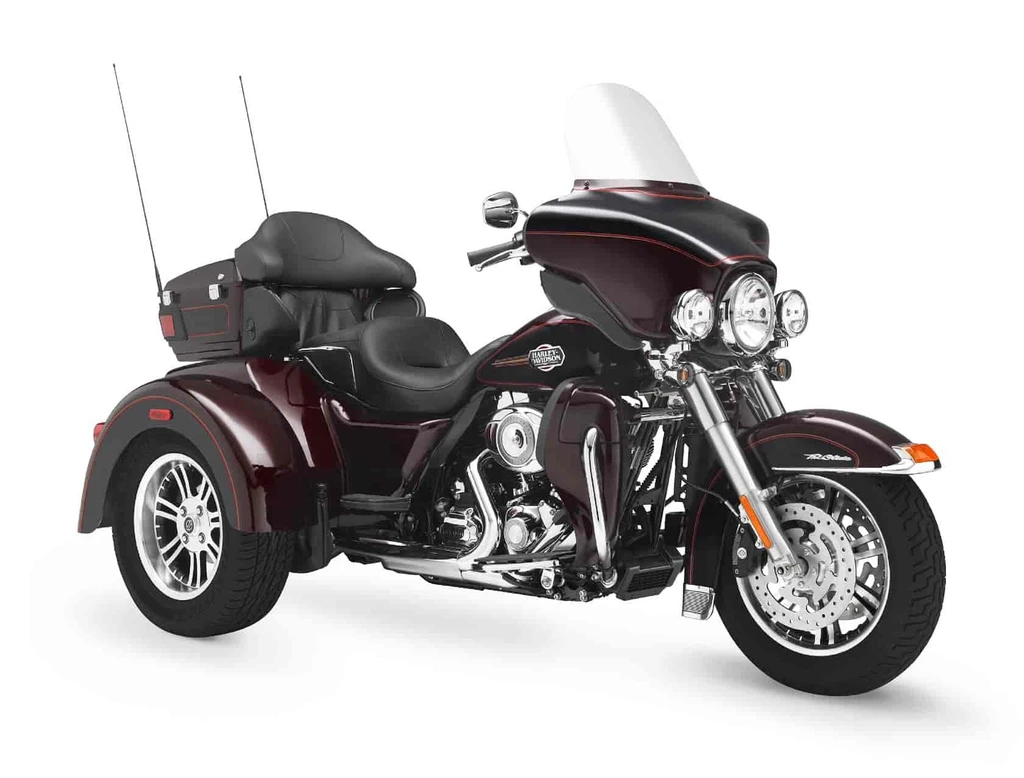

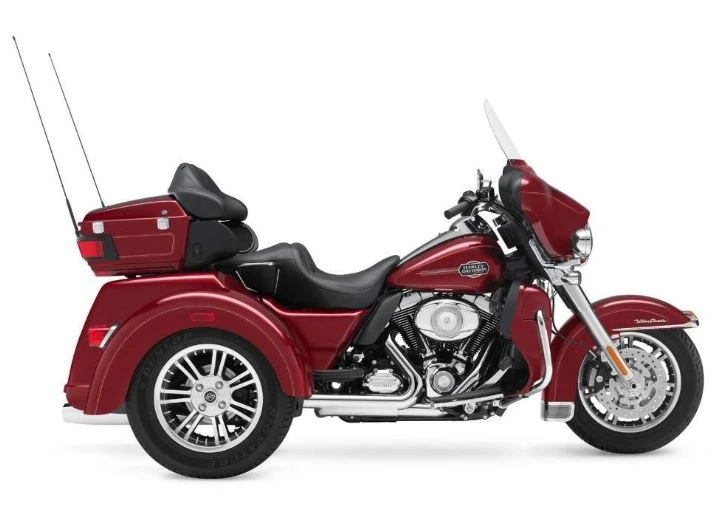

Harley Davidson FLHTCUTG Tri Glide Ultra Classic (2011)

The Harley-Davidson FLHTCUTG Tri Glide Ultra Classic is a three-wheeled tourer that embodies the perfect blend of style, comfort, and performance.

Engineered to handle the unique demands of a trike, the Tri Glide features a purpose-built frame and chassis structure designed to minimize steering effort by up to 25 percent. The forks have been lengthened for improved stability, while a steer damper and rear-axle assembly work in tandem to reduce wobble and bumps during turns.

Powered by a potent Twin Cam 103 V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), the Tri Glide delivers an impressive 101 ft. lbs. of torque, making it ideal for long-distance touring. The smooth-shifting 6-speed Cruise Drive transmission is complemented by an optional electric reverse module, while dual front and rear disc brakes provide confident stopping power.

The Tri Glide’s sleek bodywork seamlessly integrates with the Ultra Classic’s iconic design language, complete with a Tour Pak luggage compartment and plush passenger seating area.

Key Specifications

Engine Type	Four stroke, Twin Cam 103 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	138 Nm / 14.1 kgf-m / 101.8 ft/lb / @ 3750 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	1235 lbs / 560 kg
Seat Height	28.3 inches / 720 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHTCUTG Tri Glide Ultra Classic (2011)

All Specifications

Make & Model

Model	Harley Davidson FLHTCUTG Tri Glide Ultra Classic
Year	2011

Engine

Engine Type	Four stroke, Twin Cam 103 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	10.0:1
Max Torque	138 Nm / 14.1 kgf-m / 101.8 ft/lb / @ 3750 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air/water cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 10.537 / 2nd 7.303 / 3rd 5.423 / 4th 4.392 / 5th 3.741 / 6th 3.157:1
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded
Front Suspension	41.3 mm telescopic, triple-circuit damping,
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Air-adjustable
Rear Suspension Travel	2.9 inches / 76 mm
Rake	26
Trail	100 mm / 3.94 in

Wheels & Brakes

Front Wheel/Rim Size	Black, 7-spoke cast aluminium
Front Tire Size	MT90B16 72H
Rear Tire Size	2x P205/65R15
Front Brakes	2 x 300mm disc, 4 piston caliper
Rear Brakes	2 x 229mm disc, 1 piston caliper

Dimension & Weights

Seat Height	28.3 inches / 720 mm
Wheelbase	65.8 inches / 1670 mm
Ground Clearance	135 mm / 5.3 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	1235 lbs / 560 kg
Dry Weight	545 kg / 1202 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Twin Cam 103 V-Twin engine
101 ft. lbs. of torque
6-speed Cruise Drive transmission
Electric reverse ($1,195) option
Dual front disc brakes
Hayes Brake dual-disc rear brake system
Integrated park brake
Clean lines and integration with existing Ultra bodywork
Painted with OEM quality paint and process
Composite rear fenders for easy removal and repair
Moulded-composite trunk with 4.5 cubic feet of storage space
Combined luggage capacity of 6.56 cubic feet
Up to 80 pounds carrying capacity
Single key for all luggage locking functions and ignition activation
Dual mufflers with tapered end caps
Brake/tail/turn lights on each fender
LED side running lights
Front and rear black and machined split seven-spoke cast aluminium wheels
Lengthened front forks by 1.775 inches
Increased rake from 29.25 degrees to 32.00 degrees
