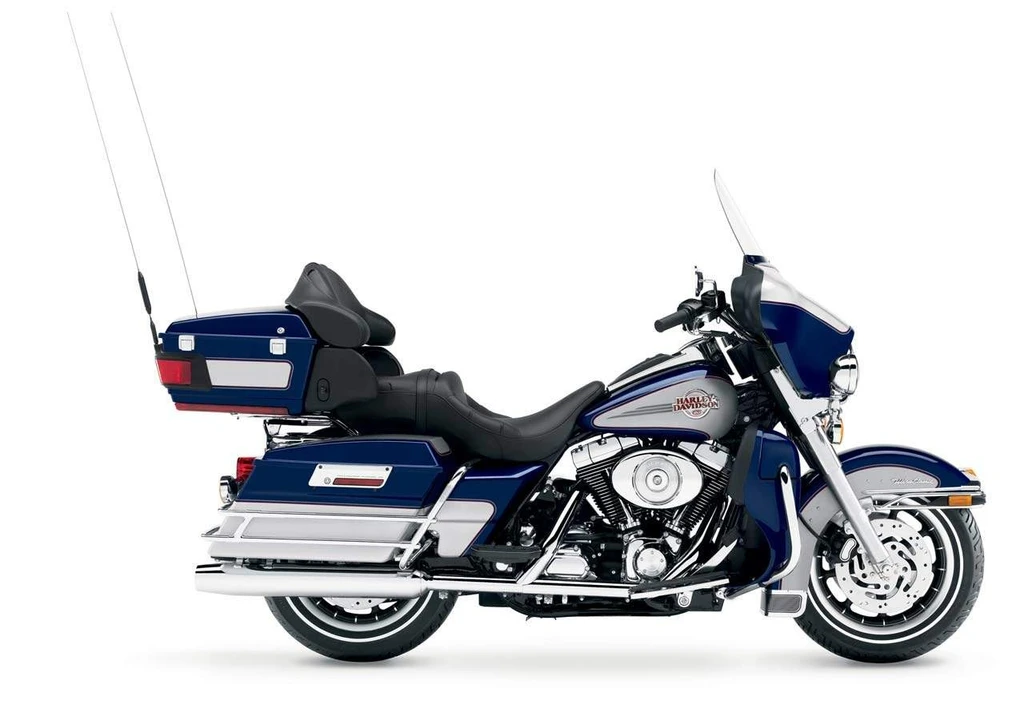

Harley Davidson FLHTCUI Electra Glide Ultra Classic (2005 – 2006)

Harley Davidson FLHTCUI Electra Glide Ultra Classic (2005 - 2006)

The Harley-Davidson FLHTCUI Electra Glide Ultra Classic – the ultimate touring machine for those who crave it all. At its core lies the powerful and refined EFI Twin Cam 88 engine, delivering an unparalleled riding experience.

From the comfort-stitched saddle with wraparound passenger backrest to the spacious hardbags and restyled Tour-Pak, every detail is designed to make long-haul rides a pleasure. The vented fairing lowers keep legs cool, while reduced clutch lever effort makes navigating smooth.

The FLHTCUI Ultra Classic Electra Glide Model Overview highlights its impressive features: Electronic Sequential Port Fuel Injection, passenger sound system, CB radio and intercom system, cruise control, and full instrumentation are all standard. Custom luggage liners add convenience for overnight tours, and the lower fairings feature large vent doors for ventilation in warm weather.

The 1450cc Twin Cam 88 engine provides a smooth ride, while its black powder-coated finish with chrome covers adds a touch of class. The new 80-watt Advanced Audio System by Harman/Kardon delivers exceptional sound quality. With 12 color options available for 2006, including solid, Sunglo, and two-tone combinations, the FLHTCUI Electra Glide Ultra Classic is the ultimate touring machine that truly has it all – and then some.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity88.4 cubic inches / 1449 cc
Max Power67 hp / 48.8 kW @ 5200 rpm
Max Torque86 ft-lb / 116.6 nm
Fuel Tank Capacity5.0 US gallons / 19.0 L
Seat Height27.3 inches / 693.4 mm
Harley Davidson FLHTCUI Electra Glide Ultra Classic (2005 - 2006)

All Specifications

Make & Model

ModelHarley Davidson FLHTCUI Electra Glide Ultra Classic
Year2005 – 2006

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement88.4 cubic inches / 1449 cc
Bore x Stroke95.3 x 101.6 mm
Compression Ratio8.9:1
Max Horsepower67 hp / 48.8 kW @ 5200 rpm
Max Torque86 ft-lb / 116.6 nm
Engine Management SystemElectronic Sequential Port Fuel Injection ESPFI
Lubrication SystemDry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10 pressurized oil filter
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet 9-plate
Gearbox5 Speed
Gear Ratios1st 10.110 2nd 6.958 3rd 4.953 4th 3.862 5th 3.150
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, rectangular section backbone w/ twin down-tubes Swing Arm Conventional rectangular
Front SuspensionAir-adjustable
Rear SuspensionAir-adjustable
Rake26
Trail157.5 mm / 6.2 in

Wheels & Brakes

Front Tire Size130/90-16
Rear Tire Size130/90-16
Front Brakes2x 292mm discs 4 piston calipers
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height27.3 inches / 693.4 mm
Wheelbase63.5 inches / 1612.9 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity5.0 US gallons / 19.0 L
Dry Weight385 kg / 848.8 lbs

Features

  • EFI Twin Cam 88 core engine
  • 1450cc V-twin engine
  • Black powder-coated engine with chrome covers
  • New low-effort clutch
  • Bat-wing, fork-mounted fairing
  • Vented lower fairings with storage compartments
  • Comfort-stitch touring saddle
  • Spacious hardbags
  • Two-position King Tour-Pak with LED side lights
  • Reduced clutch lever effort
  • Electronic passenger controls
  • Cruise control
  • Advanced Audio System by Harman/Kardon
  • 80-watt audio system
  • Vibration-isolated engine
  • Custom luggage liners
  • Locking GTX nylon alloy saddlebags
  • Air-adjustable rear suspension
