Harley Davidson FLHTCU SE8 Ultra Classic Electric Glide CVO 110th Anniversary (2013)

Harley Davidson FLHTCU SE8 Ultra Classic Electric Glide CVO 110th Anniversary (2013)

The Harley-Davidson FLHTCU SE8 Ultra Classic Electric Glide CVO 110th Anniversary is a masterclass in luxury touring. Powered by the renowned Electronic Sequential Port Fuel Injection (ESPFI) engine, this behemoth of a bike exudes effortless power and refinement. The addition of chrome and rubber Slipstream Collection heated hand grips and other premium features further enhance the riding experience.

The Ultra Classic’s dual-control heated two-up seat offers unparalleled comfort for both rider and passenger, while the adjustable backrest ensures optimal support on long journeys. A new chromed billet-style extended reach heel shifter provides added space in the footboard, allowing riders to stretch out and enjoy the open road.

With its High-Performance Harman/Kardon Advanced Audio system featuring BOOM! Bagger speakers, this bike is as much a concert hall as it is a touring machine. The addition of four new color combinations, including the 110th Anniversary scheme, solidifies the Ultra Classic’s status as a true showstopper.

Harley-Davidson has outdone itself with the FLHTCU SE8 Ultra Classic Electric Glide CVO 110th Anniversary, delivering an unparalleled blend of style, substance, and sheer riding pleasure.

Key Specifications

Engine TypeFour stroke, Twin Cam 110 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity1802 cc / 109.96 cub in.
Max Torque156 Nm / 15.9 kgf-m / 115 ft. lbs @ 3750 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)933 lbs / 423.2 kg
Seat Height27.8 inches / 706 mm
Harley Davidson FLHTCU SE8 Ultra Classic Electric Glide CVO 110th Anniversary (2013)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU SE8 Ultra Classic Electric Glide CVO 110th Anniversary
Year2013

Engine

Engine TypeFour stroke, Twin Cam 110 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement1802 cc / 109.96 cub in.
Bore x Stroke101.6 x 111.1 mm
Compression Ratio9.2:1
Max Torque156 Nm / 15.9 kgf-m / 115 ft. lbs @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir/Liquid cooled,

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gear Ratios1st 9.312 9.312 9.030 / 2nd 6.421 6.421 6.226 / 3rd 4.774 4.774 / 4.630 / 4th 3.926 3.926 3.807 / 5th 3.279 3.279 3.179 / 6th 2.790 2.790 2.706
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, sqaure-section backbone with twin downtubes
Front Suspension41.3 mm telescopic forks,
Front Suspension Travel116 mm /
Rear SuspensionSwing Arm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Lowered, air-adjustable,
Trail170 mm / 6.6 in

Wheels & Brakes

Front Tire SizeD408 130/80B17 65H
Rear Tire SizeD407 180/65B16 81H
Front Brakes2x 300mm discs 4 piston calipers, ABS Standard
Rear BrakesSingle 300mm disc 4 piston caliper, ABS Standard

Dimension & Weights

Seat Height27.8 inches / 706 mm
Wheelbase63.5 inches / 1613 mm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight933 lbs / 423.2 kg

Features

  • Hydraulically actuated Assist & Slip Clutch Pack with slip feature on downshifts
  • Reduced effort hydraulic clutch actuation
  • Reshaped clutch lever
  • Chrome billet-style extended reach heel shifter
  • Perforated leather insert for seating and backrest surfaces
  • Dual-control heated seat with hammock-style suspension
  • Spring-board style suspension system in the passenger area
  • High-performance Harman/Kardon Advanced Audio system
  • BOOM! Audio High Performance BOOM! Bagger speakers
  • Indoor/Outdoor motorcycle storage cover with embroidered CVO logo
  • Slipstream Collection heated hand grips
  • Rider and passenger footboard inserts
  • Brake lever pad
  • Shifter pegs
  • Highway pegs
  • Windshield trim

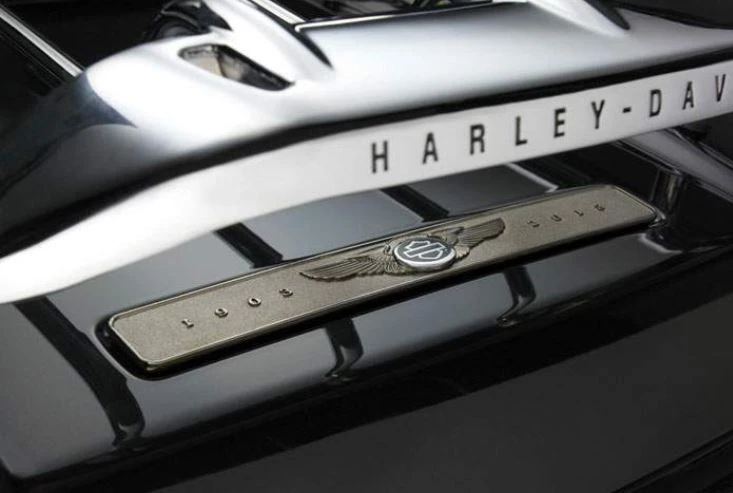

  • 110th Anniversary Edition serialized badging on the tank console insert
  • Midnight Pearl 110thAnniversary tank medallion
  • Black engine with Gloss Black covers
