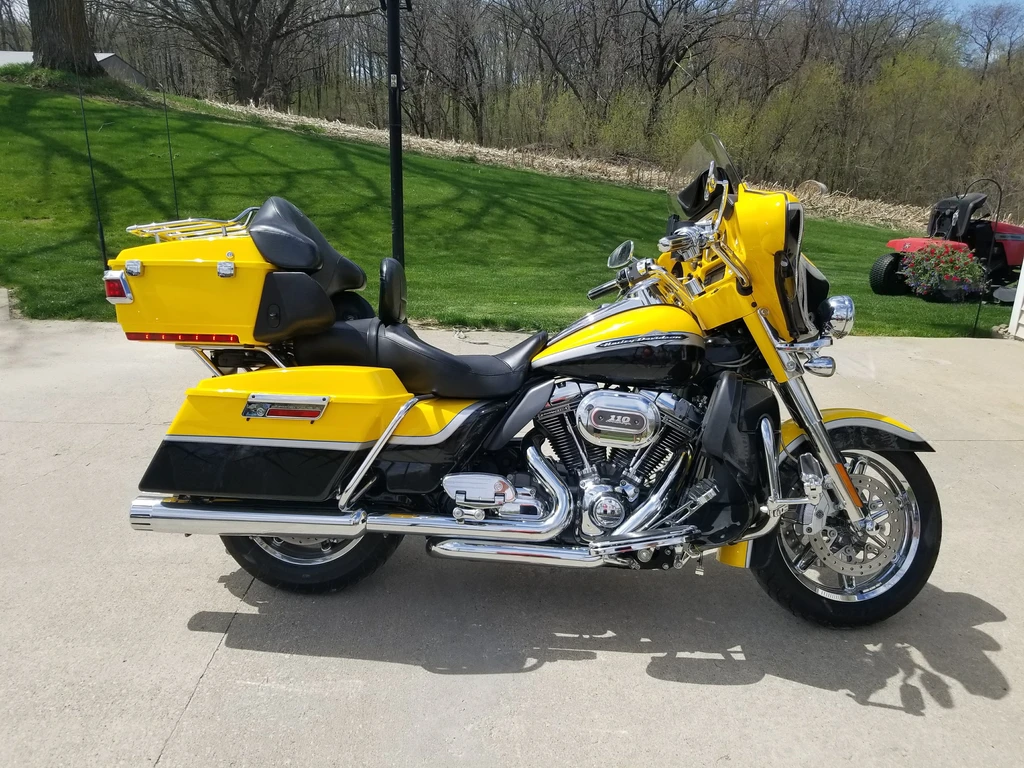

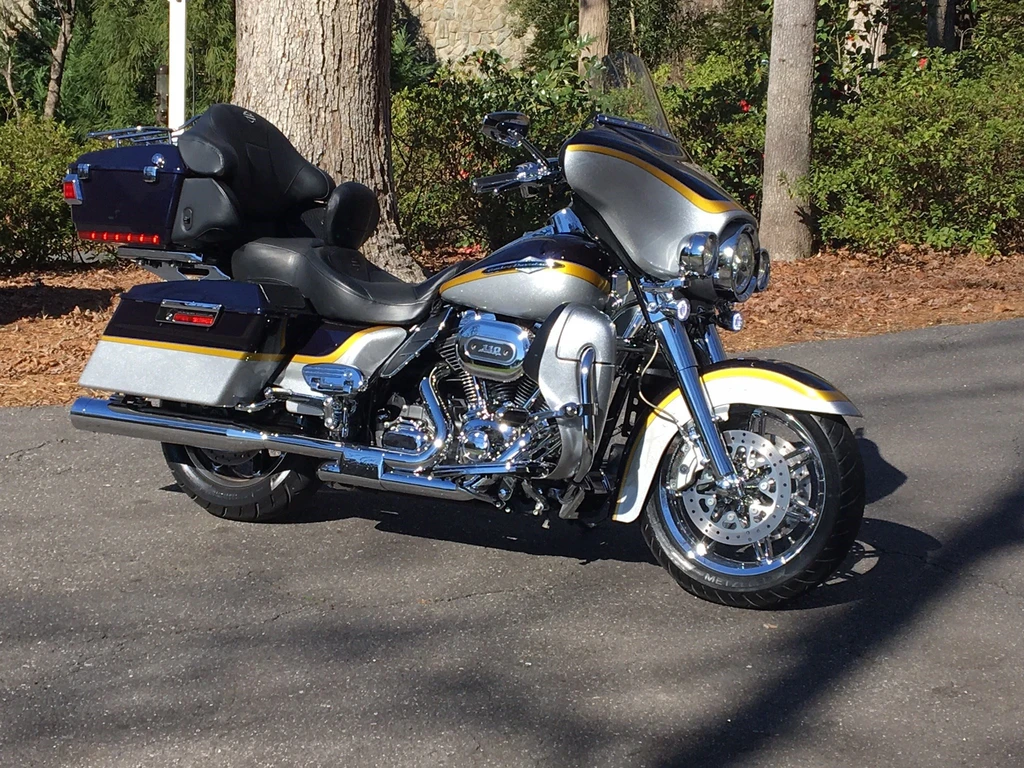

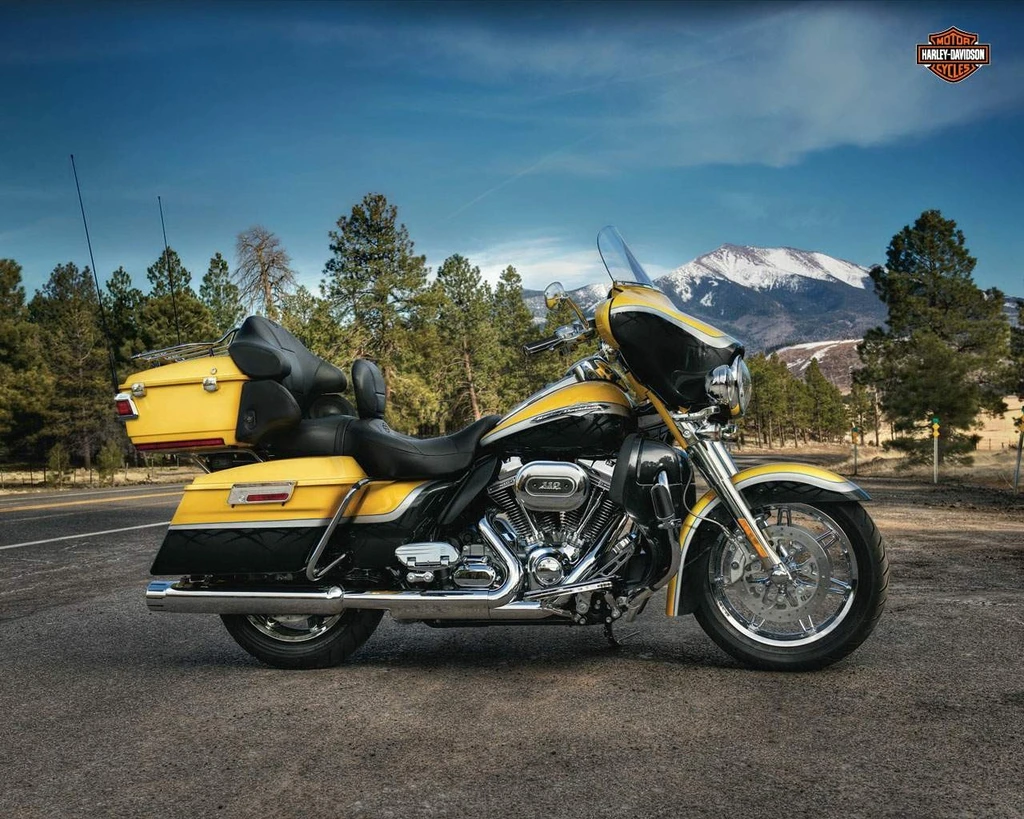

Harley Davidson FLHTCU SE7 Electric Glide Ultra Classic CVO (2012)

The 2012 Harley-Davidson FLHTCU SE7 Electric Glide Ultra Classic CVO is a masterclass in luxury touring motorcycles. Its innovative Touring chassis, featuring a single-spar frame and swingarm, provides the perfect platform for long-haul adventures.

At its heart lies the Twin Cam 110 V-Twin engine, delivering exceptional power and character to this majestic machine. The Electronic Sequential Port Fuel Injection (ESPFI) system ensures seamless fuel delivery, while the Electronic Throttle Control (ETC) and cruise control make every ride a breeze.

The Ultra Classic Electra Glide CVO experience is elevated by its opulent features, including a suspended, dual-control heated seat, adjustable passenger backrest with lumbar support, and plush-lined Tour-Pak luggage. The BOOM! Audio system boasts high-performance speakers and an amplifier tuned to perfection, while the Mirror Chrome Chisel Custom wheels and King Tour-Pak with chrome LED brake/tail lamps add a touch of sophistication.

Ride this behemoth of a motorcycle, and you’ll be treated to a symphony of power, luxury, and style – the ultimate long-haul touring experience that redefines the boundaries of what’s possible on two wheels.

Key Specifications

Engine Type	Four stroke, Twin Cam 110 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity	1802 cc / 109.96 cub in.
Max Torque	156 Nm / 15.9 kgf-m / 115 ft. lbs @ 3750 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	933 lbs / 423.2 kg
Seat Height	27.8 inches / 706 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FLHTCU SE7 Electric Glide Ultra Classic CVO
Year	2012

Engine

Engine Type	Four stroke, Twin Cam 110 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement	1802 cc / 109.96 cub in.
Bore x Stroke	101.6 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	156 Nm / 15.9 kgf-m / 115 ft. lbs @ 3750 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air/Liquid cooled,

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gear Ratios	1st 9.312 9.312 9.030 / 2nd 6.421 6.421 6.226 / 3rd 4.774 4.774 / 4.630 / 4th 3.926 3.926 3.807 / 5th 3.279 3.279 3.179 / 6th 2.790 2.790 2.706
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, sqaure-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic forks,
Front Suspension Travel	116 mm /
Rear Suspension	Swing Arm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Lowered, air-adjustable,
Trail	170 mm / 6.6 in

Wheels & Brakes

Front Tire Size	D408 130/80B17 65H
Rear Tire Size	D407 180/65B16 81H
Front Brakes	2x 300mm discs 4 piston calipers, ABS Standard
Rear Brakes	Single 300mm disc 4 piston caliper, ABS Standard

Dimension & Weights

Seat Height	27.8 inches / 706 mm
Wheelbase	63.5 inches / 1613 mm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	933 lbs / 423.2 kg

Features

Dual-control heated seat
Adjustable passenger backrest with lumbar support
Plush lined Tour-Pak luggage
Saddlebags
Mirror Chrome Chisel Custom wheels
Matching brake rotors
King Tour-Pak
Chrome LED brake/tail lamps
Electronic Throttle Control (ETC)
Cruise control
Anti-lock Braking System (ABS)
Twin Cam 110 V-Twin engine
Fuel-injected engine
Up to 122 ft. lbs. of torque
BOOM! Audio High Performance BOOM! Bagger Speakers
BOOM! Audio Bass Booster Ports
iPod interface
8GB Apple iPod nano
