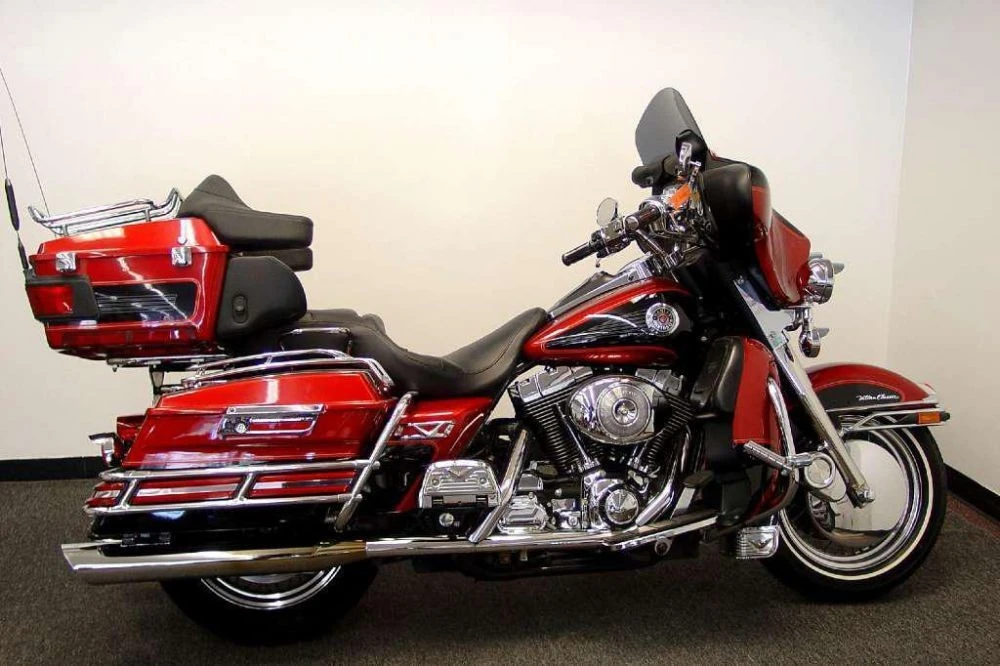

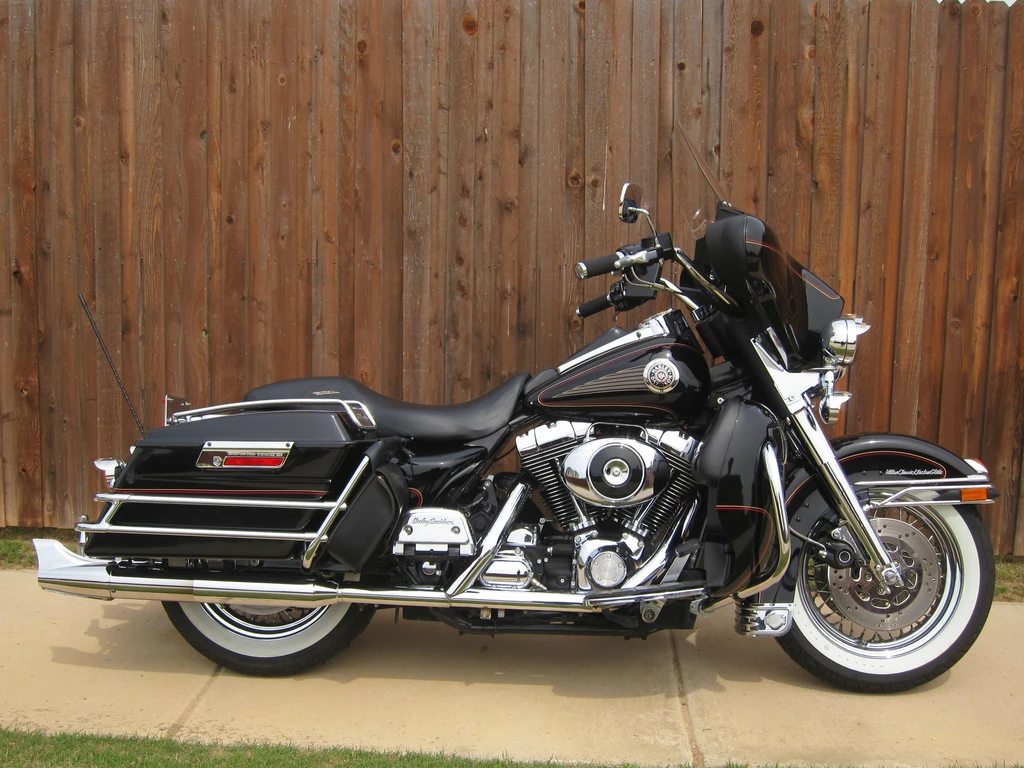

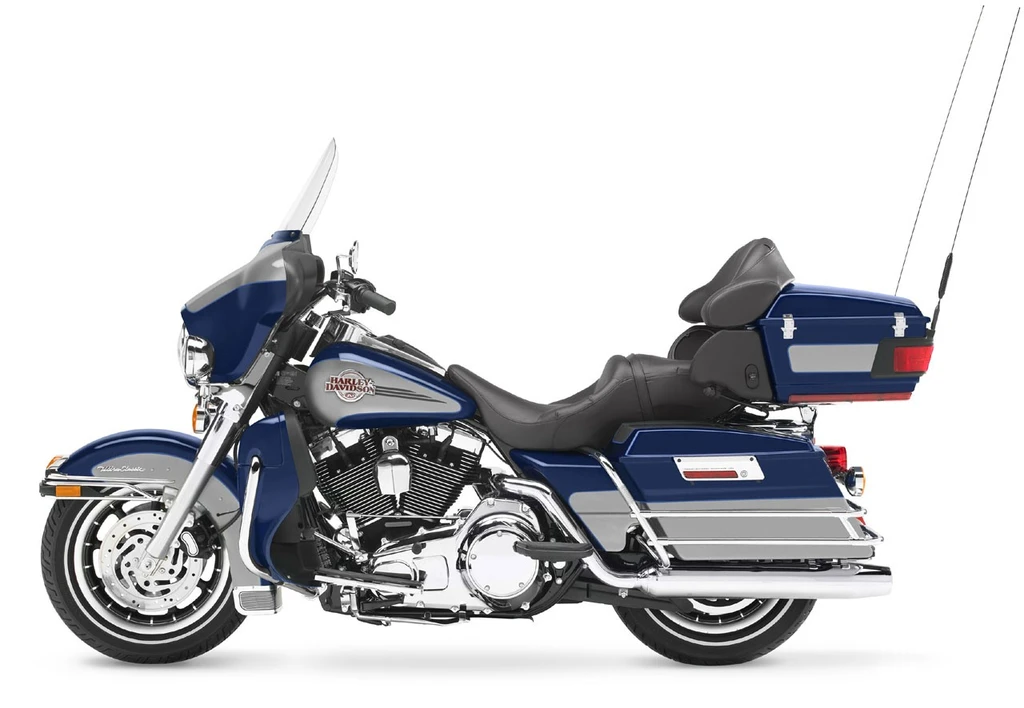

Harley Davidson FLHTCU/I Electra Glide Ultra Classic (1999 – 2000)

Harley Davidson FLHTCU/I Electra Glide Ultra Classic (1999 - 2000)

The Harley-Davidson FLHTCU/I Electra Glide Ultra Classic is a tour-de-force of power and luxury on two wheels. Its Twin Cam 88 engine is fed by sequential port fuel injection, delivering a smooth and responsive ride that’s perfect for long-distance touring.

With its fully-loaded feature list, the Ultra Classic Electra Glide leaves nothing to the imagination: from its premium sound system with rear speakers and weatherband to its separate passenger controls and CB/intercom headset.

But it’s not just about features – it’s also about character. The Twin Cam 88 engine is a masterclass in old-school American muscle, with a throaty growl that’s music to the ears of any biker worth their salt. And when you get behind the handlebars, you’ll be treated to a riding experience that’s both comfortable and exhilarating.

The Harley-Davidson FLHTCU/I Electra Glide Ultra Classic is the ultimate touring machine – and if you’re looking for a bike that can keep up with your own two-wheeled wanderlust, look no further.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity88.4 cubic inches / 1449 cc
Max Power67 hp / 48.8 kW @ 5200 rpm
Max Torque86 ft-lb / 116.6 nm
Fuel Tank Capacity5.0 US gallons / 19.0 L
Seat Height27.3 inches / 693.4 mm
Harley Davidson FLHTCU/I Electra Glide Ultra Classic (1999 - 2000)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU/I Electra Glide Ultra Classic
Year1999 – 2000

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement88.4 cubic inches / 1449 cc
Bore x Stroke95.3 x 101.6 mm
Compression Ratio8.9:1
Max Horsepower67 hp / 48.8 kW @ 5200 rpm
Max Torque86 ft-lb / 116.6 nm
Engine Management SystemCarburetion 40 mm constant velocity with enrichener and accelerator pump / Electronic Sequential Port Fuel Injection ESPFI
Lubrication SystemDry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10 pressurized oil filter
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet 9-plate
Gearbox5 Speed
Gear Ratios1st 10.110 2nd 6.958 3rd 4.953 4th 3.862 5th 3.150
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, rectangular section backbone w/ twin down-tubes Swing Arm Conventional rectangular
Front SuspensionAir-adjustable
Rear SuspensionAir-adjustable
Rake26
Trail157.5 mm / 6.2 in

Wheels & Brakes

Front Tire Size130/90-16
Rear Tire Size130/90-16
Front Brakes2x 292mm discs 4 piston calipers
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height27.3 inches / 693.4 mm
Wheelbase63.5 inches / 1612.9 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity5.0 US gallons / 19.0 L
Dry Weight385 kg / 848.8 lbs

Features

  • 40-watt-per-channel AM/FM cassette with weatherband
  • Rear speakers
  • Separate passenger controls
  • Dual antenna
  • CB and CB/intercom headset
  • Twin Cam 88 engine
  • Chrome components
  • Sequential port fuel injection
  • Fuel tank under the seat (Honda Gold Wing SE)
  • Belt-driven cams (Honda Gold Wing SE)
  • Liquid cooling (Honda Gold Wing SE and BMW K1100LT)
  • Shaft drive (Honda Gold Wing SE and BMW K1100LT)
  • Drive by belt (Harley-Davidson Ultra Classic Electra Glide)
  • Air cooled engine (Harley-Davidson Ultra Classic Electra Glide)
