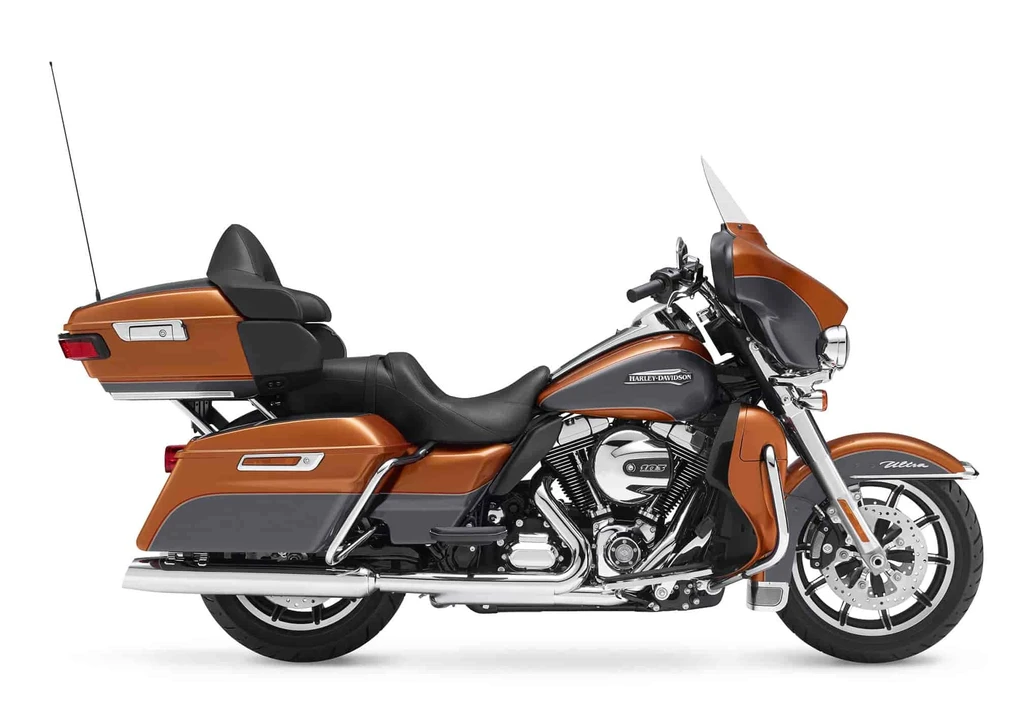

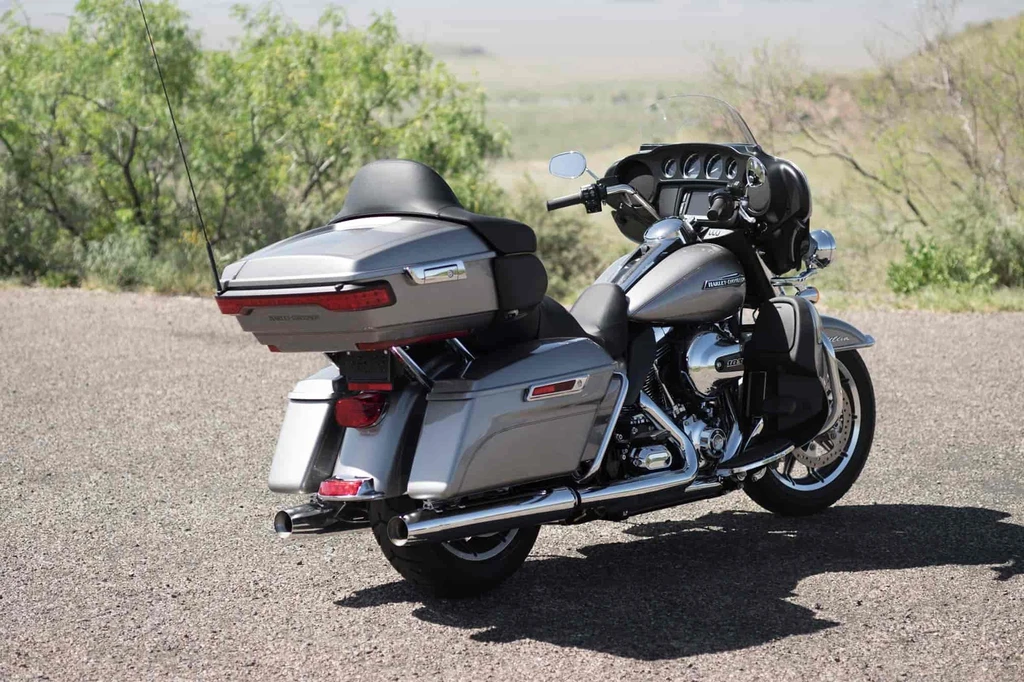

Harley Davidson FLHTCU Electra Glide Ultra Classic (2016)

Harley Davidson FLHTCU Electra Glide Ultra Classic (2016)

The Harley-Davidson FLHTCU Electra Glide Ultra Classic is the epitome of touring excellence, elevated by the revolutionary Project RUSHMORE initiative. This behemoth of the road boasts a powerful High Output Twin Cam 103 engine, delivering confident acceleration and effortless cruising.

With its restyled Batwing fairing featuring Splitstream ventilation, this bike minimizes buffeting, ensuring an uninterrupted riding experience. The innovative Reflex Linked Brakes with ABS provide unparalleled control, while features like Daymaker LED lighting, electronic cruise control, and the H-D Factory Security System further enhance rider comfort and security.

The result is a machine that redefines the touring motorcyclist’s experience, combining cutting-edge technology, refined ergonomics, and dramatic styling updates to create an unforgettable ride. Whether you’re embarking on a week-long adventure or a weekend getaway, the Harley-Davidson FLHTCU Electra Glide Ultra Classic sets the standard for long-haul touring comfort and convenience, providing the ultimate expression of American freedom on two wheels.

Key Specifications

Engine TypeFour stroke, V-Twin, High output ‘Twin Cam 103’
Engine Capacity1690 cc / 103.1 cub in.
Max Torque138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)906 lbs / 411 kg
Seat Height27.30 inches / 693.42 mm
Harley Davidson FLHTCU Electra Glide Ultra Classic (2016)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU Electra Glide Ultra Classic
Year2016

Engine

Engine TypeFour stroke, V-Twin, High output ‘Twin Cam 103’
Displacement1690 cc / 103.1 cub in.
Bore x Stroke98.4 x 111.1 mm
Compression Ratio10.0:1
Max Torque138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock

Wheels & Brakes

Front Tire SizeBW 130/80B17 65H
Rear Tire SizeBW 180/65B16 81H
Front Brakes2 x 292 mm disc, 4 piston caliper
Rear BrakesSingle 292 mm disc, 4 piston caliper

Dimension & Weights

Overall Length2600 mm / 102.4 in
Seat Height27.30 inches / 693.42 mm
Wheelbase63.9 inches / 1625 mm
Ground Clearance115 mm / 4.5 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight906 lbs / 411 kg
Dry Weight394 kg / 869 lbs

Features

  • High Output Twin Cam 103 engine
  • Enhanced power for confident passing
  • Restyled Batwing fairing
  • Splitstream vent reduces buffeting
  • Reflex Linked Brakes with ABS
  • Daymaker LED lighting
  • Electronic cruise control
  • H-D Factory Security System
  • Harley-Davidson Touring chassis
  • Single-spar, rigid backbone frame
  • Stout swingarm for long-haul touring
  • Improved power and braking performance
  • Enhanced rider ergonomics
  • Dramatic styling updates
  • Infotainment system
  • Aerodynamic bodywork designed in wind tunnel
