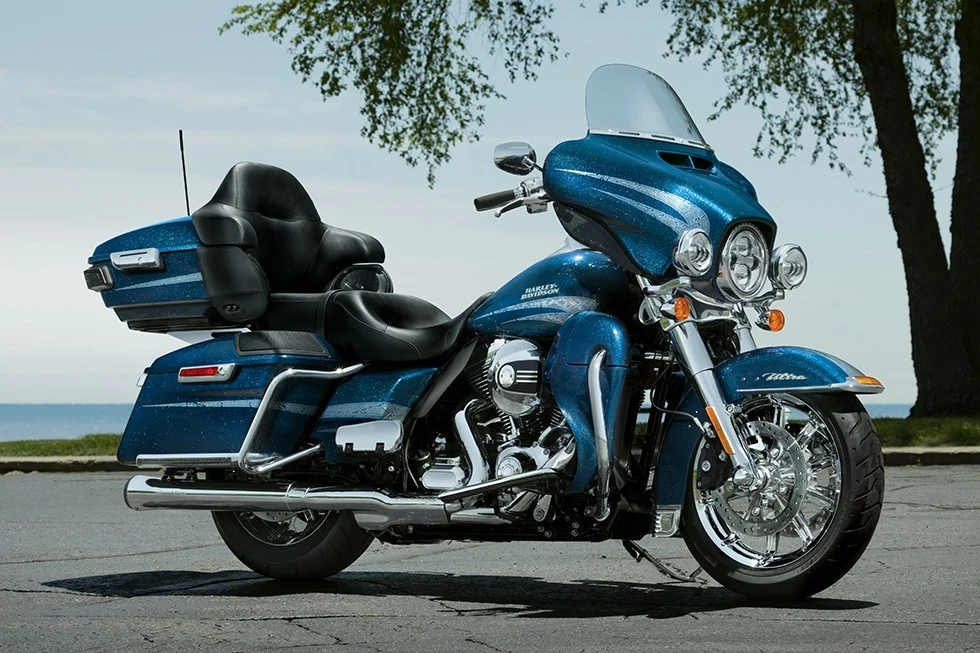

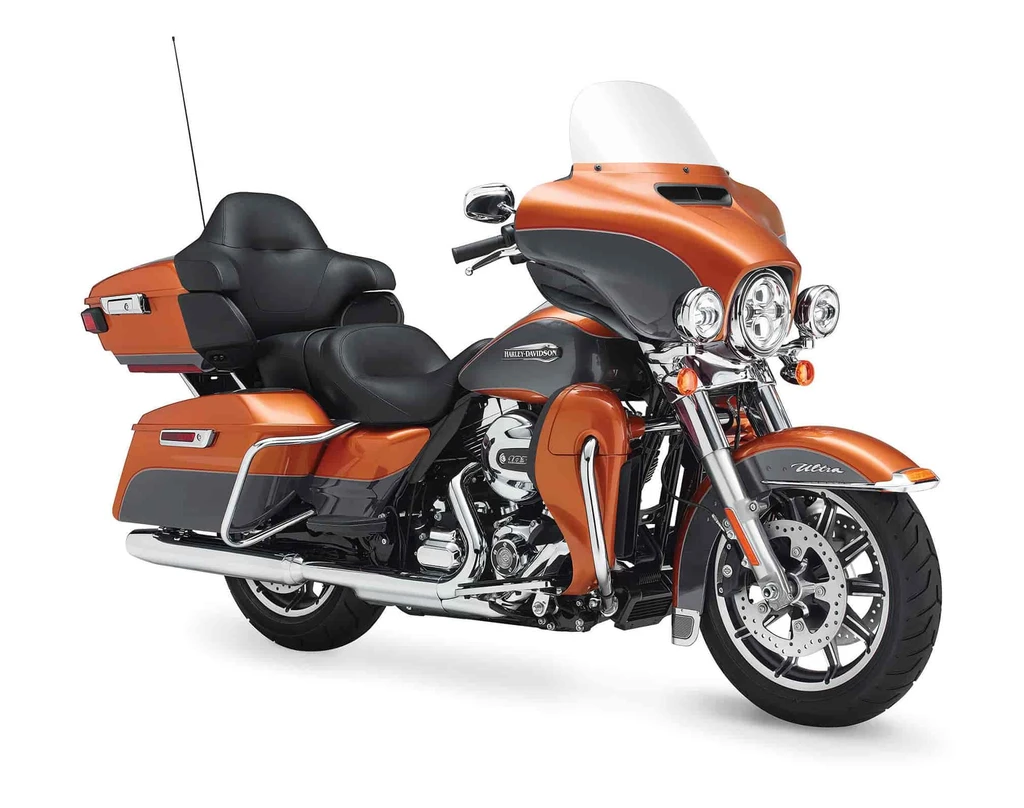

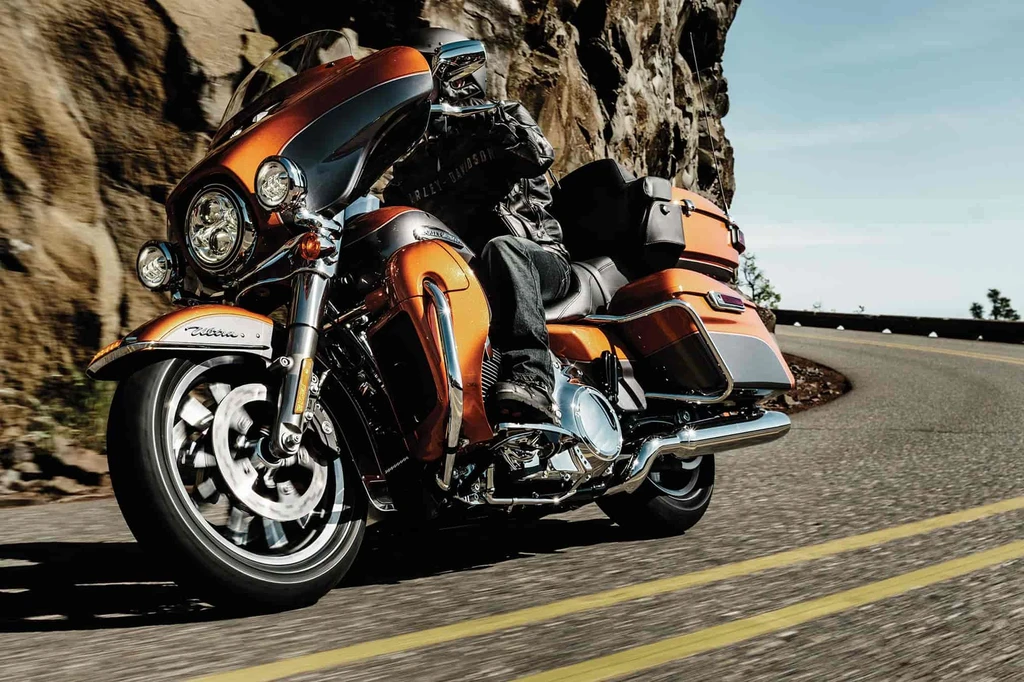

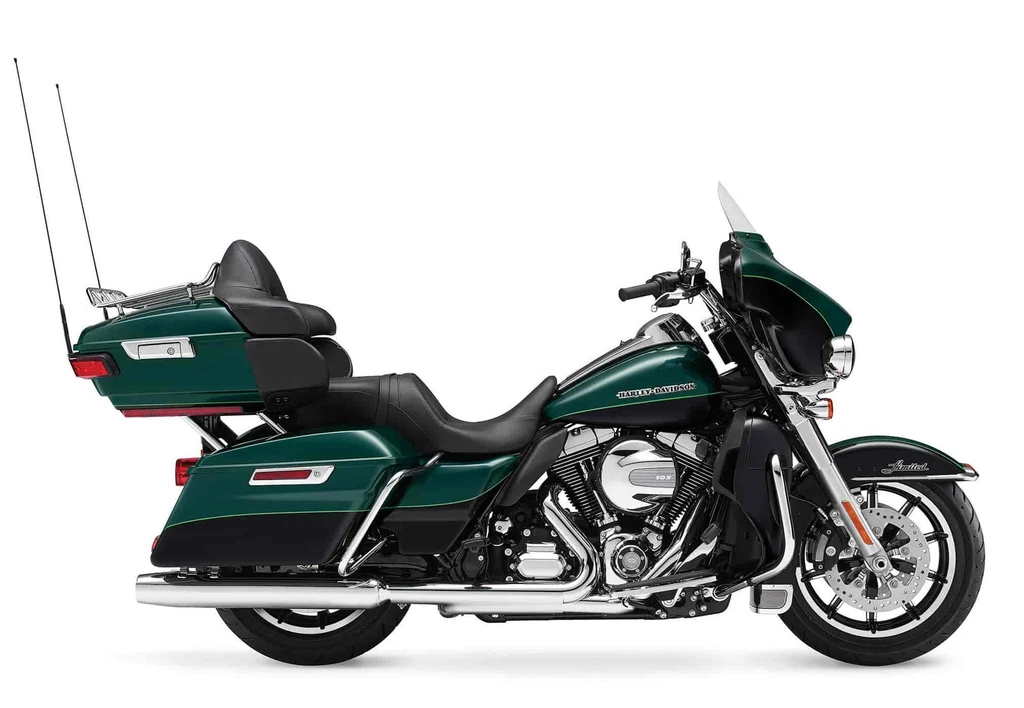

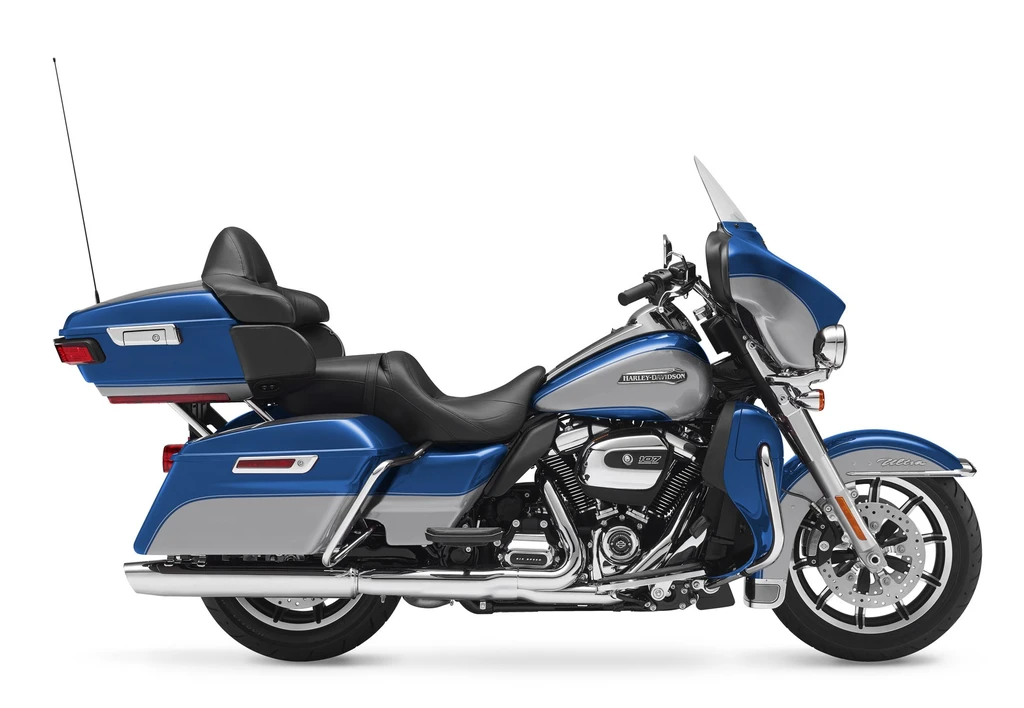

Harley Davidson FLHTCU Electra Glide Ultra Classic (2015)

Harley Davidson FLHTCU Electra Glide Ultra Classic (2015)

The Harley-Davidson FLHTCU Electra Glide Ultra Classic sets the bar high for long-haul touring with its impressive power and refined features.

Underpinned by the High Output Twin Cam 103 engine, this touring machine boasts enhanced power and torque delivery, perfect for confident passing on the open road. The restyled Batwing fairing with Splitstream vent is a masterstroke of aerodynamics, reducing buffeting and creating an even more immersive riding experience.

Reflex Linked Brakes with ABS, Daymaker LED lighting, electronic cruise control, and the H-D Factory Security System are just some of the standard features that redefine touring motorcycle expectations. Built on a rugged single-spar, rigid backbone frame, this Harley-Davidson is engineered to withstand the demands of long-distance riding.

Project RUSHMORE has elevated American V-Twin power to unprecedented levels, delivering an unparalleled riding experience that rewrites the rules of motorcycling.

Key Specifications

Engine TypeFour stroke, V-Twin, High output ‘Twin Cam 103’
Engine Capacity1690 cc / 103.1 cub in.
Max Torque138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)906 lbs / 411 kg
Seat Height27.30 inches / 693.42 mm
Harley Davidson FLHTCU Electra Glide Ultra Classic (2015)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU Electra Glide Ultra Classic
Year2015

Engine

Engine TypeFour stroke, V-Twin, High output ‘Twin Cam 103’
Displacement1690 cc / 103.1 cub in.
Bore x Stroke98.4 x 111.1 mm
Compression Ratio10.0:1
Max Torque138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock

Wheels & Brakes

Front Tire SizeBW 130/80B17 65H
Rear Tire SizeBW 180/65B16 81H
Front Brakes2 x 292 mm disc, 4 piston caliper
Rear BrakesSingle 292 mm disc, 4 piston caliper

Dimension & Weights

Overall Length2600 mm / 102.4 in
Seat Height27.30 inches / 693.42 mm
Wheelbase63.9 inches / 1625 mm
Ground Clearance115 mm / 4.5 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight906 lbs / 411 kg
Dry Weight394 kg / 869 lbs

Features

  • High Output Twin Cam 103 engine
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Reflex Linked Brakes with ABS
  • Daymaker LED lighting
  • Electronic cruise control
  • H-D Factory Security System
  • Harley-Davidson Touring chassis
  • Single-spar, rigid backbone frame
  • Stout swingarm
  • Restyled Batwing fairing
  • Splitstream vent to reduce buffeting
  • Improved power and braking performance
  • Enhanced rider ergonomics
  • Dramatic styling updates
  • Infotainment system
  • Aerodynamics developed in the wind tunnel
