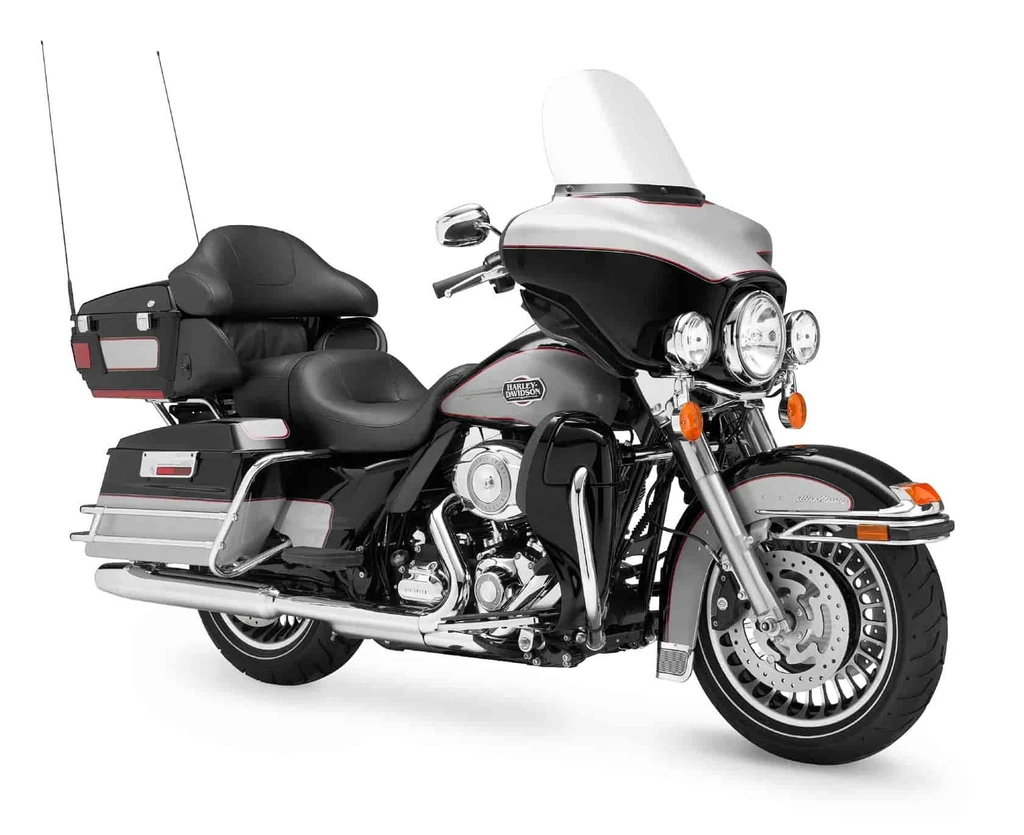

Harley Davidson FLHTCU Electra Glide Ultra Classic (2011)

Harley Davidson FLHTCU Electra Glide Ultra Classic (2011)

The Harley-Davidson FLHTCU Electra Glide Ultra Classic is the epitome of long-haul touring comfort and convenience. Its Electronic Sequential Port Fuel Injection (ESPFI) engine provides a smooth and responsive ride, while its robust 106ci V-twin character delivers an addictive blend of power and torque.

A host of premium features further enhance the riding experience, including a high-quality Harmon/Kardon Advanced Audio System, adjustable fairing-mounted air deflectors, and spacious Tour-Pak carrier with injection-molded hard saddlebags. The Ultra Classic Electra Glide’s ergonomic design ensures all-day comfort, while its advanced electronics package includes electronic cruise control and Anti-lock Braking System (ABS).

Whether cruising down the highway or navigating twisty back roads, the Harley-Davidson FLHTCU Electra Glide Ultra Classic is the ultimate touring machine, delivering an unparalleled blend of style, performance, and refinement that sets a new standard for motorcycle enthusiasts.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity6.0 US gallons / 7.0 L
Weight (Wet/Kerb)889 lbs / 403.2 kg
Seat Height27.3 inches / 693.4 mm
Harley Davidson FLHTCU Electra Glide Ultra Classic (2011)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU Electra Glide Ultra Classic
Year2011

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.2 x 111.2 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.9265th 3.279 3.279 3.279 6th 2.790 2.790 2.790
Final DriveBelt

Electrical & Electronics System

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock

Wheels & Brakes

Front Tire SizeMT90B16
Rear Tire SizeMU85B16
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height27.3 inches / 693.4 mm
Wheelbase63.5 inches / 1612 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity6.0 US gallons / 7.0 L
Wet (kerb/curb) Weight889 lbs / 403.2 kg

Features

  • Four-speaker, 80-watt Harmon/Kardon Advanced Audio System
  • One-piece, two-up Electra Glide classic comfort stitch seat
  • Passenger backrest with wrap-around armrests
  • Adjustable fairing-mounted air deflectors
  • Vented removable lower fairings with integral storage compartments
  • Mid-frame air deflector
  • Chrome, low-profile fuel tank console
  • Deep FL front fender with trim
  • Stainless steel, classic touring handlebar
  • Injection-molded hard saddlebags (2.26 cu. ft. volume)
  • Injection Molded hard Tour-Pak with soft luggage liners and storage pockets
  • LED rear fender tip light
  • Auxiliary passing lights
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Rubber-mounted Twin Cam 96 V-Twin engine
  • Heated O2 sensors
  • Electronic Throttle Control (ETC)
  • 6-Speed Cruise Drive transmission with integrated Isolated Drive System
  • Anti-lock Braking System (ABS)
