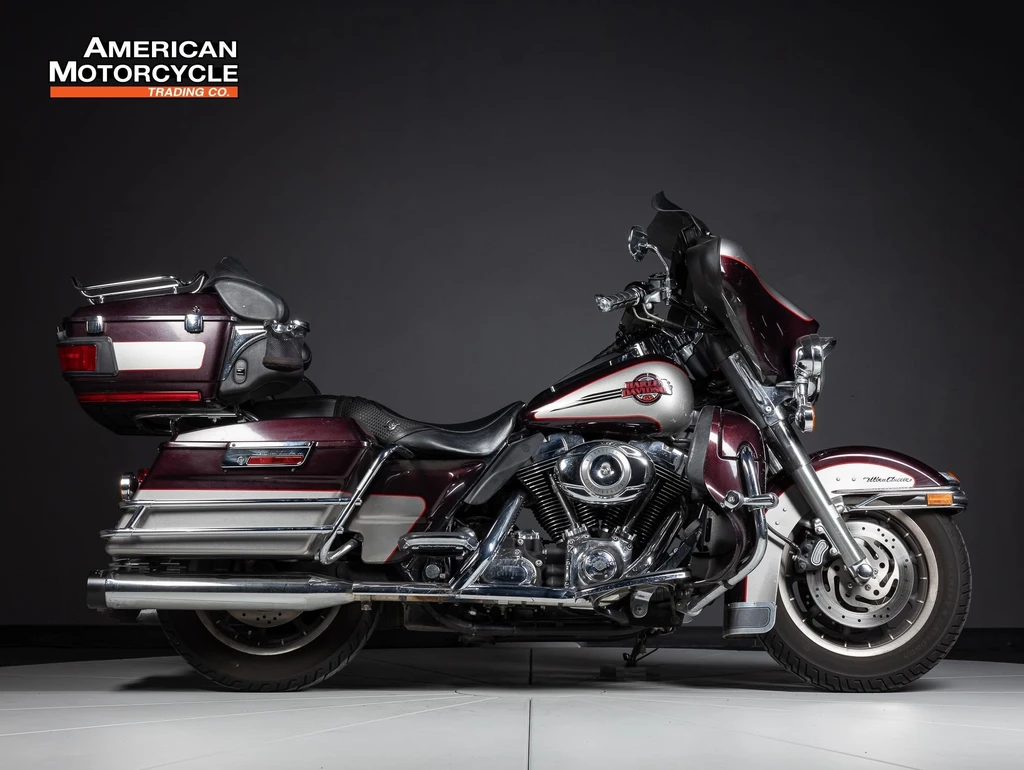

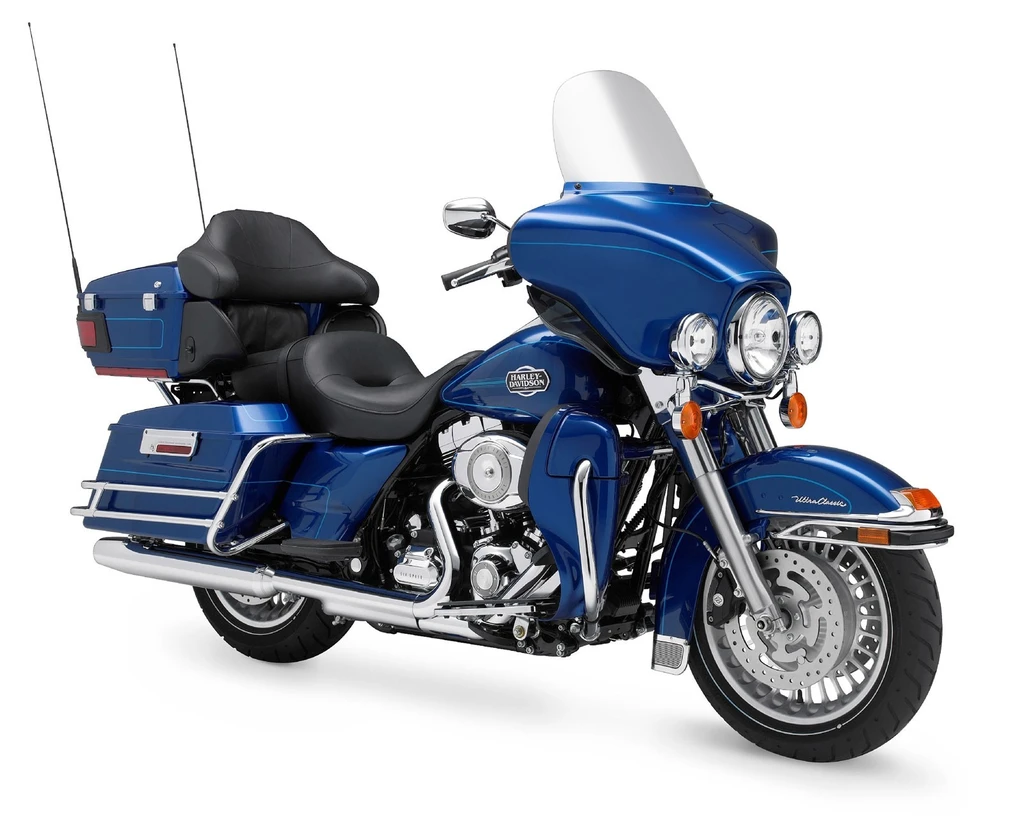

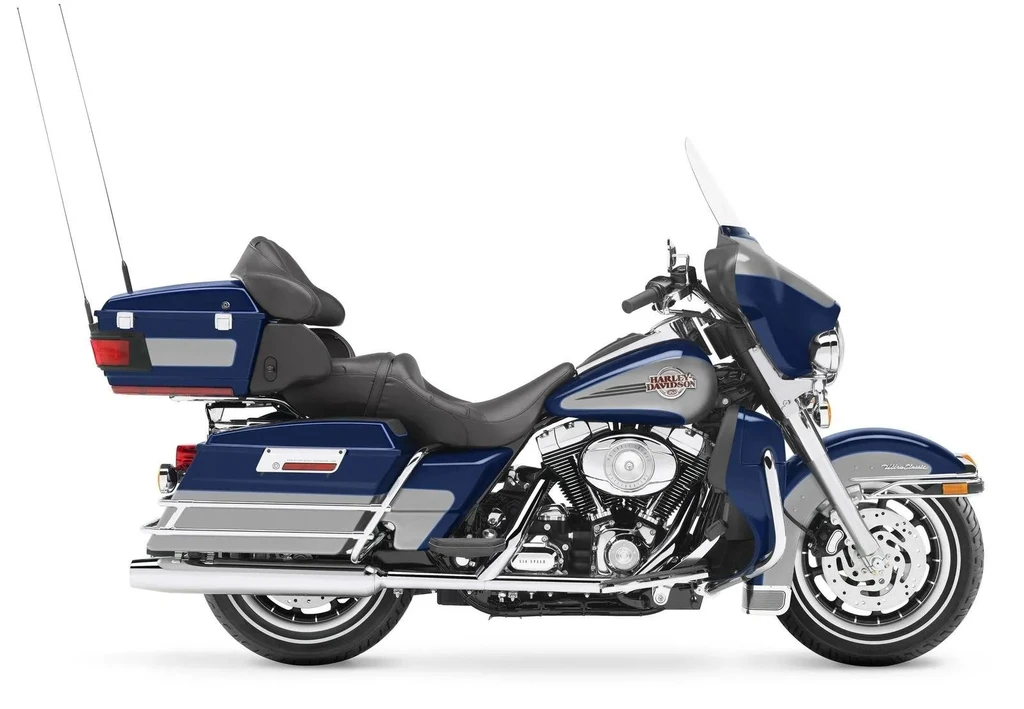

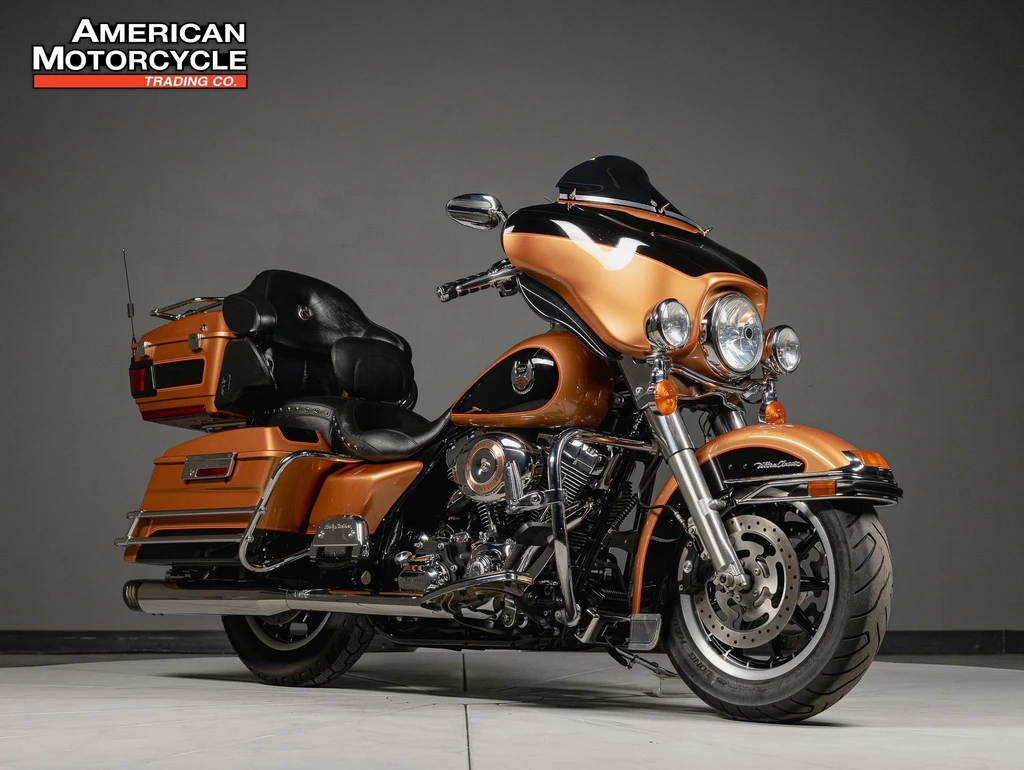

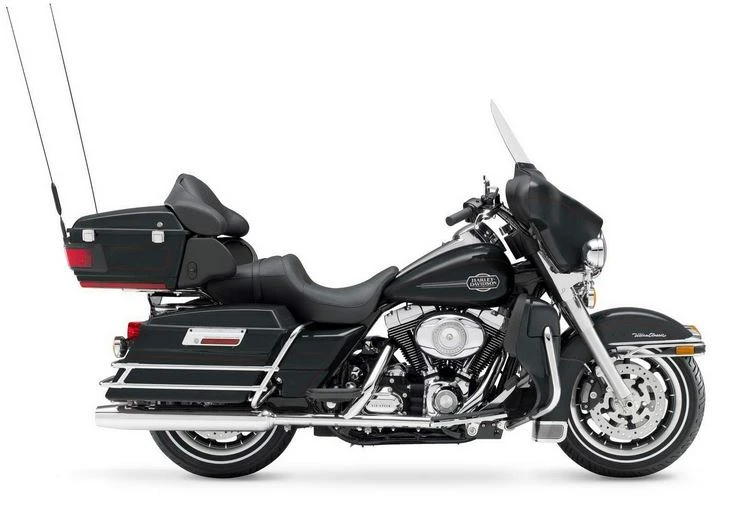

Harley Davidson FLHTCU Electra Glide Ultra Classic (2007 – 2008)

Harley Davidson FLHTCU Electra Glide Ultra Classic (2007 - 2008)

The Harley-Davidson FLHTCU Electra Glide Ultra Classic is the pinnacle of touring motorcycles, boasting an impressive array of features that redefine long-distance travel. The 1584cc Twin Cam 96 engine delivers its power with a smooth, effortless demeanor, making every ride feel like a pleasure cruise.

The addition of Electronic Sequential Port Fuel Injection (ESPFI) and a new 6-speed Cruise Drive transmission further enhances the riding experience, providing seamless acceleration and reduced clutch lever effort. The Ultra Classic Electra Glide also boasts an impressive array of comfort-enhancing features, including an adjustable Tour-Pak, advanced audio system, and full instrumentation.

From its sleek design to its exceptional performance capabilities, the Harley-Davidson FLHTCU Electra Glide Ultra Classic is a touring icon that redefines the boundaries of long-distance travel, delivering unparalleled comfort and convenience with every ride.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity6.0 US gallons / 7.0 L
Weight (Wet/Kerb)889 lbs / 403.2 kg
Seat Height27.3 inches / 693.4 mm
Harley Davidson FLHTCU Electra Glide Ultra Classic (2007 - 2008)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU Electra Glide Ultra Classic
Year2007 – 2008

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.2 x 111.2 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.9265th 3.279 3.279 3.279 6th 2.790 2.790 2.790
Final DriveBelt

Electrical & Electronics System

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock

Wheels & Brakes

Front Tire SizeMT90B16
Rear Tire SizeMU85B16
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height27.3 inches / 693.4 mm
Wheelbase63.5 inches / 1612 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity6.0 US gallons / 7.0 L
Wet (kerb/curb) Weight889 lbs / 403.2 kg

Features

  • 1584cc Twin Cam 96 engine
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • 6-speed Cruise Drive transmission
  • Adjustable Tour-Pak
  • Advanced Audio System by Harman/Kardon
  • Cruise control
  • Full instrumentation
  • Custom luggage liners for protection
  • Lower fairings with large vent doors
  • Weather protection and ventilation
  • Six solid colors and six two-tone paint combinations available
  • Three two-tone custom color options available
  • Black powder-coated engine with chrome treatment
  • Redesigned football shape air cleaner
  • Bat-wing, fork-mounted fairing
  • Lockable GTX nylon hard saddlebags
  • Deluxe King Tour-Pak
  • Comfort-stitch touring saddle and passenger backrest
