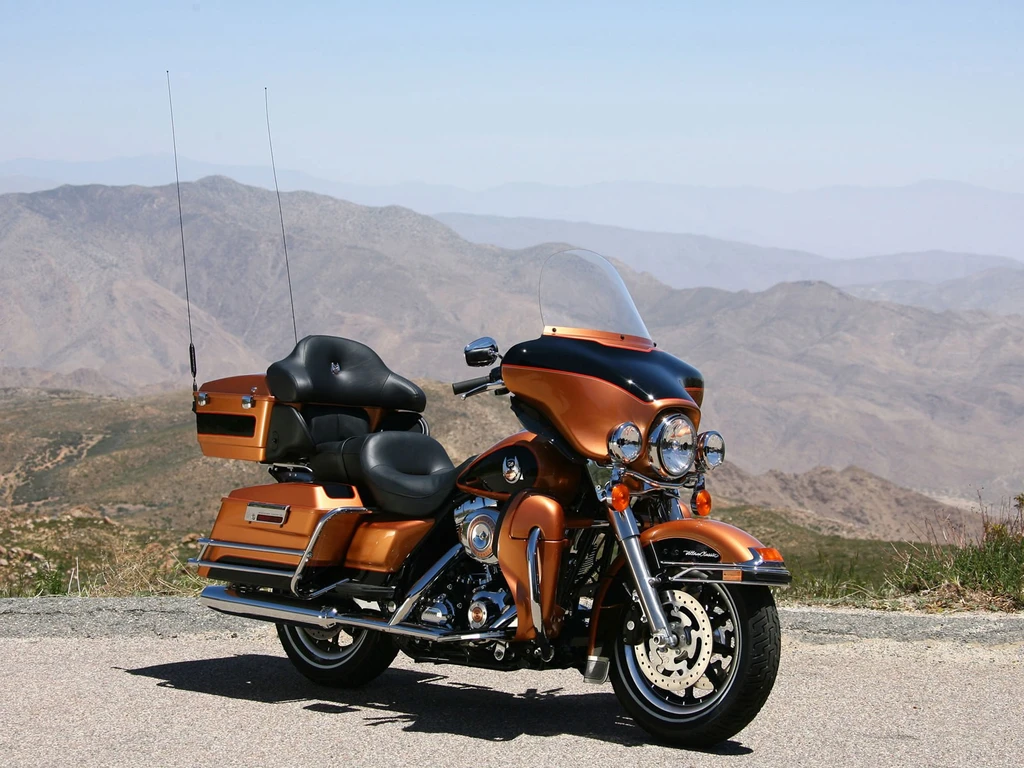

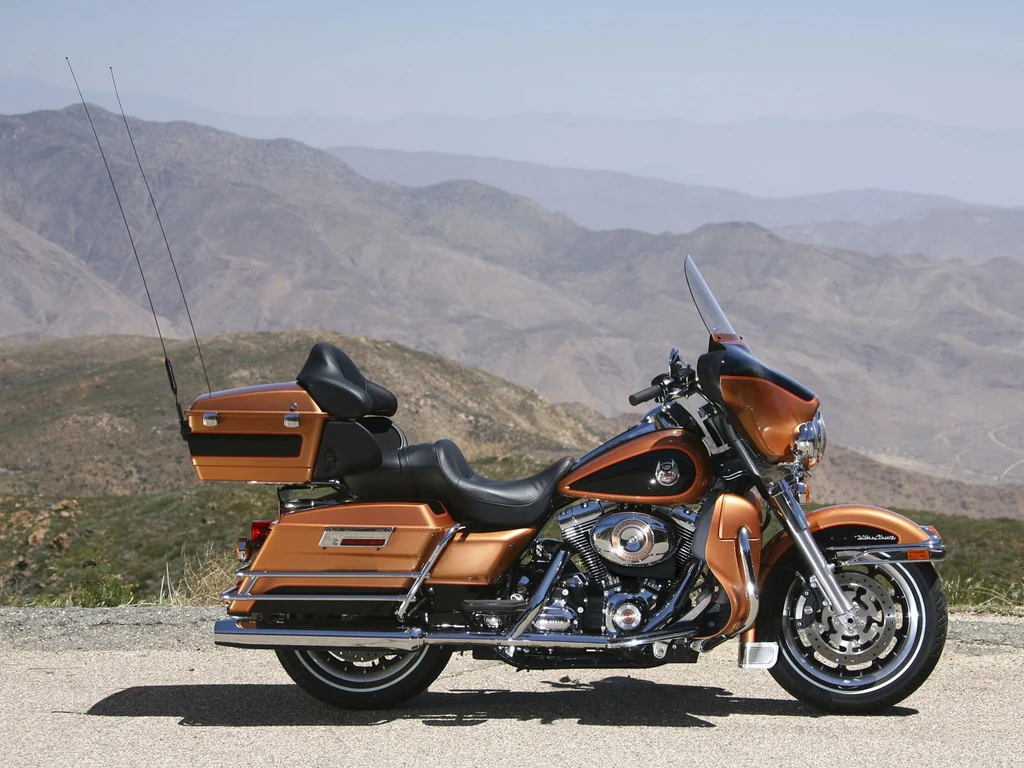

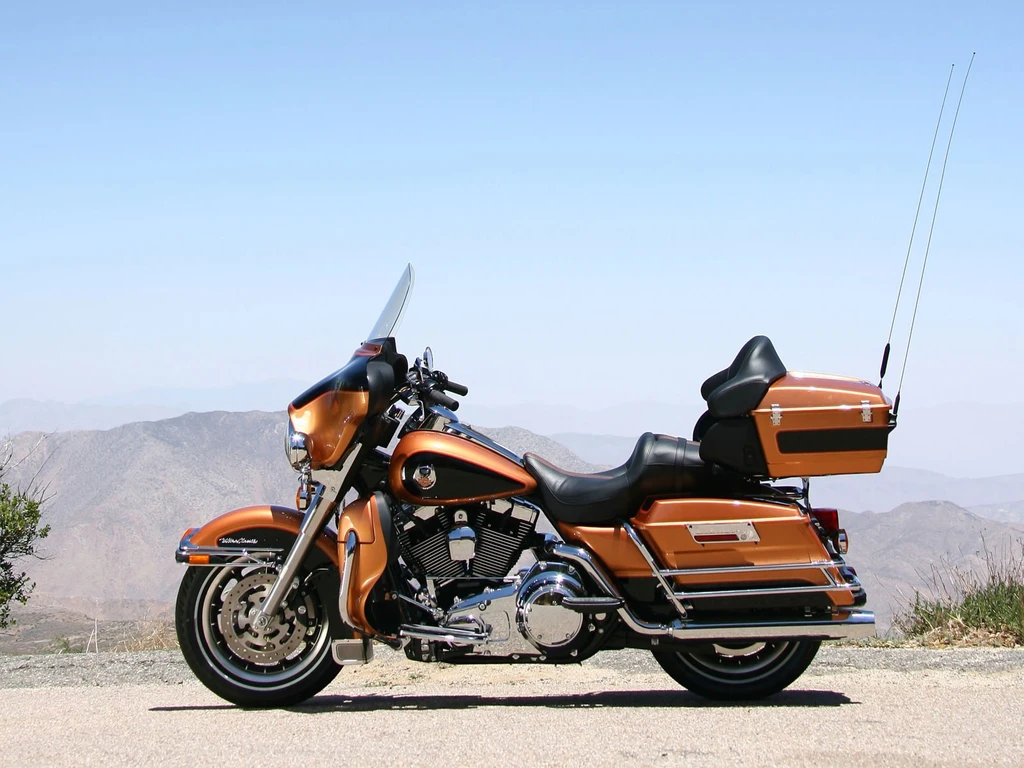

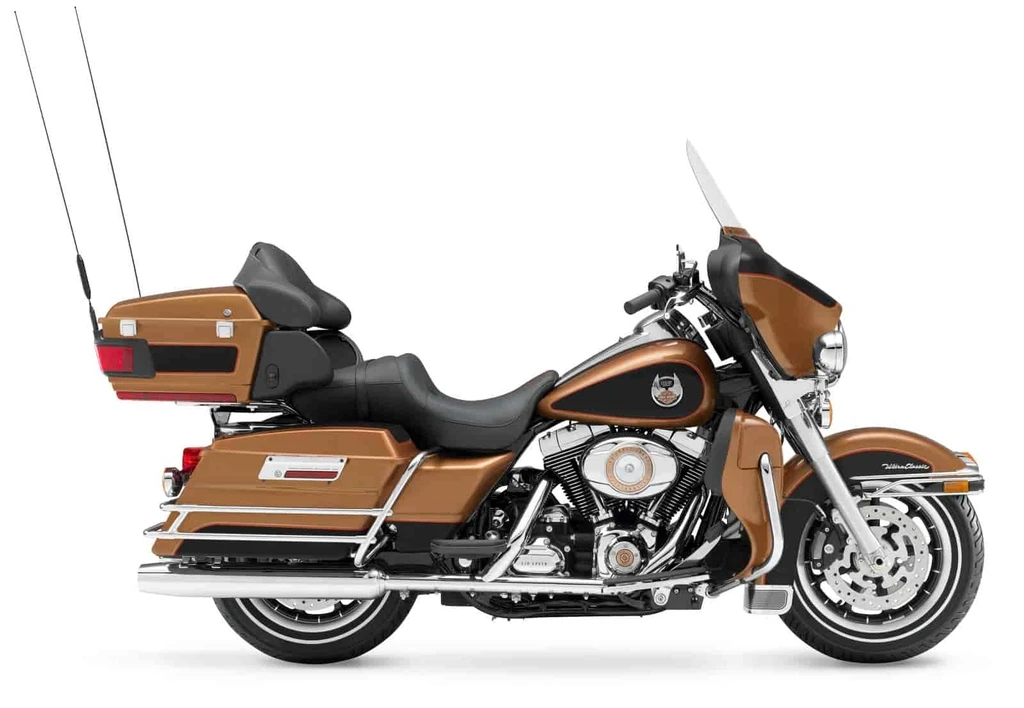

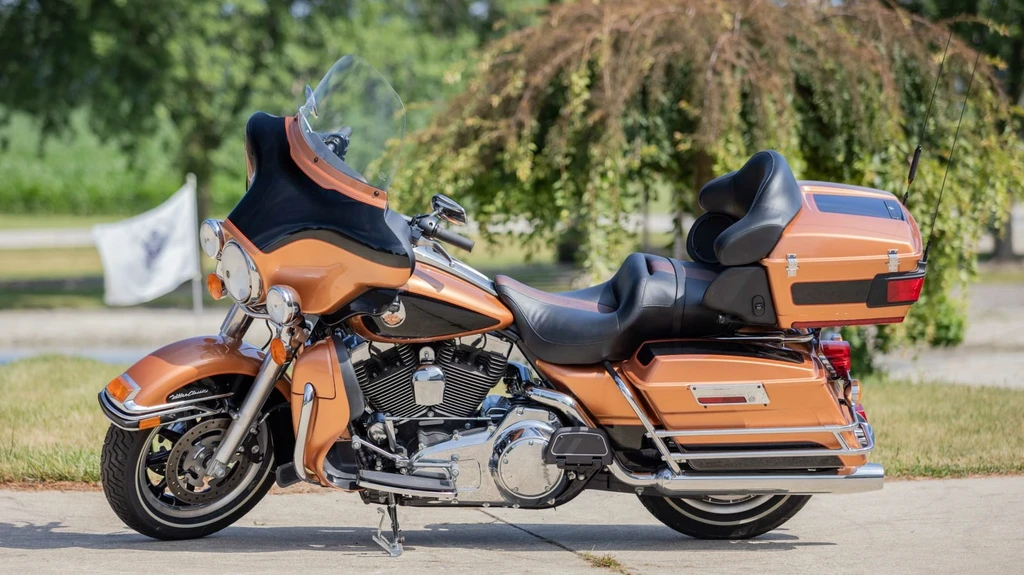

Harley Davidson FLHTCU Electra Glide Ultra Classic 105th Anniversary (2008)

Harley Davidson FLHTCU Electra Glide Ultra Classic 105th Anniversary (2008)

The Harley-Davidson FLHTCU Electra Glide Ultra Classic 105th Anniversary is a luxurious touring motorcycle that embodies the spirit of freedom and adventure. Powered by an Electronic Sequential Port Fuel Injection (ESPFI) engine, this bike delivers a rich, torque-filled ride experience that’s both exhilarating and comfortable.

Its luxurious features include adjustable fairing-mounted wind deflectors, an 80-watt Advanced Audio System by Harman/Kardon with passenger sounds system, vented fairing lowers, luggage liners, and CB radio/intercom. Whether you’re cruising down the highway or navigating twisty roads, the FLHTCU Electra Glide Ultra Classic is designed to provide a smooth, enjoyable ride.

But what truly sets this bike apart is its new Brembo brakes with available Anti-Lock Braking System (ABS). This world-class braking system offers consistent stopping power under all operating conditions, giving riders even more confidence and control on the road. With its larger fuel tank and Electronic Throttle Control, the FLHTCU Electra Glide Ultra Classic 105th Anniversary is a touring motorcycle that’s ready to take you on an unforgettable journey.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity6.0 US gallons / 7.0 L
Weight (Wet/Kerb)889 lbs / 403.2 kg
Seat Height27.3 inches / 693.4 mm
Harley Davidson FLHTCU Electra Glide Ultra Classic 105th Anniversary (2008)

All Specifications

Make & Model

ModelHarley Davidson FLHTCU Electra Glide Ultra Classic 105th Anniversary
Year2008

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.2 x 111.2 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.9265th 3.279 3.279 3.279 6th 2.790 2.790 2.790
Final DriveBelt

Electrical & Electronics System

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock

Wheels & Brakes

Front Tire SizeMT90B16
Rear Tire SizeMU85B16
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height27.3 inches / 693.4 mm
Wheelbase63.5 inches / 1612 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity6.0 US gallons / 7.0 L
Wet (kerb/curb) Weight889 lbs / 403.2 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Adjustable fairing-mounted wind deflectors
  • Electronic Cruise Control
  • 80-watt Advanced Audio System by Harman/Kardon with passenger sounds system
  • Vented fairing lowers
  • Luggage liners
  • CBradio/intercom
  • New Brembo Brakes with available Anti-Lock Braking System (ABS)
  • Larger fuel tank with increased capacity of 6 gallons
  • 6-speed Cruise Drive transmission
  • Electronic Throttle Control
  • Factory-Option Cruise Control for models without standard cruise control
  • Isolated Drive System located in the rear sprocket
  • Improved ride quality under acceleration, shifting, and cruising
  • Reduced noise and vibration to the rider
  • Rubber-mounted 1584cc TwinCam96 engine with ESPFI
