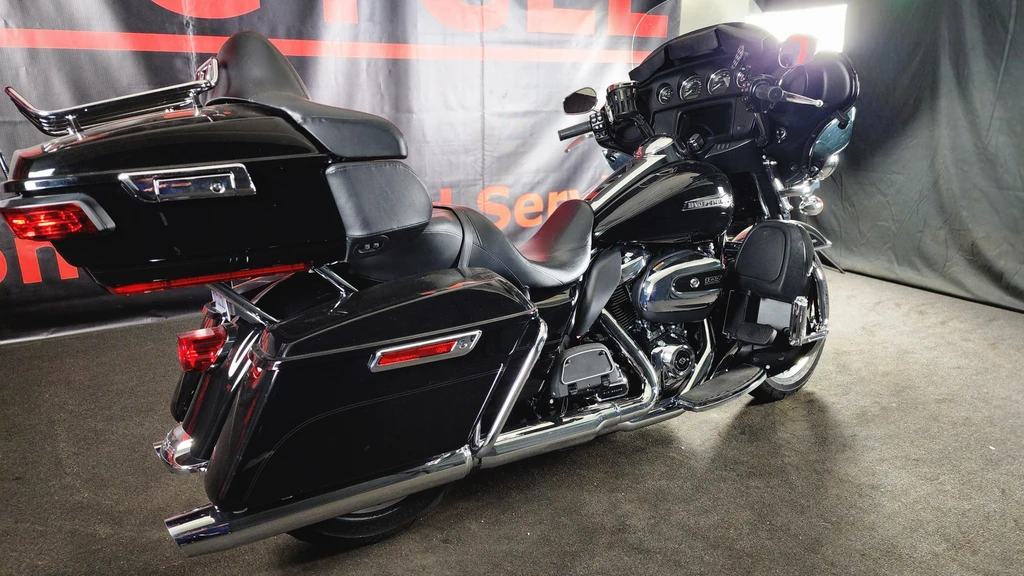

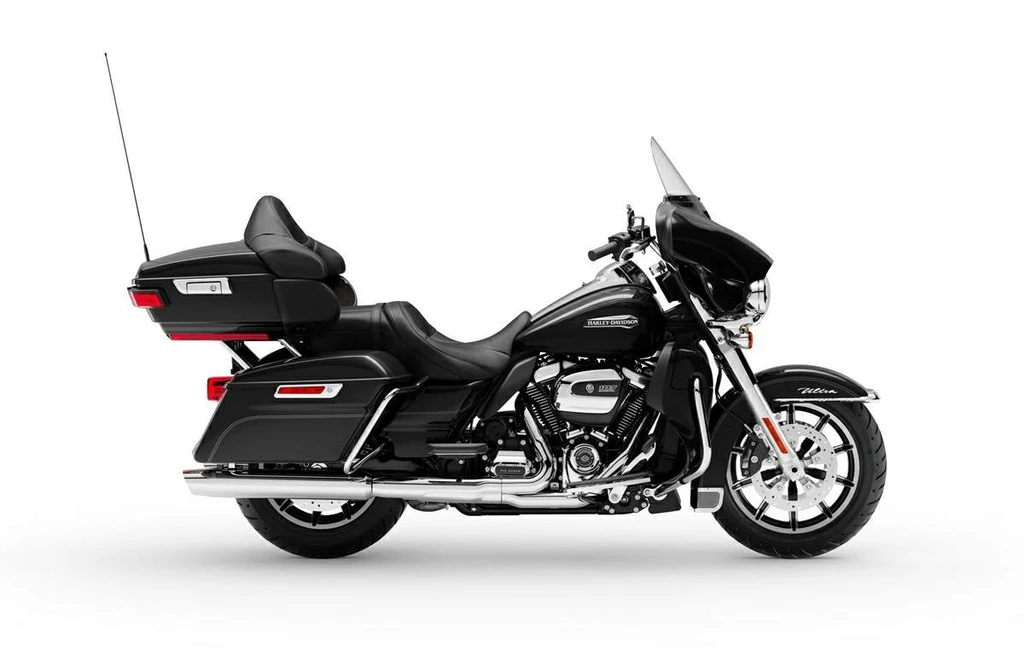

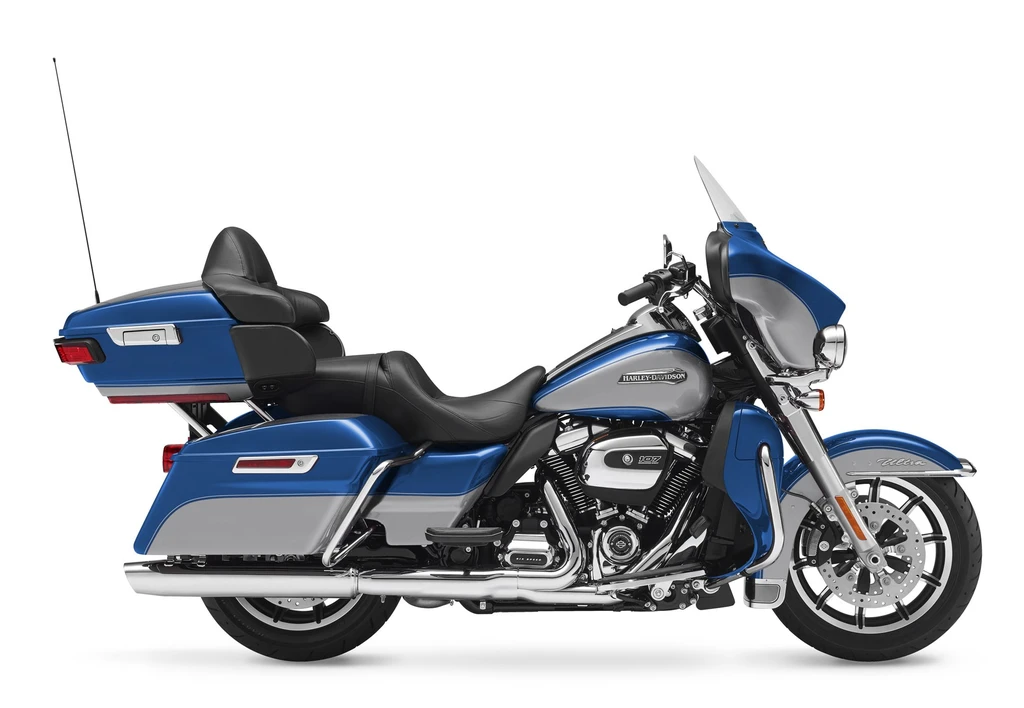

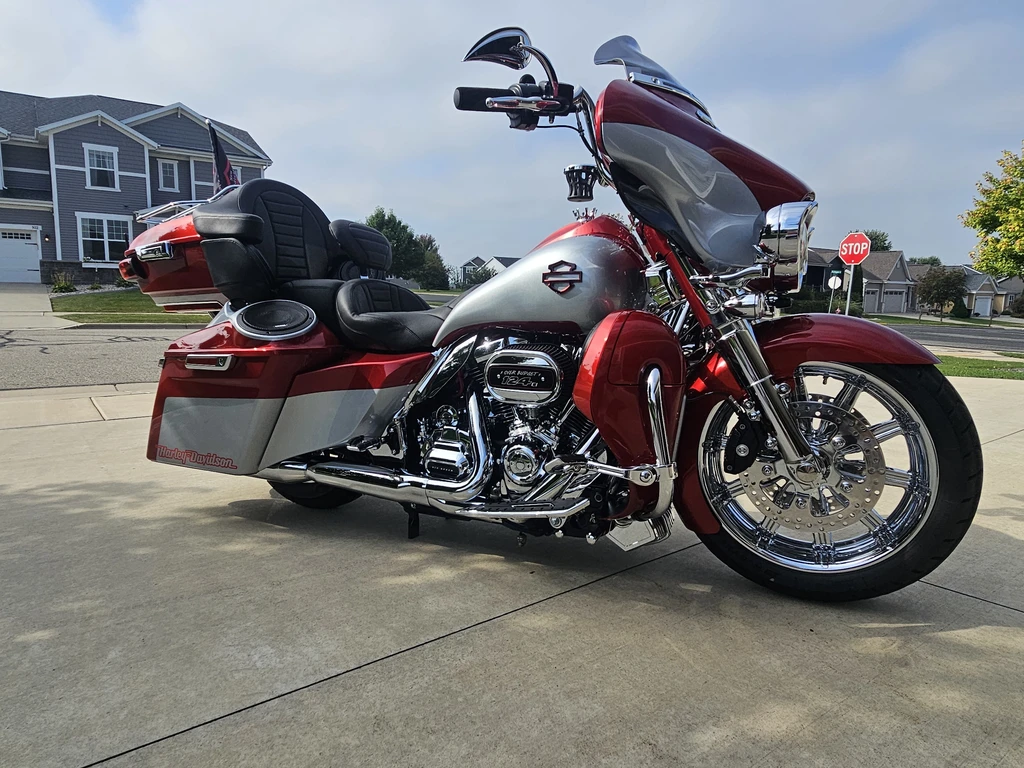

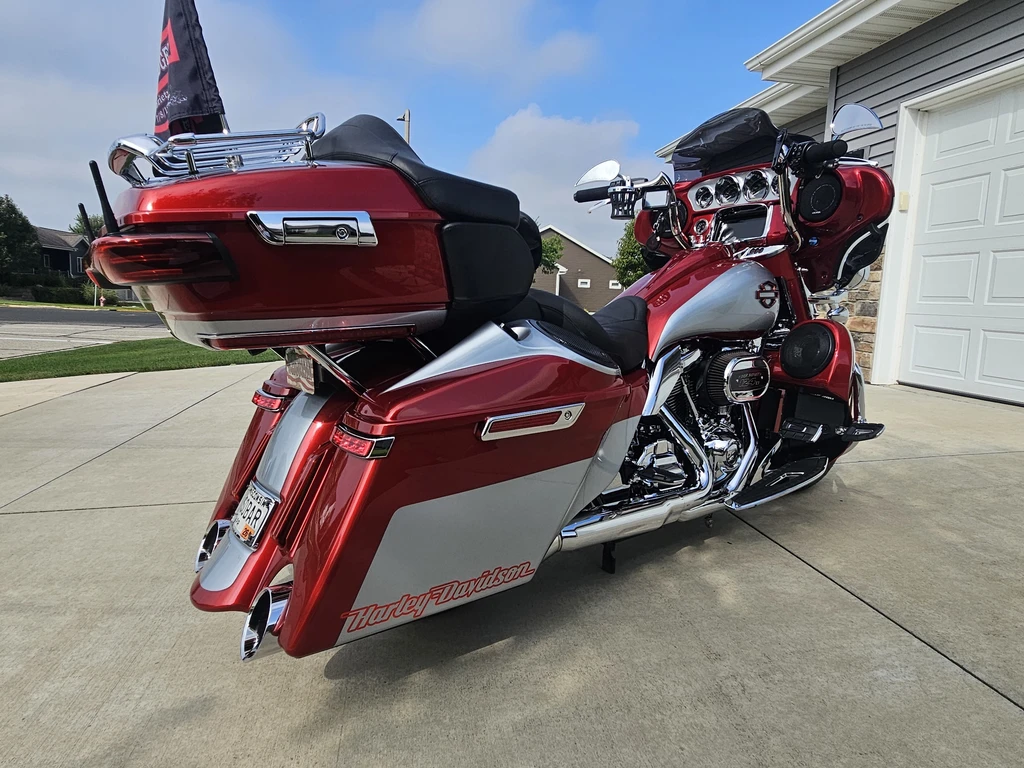

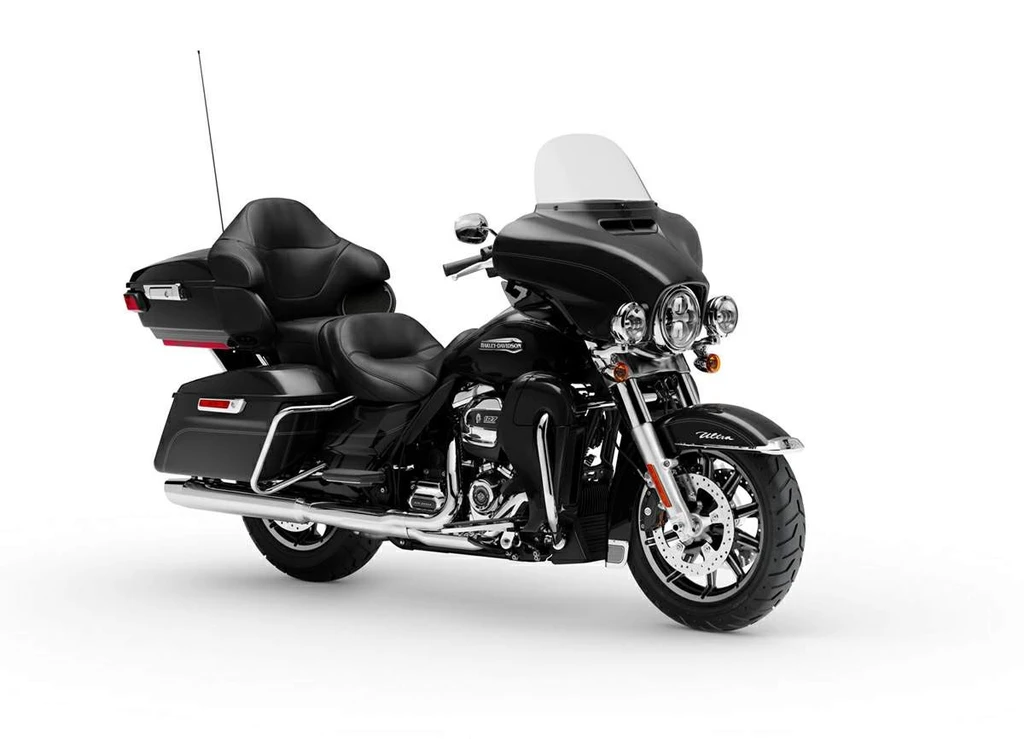

Harley Davidson FLHTCU Electra Glide Ultra (2019)

With its classic style, the Electra Glide Ultra Classic embodies the essence of long-haul touring on two wheels. At the heart of this touring behemoth lies the Milwaukee-Eight 107 engine, delivering a commanding punch to the throttle with each rev.

Its responsive front and rear suspension ensures that every twisty road and highway curve is met with precision handling and control. The Reflex linked Brembo brakes with ABS provide confident braking power, while the powerful LED headlight and spot lamps illuminate the path ahead.

The Electra Glide Ultra Classic’s luxurious two-up seat and passenger area, complete with back and arm rests, redefine comfort on a motorcycle. This is the ultimate long-haul touring machine, designed to conquer continents and collect memories along the way.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1746 cc / 107 cub in
Max Torque	113.6 ft-lb / 154 nm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	894 lbs / 406 kg
Seat Height	29.1 inches / 740 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FLHTCU Electra Glide Ultra
Year	2019

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1746 cc / 107 cub in
Bore x Stroke	100 x 111 mm / 3.937 x 4.374 in
Compression Ratio	10.0:1
Max Torque	113.6 ft-lb / 154 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Rake	26
Trail	170 mm / 6.7 in

Wheels & Brakes

Front Tire Size	130/80B17 65H
Rear Tire Size	180/65B16 81H
Front Brakes	2 x 292mm disc, 4 piston caliper
Rear Brakes	Single 292mm disc, 4 piston caliper

Dimension & Weights

Seat Height	29.1 inches / 740 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	139 mm / 5.5 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	894 lbs / 406 kg
Dry Weight	390 kg / 860 lbs

Features

Milwaukee-Eight 107 engine
Responsive front suspension
Reflex linked Brembo brakes with ABS
Powerful LED headlight
Spot lamps
Two-up seat
Deep bucket seat
Luxurious passenger area
Back and arm rests for passengers
Passing power
Classic style design
