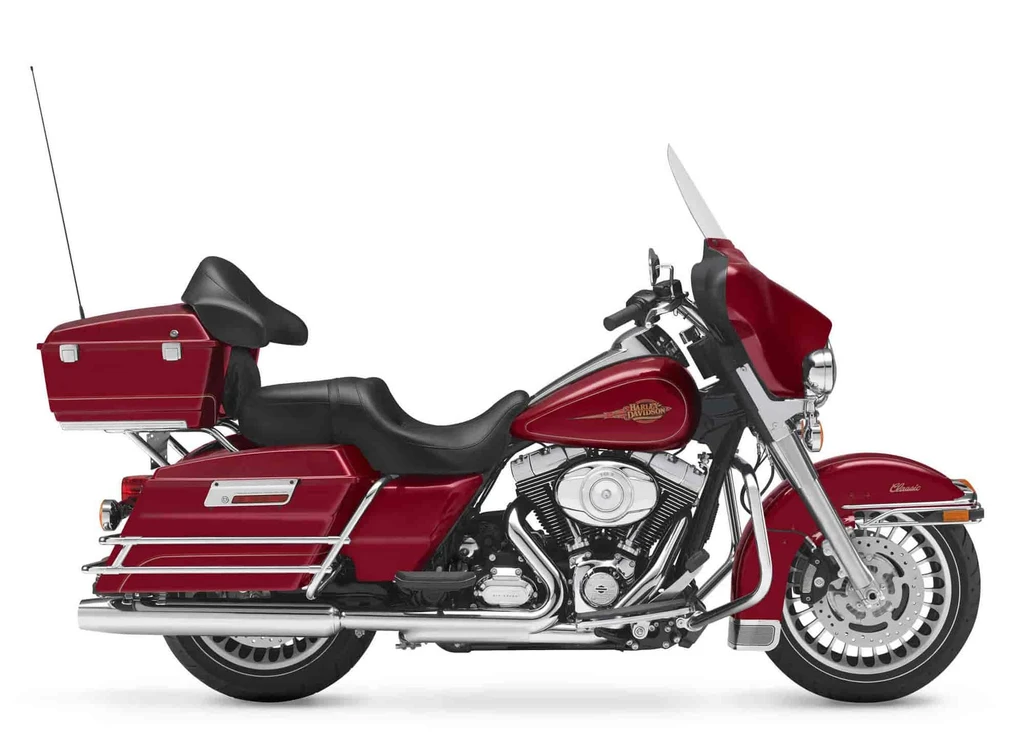

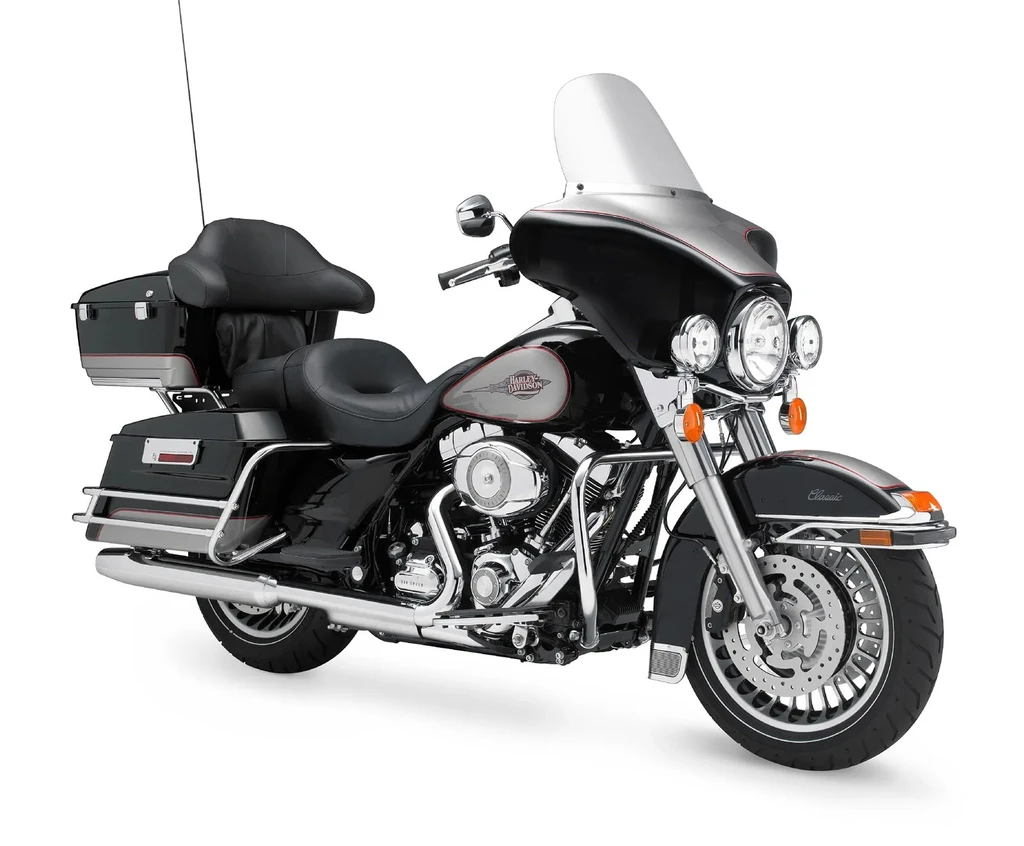

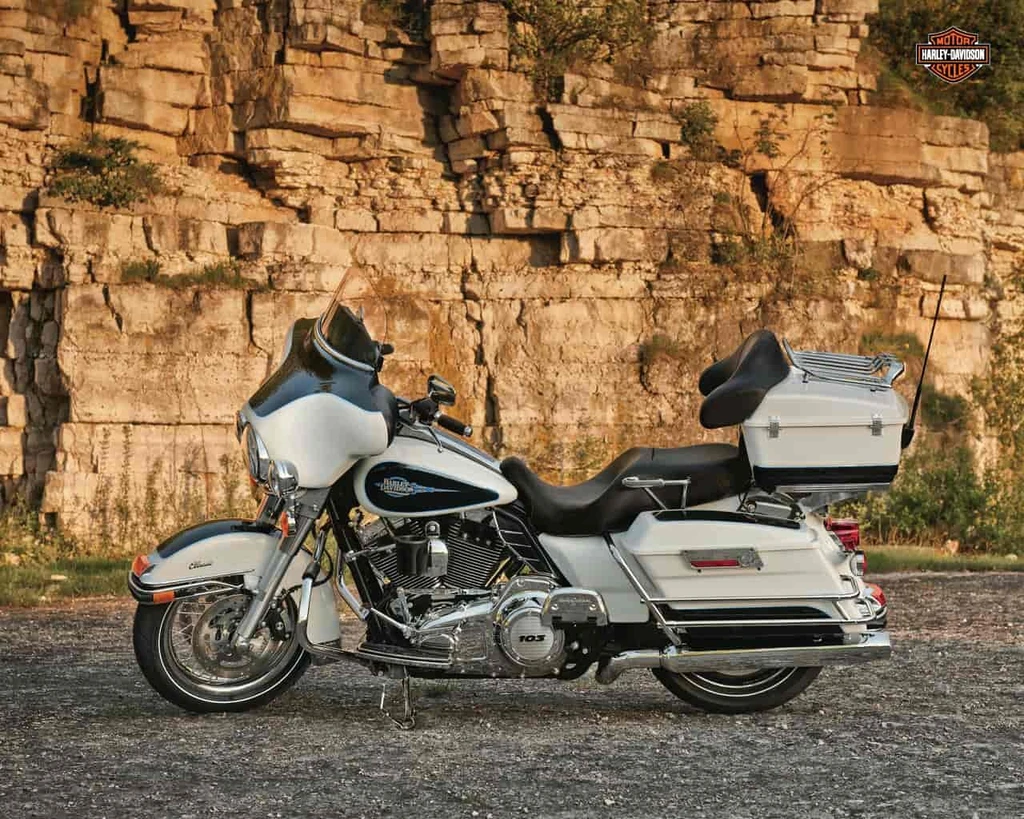

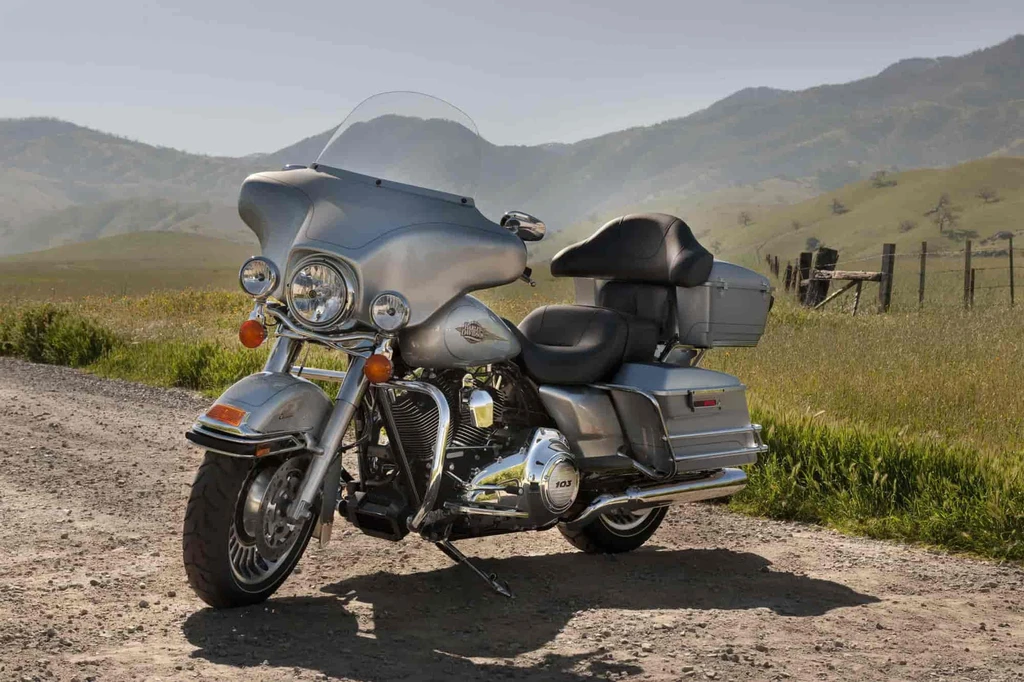

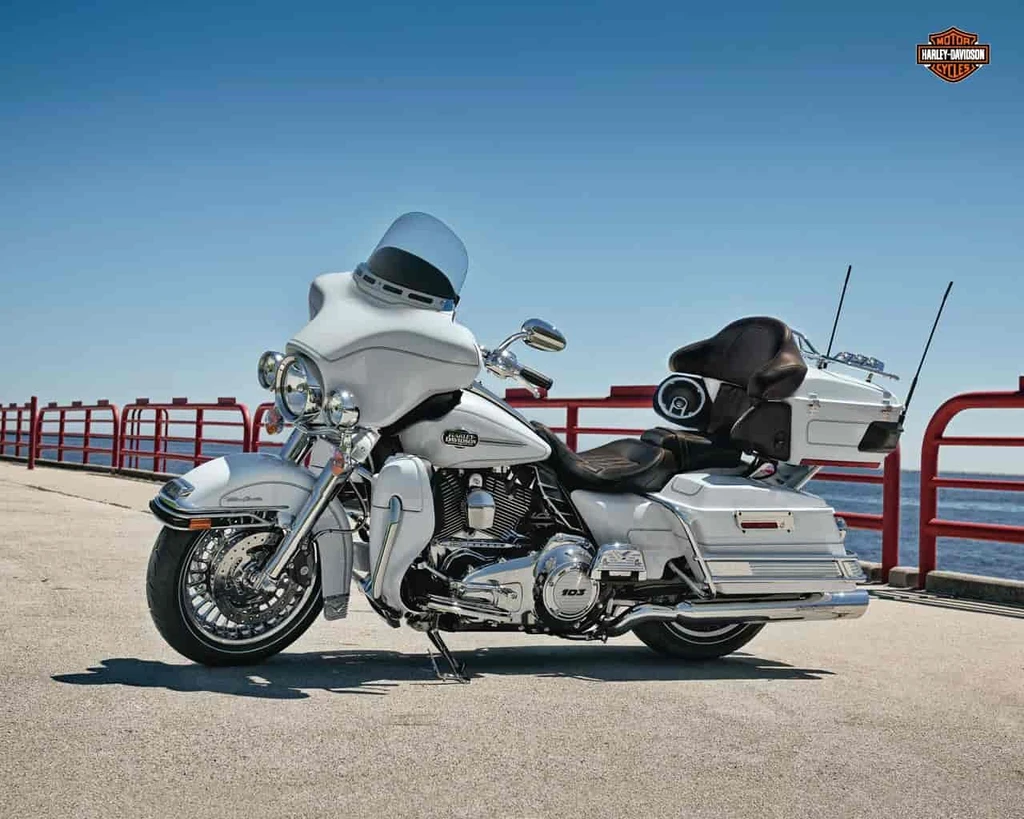

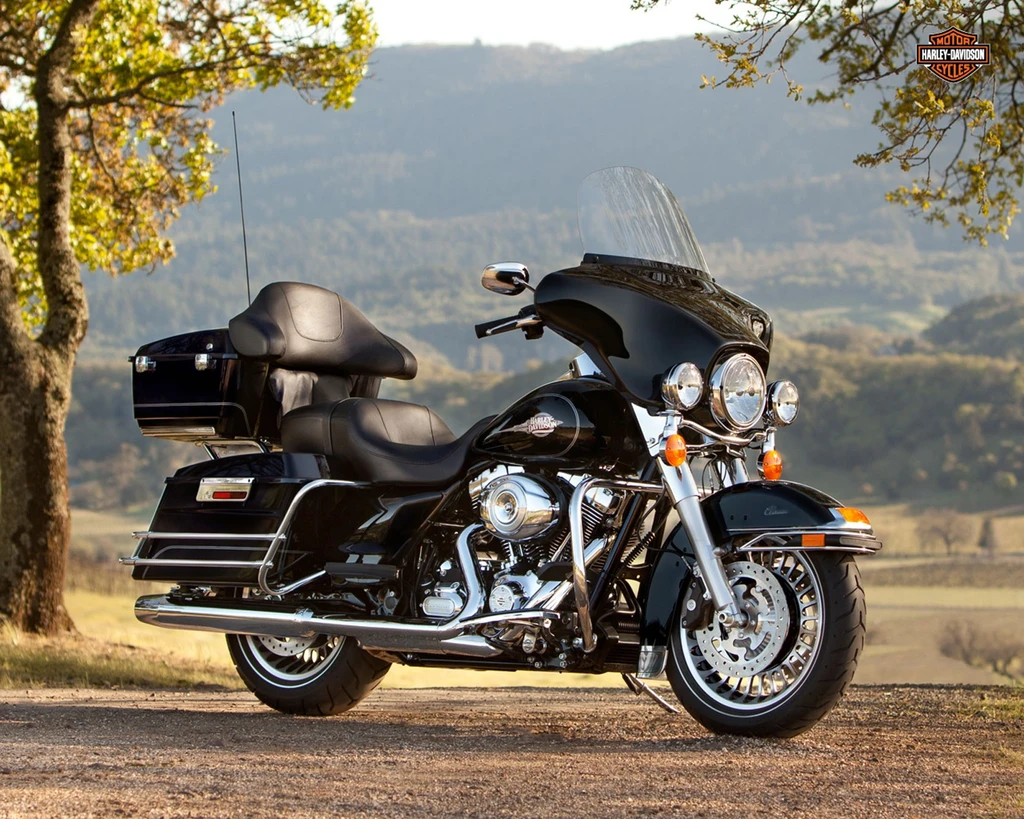

Harley Davidson FLHTC Electra Glide Classic (2012)

The Harley-Davidson FLHTC Electra Glide Classic is a tourer that embodies the ultimate blend of luxury, performance, and style. At its heart lies the powerful 1690cc Twin Cam 103 V-Twin engine, fed by Electronic Sequential Port Fuel Injection (ESPFI) and delivering a smooth, effortless ride.

The Electra Glide Classic’s chassis is built to withstand the demands of long-haul touring, with a single-spar frame and stout swingarm designed to handle today’s powerful engines. The result is a riding experience that combines comfort and control, making it perfect for two-up adventures.

Whether you’re cruising down the highway or navigating twisty back roads, the Electra Glide Classic’s air-adjustable rear shocks and smooth-shifting 6-speed Cruise Drive transmission ensure a confident and enjoyable ride.

Key Specifications

Engine Type	Four stroke, V-Twin, High output ‘Twin Cam 103’
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	911 lbs / 413 kg
Seat Height	27.3 inches / 693.42 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FLHTC Electra Glide Classic
Year	2012

Engine

Engine Type	Four stroke, V-Twin, High output ‘Twin Cam 103’
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	10.0:1
Max Torque	138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.650 3rd 4.938 4th 4.000 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock

Wheels & Brakes

Front Tire Size	MT90B16
Rear Tire Size	MU85B16
Front Brakes	2x 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	27.3 inches / 693.42 mm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	911 lbs / 413 kg
Dry Weight	400 kg / 882 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Twin Cam 103 V-Twin engine
Heated O2 sensors
Electronic Throttle Control (ETC)
Black powder-coated powertrain with chrome covers
Chrome 2-1-2 dual exhaust with tapered mufflers
28-spoke Cast Aluminum wheels with whitewall tires
Bat-wing, fork-mounted fairing with clear windshield
Deep FL front fender with trim
Stainless steel, easy-reach touring handlebar
One-piece, two-up Electra Glide classic comfort stitch seat
Passenger backrest with wrap-around armrests
Injection-molded hard saddlebags; 2.26 cu. ft. volume
Fairing-mounted electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauges
40-watt, two-speaker Advanced Audio System by Harman/Kardon
LED rear fender tip light
Auxiliary passing lights
Air-adjustable rear shocks
6-speed Cruise Drive transmission with integrated Isolated Drive System (IDS)
Dunlop Multi-Tread rear tire construction
