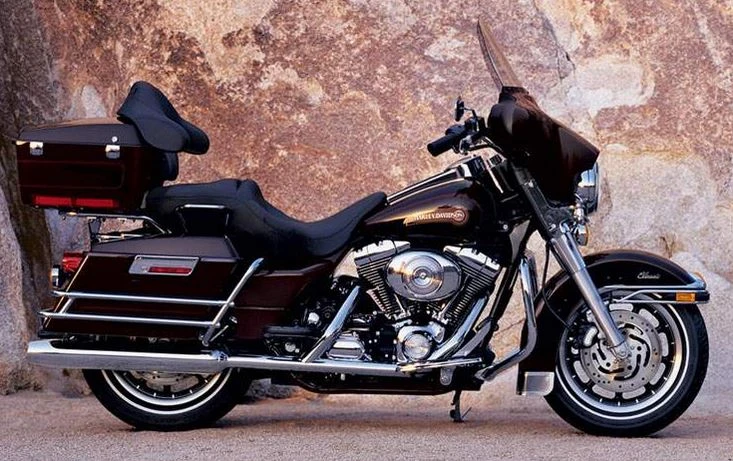

Harley Davidson FLHTC Electra Glide (2005 - 2006)

The Harley-Davidson FLHTC Electra Glide – a touring motorcycle born from the pursuit of perfection on long hauls. Every inch of this bike has been meticulously designed to provide an unparalleled riding experience, with hard bags and a Tour-Pak luggage box providing ample storage for your journey.

At its heart lies the powerful Twin Cam 88 engine, offering reliable and efficient performance that’s perfect for navigating the open road. Whether you’re cruising through rolling hills or carving through twisties, this engine provides the oomph to keep you moving at a leisurely pace.

The ride itself is a masterclass in comfort and control, thanks to the air-adjustable suspension and triple-disc brakes that work in harmony to deliver precise handling and confident stopping power. And with the fork-mounted batwing fairing complete with all instruments, you’ll be fully immersed in the journey.

Whether you’re embarking on a cross-country adventure or just a weekend getaway, the Harley-Davidson FLHTC Electra Glide is the ultimate companion for the open road – where every mile is a joyride.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	88.4 cubic inches / 1449 cc
Max Power	67 hp / 48.8 kW @ 5200 rpm
Max Torque	86 ft-lb / 116.6 nm
Fuel Tank Capacity	5.0 US gallons / 19.0 L
Seat Height	27.2 inches / 692 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHTC Electra Glide (2005 - 2006)

All Specifications

Make & Model

Model	Harley Davidson FLHTC Electra Glide
Year	2005 – 2006

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	88.4 cubic inches / 1449 cc
Bore x Stroke	95.3 x 101.6 mm
Compression Ratio	8.9:1
Max Horsepower	67 hp / 48.8 kW @ 5200 rpm
Max Torque	86 ft-lb / 116.6 nm
Engine Management System	Electronic Sequential Port Fuel Injection ESPFI
Lubrication System	Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10 pressurized oil filter
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet 9-plate
Gearbox	5 Speed
Gear Ratios	1st 10.11 2nd 6.96 3rd 4.95 4th 3.86 5th 3.15
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel; square-section backbone with twin downtubes Swing Arm Mild steel, rectangular section
Front Suspension	Cartridge style damping
Rear Suspension	Air-adjustable
Rake	26
Trail	157.5 mm / 6.2 in

Wheels & Brakes

Front Tire Size	MT90-16T
Rear Tire Size	MT90-16
Front Brakes	2x 292mm discs 4 piston calipers
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	27.2 inches / 692 mm
Wheelbase	63.5 inches / 1612.9 mm
Fuel Tank Capacity	5.0 US gallons / 19.0 L
Dry Weight	352 kg / 776 lb

Features

Air-adjustable suspension
Triple-disc brakes
Fork-mounted batwing fairing with instruments
Hard bags
Tour-Pak luggage box
Comfort-stitch saddle with passenger backrest
Big floorboards
40-watts-per-channel sound system with standard CD
Powerful, reliable EFI or carbureted Twin Cam 88 engine
Electronic Sequential Port Fuel Injection (optional)
Locking GTX hard saddlebags
Fork-mounted touring fairing with instrumentation
Vibration-isolated, 1450cc Twin Cam 88 engine
New low-effort clutch
50 amp/650 watt charging system
Cruise control-ready
