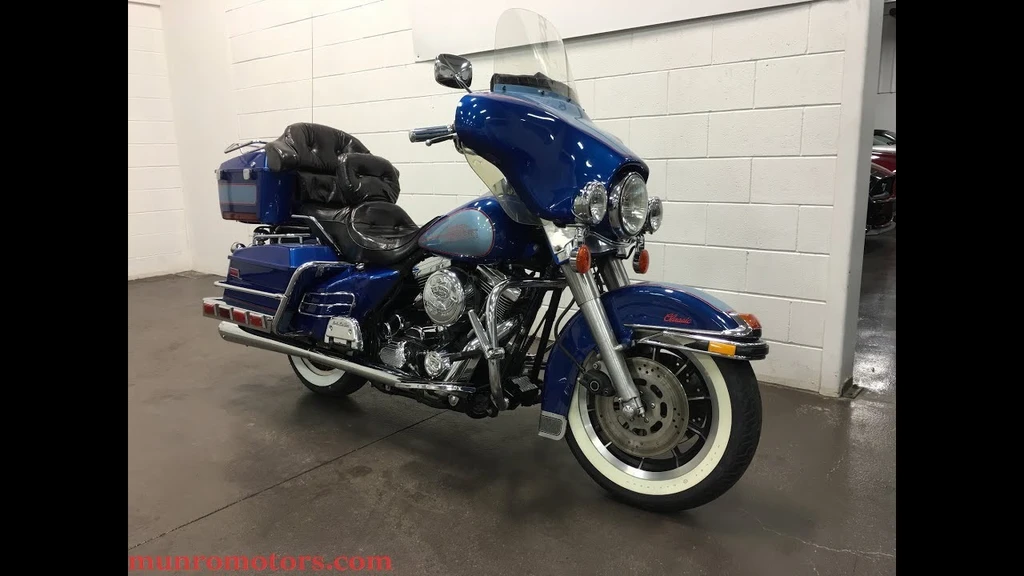

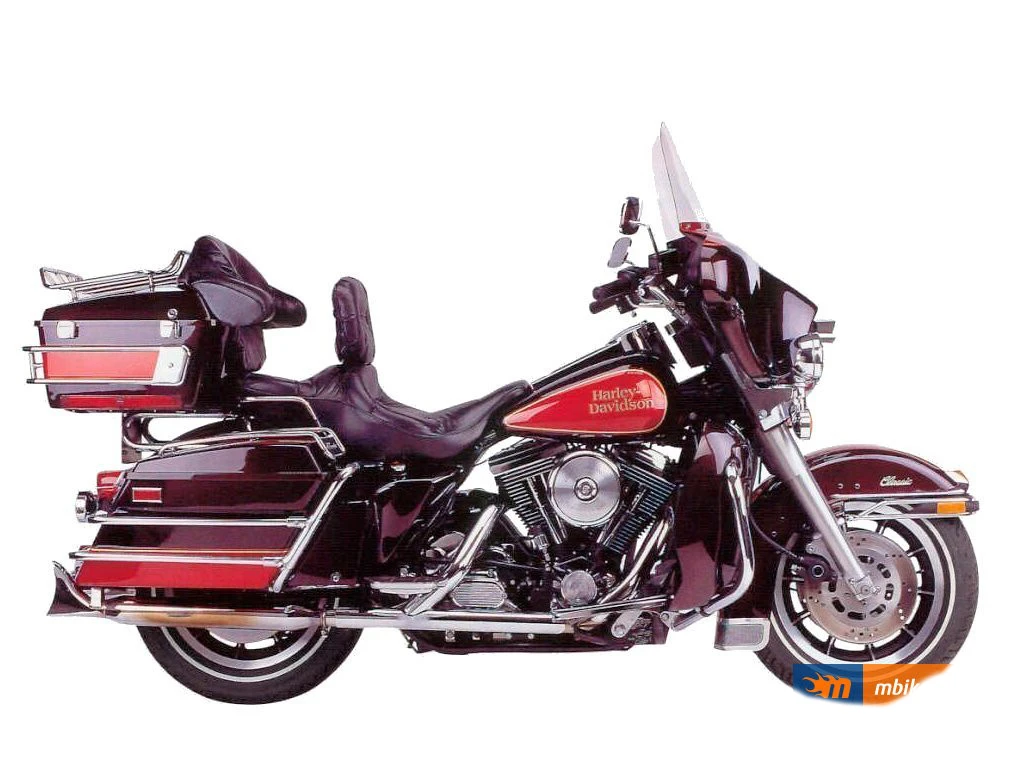

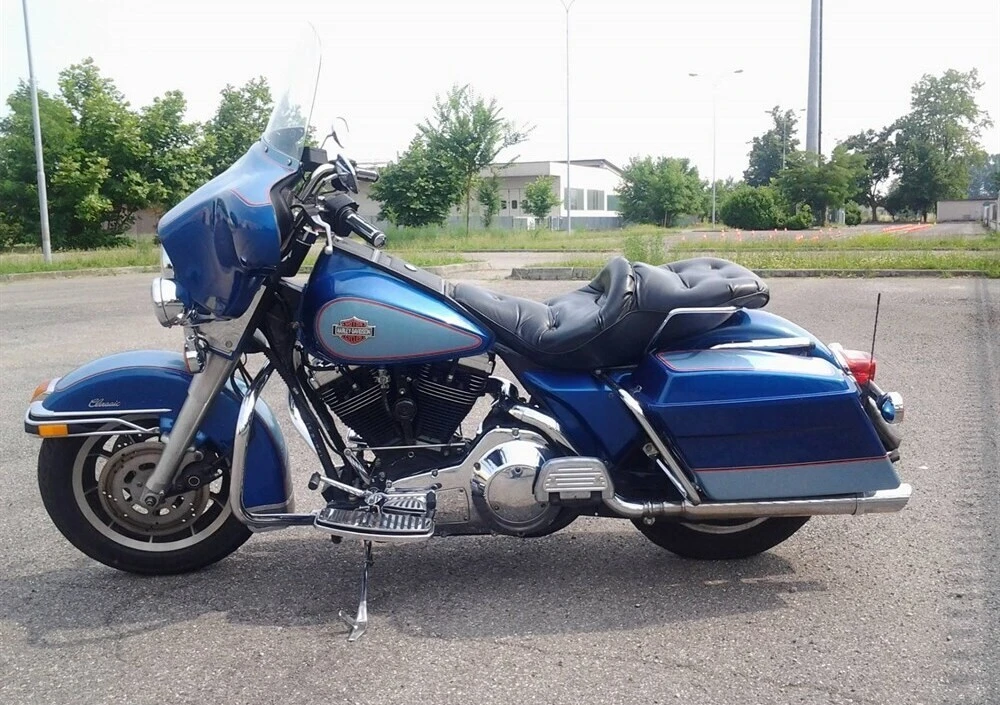

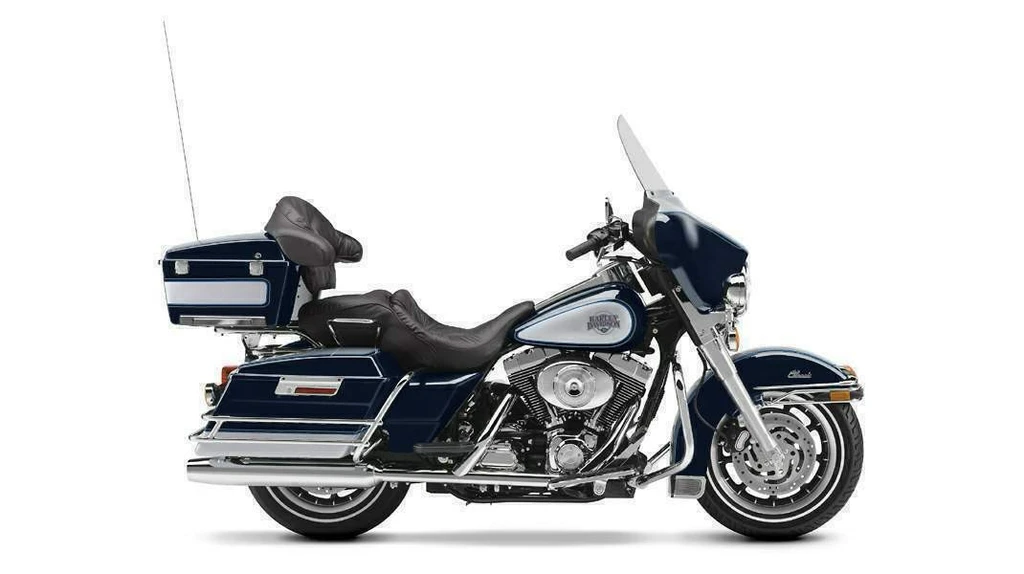

The Harley-Davidson FLHTC 1340 Electra Glide Classic is a timeless touring icon that embodies the essence of American motorcycling. For the 1989 model year, Harley added refined touches to create the Ultra Classic variant.
Key upgrades included fairing lowers and wind deflectors on the fairing to enhance rider comfort and reduce buffeting. Electronic cruise control was introduced, allowing riders to maintain a steady speed with ease. The addition of an intercom system enabled seamless communication between the rider and passenger.
A state-of-the-art 40-channel CB radio with digital tuning ensured clear communication on the open road. An 80-watt four-speaker stereo and tape deck rounded out the premium audio experience, complete with separate controls for the passenger to enjoy their own soundtrack.
The result is a motorcycle that masterfully balances engine character with refined amenities, creating an unparalleled riding experience that continues to captivate motorcyclists around the world today, solidifying its place as a legendary touring bike of all time.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
81.5 cubic inches / 1337 cc
Max Power
71 hp / 53.3 kW @ 5000 rpm
Max Torque
82.5 ft-lb / 111.8 Nm @ 3600 rpm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Weight (Wet/Kerb)
760 lbs / 345.0 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FLHTC 1340 Electra Glide Classic
Year
1989 –
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
81.5 cubic inches / 1337 cc
Bore x Stroke
88.8 x 108 mm
Compression Ratio
8.5:1
Max Horsepower
71 hp / 53.3 kW @ 5000 rpm
Max Torque
82.5 ft-lb / 111.8 Nm @ 3600 rpm
Engine Management System
38mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Double-downtube, full-cradle frame box-section steel swing arm
Front Suspension
Center-axle fork with 41mm tubes
Rear Suspension
Dual shock absorbers, adjustable for spring preload
Rear Suspension Travel
3.8 inches / 97 mm
Wheels & Brakes
Front Tire Size
140/90-16
Rear Tire Size
140/90-16
Front Brakes
2x 292mm discs 4 piston calipers
Rear Brakes
Single 292mm disc 4 piston caliper
Dimension & Weights
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Wet (kerb/curb) Weight
760 lbs / 345.0 kg
Features
Fairing lowers
Wind deflectors on the fairing
Electronic cruise control
Intercom
Digitally tuned 40-channel CB radio
80-watt four-speaker stereo
Separate controls for passenger
Additional features from the FLHT model

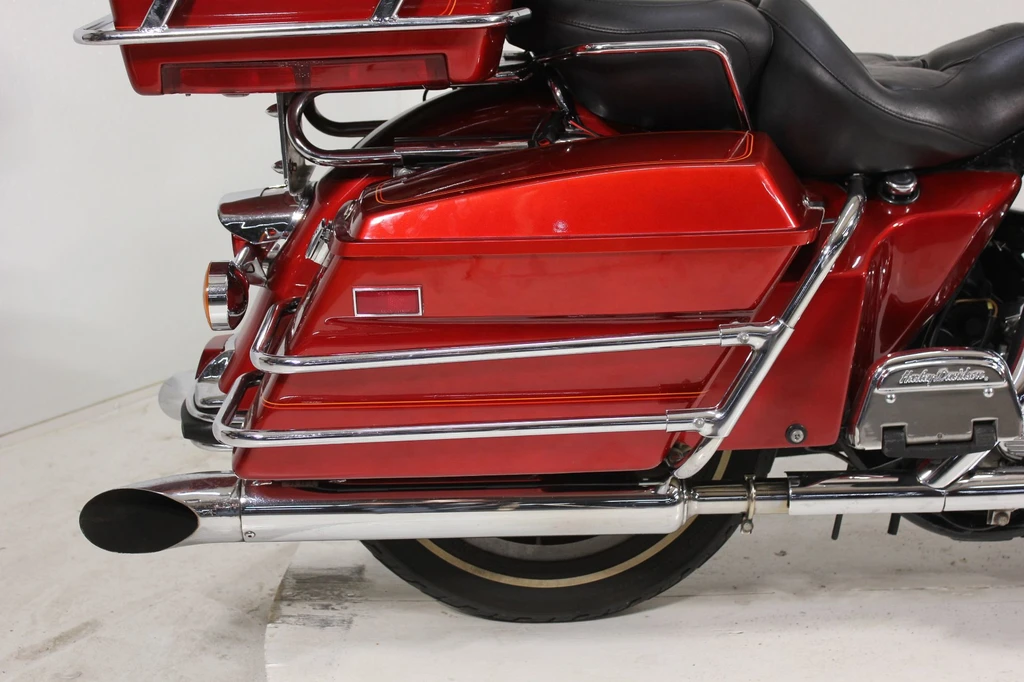

Harley Davidson FLHTC 1340 Electra Glide Classic model
