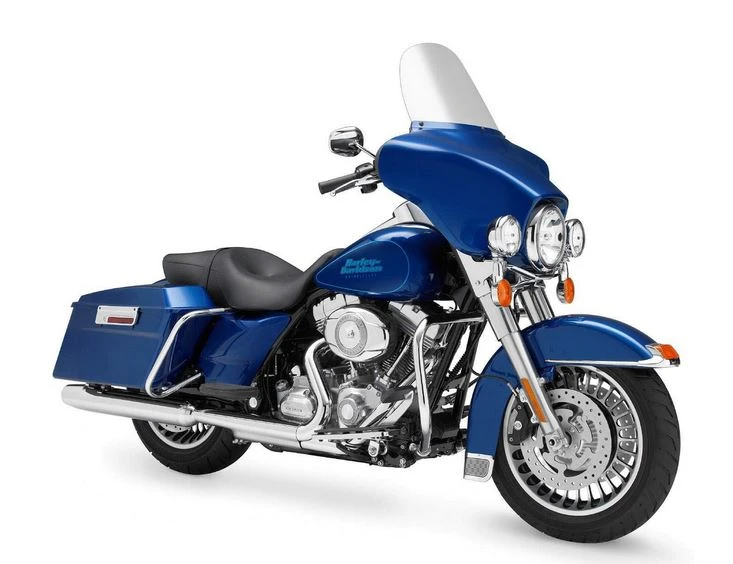

Harley Davidson FLHT Electra Glide Standard (2009)

The Harley-Davidson FLHT Electra Glide Standard is the epitome of a no-nonsense touring machine, designed to provide pure, long-distance riding comfort and style. At its heart lies the powerful 1584cc Twin Cam 96 engine, now paired with a new 6-speed Cruise Drive transmission for effortless shifting.

The addition of Electronic Sequential Port Fuel Injection (ESPFI) ensures seamless power delivery, while a redesigned football shape air cleaner and reduced clutch lever effort make every ride a pleasure. The classic Batwing fairing with instrumentation, air-adjustable rear suspension, and triple-disc brakes are all standard features on this capable machine.

With its Vivid Black, Fire Red Pearl, or Pacific Blue Pearl finish, the Electra Glide Standard is ready to hit the open road in style, its comfort-stitch touring saddle and locking GTX nylon alloy saddlebags providing ample storage for extended trips. Whether you’re a seasoned tourer or just starting out, this Harley-Davidson model offers an unbeatable combination of performance, comfort, and customization options.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity	5.0 US gallons / 9.0 L
Weight (Wet/Kerb)	811 lbs / 367.8 kg
Seat Height	27.3 inches / 693.4 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHT Electra Glide Standard (2009)

All Specifications

Make & Model

Model	Harley Davidson FLHT Electra Glide Standard
Year	2009

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.2 x 111.2 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.312 9.312 9.3122nd 6.421 6.421 6.4213rd 4.774 4.774 4.7744th 3.926 3.926 3.9265th 3.279 3.279 3.2796th 2.790 2.790 2.790
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Rake	26
Trail	157.5 mm / 6.2 in

Wheels & Brakes

Front Tire Size	130/80B17 65H
Rear Tire Size	180/65B16 81H
Front Brakes	2x 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	27.3 inches / 693.4 mm
Wheelbase	63.5 inches / 1613 mm
Ground Clearance	130 mm / 5.1 in
Fuel Tank Capacity	5.0 US gallons / 9.0 L
Wet (kerb/curb) Weight	811 lbs / 367.8 kg
Dry Weight	351 kg / 774 lbs

Features

Twin Cam 96 engine
1584cc displacement
Electronic Sequential Port Fuel Injection (ESPFI)
6-speed Cruise Drive transmission
Redesigned football shape air cleaner
Air-adjustable rear suspension
Classic Harley-Davidson fork-mounted Batwing fairing with instrumentation
Locking GTX nylon saddlebags
Comfort-stitch touring saddle
Fairing-mounted speedometer and tachometer
Triple-disc brakes
Cruise control-ready
Clear-lens reflector-optics auxiliary lamps
Triple Circuit Damping (DCD) front forks
Footboard inserts
Reduced clutch lever effort
