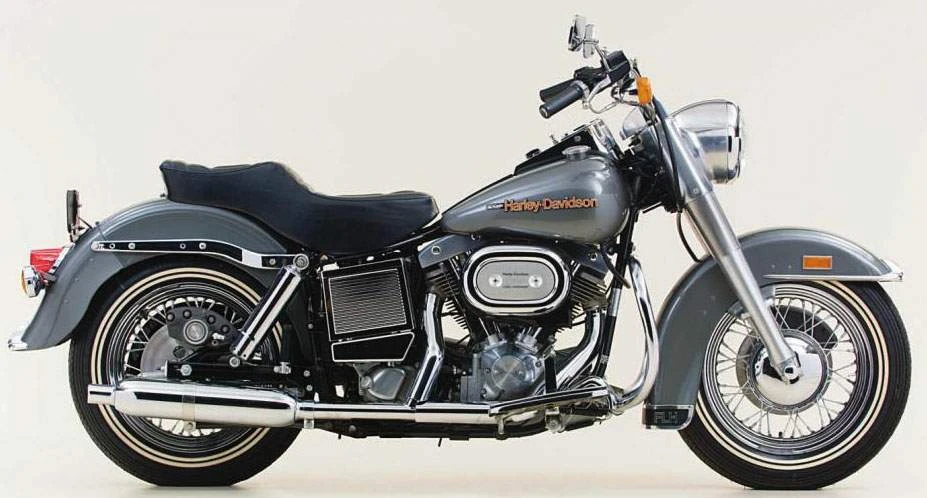

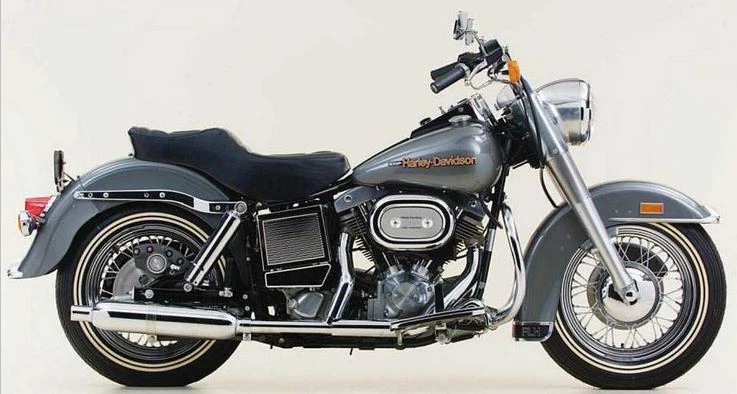

The Harley-Davidson FLHS 1340 Electra Glide is an imposing machine, its presence commanding attention on the road. Its signature tickover – a lazy, off-beat heartbeat – is unmistakable, drowning out any hint of engine noise with its exhaust note muffled by stock silencers.
Riding the Electra Glide is a unique experience, with its substantial size and tank-mounted dash creating an elevated riding position that’s both commanding and comfortable. The bike’s imposing stature is a testament to its heritage, drawing comparisons to the iconic Shovelhead Electra Glides of yesteryear.
Despite being considered large by some in its day, the FLHS 1340 Electra Glide has stood the test of time, earning its place as an undisputed classic among motorcycle enthusiasts.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
81.7 cubic inches / 1337 cc
Max Power
67 hp /48.9hp @ 5000 rpm
Max Torque
69 lb-ft @ 3000 rpm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FLHS 1340 Electra Glide
Year
1983 – 86
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
81.7 cubic inches / 1337 cc
Bore x Stroke
88.8 x 108.0 mm
Compression Ratio
8.5:1
Max Horsepower
67 hp /48.9hp @ 5000 rpm
Max Torque
69 lb-ft @ 3000 rpm
Engine Management System
38mm KeihinCarburettor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Dual shocks swinging arm
Wheels & Brakes
Front Tire Size
MT90-16T
Rear Tire Size
MT90-16
Front Brakes
Single 254mm disc 1 piston caliper
Rear Brakes
Single 254mm disc 1 piston caliper.
Dimension & Weights
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Dry Weight
343 kg / 756 lbs
Features
Seat height higher than previous models
Tank mounted dash sits inches higher than its forebears
Engine has been overbored to meet power expectations under emissions laws
Charging system upgrade
1966 Shovelhead Electra Glide design influence
1958 Duo Glide design influence
Classic styling with modern components
Stock Road King silenced exhausts drowned out by the FLHS’s engine heartbeat
Engine size comparable to a Harley-Davidson Big Twin
Size and weight significantly greater than previous models
Larger tank capacity
Modern electronics and features within a classic design
