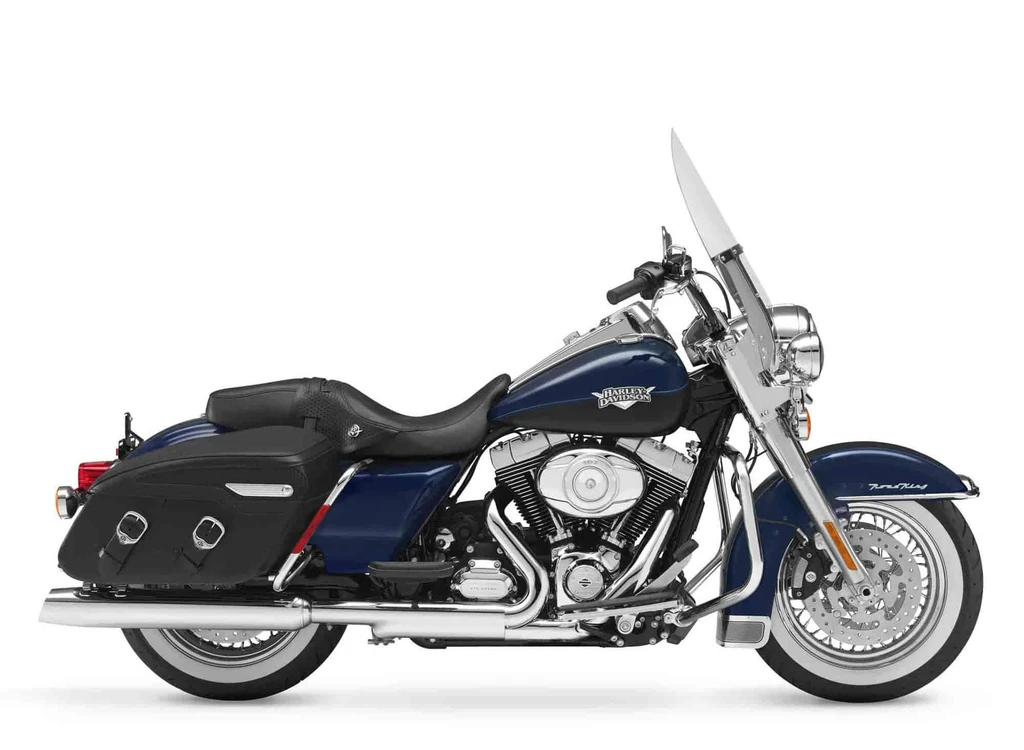

Harley Davidson FLHRC Road King Classic (2012 – 2013)

The Harley-Davidson FLHRC Road King Classic is a masterclass in blending nostalgic design with cutting-edge technology. This touring bike boasts an array of premium features, including leather-wrapped saddlebags, a chrome fuel tank console, and tooled metal detailing throughout.

Its powerful 1690 cc Twin Cam 103 engine is the heartbeat of this machine, delivering a rich, throaty exhaust note that’s music to the ears of any motorcyclist. With Electronic Sequential Port Fuel Injection (ESPFI) and Electronic Throttle Control (ETC), this V-Twin powerplant provides effortless acceleration and responsive handling.

Riding the Road King Classic is an experience akin to cruising down a sun-kissed highway on a warm summer day – effortless, exhilarating, and utterly liberating.

Key Specifications

Engine Type	Four stroke, V-Twin, ‘Twin Cam 103 with integrated oil cooler’
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	138 Nm / 14.1 kgf-m /102 ft/lb @ 3500 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	811 lbs / 368 kg
Seat Height	26.7 inches / 678. mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FLHRC Road King Classic
Year	2012 – 2013

Engine

Engine Type	Four stroke, V-Twin, ‘Twin Cam 103 with integrated oil cooler’
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	9.7:1
Max Torque	138 Nm / 14.1 kgf-m /102 ft/lb @ 3500 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.0 / 5th 3.407 / 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Trail	170 mm / 6.7 in

Wheels & Brakes

Front Tire Size	130/90B16 67H
Rear Tire Size	180/65B16 81H
Front Brakes	2x 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.7 inches / 678. mm
Wheelbase	63.5 inches / 1612 mm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	811 lbs / 368 kg
Dry Weight	355.6 kg / 783 lbs

Features

Leather-wrapped saddlebags
Nostalgic chrome fuel tank console
Tooled metal detailing on fender, tank, seat, and bags
Chrome laced wheels with wide whitewall tires
Rubber-mounted Twin Cam 103 V-Twin engine
Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
Black powder-coated powertrain with chrome covers
Chrome 2-1-2 dual exhaust with slash-up end caps
Stainless steel, ergonomic handlebar
One-piece, two-up Road King seat with tooled leather trim and chrome accents
Clear, large quick-release detachable windshield
Tooled, leather-wrapped hard saddlebags; 1.85 cu. ft. volume
Auxiliary passing lights
Electronic cruise control
Six-gallon fuel tank
Dunlop Multi-Tread rear tire construction
Brembo 4-piston front and rear caliper with dual front rotor brake system
Air-adjustable rear shocks
