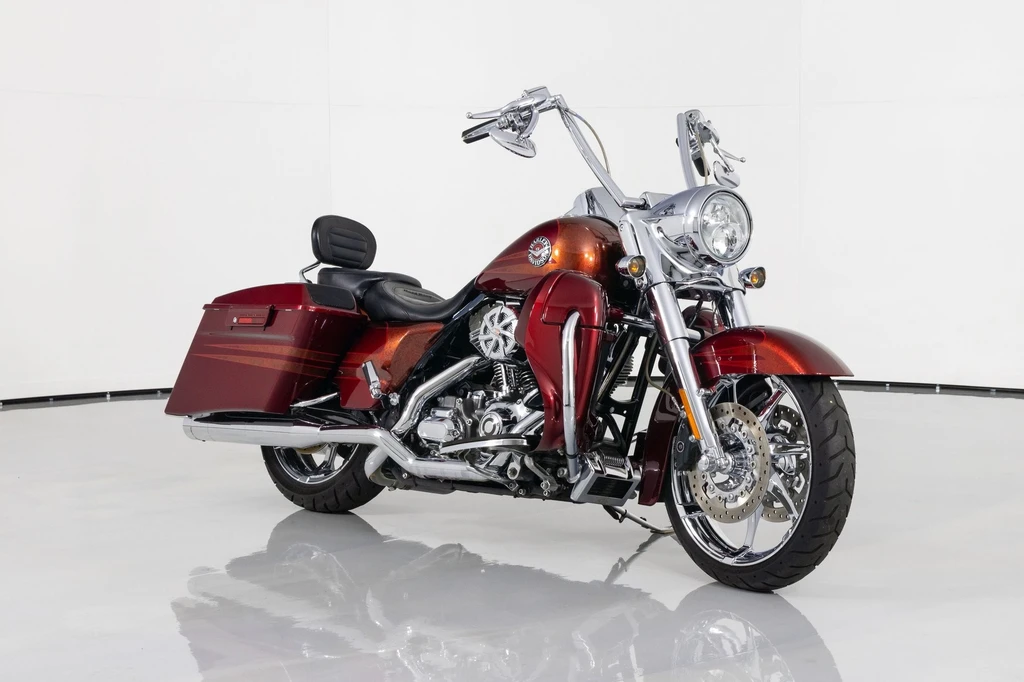

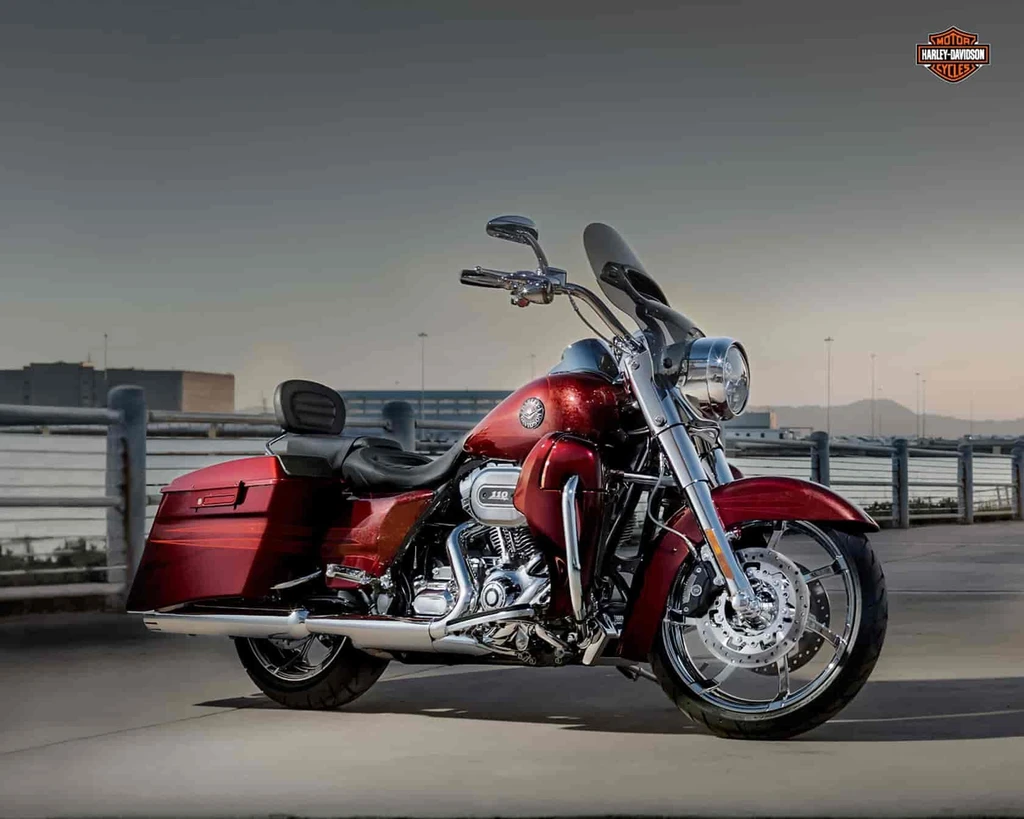

Harley Davidson FLHR-SE5 Road King CVO (2013)

The Harley-Davidson FLHR-SE5 Road King CVO is the epitome of touring excellence, engineered to deliver an unparalleled riding experience. Its Electronic Sequential Port Fuel Injection (ESPFI) system ensures effortless throttle response and exceptional fuel efficiency.

The first factory-installed Road King audio system features a 200-watt amplifier and interface module for an included 8GB Apple iPod, providing seamless music integration and control from the handlebar.

A new detachable Vented Wind Splitter windshield has been designed to significantly reduce buffeting at the rider position, while a low-profile console holds a combination speedometer/tachometer with programmable backlight colors. The CVO Road King’s long list of exclusive features also includes Mirror Chrome Agitator Custom wheels and a chromed handlebar with an ergonomic bend.

With its stunning hand-finished graphics created through a multi-step process, each motorcycle boasts unique detailing that sets it apart from the rest. Three color options are available, including the 110th anniversary scheme, which adds to the bike’s already impressive visual appeal.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 110 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	110 cubic inches / 1802 cc
Max Torque	115 ft-lb / 156 nm
Fuel Tank Capacity	22.7 Litres / 6.0 gal
Weight (Wet/Kerb)	368.3 kg / 812 lb
Seat Height	26.5 inches / 673 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHR-SE5 Road King CVO (2013)

All Specifications

Make & Model

Model	Harley Davidson FLHR-SE5 Road King CVO
Year	2013

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 110 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	110 cubic inches / 1802 cc
Bore x Stroke	101.6x 111.1 mm
Compression Ratio	9.7:1
Max Torque	115 ft-lb / 156 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Rake	26
Trail	170 mm / 6.7 in

Wheels & Brakes

Wheels	Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel/Rim Size	Black and Chrome, 28-spoke Cast Aluminum
Front Tire Size	130/80B17 65H
Rear Wheel/Rim Size	Black and Chrome, 28-spoke Cast Aluminum
Rear Tire Size	180/65B16 81H
Front Brakes	2x 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.5 inches / 673 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	145 mm / 5.7 in
Fuel Tank Capacity	22.7 Litres / 6.0 gal
Wet (kerb/curb) Weight	368.3 kg / 812 lb
Dry Weight	355 kg / 779 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Road King audio system with 200-watt amplifier and interface for an included 8GB Apple iPod
Detachable Vented Wind Splitter windshield with adjustable vane
Low-profile chrome console with programmable back-light colors
Combination speedometer/tachometer
Chrome billet-style extended reach heel shifter
Mirror Chrome Agitator Custom wheels
Extended saddlebag bottoms with custom fascia and LED lighting
New chromed handlebar with ergonomic bend
Slipstream Collection hand and foot controls
Solo touring seat
Removable passenger pillion and backrest with tuck-and-roll leather inserts
“Big flake” paint finishes
Paint process featuring hand-finished graphics created with textures and solvents
110th anniversary scheme
Four-speaker audio system with 200-watt amplifier
Assist & Slip Clutch Pack with slip feature on downshifts to reduce loading of the driveline
