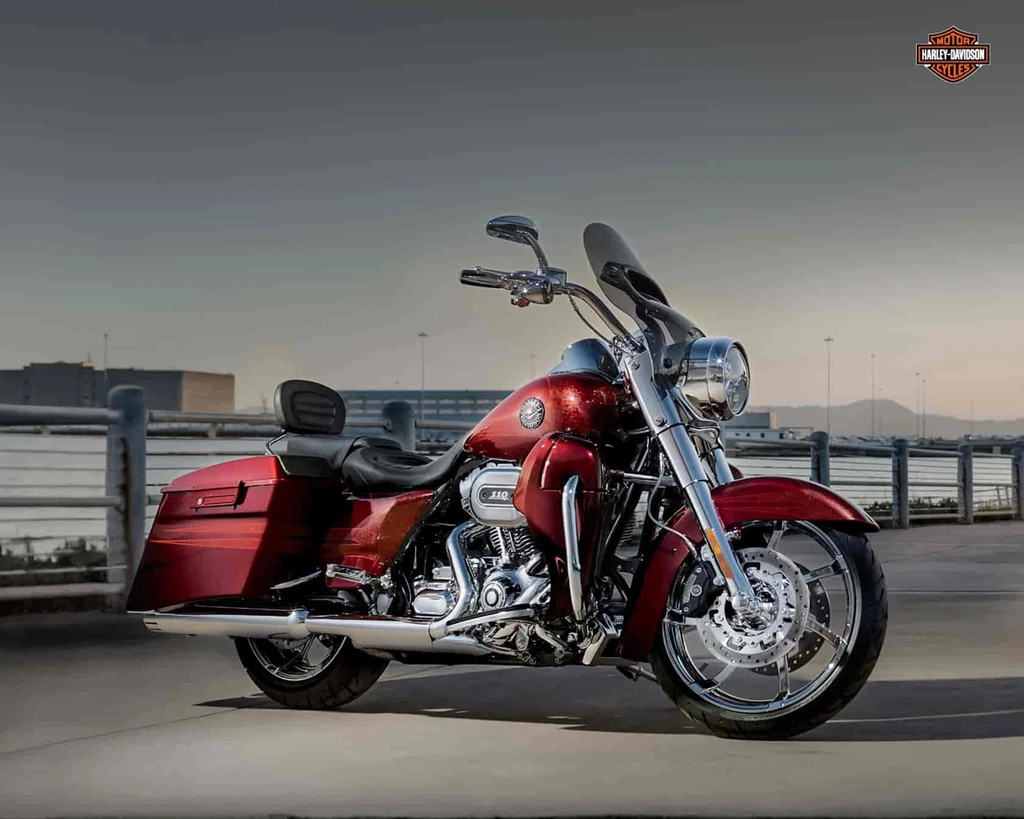

Harley Davidson FLHR-SE5 Road King CVO 110th Anniversary Edition (2013)

The Harley-Davidson FLHR-SE5 Road King CVO 110th Anniversary Edition is a touring icon reborn for the modern rider. Powered by a potent V-twin engine with Electronic Sequential Port Fuel Injection (ESPFI), this behemoth delivers a thrilling riding experience that’s both exhilarating and refined.

Key to its charm is an immersive audio system, complete with an iPod-controlled 200-watt amplifier and precision-crafted speakers designed to envelop the rider in crystal-clear sound. The all-new Vented Wind Splitter windshield is a marvel of engineering, providing unparalleled wind protection while dramatically reducing buffeting at high speeds.

But that’s not all – this CVO Road King also boasts a stunning array of premium features, including Mirror Chrome Agitator Custom wheels, an ergonomic handlebar, and exquisite detailing throughout. Whether you’re carving up twisties or cruising down the highway, the FLHR-SE5 is a true masterpiece of American motorcycle craftsmanship that will leave you in awe.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 110 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	110 cubic inches / 1802 cc
Max Torque	115 ft-lb / 156 nm
Fuel Tank Capacity	22.7 Litres / 6.0 gal
Weight (Wet/Kerb)	368.3 kg / 812 lb
Seat Height	26.5 inches / 673 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHR-SE5 Road King CVO 110th Anniversary Edition (2013)

All Specifications

Make & Model

Model	Harley Davidson FLHR-SE5 Road King CVO 110th Anniversary Edition
Year	2013

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 110 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	110 cubic inches / 1802 cc
Bore x Stroke	101.6x 111.1 mm
Compression Ratio	9.7:1
Max Torque	115 ft-lb / 156 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Rake	26
Trail	170 mm / 6.7 in

Wheels & Brakes

Wheels	Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel/Rim Size	Black and Chrome, 28-spoke Cast Aluminum
Front Tire Size	130/80B17 65H
Rear Wheel/Rim Size	Black and Chrome, 28-spoke Cast Aluminum
Rear Tire Size	180/65B16 81H
Front Brakes	2x 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.5 inches / 673 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	145 mm / 5.7 in
Fuel Tank Capacity	22.7 Litres / 6.0 gal
Wet (kerb/curb) Weight	368.3 kg / 812 lb
Dry Weight	355 kg / 779 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Factory-installed Road King audio system with 200-watt amplifier
Interface module for included 8GB Apple iPod
Handlebar buttons to control audio system
5×7-inch speakers on saddlebag lids
Bridged tweeters on saddlebag lids and fairing lowers
Detachable Vented Wind Splitter windshield
Adjustable vane in vent to match air flow to rider’s height
Low-profile console with combination speedometer/tachometer
Programmable back-light colors on speedometer/tachometer
Chrome billet-style extended reach heel shifter
Mirror Chrome Agitator Custom wheels
Extended saddlebag bottoms with custom fascia and LED lighting
Chromed handlebar with ergonomic bend
Slipstream Collection hand and foot controls
Solo touring seat with tuck-and-roll leather insert
Removable passenger pillion and backrest with tuck-and-roll leather insert
Hand-finished graphics created with textures and solvents in multi-step process
