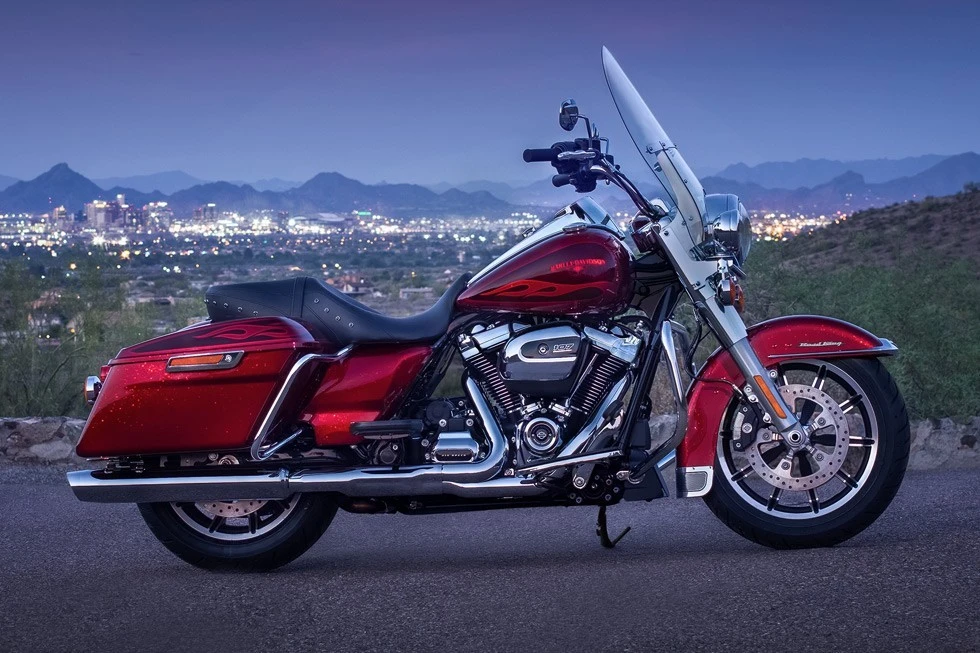

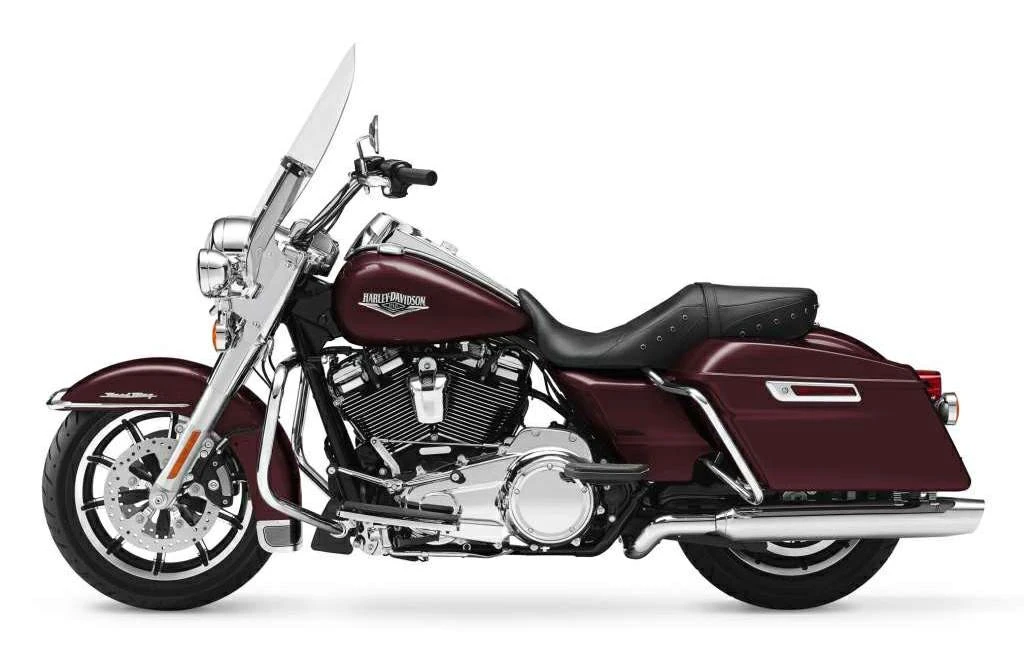

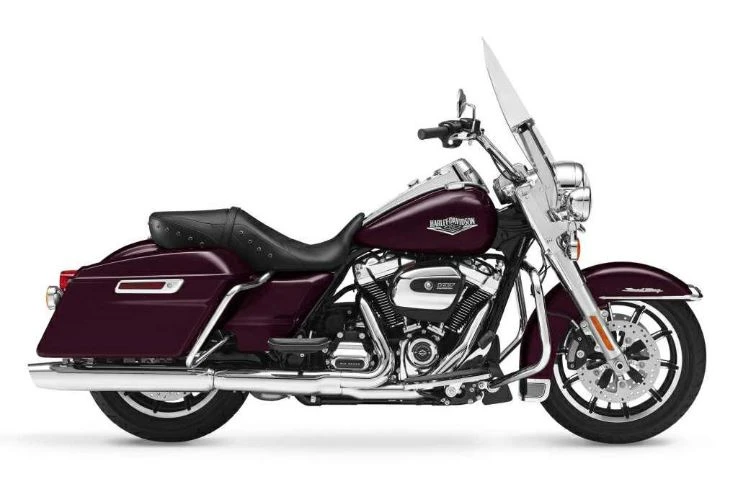

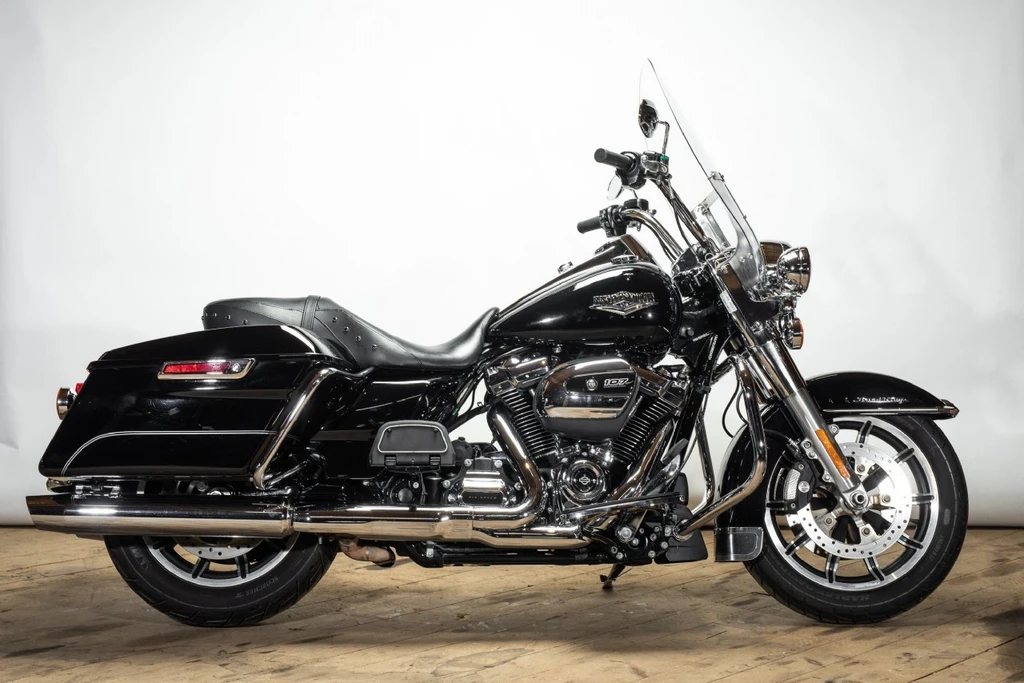

Harley Davidson FLHR Road King (2017 - 2018)

The Road King is where nostalgia meets modern performance, blending the iconic Hiawatha headlamp with the muscle of Harley-Davidson’s all-new Milwaukee-Eight 107 engine. This potent powerplant ignites a thrilling ride experience that defies the boundaries between past and present.

With its aggressive styling and classic design cues, the Road King exudes a timeless elegance that belies its impressive capabilities. The bike’s advanced suspension system – featuring an all-new double bending valve front fork and rear emulsion shocks – provides exceptional handling and comfort for both rider and passenger.

Whether carving through twisty roads or cruising down the highway, the Road King is the ultimate touring companion. Its generous 6-gallon fuel tank ensures a long-range cruising capability, while its array of amenities – including electronic cruise control, linked brakes, and BOOM! Box Audio Infotainment system – makes every ride an unforgettable adventure. And with its powerful Milwaukee-Eight 107 engine at the helm, this touring masterpiece delivers a thrilling riding experience that’s nothing short of exhilarating.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1746 cc / 107 cub in.
Max Torque	151 Nm / 111.4 ft/lb @ 3250 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	836 lbs / 379 kg
Seat Height	26.3 inches / 668 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHR Road King (2017 - 2018)

All Specifications

Make & Model

Model	Harley Davidson FLHR Road King
Year	2017 – 2018

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1746 cc / 107 cub in.
Bore x Stroke	100 x 111 mm / 3.937 x 4.374 in
Compression Ratio	10.0:1
Max Torque	151 Nm / 111.4 ft/lb @ 3250 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Hydraulically actuated 9 plate wet, Assist & Slip
Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension	49 mm forks, Dual Bending Valve
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Premium low height hand-adjustable rear shocks
Rear Suspension Travel	2.15 inches / 54.6 mm
Rake	26
Trail	170 mm / 6.7 in

Wheels & Brakes

Wheels	Black, Turbine Cast Aluminium
Front Wheel/Rim Size	9 Impeller Cast Aluminum
Front Tire Size	BW 130/80B17 65H
Rear Wheel/Rim Size	Impeller Cast Aluminum
Rear Tire Size	BW 180/65B16 81H
Front Brakes	2 x 300 mm disc, caliper type 32 mm, 4-piston fixed, dual floating rotors
Rear Brakes	Single 300 mm, caliper type 32 mm, 4-piston, fixed rotor
ABS	Standard

Dimension & Weights

Seat Height	26.3 inches / 668 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	135 mm / 5.3 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	836 lbs / 379 kg
Dry Weight	362 kg/ 798 lbs

Features

All-new Milwaukee-Eight 107 engine
Twin-Cooled Milwaukee-Eight 107 engines (varies by model)
All-new front suspension with double bending valve technology
Rear emulsion shocks with hand-adjustable preload adjustment
6-Speed Cruise drive transmission
Electronic throttle control system with cruise control standard on all models
Reflex Linked Brakes with ABS available on all models
LED Daymaker headlights (on select models)
BOOM! Box Audio Infotainment system (on select models)
6-gallon fuel tank for long range between fuel stops
Cast aluminum Impeller wheels
One-touch opening saddlebags
Hiawatha headlamp and nacelle
Comfortable rider and passenger seating
Spacious saddlebags
Electronic cruise control
