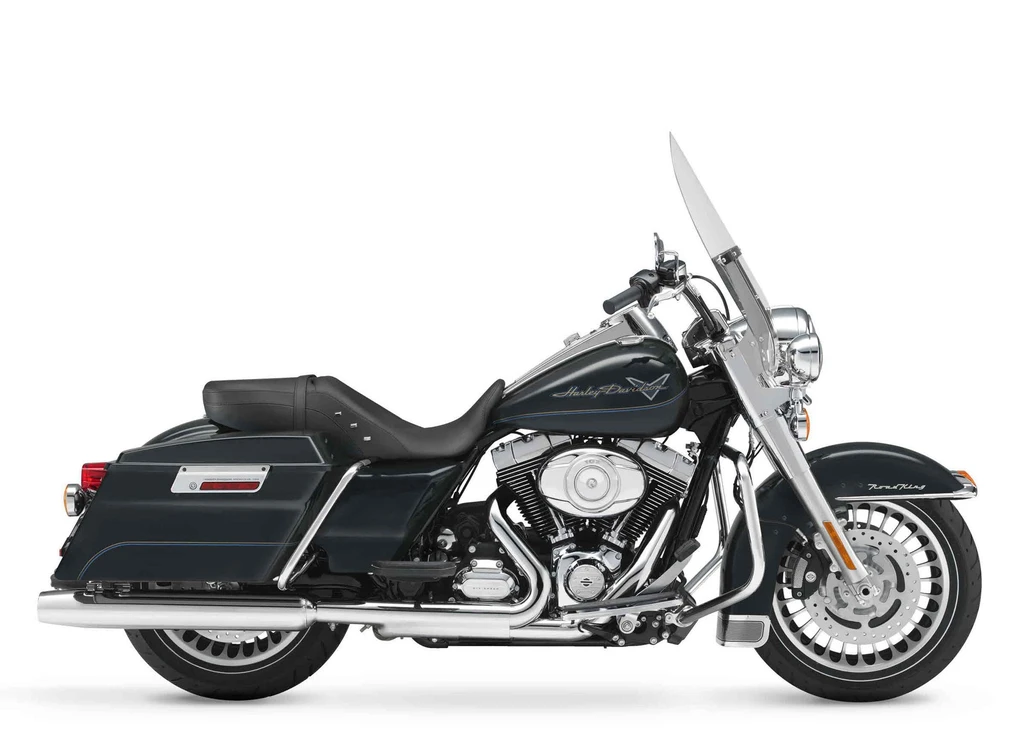

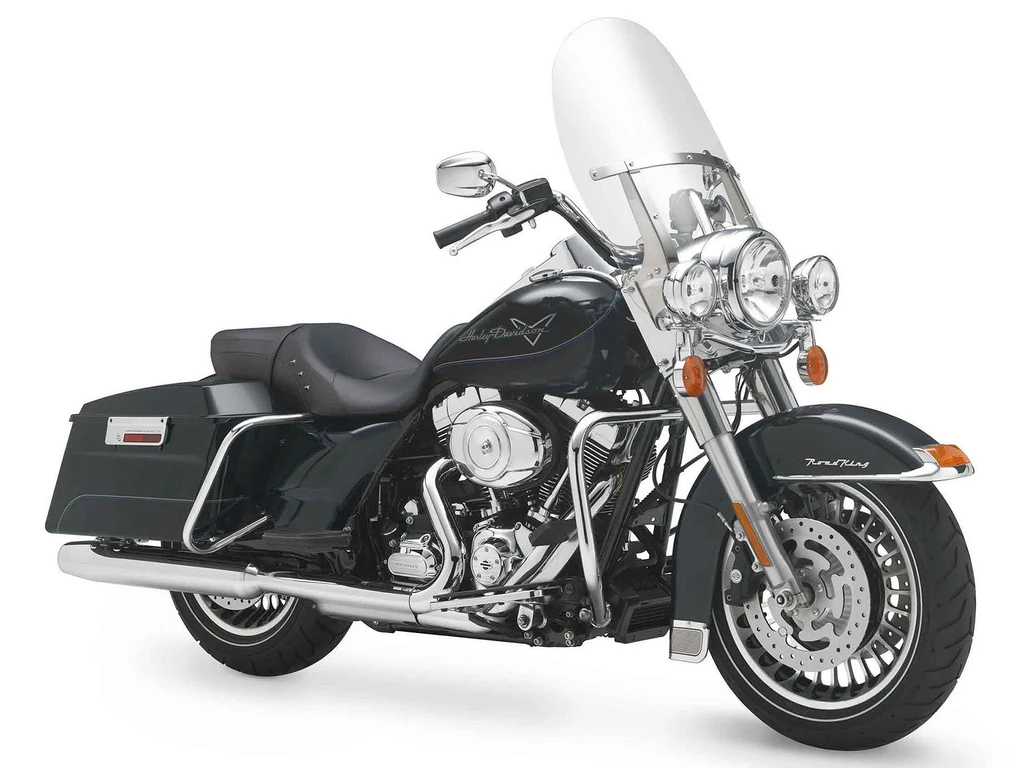

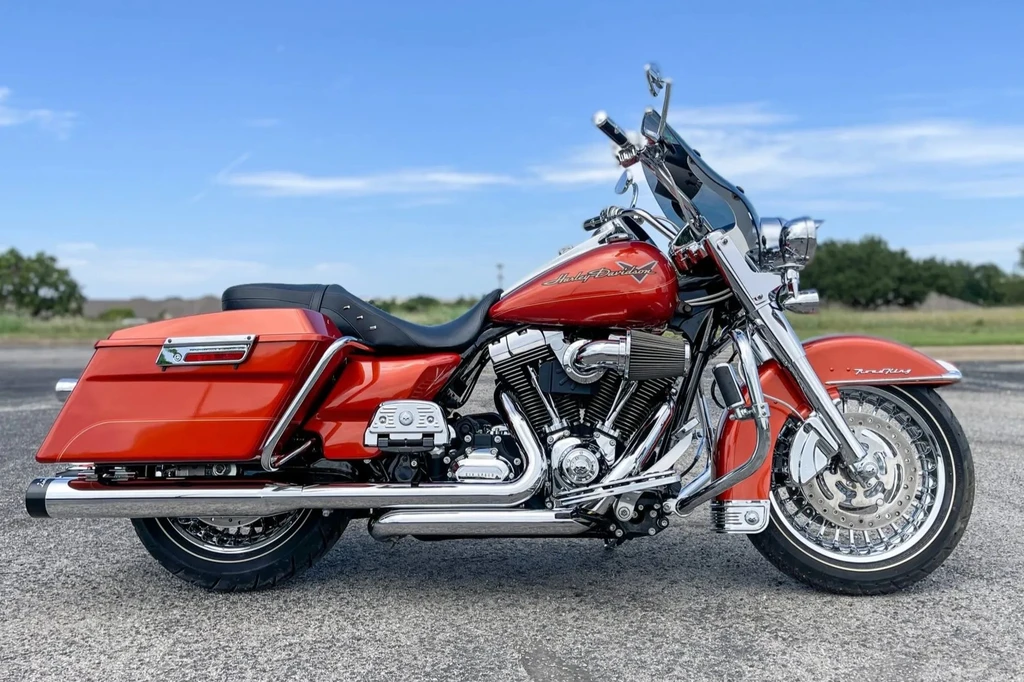

Harley Davidson FLHR Road King (2011)

Harley Davidson FLHR Road King (2011)

The Harley-Davidson FLHR Road King: an iconic status symbol born from heritage. Since its introduction in 1994, this timeless boulevard cruiser has earned a reputation as a fully equipped, long-distance tourer.

Its innovative Harley-Davidson Touring chassis boasts a single-spar, rigid backbone frame and stout swingarm, capable of withstanding the demands of long-haul touring riders and today’s powerful engines. The road king is powered by a rubber-mounted Twin Cam 96 V-Twin engine, delivering character-rich torque and power.

Whether you’re cruising down a boulevard or embarking on a cross-country journey, the FLHR Road King offers an unparalleled riding experience. With its sleek design, impressive features, and legendary Harley-Davidson build quality, this motorcycle is sure to leave a lasting impression, forever etched in the annals of motorcycling history as a true classic.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)812 lbs / 368.3 kg
Seat Height26.5 inches / 673 mm
Harley Davidson FLHR Road King (2011)

All Specifications

Make & Model

ModelHarley Davidson FLHR Road King
Year2011

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.2 x 111.2 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock
Trail170 mm / 6.7 in

Wheels & Brakes

Front Tire SizeMT90 B16
Rear Tire SizeMU85 B16
Front Brakes2x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.5 inches / 673 mm
Wheelbase63.5 inches / 1290 mm
Ground Clearance129.5 mm / 5.1 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight812 lbs / 368.3 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Rubber-mounted Twin Cam 96 V-Twin engine
  • Heated O2 sensors
  • Electronic Throttle Control (ETC)
  • 6-Speed Cruise Drive transmission
  • Integrated Isolated Drive System (IDS)
  • Dunlop “Multi-Tread” rear tire construction
  • Brembo 4-piston front and rear caliper
  • Dual front rotor brake system
  • Air-adjustable rear shock
  • Full-length rider footboard
  • Height-adjustable passenger footboard
  • Six-gallon fuel tank
  • Electronic cruise control (optional)
  • Anti-lock Braking System (ABS) (optional)
  • Harley-Davidson Smart Security System with hands-free fob and ABS (new security package option)
  • Sculpted seat for added comfort and easier straddling (new feature)
  • Black powder-coated powertrain with chrome covers
  • Chrome 2-1-2 dual exhaust with tapered mufflers
  • Black, 28-spoke Cast Aluminum wheels with narrow whitewall tires
