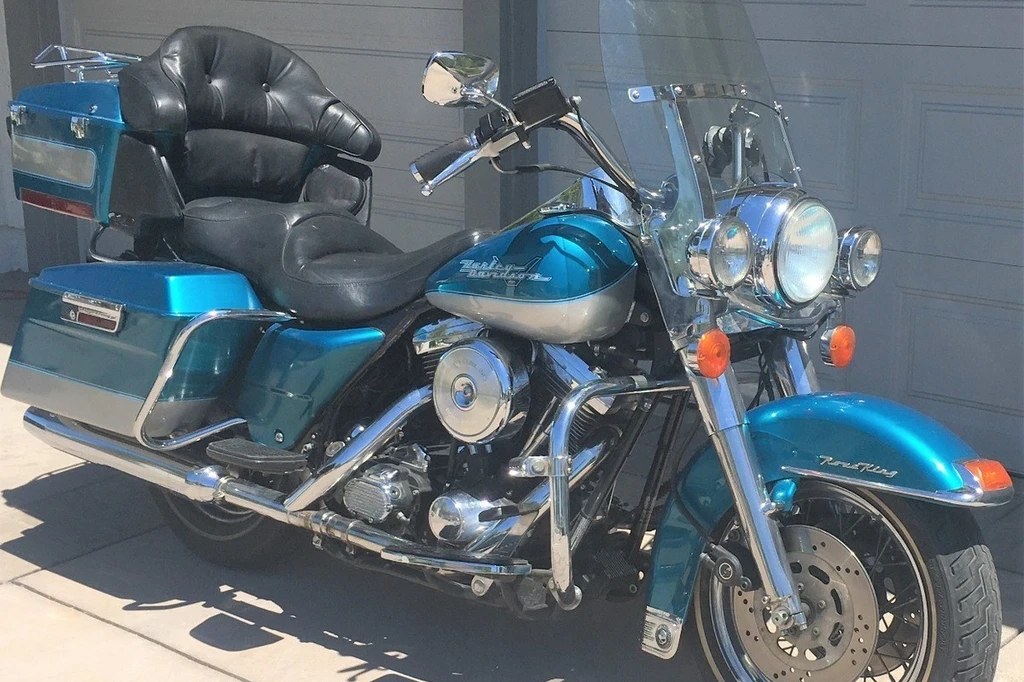

The 1994-96 Harley-Davidson FLHR Road King embodies the essence of American motorcycling heritage.
Its powerful Twin Cam 88B engine pumps out a robust 78 horsepower and 84 lb-ft of torque, delivering a thrilling riding experience that’s both raw and refined. The Road King’s V-twin rumble is unmistakable, with an exhaust note that’s as much a part of the ride as the wind in your hair.
Whether cruising down the highway or carving up twisties, the FLHR exudes a sense of freedom and adventure. Its robust frame and suspension soak up bumps and irregularities, while its low seat height makes it accessible to riders of all experience levels. The result is an unforgettable riding experience that’s as much about attitude as acceleration.
The Harley-Davidson FLHR Road King defines what it means to ride free, with every twist of the throttle a testament to the power and majesty of this iconic American motorcycle, unapologetically yours until the end of time.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Engine Capacity
88.4 cubic inches / 1449 cc
Max Power
67 hp / 48.9 kW @ 5200 rpm
Max Torque
78.9 ft-lb / 107 nm
Fuel Tank Capacity
5.0 US gallons / 9.0 L
Seat Height
27.2 inches / 692 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FLHR Road King
Year
1994 – 96
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Displacement
88.4 cubic inches / 1449 cc
Bore x Stroke
95.3 x 101.6 mm
Compression Ratio
8.8:1
Max Horsepower
67 hp / 48.9 kW @ 5200 rpm
Max Torque
78.9 ft-lb / 107 nm
Engine Management System
40mm Keihin Carb
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
41.3 mm telescopic, cartridge-style damping
Rear Suspension
Short, air-adjustable shock
Wheels & Brakes
Front Tire Size
MT90 B16
Rear Tire Size
MU85 B16
Front Brakes
2x 292mm disc 4 piston caliper
Rear Brakes
Single 292mm disc 4 piston caliper
Dimension & Weights
Seat Height
27.2 inches / 692 mm
Wheelbase
63.5 inches / 1612 mm
Fuel Tank Capacity
5.0 US gallons / 9.0 L
Dry Weight
345.0 kg / 760.6 lbs
