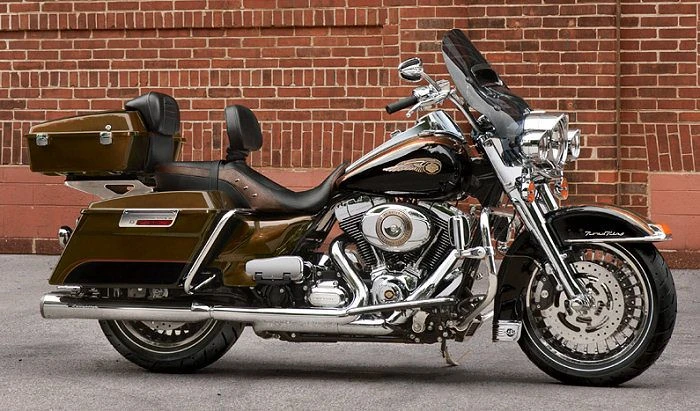

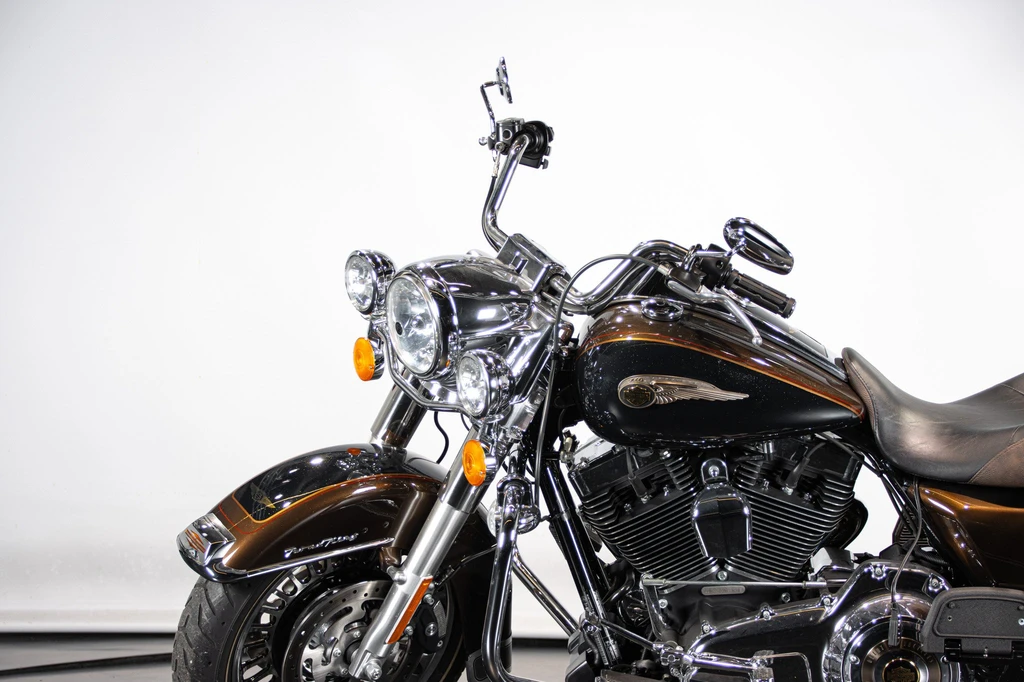

Harley Davidson FLHR Road King 110th Anniversary (2013)

The Harley-Davidson FLHR Road King 110th Anniversary Edition is a limited-edition model that embodies the spirit of freedom and adventure.

This highly sought-after bike boasts an array of premium features, including the Smart Security system, ABS, Cruise Control, and Contrast Chrome. The 28-Spoke Cast-Aluminum Wheels add to its sleek and timeless design.

But beneath its elegant exterior lies a powerful engine – the Rubber-mounted Twin Cam 103 V-Twin with Electronic Sequential Port Fuel Injection (ESPFI) that delivers an unforgettable riding experience. With heated O2 sensors and Electronic Throttle Control, this bike is designed for long-haul touring riders who crave performance and comfort.

The Harley-Davidson Touring chassis provides the perfect platform for this engine, offering a smooth ride and exceptional handling. The Road King’s heritage dates back to the iconic 1965 Electra Glide model, making it a true collector’s item for any enthusiast.

With its deep FL front fender, low-profile fuel tank console, and one-piece two-up seat, every detail of this bike is designed to provide an unparalleled riding experience. Whether you’re cruising down the boulevard or embarking on a cross-country adventure, the Harley-Davidson FLHR Road King 110th Anniversary Edition is the ultimate touring machine.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 103 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	103 cubic inches / 1690 cc
Max Torque	134 Nm / 98.8 ft. lbs @ 3500 rpm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	368.3 kg / 812 lb
Seat Height	26.5 inches / 673 mm

*n/a – information not provided by manufacturer

Harley Davidson FLHR Road King 110th Anniversary (2013)

All Specifications

Make & Model

Model	Harley Davidson FLHR Road King 110th Anniversary
Year	2013

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 103 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	103 cubic inches / 1690 cc
Bore x Stroke	98.4 x 111.3 mm
Compression Ratio	9.6:1
Max Torque	134 Nm / 98.8 ft. lbs @ 3500 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Short, air-adjustable shock
Rake	26
Trail	170 mm / 6.7 in

Wheels & Brakes

Wheels	Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel/Rim Size	Black and Chrome, 28-spoke Cast Aluminum
Front Tire Size	130/80B17 65H
Rear Wheel/Rim Size	Black and Chrome, 28-spoke Cast Aluminum
Rear Tire Size	180/65B16 81H
Front Brakes	2x 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.5 inches / 673 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	145 mm / 5.7 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	368.3 kg / 812 lb
Dry Weight	355 kg / 779 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Smart Security System
Anti-lock Braking System (ABS)
Cruise Control
Contrast Chrome
28-Spoke Cast-Aluminum Wheels
Rubber-mounted Twin Cam 103 V-Twin engine
Heated O2 sensors
Electronic Throttle Control (ETC)
Harley-Davidson Touring chassis with single-spar, rigid backbone frame and stout swingarm
Detachable windshield
Air-adjustable touring rear suspension
Spacious, injection-molded saddlebags
1690 cc Twin Cam 103 engine
6-speed Cruise Drive transmission
Integrated oil cooler
Brembo 4-piston front caliper with dual front rotor brake system
Dunlop Multi-Tread rear tire construction
Chrome 2-1-2 dual exhaust with tapered mufflers
