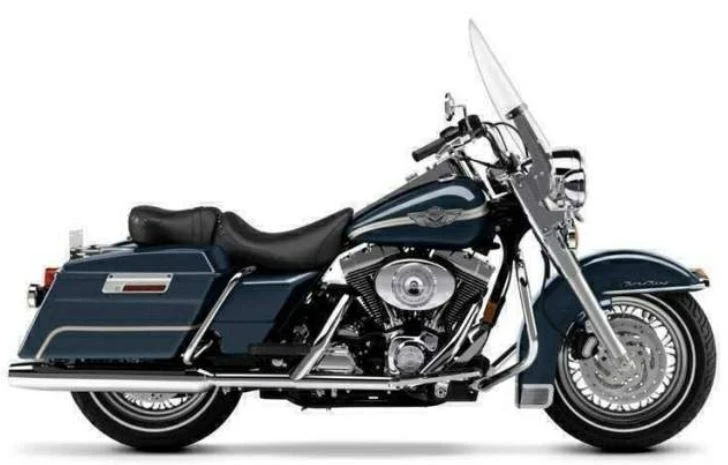

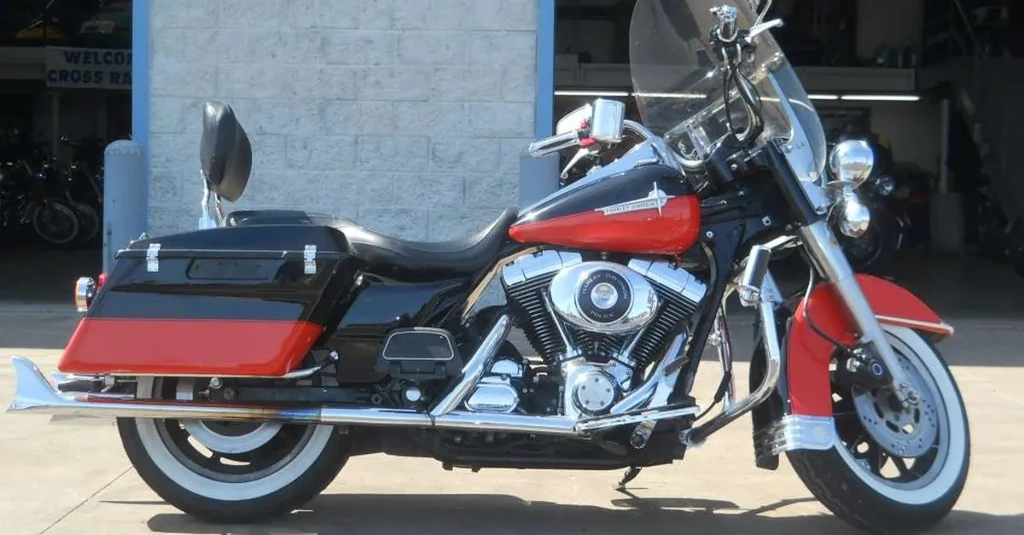

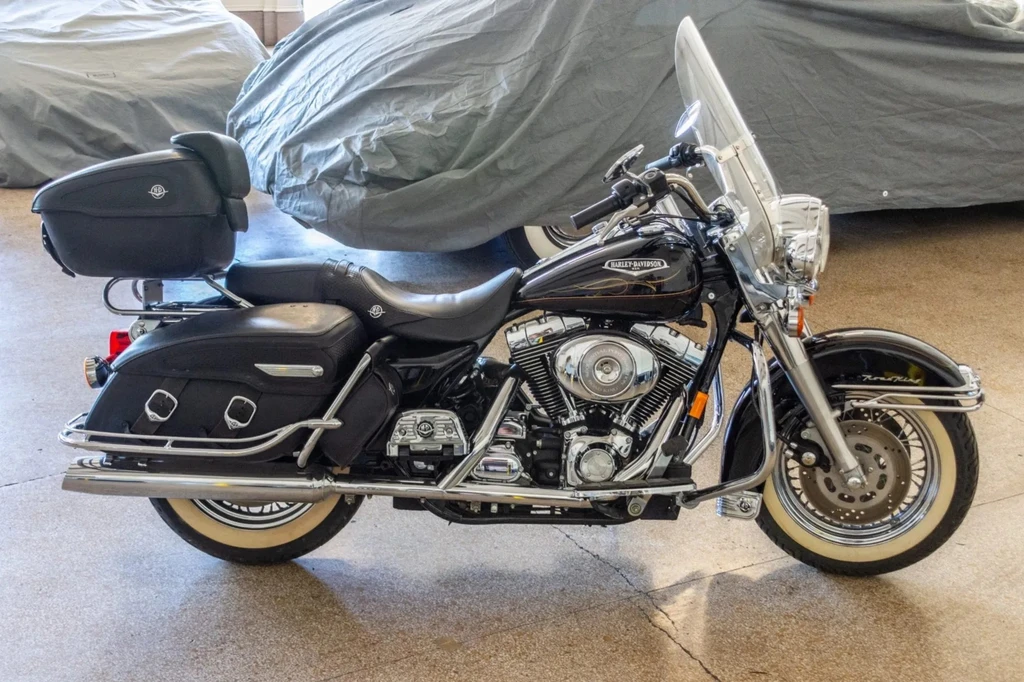

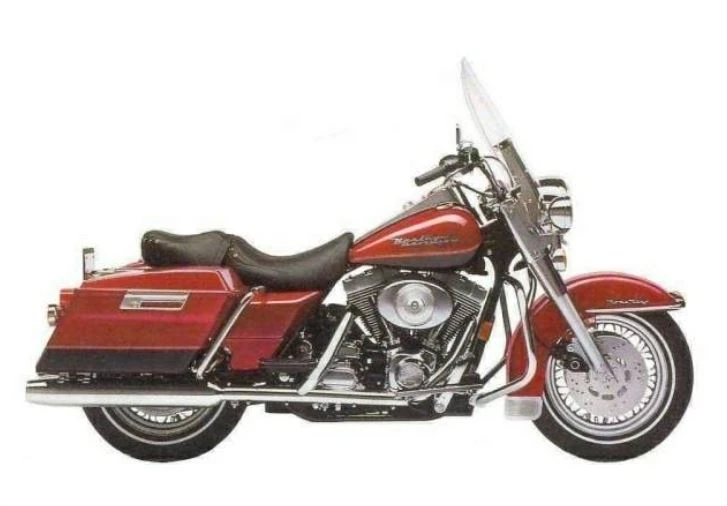

The Harley-Davidson FLHR/I Road King is a touring machine that embodies the spirit of long-distance cruising. Its powerful Twin Cam 88 engine roars to life with a distinctive off-beat sound, fed by a 40mm constant velocity carburetor and exhausting through crossover dual pipes.
The Road King’s performance is matched only by its comfort and practicality, thanks to hard pannier luggage and a large detachable clear windshield upfront. The triple disc brakes provide confident stopping power, while the air-adjustable rear suspension allows for effortless adjustment to suit any load or passenger.
With its dazzling chrome plate, fork shrouds, and low-slung styling, this is a machine that demands attention wherever it goes.
Key Specifications
Engine Type
Four stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity
88.4 cubic inches / 1449 cc
Max Torque
86 ft-lb / 116.6 nm
Fuel Tank Capacity
5.0 US gallons / 9.0 L
Seat Height
27.2 inches / 692 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FLHR/I Road King
Year
1999 – 2000
Engine
Engine Type
Four stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement
88.4 cubic inches / 1449 cc
Bore x Stroke
95.3 x 101.6 mm
Compression Ratio
8.9:1
Max Torque
86 ft-lb / 116.6 nm
Engine Management System
Carburetion 40 mm constant velocity with enrichener and accelerator pumpESPFI 38 mm throttle bore electronic sequential port fuel injection
Lubrication System
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10 pressurized oil filter
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Dual air adjustable shocks
Rake
26.0
Trail
156.6.3 mm / 6.2 in
Wheels & Brakes
Front Tire Size
130/90-16
Rear Tire Size
130/90-16
Front Brakes
2x 292mm discs 4 piston calipers
Rear Brakes
Single 292mm disc 4 piston caliper
Dimension & Weights
Seat Height
27.2 inches / 692 mm
Wheelbase
63.5 inches / 1612 mm
Ground Clearance
130 mm / 5.1 in
Fuel Tank Capacity
5.0 US gallons / 9.0 L
Dry Weight
345.0 kg / 760.6 lbs
Features
1449cc Twin Cam 88 engine
40mm constant velocity carburetor with enrichener and accelerator pump
ESPFI electronic sequential port fuel injection
38mm throttle bore
Hard pannier luggage
Large detachable clear windshield
Dual exhaust pipes
Triple disc brakes
Air-adjustable rear suspension
