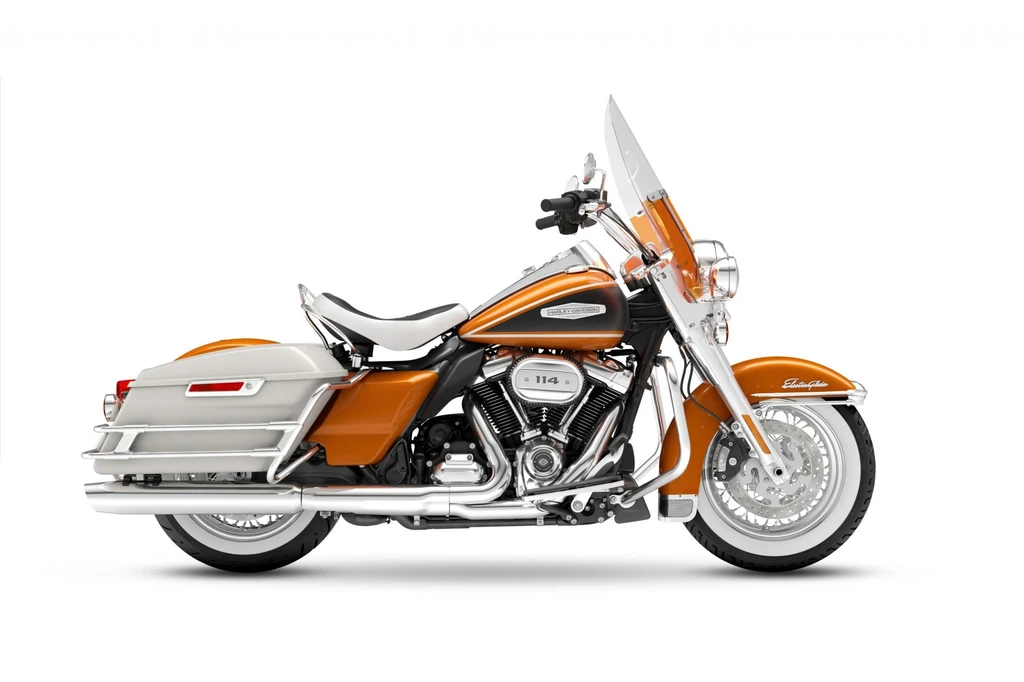

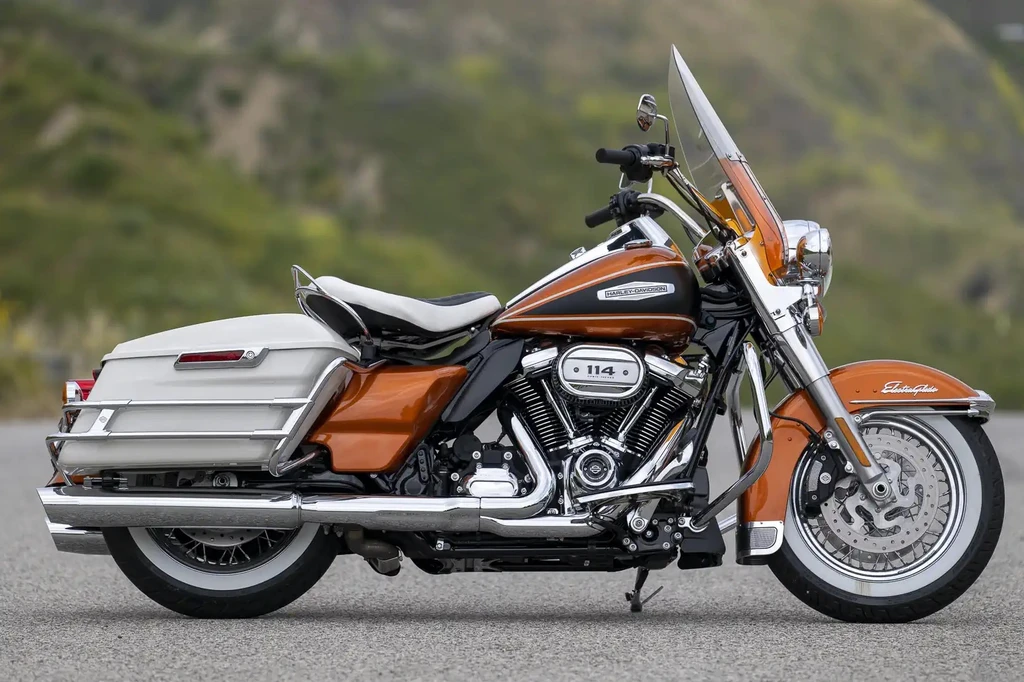

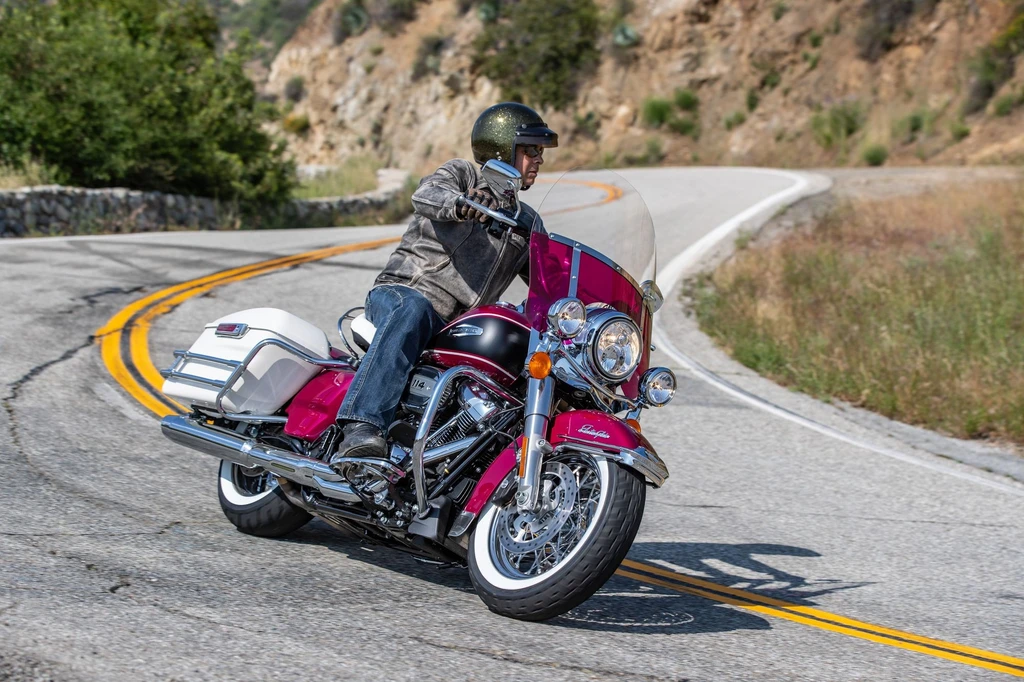

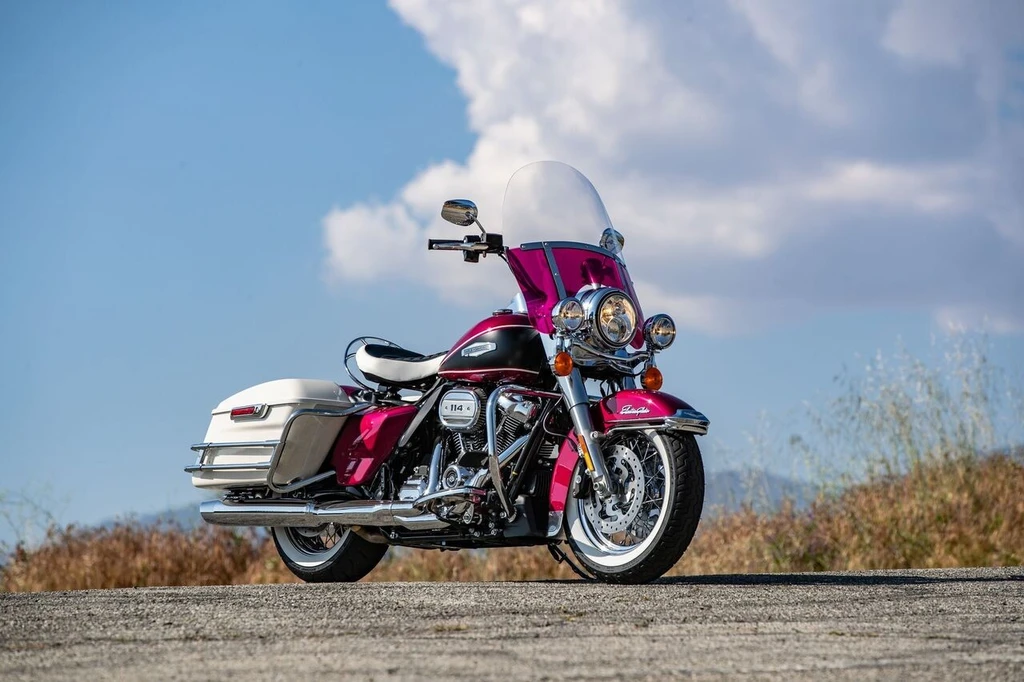

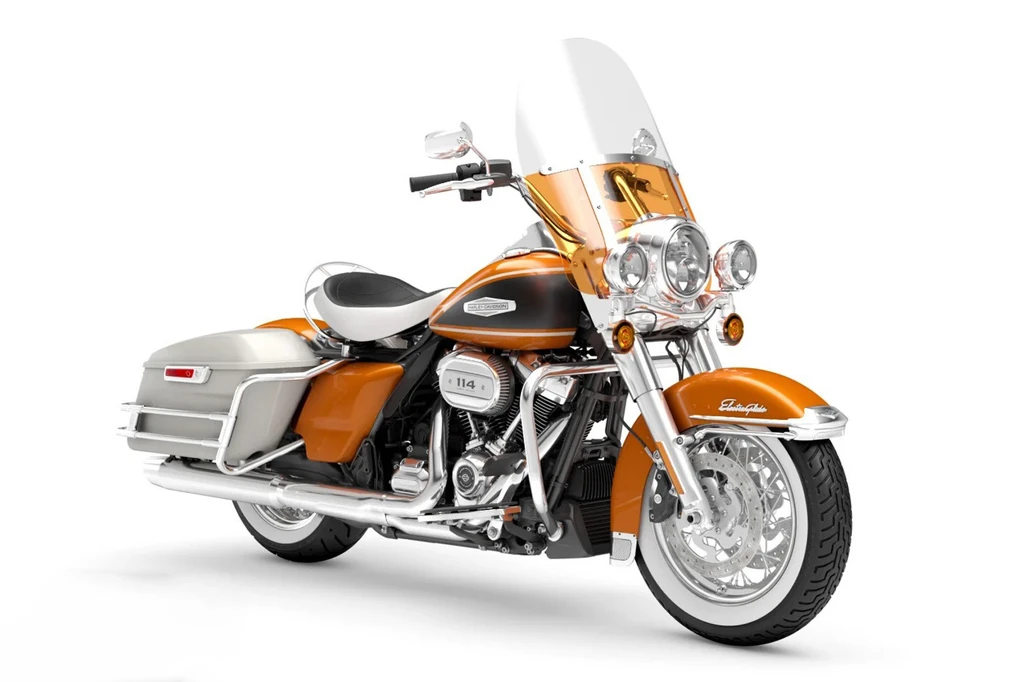

The 2023 Harley-Davidson Electra Glide Highway King embodies the essence of a bygone era, drawing inspiration from the iconic 1968 FLH Electra Glide. This top-of-the-line model boasts a distinctive windshield rather than a batwing fairing and features wire-spoke wheels shod with bias-ply whitewall Dunlop Harley-Davidson Series tires.
The paint scheme is predictably epic, with two-tone offerings that evoke the spirit of 1968. Each bike is numbered, and the color is matched on the detachable windshield, while the side cases are white on both versions.
At its heart lies the Milwaukee-Eight 114 V-twin engine, renowned for its impressive torque output – a staggering 122 ft-lbs at just 2750 rpm. This burly powerplant delivers a smooth, effortless riding experience that’s quintessentially Harley-Davidson.
Key Specifications
Engine Type
Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity
114 cubic inches / 1868 cc
Max Power
69.9 kw / 95 hp
Max Torque
122 ft-lb / 151.8 nm
Fuel Tank Capacity
22.7Litres / US 6.0 gal
Weight (Wet/Kerb)
849 lbs / 385 kg
Seat Height
29.5 inches / 749 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Electra Glide Highway King
Year
2023
Engine
Engine Type
Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement
114 cubic inches / 1868 cc
Bore x Stroke
102 x 114.3 mm
Compression Ratio
10.5:1
Max Horsepower
69.9 kw / 95 hp
Max Torque
122 ft-lb / 151.8 nm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System
Pressurized, dry-sump with oil cooler
Cooling System
Air cooled
Exhaust
2-into-2 staggered, catalyst in muffler
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Hydraulically actuated with assist-and-slip functions
Gearbox
6 Speed Cruise Drive
Gear Ratios
1
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
ABS
Standard, cornering aware
Chassis & Suspension
Frame Type
Mild tubular steel with two-piece stamped and welded backbone
Front Suspension
Non-adjustable Showa 49mm Dual Bending Valve fork
Rear Suspension
Spring-preload adjustable shocks;
Rear Suspension Travel
2.2 inches / 56 mm
Trail
170 mm / 6.7 in
Wheels & Brakes
Wheels
Wire spoked
Front Wheel/Rim Size
16 x 3.00 in
Front Tire Size
30/90 x 16; Dunlop Harley-Davidson Series D402F
Rear Wheel/Rim Size
16 x 5.0 in
Rear Tire Size
180/65 x 16; Dunlop Harley-Davidson Series D407T
Front Brakes
2 x300mm floating discs with 4-piston Brembo calipers
Rear Brakes
Single300mm fixed disc with 4-piston caliper
ABS
Standard, cornering aware
Dimension & Weights
Seat Height
29.5 inches / 749 mm
Wheelbase
64 inches / 1626 mm
Fuel Tank Capacity
22.7Litres / US 6.0 gal
Wet (kerb/curb) Weight
849 lbs / 385 kg
Features
16-inch front wheel
Wire-spoke wheels with bias-ply whitewall Dunlop Harley-Davidson Series tires
Two-tone paint options: Hi-Fi Magenta and Hi-Fi Orange
Detachable windshield
Adjustable suspension system on solo saddle
Low seat height of 29.5 inches (1.4 inches lower than Revival)
Six-gallon fuel tank with retro-inspired tank badges
Vintage-style Electra Glide badging on front fender
Abundant chrome trim, including railings and air cleaner cover
Highway bars are chromed and standard
Three headlights with chrome nacelles
Milwaukee-Eight 114 V-twin engine
122 ft-lbs of torque at 2750 rpm
95-horsepower peak at 5020 rpm
Compatible with Screamin Eagle Stage Upgrade Kits for increased power
Cornering Rider Safety Enhancements package standard, including linked Brembo brakes and ABS
