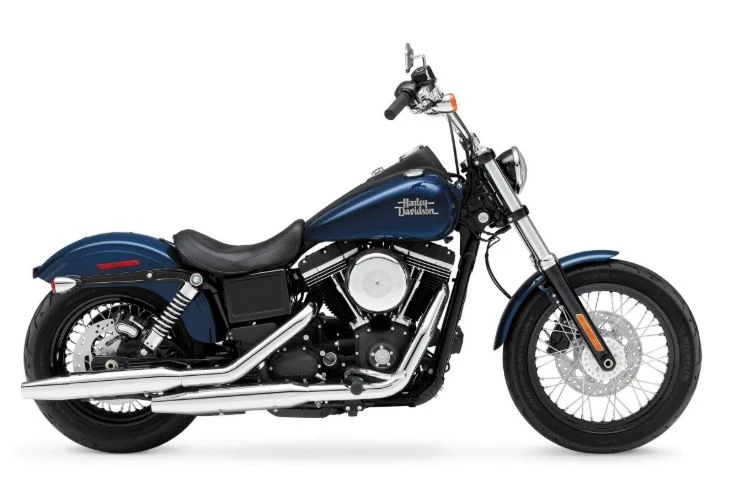

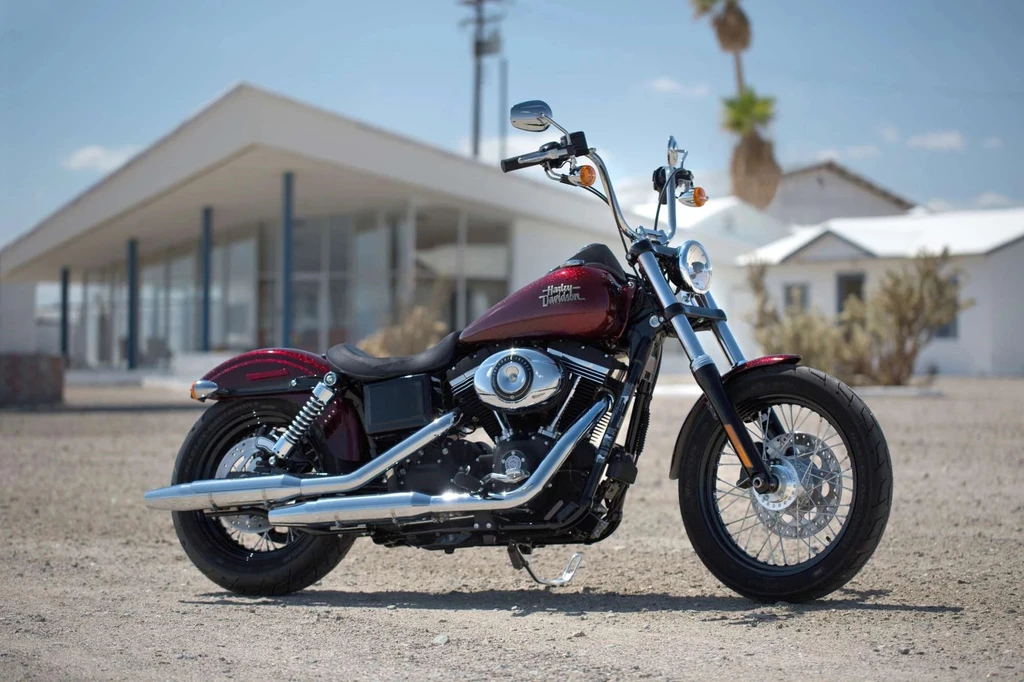

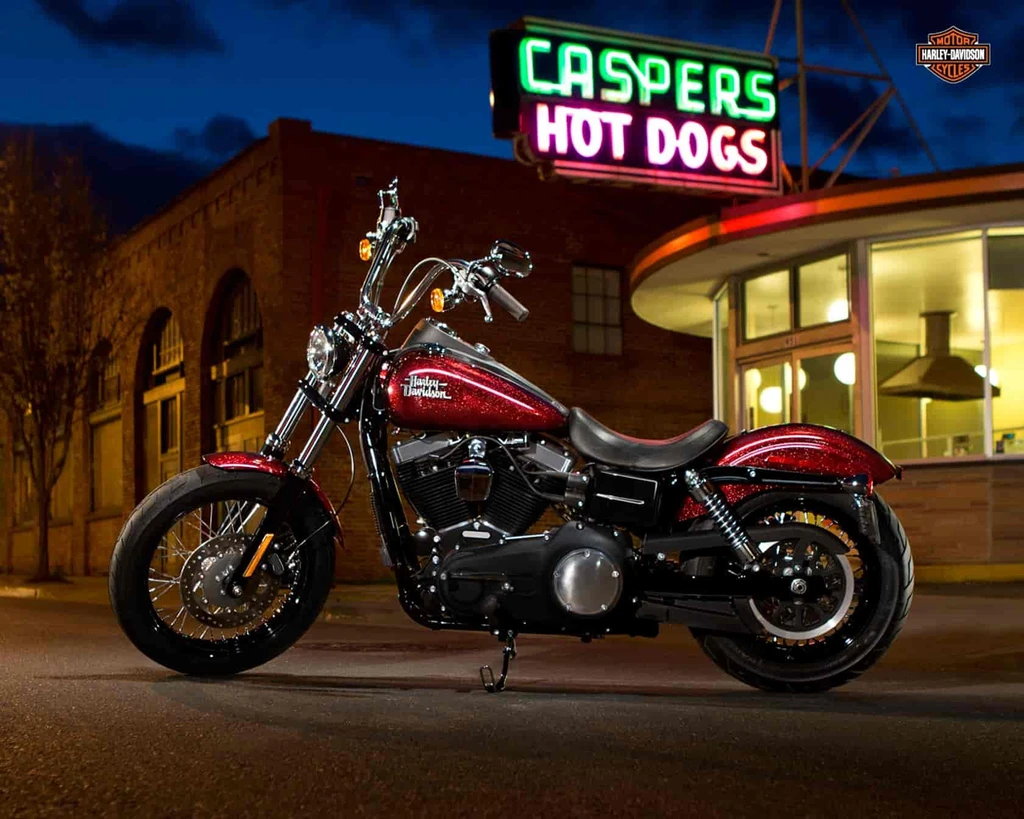

Harley Davidson Dyna Street Bob (2013)

Harley Davidson Dyna Street Bob (2013)

The Harley-Davidson Dyna Street Bob is the epitome of motorcycling’s raw essence – a stripped-down, rowdy bobber that lets the rider connect with the road on an unbridled level. At its heart lies a brawny American V-Twin engine, pumping out its signature growl through a black Twin Cam 96 powertrain.

The Street Bob’s minimalist design is not just about aesthetics; it’s also a reflection of Harley-Davidson’s commitment to letting the rider define their machine through personalization. The H-D1 factory customization program offers over 2,000 combinations of fit, function, and style, giving owners the freedom to make this bike truly one-of-a-kind.

From its blacked-out front end to its clean rear fender with combination stop/tail/turn lighting, every detail on this motorcycle is a deliberate nod to its street appeal. And yet, it’s not just about looks – the Street Bob still packs the same punch as its predecessor, making it an exhilarating ride that will leave you craving more. The Harley-Davidson Dyna Street Bob is a motorcyclist’s dream come true: a rugged, unapologetic machine that lets you forge your own path on two wheels.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity17.8 Litres / 4.7 gal
Weight (Wet/Kerb)667 lbs / 302.6 kg
Seat Height25.5 inches / 648 mm
Harley Davidson Dyna Street Bob (2013)

All Specifications

Make & Model

ModelHarley Davidson Dyna Street Bob
Year2013

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.3 x 111.1 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear SuspensionCoil over shock ,
Rake29
Trail120 mm / 4.7 in

Wheels & Brakes

Front Tire Size100/90-19 57H
Rear Tire Size160/70-17 73V
Front BrakesSingle 300mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 2 piston caliper

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase64.2 inches / 1630 mm
Fuel Tank Capacity17.8 Litres / 4.7 gal
Wet (kerb/curb) Weight667 lbs / 302.6 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Blacked out triple clamps
  • Powertrain
  • Battery box
  • Full-length wrinkle-black cast console with integrated ignition
  • Clean chopped rear fender with side mounted license plate and stop/turn/tail lights
  • Round nostalgic air cleaner cover with Bar and Shield logo
  • Rubber-isolated handlebar risers with forged top clamp for reduced vibration and simplified customization
  • Available Hard Candy Big Red Flake paint
  • Tank medallion or optional scallop two tone paint
  • Michelin Scorcher tires
  • All-black powertrain
  • Chrome exhaust with dual straight-cut staggered shorty mufflers
  • 4.7-gallon Street Bob fuel tank
  • Black Steel Laced wheels
  • Chopped rear fender without support covers
  • Solo seat
  • Stainless steel, internally-wired mini apehanger handlebar
