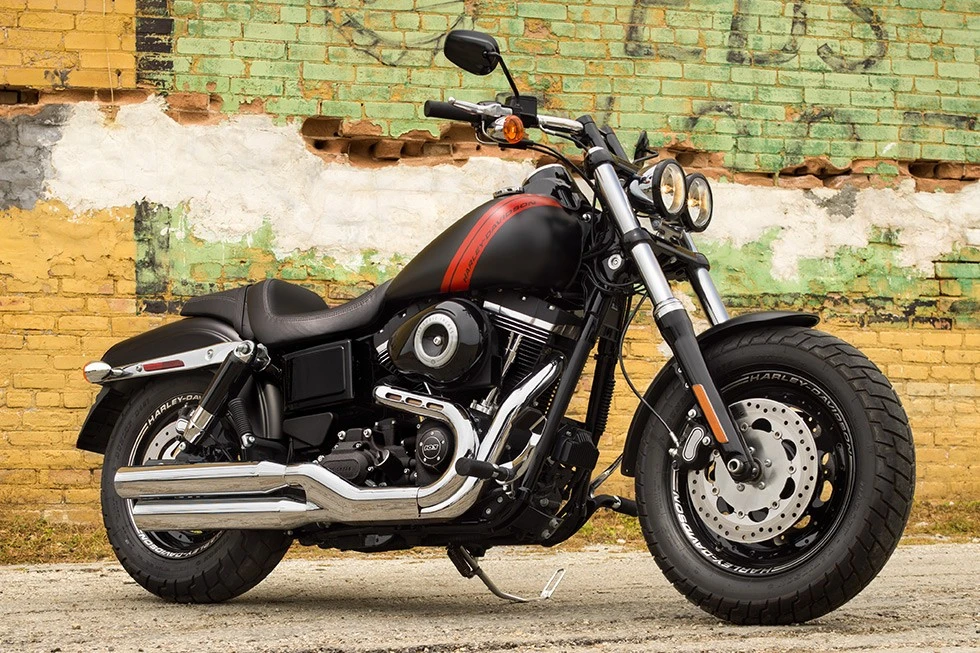

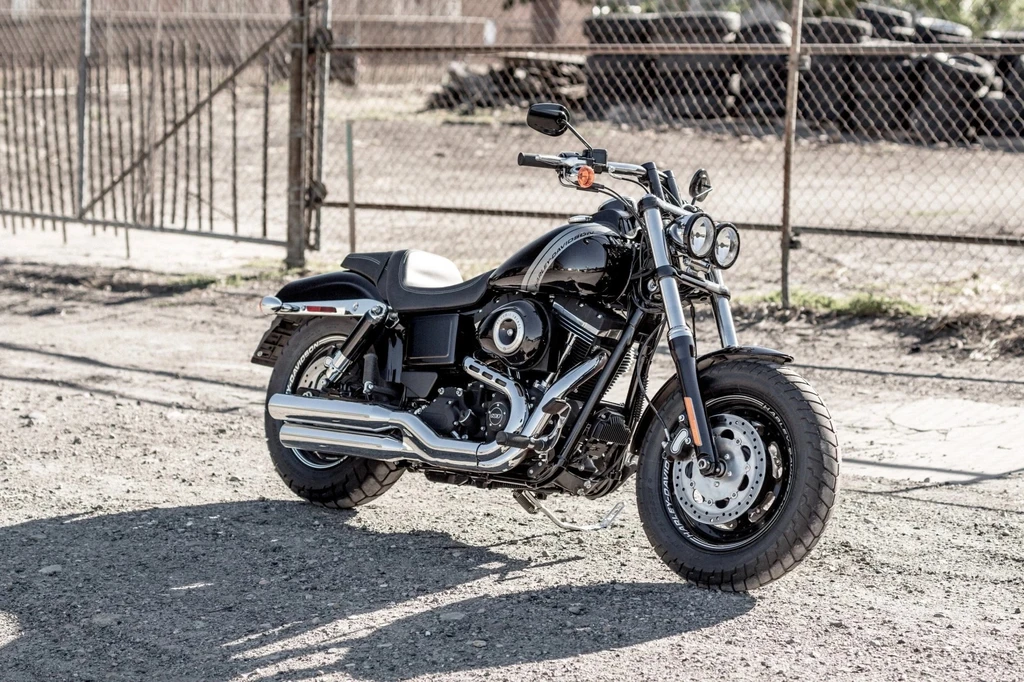

The Harley-Davidson Fat Bob is a statement of intent – a raw, unapologetic motorcycle that wears its attitude on its sleeve. The burly tires and blacked-out finishes create an imposing presence, while the throaty slash cut mufflers and forward controls evoke a sense of aggression.
But beneath its tough exterior lies a sophisticated cruiser willing to hunt for corners and deliver a blast to ride. The 1690cc Twin Cam 103 engine roars to life with a commanding growl, propelling the Fat Bob through the twisties with ease. Its rigid steel backbone, 49mm fork legs, and tuned chassis geometry make it a thrilling experience.
The result is an unforgettable ride that’s as much about attitude as it is about engineering. The Harley-Davidson Dyna Fat Bob (2016-2017) is not just a motorcycle – it’s a declaration of independence on two wheels.
Key Specifications
Engine Type
Four stroke, V-Twin, Twin Cam 103 with integrated oil cooler
Engine Capacity
1690 cc / 103 cu. in
Max Torque
132 Nm / 13.5 kgf-m / 98.0 ft/ lbs @ 3250 rpm
Fuel Tank Capacity
5.0 US gallons / 9.0 L
Weight (Wet/Kerb)
708 lbs / 321 kg
Seat Height
27.2 inches / 690 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Dyna Fat Bob
Year
2016 – 2017
Engine
Engine Type
Four stroke, V-Twin, Twin Cam 103 with integrated oil cooler
Displacement
1690 cc / 103 cu. in
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Max Torque
132 Nm / 13.5 kgf-m / 98.0 ft/ lbs @ 3250 rpm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System
Air cooled
Exhaust
Chrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
