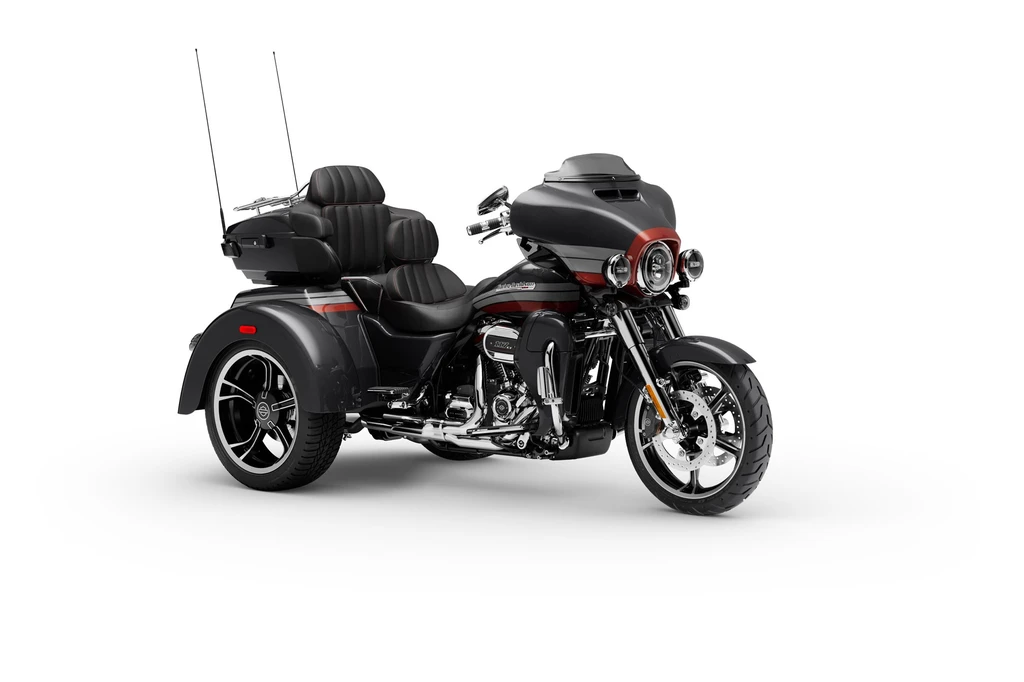

Harley Davidson CVO Tri Glide (2020 - 2021)

The Harley-Davidson CVO Tri Glide: a super-premium trike that redefines the ultimate three-wheeled touring experience.

At its heart lies the Milwaukee-Eight 117 powertrain, boasting an impressive 125 ft. lbs. of torque and unparalleled displacement from the H-D factory. The engine’s V-Twin character is perfectly balanced by the pushrod-operated overhead valves, delivering a responsive and thrilling riding experience.

The Tri Glide’s distinctive style is matched only by its remarkable performance capabilities. With advanced technology like electronically linked brakes, ABS, and traction control, cornering has never been more confidence-inspiring. The premium touring suspension features front forks with dual-bending valve internal technology and emulsion technology rear suspension, making every ride a smooth and responsive one.

The result is an unparalleled long-haul touring experience that sets the CVO Tri Glide apart from its rivals – it’s the ultimate three-wheeled machine for those who crave luxury, power, and adventure.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1923 cc / 117 cu in
Max Torque	125 ft-lb / 170 nm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	1269 lbs / 577 kg
Seat Height	28.1 inches / 715 mm

*n/a – information not provided by manufacturer

Harley Davidson CVO Tri Glide (2020 - 2021)

All Specifications

Make & Model

Model	Harley Davidson CVO Tri Glide
Year	2020 – 2021

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1923 cc / 117 cu in
Bore x Stroke	104 x 114 mm
Compression Ratio	10.2:1
Max Torque	125 ft-lb / 170 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with slash cut mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanically actuated 10 plate, wet Assist & Slip
Gearbox	6 Speed
Gear Ratios	1st 10.534 2nd 7.302 3rd 5.423 4th 4.392 5th 3.741 6th 3.157
Final Drive	Belt, 30/70 ratio

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	49mm dual bending valve
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Hand-adjustable emulsion rear suspension
Rear Suspension Travel	3 inches / 76 mm
Rake	26
Trail	100 mm / 3.94 in
Swingarm	Mild steel, rectangular tube sections with plate junctions; MIG welded

Wheels & Brakes

Wheels	Type Gloss Black and Contrast Clear Tomahawk (Optional Style Type Charcoal Grey with Contrast Satin Tomahawk)
Front Tire Size	130/60B19 M/C 61H
Rear Tire Size	2x P215/45R18 83T
Front Brakes	2x 300mm discs, 4 piston fixed caliper
Rear Brakes	2x 270mm discs, single piston floating caliper with integrated park brake
ABS	Standard

Dimension & Weights

Overall Length	2670 mm / 105.1 in
Overall Width	1390 mm / 54.7 in
Overall Height	1330 mm / 52.4 in
Seat Height	28.1 inches / 715 mm
Wheelbase	65.7 inches / 1670 mm
Ground Clearance	130 mm / 5.1 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	1269 lbs / 577 kg
Dry Weight	563 kg/ 1239 lbs

Features

Four stroke, V-Twin engine
Milwaukee-Eight 117 powertrain
Pushrod-operated, overhead valves with hydraulic lifters
4 valves per cylinder
Chrome exhaust system
Dual exhaust with slash cut mufflers
Single-fire, non-wasted spark ignition
6-speed transmission (gear ratios: 10.534, 7.302, 5.423, 4.392, 3.741, 3.157)
Mild steel backbone frame with twin downtubes
Dual disc brakes (2x 270mm) with single piston floating caliper and integrated park brake
Gloss Black and Contrast Clear paint scheme
Charcoal Grey and Satin Tomahawk paint scheme (optional)
CVO Tri-Glide chassis designed for three-wheeled motorcycle performance
Premium touring suspension with front forks and emulsion technology rear suspension
Single-knob pre-load adjustment on rear suspension
4.4 cubic feet of storage capacity in integrated trunk
50 pounds of storage capacity in integrated trunk
Trike-specific Reflex Defensive Rider Systems (RDRS) technology
Electronically linked brakes with ABS and traction control
H-D Connect Service subscription-based cellular connectivity
