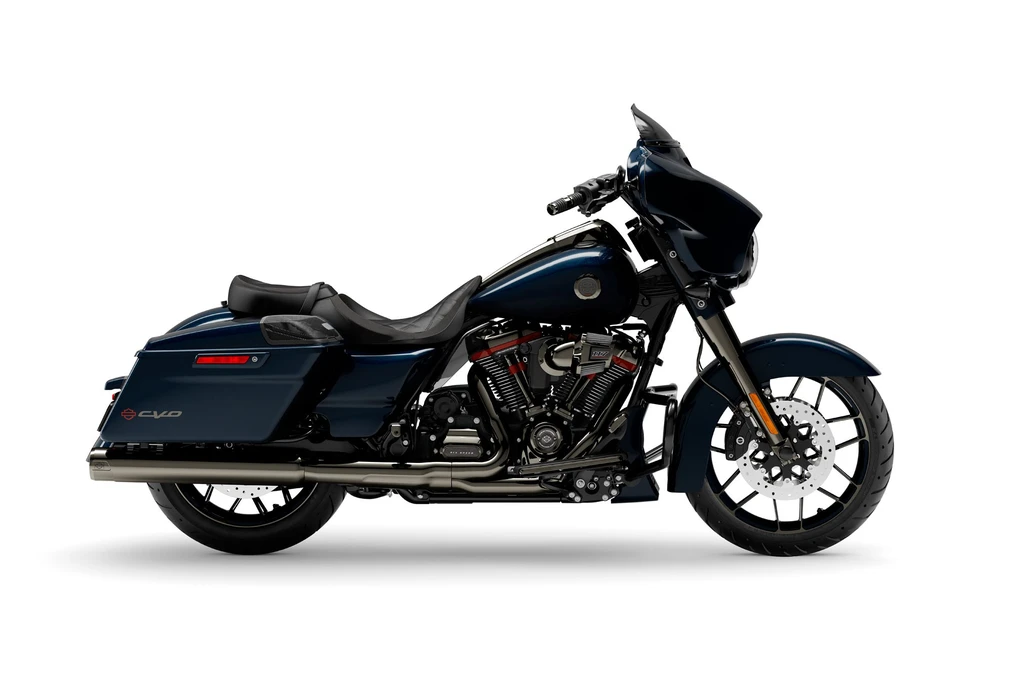

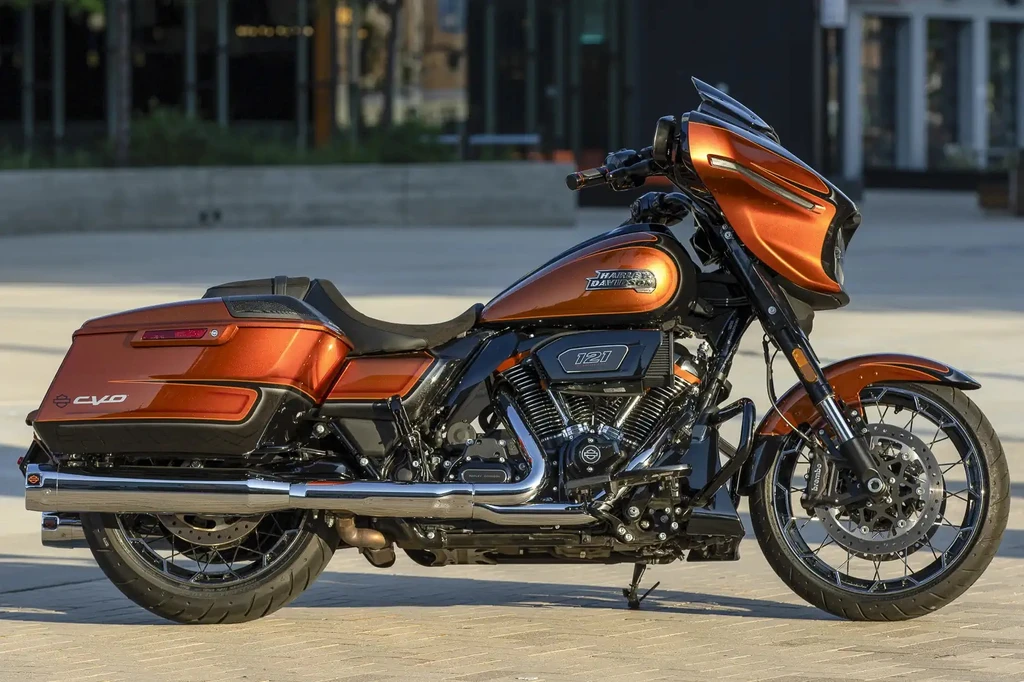

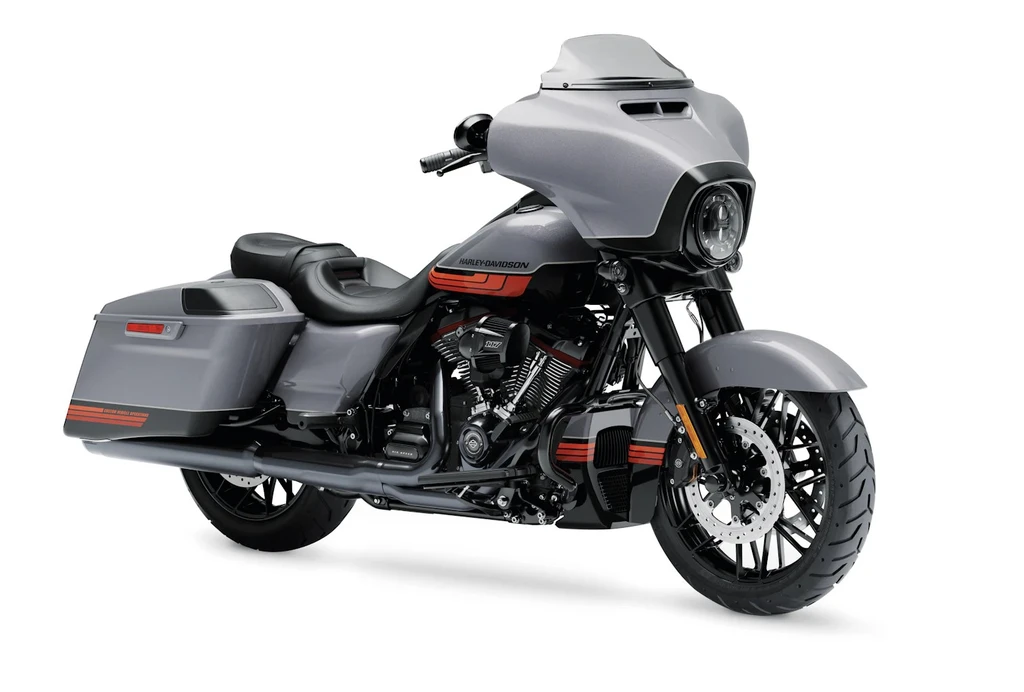

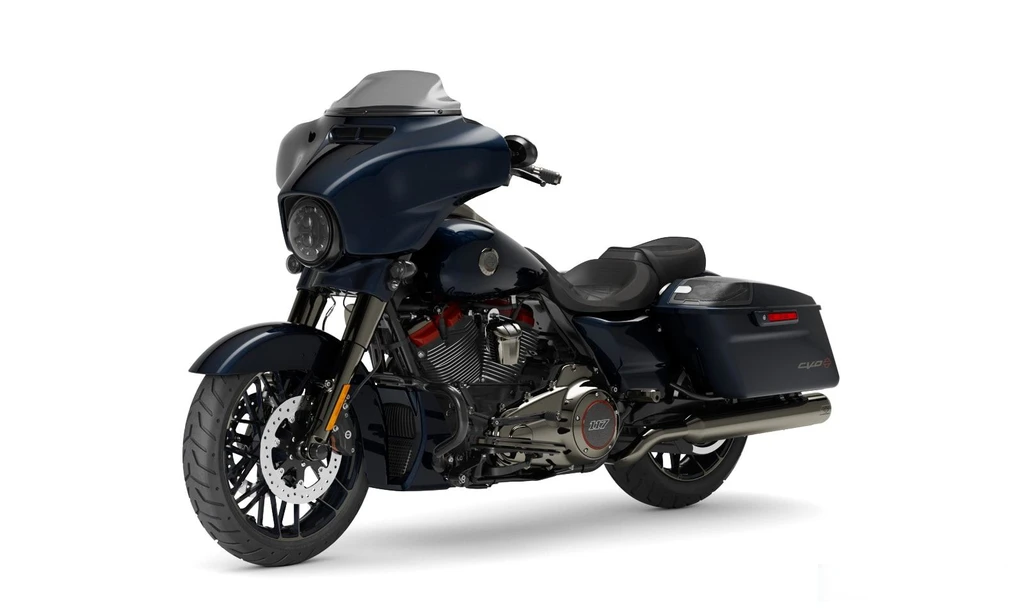

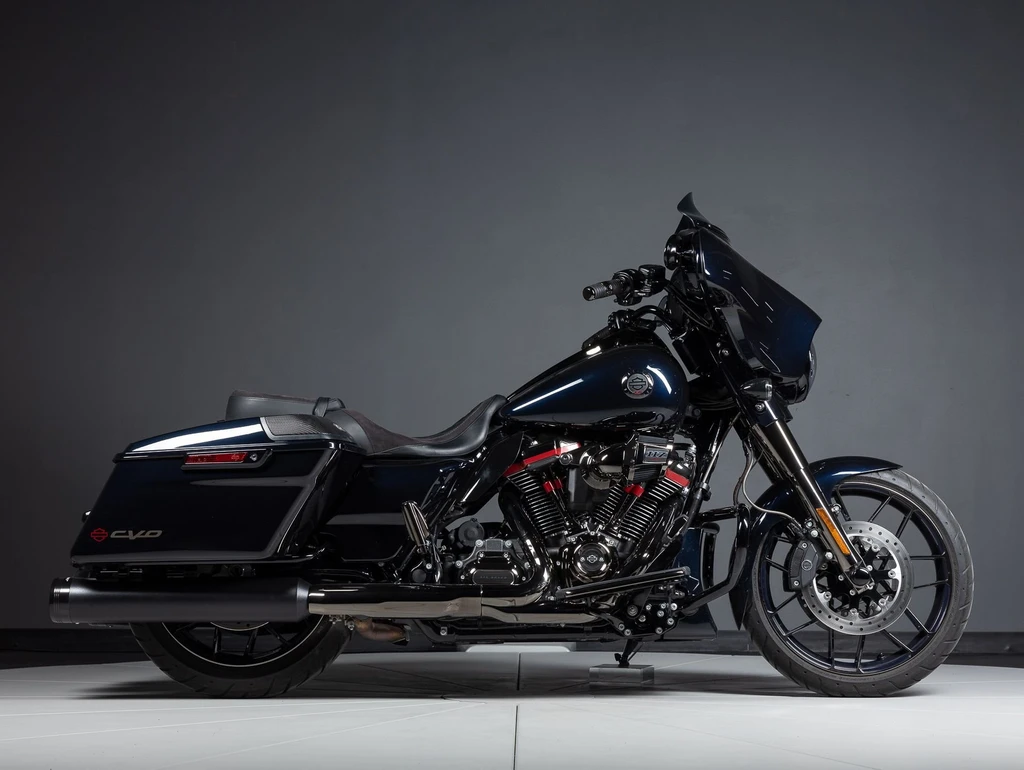

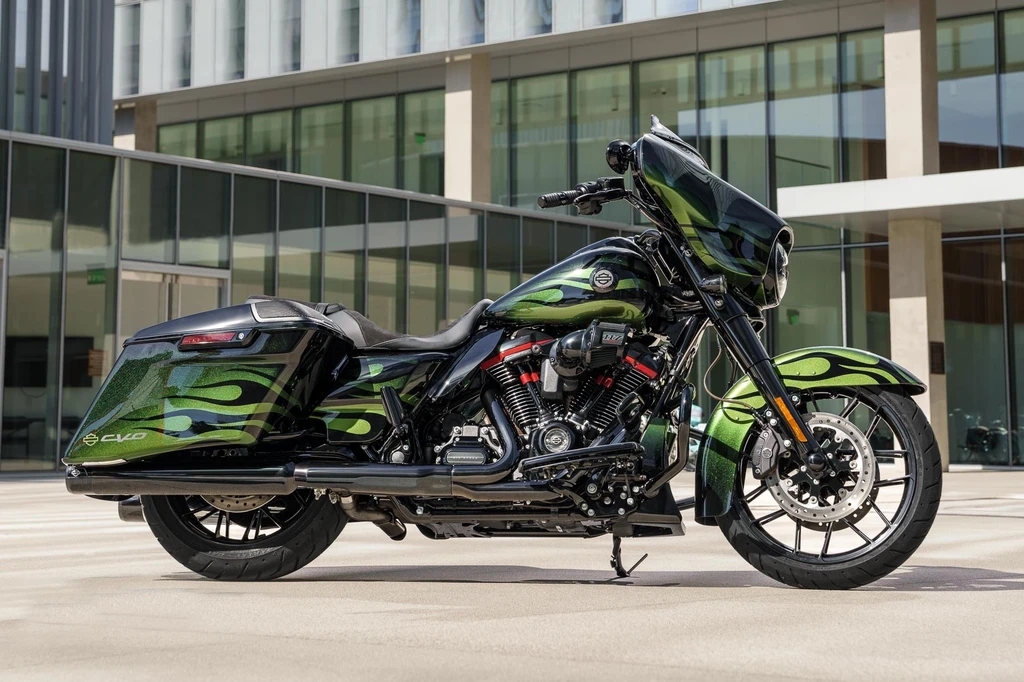

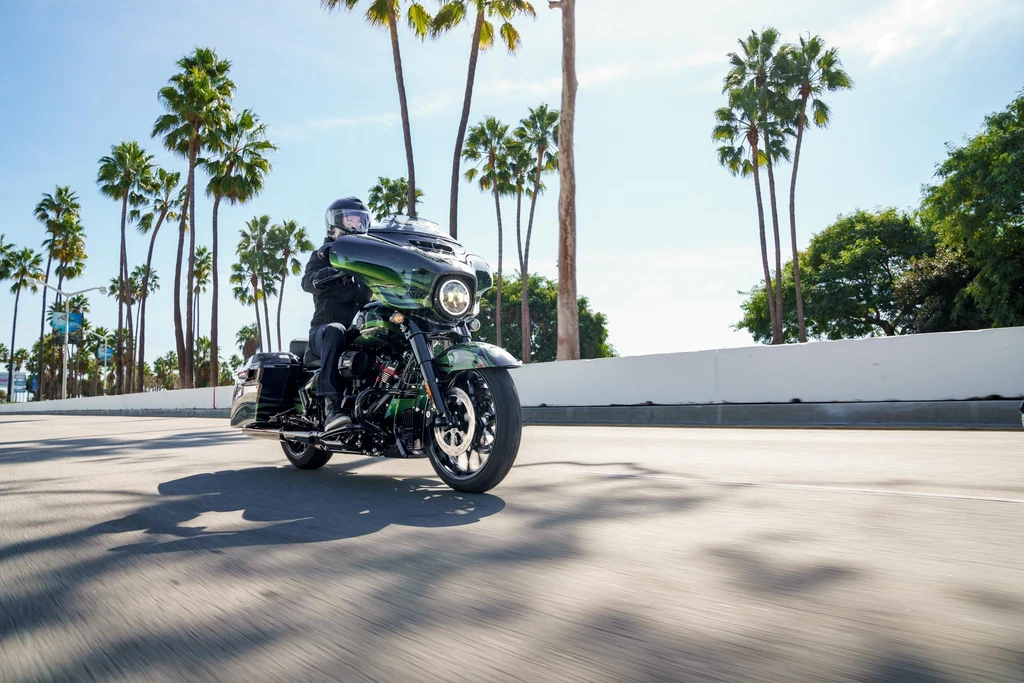

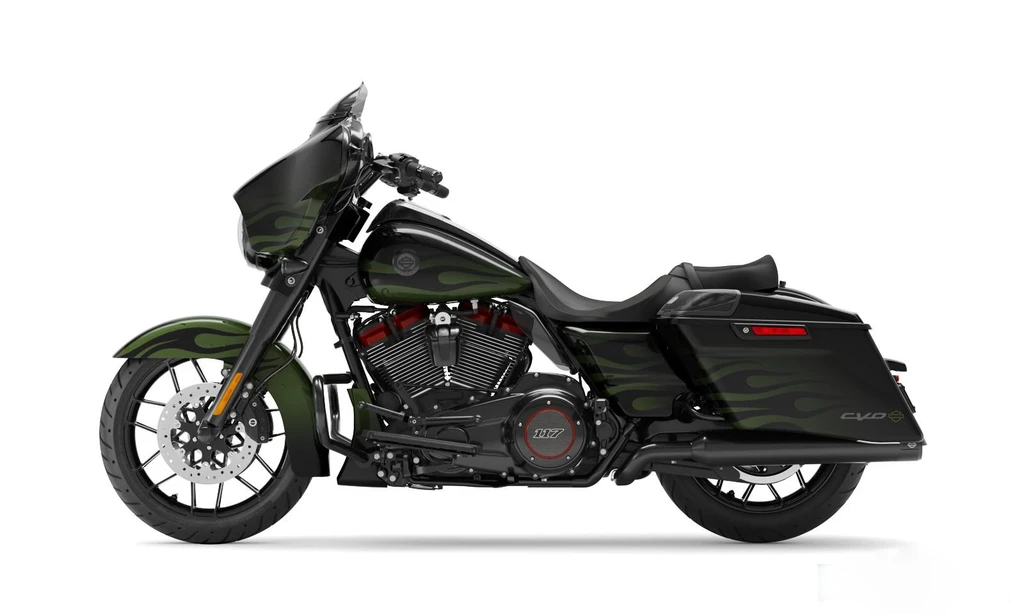

Harley Davidson CVO Street GlideFLHXSE (2022)

The pinnacle of American muscle has arrived in the form of Harley-Davidson’s 2022 CVO Street Glide FLHXSE. This limited-production masterpiece is the epitome of style, design, and craftsmanship, showcasing exclusive paint colors and intricate hand-crafted details that set it apart from the rest.

At its heart lies the Milwaukee-Eight 117 engine, a beast of a powerplant delivering 126 ft-lbs of torque at 3750 RPM. This V-Twin monster is the perfect companion for riders seeking strong performance with every twist of the throttle.

But it’s not just about raw power – the CVO Street Glide also features Harley-Davidson’s advanced technology suite, including Cornering Rider Safety Enhancements and the cutting-edge Boom! Box GTS infotainment system. This powerhouse of a bike is the ultimate expression of American ingenuity and design, pushing the boundaries of what a motorcycle can be.

The 2022 CVO Street Glide FLHXSE is an unparalleled riding experience, offering an unmatched blend of style, performance, and technology that will leave even the most discerning riders breathless.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	117 cubic inches / 1923 cc
Max Power	106 hp / 79 kW @ 4750 rpm
Max Torque	126 ft-lb / 171 nm
Fuel Tank Capacity	22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)	866 lbs / 393 kg
Seat Height	27.2 inches / 690 mm

*n/a – information not provided by manufacturer

Harley Davidson CVO Street GlideFLHXSE (2022)

All Specifications

Make & Model

Model	Harley Davidson CVO Street GlideFLHXSE
Year	2022

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	117 cubic inches / 1923 cc
Bore x Stroke	103.5 X 114.3 mm
Compression Ratio	10.2:1
Max Horsepower	106 hp / 79 kW @ 4750 rpm
Max Torque	126 ft-lb / 171 nm
Engine Management System	Electronic sequential port fuel injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Dual, with crossover

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanically actuated 10 plate, wet Assist & Slip
Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension	49mm Dual bending valve
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Premium low hand-adjustable
Rear Suspension Travel	2.1 inches / 54 mm
Rake	26
Trail	170 mm / 6.7 in
Swingarm	Mild steel, two piece drawn and welded section; forged junctions; MIG welded

Wheels & Brakes

Wheels	Gloss Black and Contrast Chrome Fugitive (Optional: Gloss Black with Contrast Smoked Satin Fugitive)
Front Tire Size	BW 130/60B19 61H
Rear Tire Size	BW 180/55B18 80H
Front Brakes	2 x 300mm floating discs, 4-piston fixed calipers
Rear Brakes	Single 300mm disc, 4-piston fixed fixed caliper
ABS	Standard

Dimension & Weights

Seat Height	27.2 inches / 690 mm
Wheelbase	64.0 inches / 1625 mm
Ground Clearance	130 mm / 5.1 in
Fuel Tank Capacity	22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight	866 lbs / 393 kg
Dry Weight	377 kg / 831 lbs

Features

Electronic sequential port fuel injection (ESPFI)
Milwaukee-Eight 117 engine
117 cubic inches displacement
126 ft. lbs. of torque at 3750 RPM (CVO Road Glide, CVO Street Glide)
125 ft. lbs. of torque at 3,500 RPM (CVO Road Glide Limited, CVO Tri Glide)
High-performance camshaft
High-performance intake
High-performance exhaust
Cornering Rider Safety Enhancements by Harley-Davidson
Advanced Boom! Box GTS infotainment system
Harley-Davidson Audio powered by Rockford Fosgate
Exclusive paint colors and designs
Custom paint executed to a level of intricate quality and hand-crafted detail
Gunslinger custom paint partner collaboration
Complete technology suite
Electronic rider assistance features for traction, acceleration, deceleration, and braking
