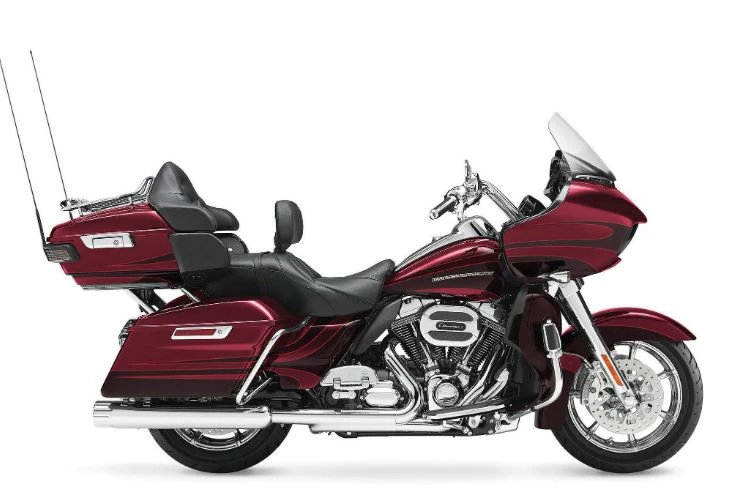

The 2016 Harley-Davidson CVO Road Glide Ultra is a touring motorcycle that embodies the essence of style, performance, and luxury. The frame-mounted fairing boasts an aggressive yet aerodynamic design, complete with triple splitstream vents and a massive 13.5-inch touring windshield to minimize head buffeting.
A host of innovative features has been carefully integrated into this machine, including a color-matched inner fairing that houses the Boom! Box 6.5 GT infotainment system, which boasts 3D GPS and high-performance speakers. When night falls, the Dual Daymaker Reflector LED headlights illuminate the road like daylight.
But it’s not just about looks and gadgets – the CVO Road Glide Ultra is a powerhouse on the open road, with a potent engine delivering an exhilarating riding experience that’s as much about control as it is about sheer speed. And with its plush dual-control heated seat, premium pull-out luggage, and advanced safety features like Reflex Linked Brakes with ABS, this bike is ready to take you on the ultimate long-haul adventure – one that will leave you screaming for more.
Key Specifications
Engine Type
Four stroke, Twin Cam 110 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity
1804 cc / 110.1 cub in.
Max Torque
156 Nm / 15.9 kgf-m / 115 ft/lbs / @ 3750 rpm
Fuel Tank Capacity
6.0 US gallons / 22.7 L
Weight (Wet/Kerb)
968 lbs / 439 kg
Seat Height
29.7 inches / 755 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson CVO Road Glide Ultra
Year
2016
Engine
Engine Type
Four stroke, Twin Cam 110 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement
1804 cc / 110.1 cub in.
Bore x Stroke
101.6 x 111.3 mm
Compression Ratio
9.2:1
Max Torque
156 Nm / 15.9 kgf-m / 115 ft/lbs / @ 3750 rpm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System
Air cooled
Exhaust
Chrome dual exhaust with 4 inch touring mufflers and touring muffler shields
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Hydraulically actuated, 9-plate, wet, with high performance spring
