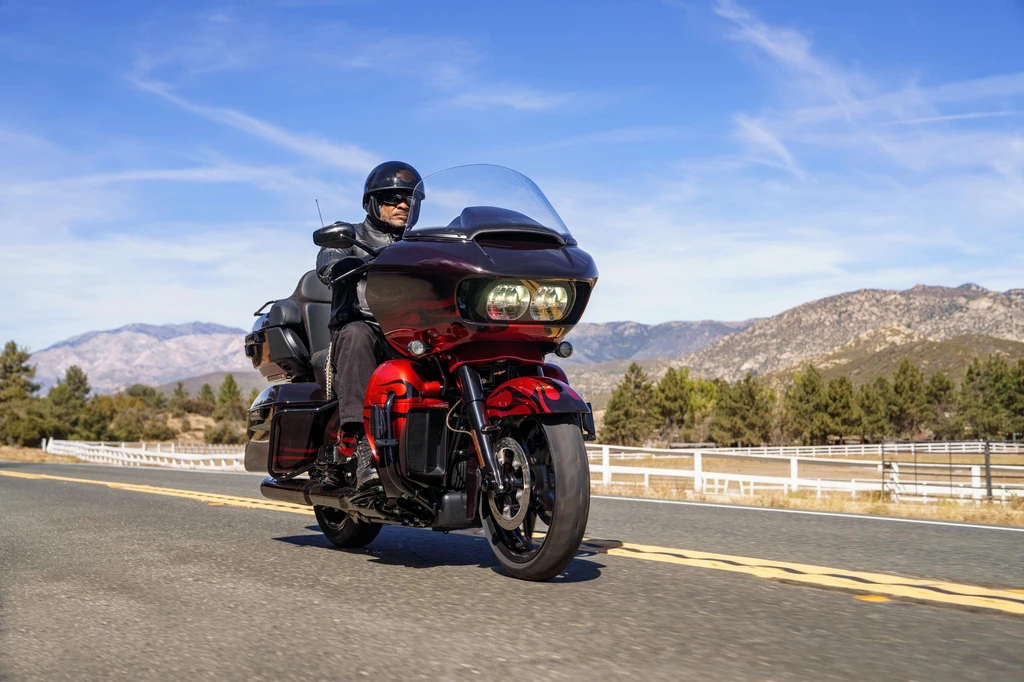

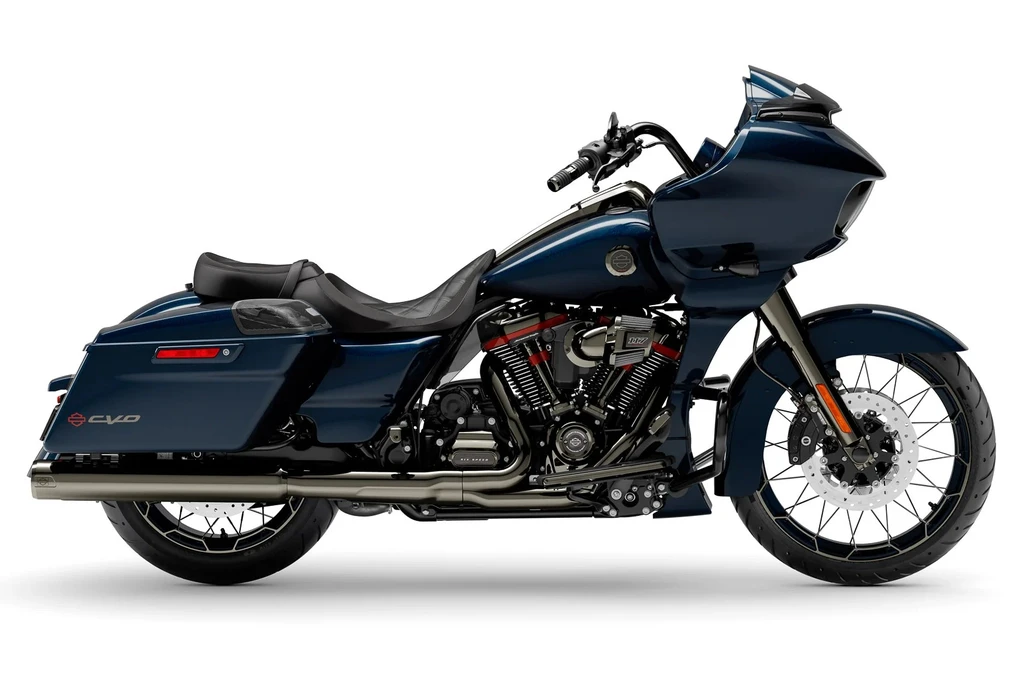

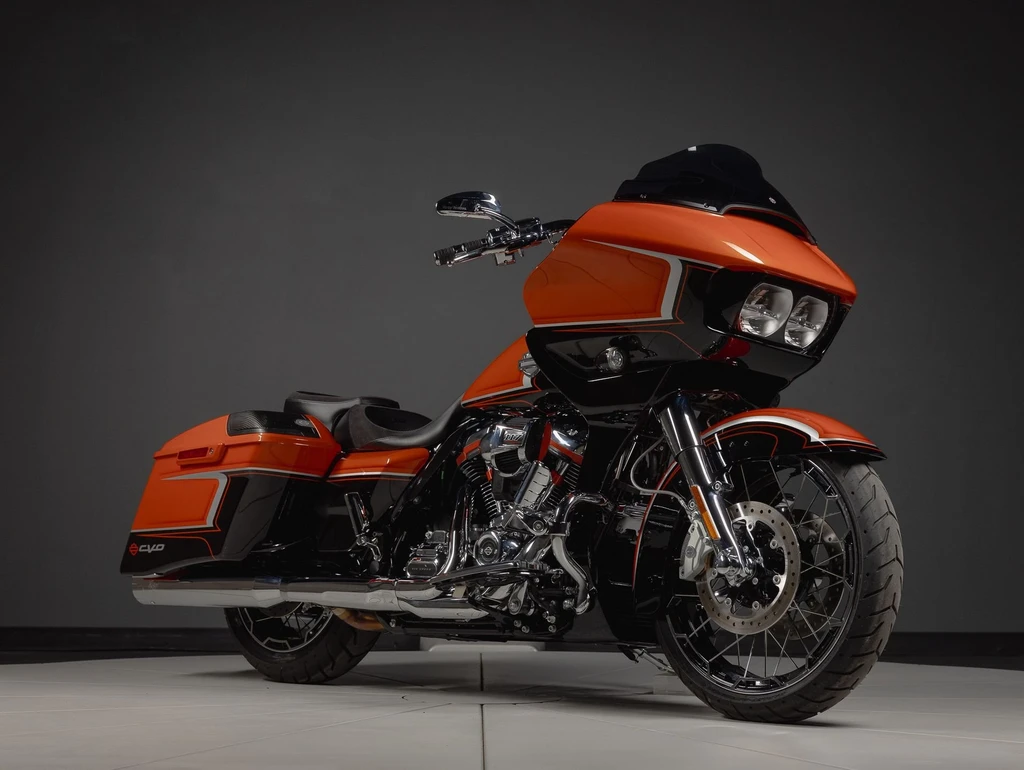

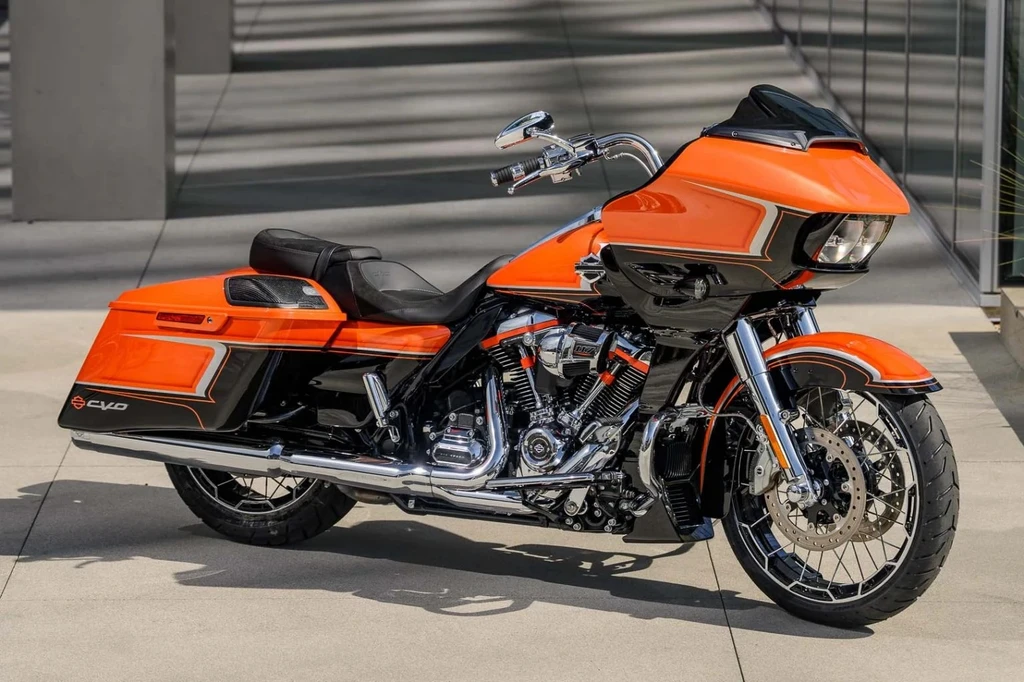

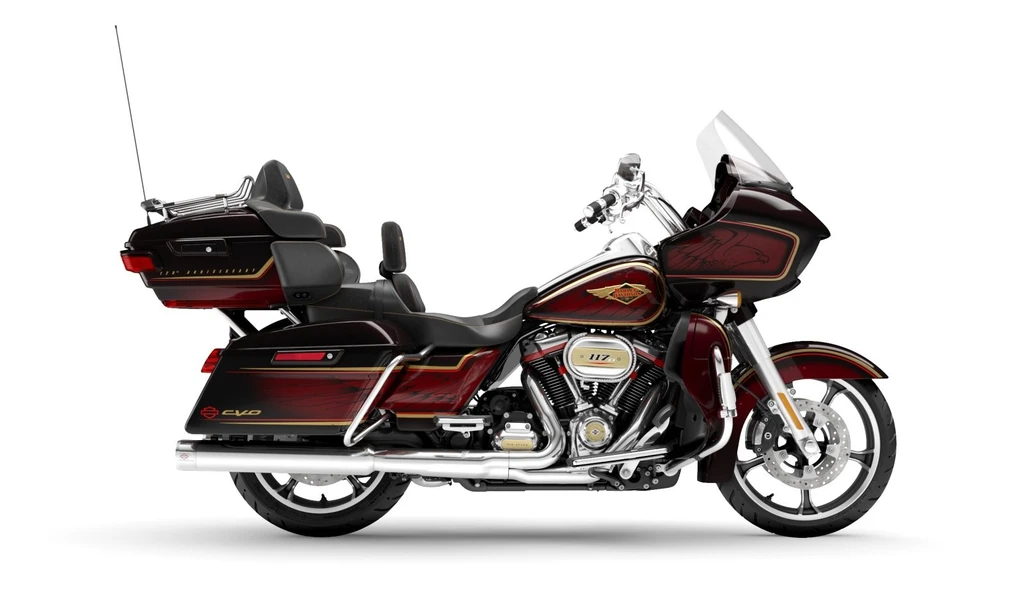

Harley Davidson CVO Road Glide Limited (2022)

The pinnacle of American muscle has arrived with the 2022 Harley-Davidson CVO Road Glide Limited.

This limited-production masterpiece boasts an impressive array of premium features and exclusive components that redefine the art of motorcycle craftsmanship. The CVO Road Glide Limited is powered by the potent Milwaukee-Eight 117 engine, delivering a massive 126 ft. lbs. of torque at just 3750 RPM for effortless acceleration and unbridled performance.

As you take to the open road on this majestic machine, the responsive throttle and precise handling will have you craving every twist and turn. The advanced Boom! Box GTS infotainment system and Harley-Davidson Audio powered by Rockford Fosgate provide an immersive audio experience that perfectly complements the symphony of sounds produced by the Milwaukee-Eight 117 engine.

Each CVO Road Glide Limited is a testament to the unwavering commitment to excellence embodied by Harley-Davidson, where every detail is meticulously crafted to deliver an unparalleled riding experience.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	117 cubic inches / 1923 cc
Max Power	103 hp / 77 kW @ 5250 rpm
Max Torque	124.6 ft-lb / 169 nm
Fuel Tank Capacity	22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)	963 lbs / 437 kg
Seat Height	29.9 inches / 760 mm

*n/a – information not provided by manufacturer

Harley Davidson CVO Road Glide Limited (2022)

All Specifications

Make & Model

Model	Harley Davidson CVO Road Glide Limited
Year	2022

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	117 cubic inches / 1923 cc
Bore x Stroke	103.5 X 114.3 mm
Compression Ratio	10.2:1
Max Horsepower	103 hp / 77 kW @ 5250 rpm
Max Torque	124.6 ft-lb / 169 nm
Engine Management System	Electronic sequential port fuel injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Dual, with crossover

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension	49mm Dual bending valve
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Premium standard height hand-adjustable rear suspension
Rear Suspension Travel	3 inches / 76 mm
Rake	26
Trail	170 mm / 6.7 in
Swingarm	Mild steel; two-piece drawn and welded section; forged junctions; MIG welded

Wheels & Brakes

Wheels	Gloss black and contrast chrome tomahawk
Front Tire Size	BW 130/60B19 61H
Rear Tire Size	BW 180/55B18 80H
Front Brakes	2 x 300mm floating rotors, 4-piston fixed caliper
Rear Brakes	Single 300mm fixed rotor, 4-piston fixed caliper
ABS	Standard

Dimension & Weights

Seat Height	29.9 inches / 760 mm
Wheelbase	64.0 inches / 1625 mm
Ground Clearance	130 mm / 5.1 in
Fuel Tank Capacity	22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight	963 lbs / 437 kg
Dry Weight	420 kg / 927 lbs

Features

Electronic sequential port fuel injection (ESPFI)
Premium standard height hand-adjustable rear suspension
Milwaukee-Eight 117 engine
117 cubic inches displacement
126 ft. lbs. of torque at 3750 RPM (CVO Road Glide, CVO Street Glide)
125 ft. lbs. of torque at 3,500 RPM (CVO Road Glide Limited, CVO Tri Glide)
High-performance camshaft
High-performance intake
High-performance exhaust
Cornering Rider Safety Enhancements
Advanced Boom! Box GTS infotainment system
Harley-Davidson Audio powered by Rockford Fosgate
Exclusive paint colors and designs
Custom hand-painted two-tones, three-tones, airbrush drop shadows
Hand-crafted detail in paint work
