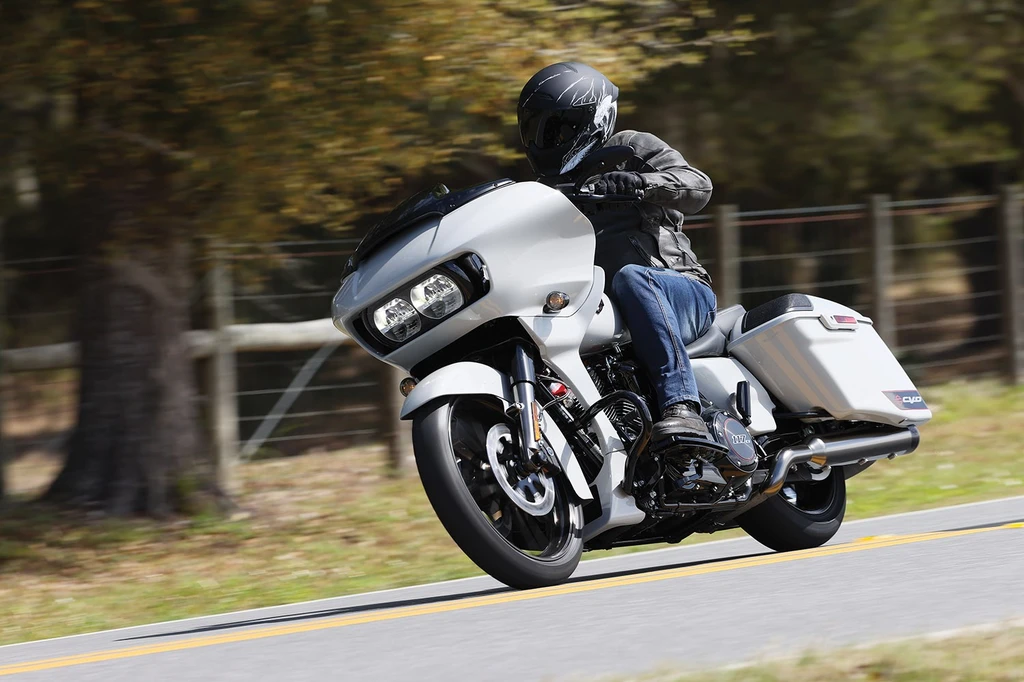

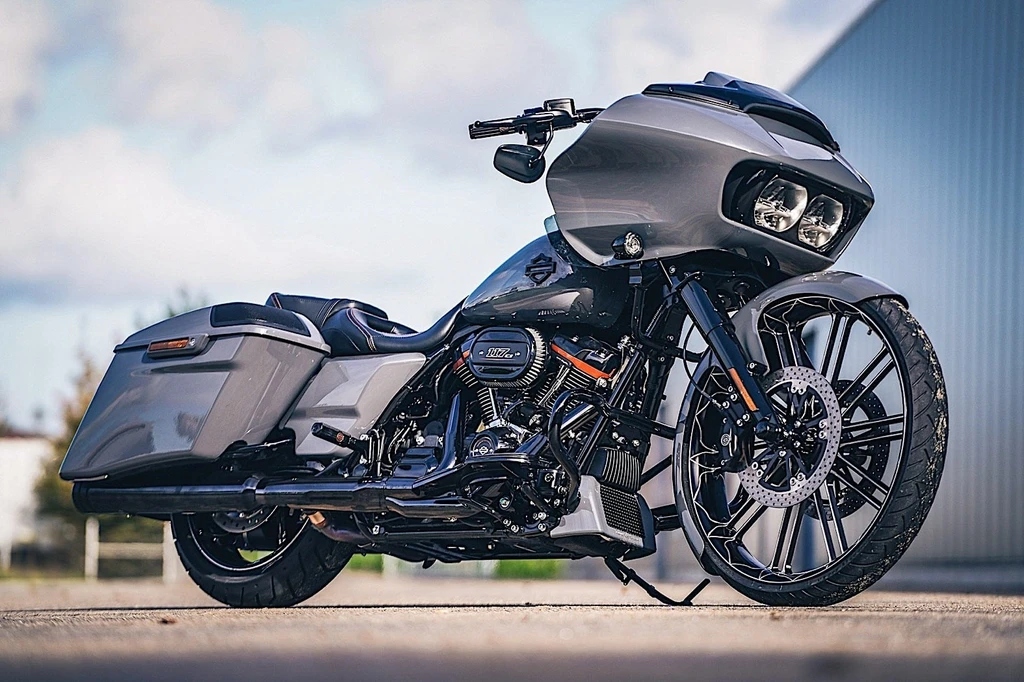

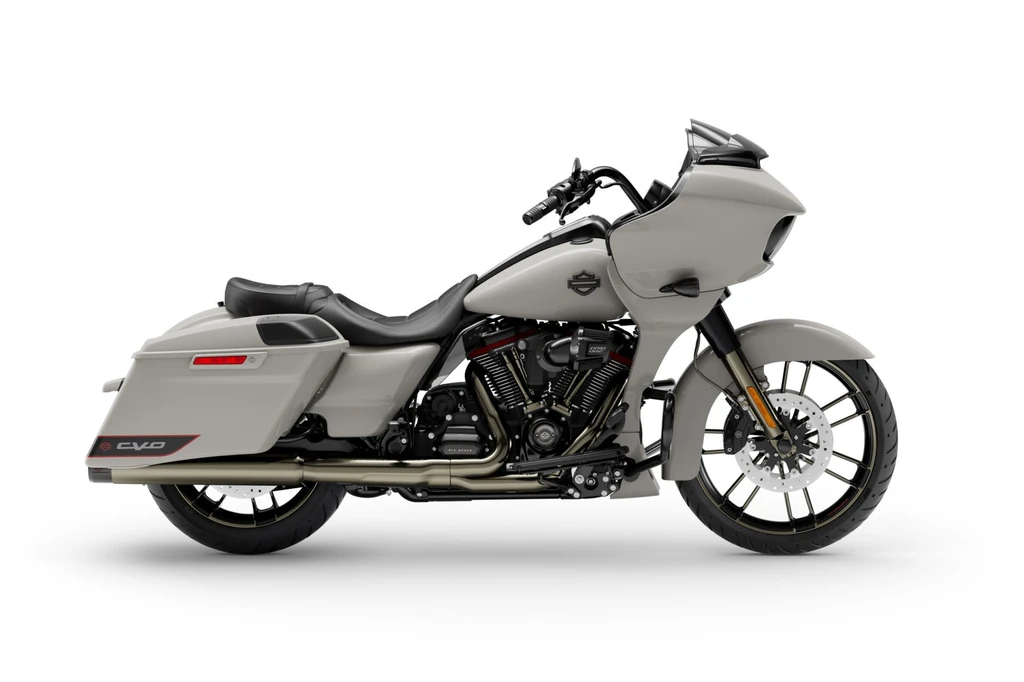

Harley Davidson CVO Road Glide (2020)

Harley Davidson CVO Road Glide (2020)

The Harley-Davidson CVO Road Glide is a tour-de-force of power and innovation, boasting the Milwaukee-Eight 117 V-twin engine that unleashes an astonishing 125 ft/lbs of torque.

Its Emulsion rear suspension with hand-adjustable pre-load ensures a smooth ride, while its Reflex Defensive Rider Systems combine cutting-edge traction control and ABS to provide unparalleled safety. The H-D Connect subscription-based cellular connectivity allows riders to stay connected to their motorcycle through the Harley-Davidson App, and the Boom! Audio 30K Bluetooth Helmet Headset offers a cordless interface with the Boom! Box GTS infotainment system.

But what truly sets the CVO Road Glide apart is its engine character – a deep, rumbling V-twin that thunders to life beneath you. As you hit the open road, the bike’s low-profile two-piece fuel tank console and chrome accessories from the Kahuna Collection gleam in the sunlight, drawing admiring glances from passersby.

And then there’s the riding experience itself – a masterclass in balance and poise, with the CVO Road Glide devouring miles with ease. Whether you’re carving through twisties or cruising down the highway, this bike is an unforgettable thrill ride that will leave you breathless and yearning for more.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity117 cubic inches / 1923 cc
Max Torque124.6 ft-lb / 169 nm
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)884 lbs / 401 kg
Seat Height26.7 inches / 680 mm
Harley Davidson CVO Road Glide (2020)

All Specifications

Make & Model

ModelHarley Davidson CVO Road Glide
Year2020

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement117 cubic inches / 1923 cc
Bore x Stroke103.5 X 114.3 mm
Compression Ratio10.2:1
Max Torque124.6 ft-lb / 169 nm
Engine Management SystemElectronic Sequential Port Fuel Injection
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustDual, with crossover

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa dual bending valve front suspension
Rear SuspensionEmulsion rear suspension with hand-adjustable pre-load
Rake26
Trail173 mm / 6.8 in

Wheels & Brakes

Front Wheel/Rim SizeGloss Black and Contrast Chrome Knockout
Front Tire Size130/60B21 M/C63H
Rear Wheel/Rim SizeGloss Black and Contrast Chrome Knockout
Rear Tire Size180/55B18 M/C80H
Front BrakesCaliper Type 32 mm, 4-piston fixed
Rear BrakesCaliper Type 32 mm, 4-piston fixed

Dimension & Weights

Seat Height26.7 inches / 680 mm
Wheelbase64.0 inches / 1625 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight884 lbs / 401 kg
Dry Weight385 kg / 848.7 lbs

Features

  • Emulsion rear suspension with hand-adjustable pre-load
  • Milwaukee-Eight 117 V-twin engine
  • Reflex Defensive Rider Systems (RDS)
  • ABS
  • H-D Connect subscription-based cellular connectivity
  • Harley-Davidson App connectivity through smartphone
  • Boom! Audio 30K Bluetooth Helmet Headset
  • Cordless interface with Boom! Box GTS infotainment system
  • Connection of up to 15 riders at one time
  • Quick charge feature for extended tours
  • Boom! Box GTS with Premium Boom! Audio
  • Bi-amped speakers in fairing and saddlebag lids
  • 600 watts total power from two separate amplifiers
  • Low-profile two-piece fuel tank console
  • Lighted CVO logo
  • Kahuna Collection of chrome accessories
  • Heated handgrips
  • Shifter pegs
  • Brake pedal cover
  • Muffler end caps
  • Rider and passenger boards
  • 21-inch front wheel (unique to Harley tourer)
  • Frame-mounted shark-nose fairing with triple slipstream vents
  • Updated lower bodywork on front spoiler for improved aerodynamics
