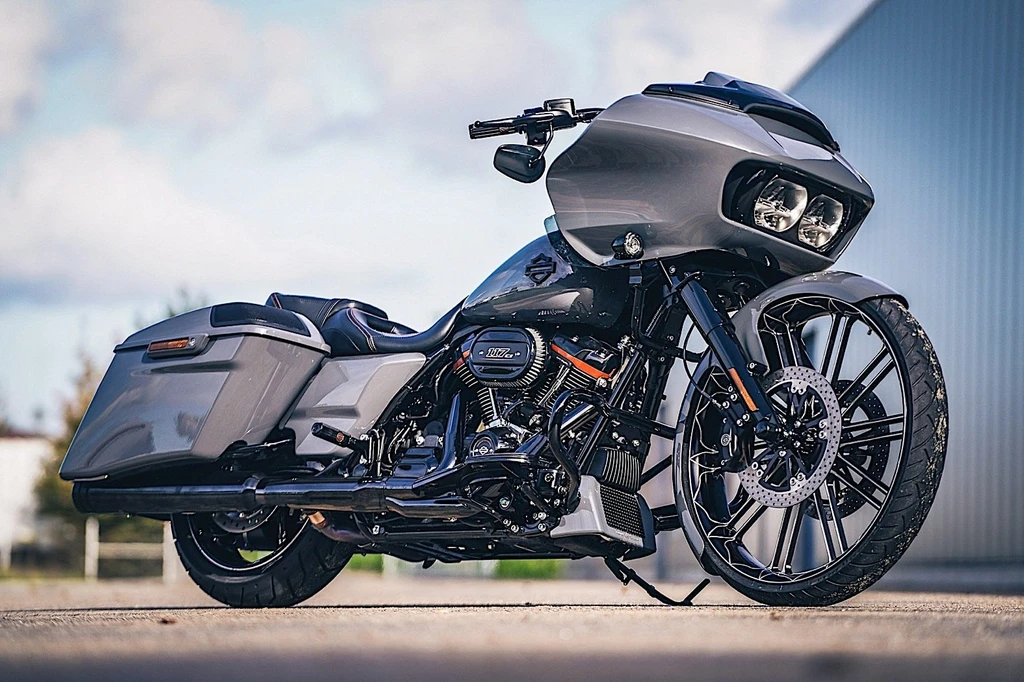

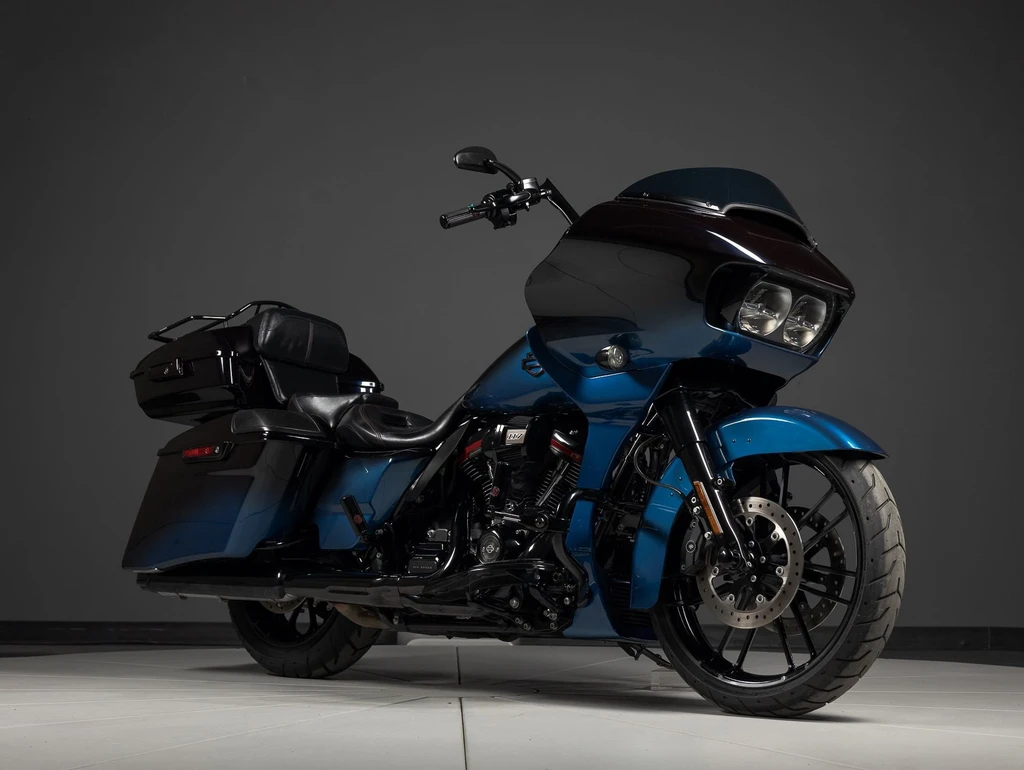

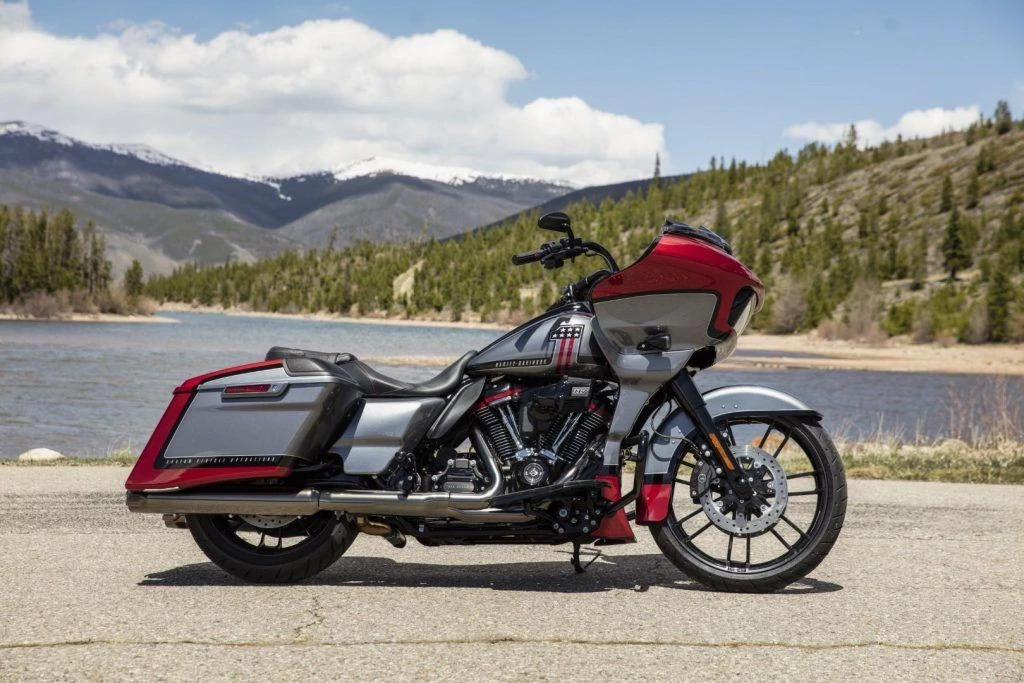

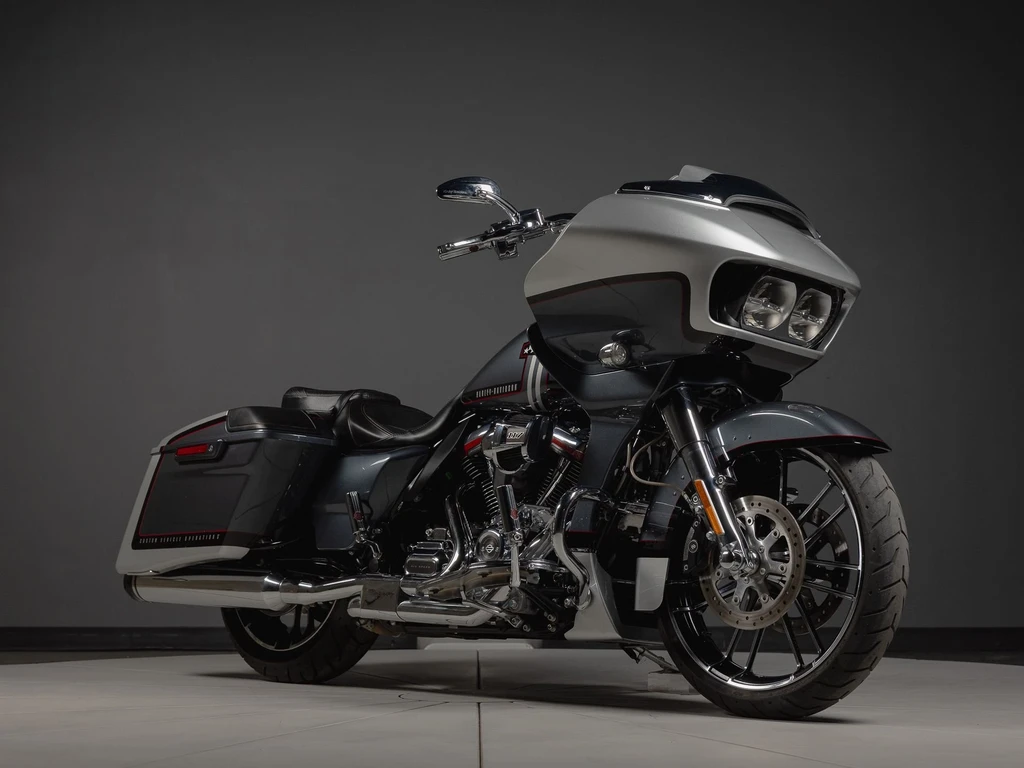

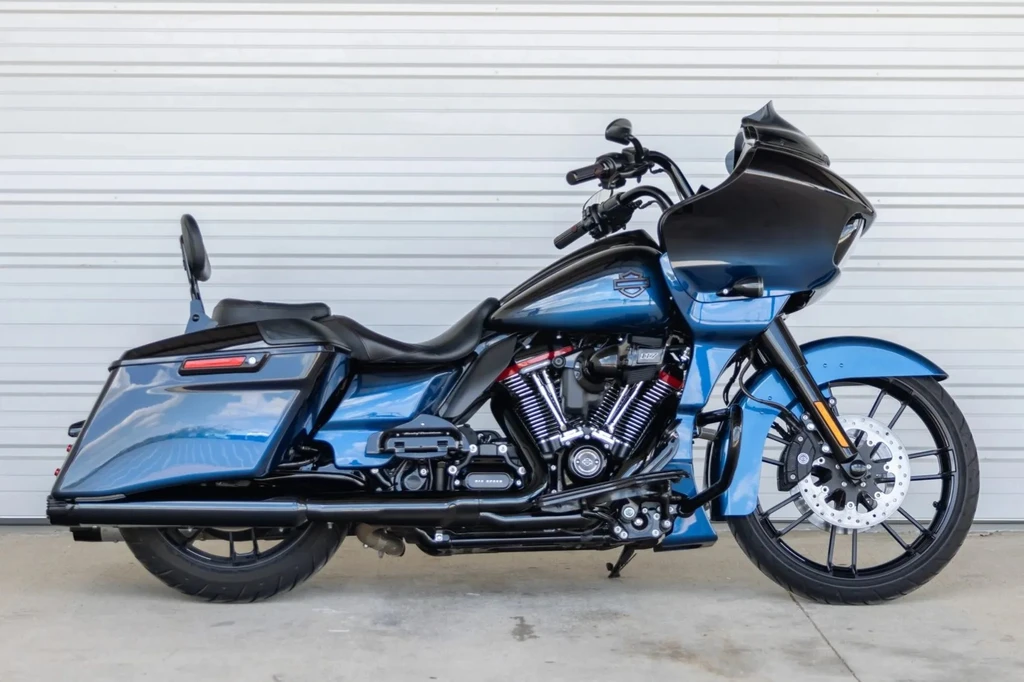

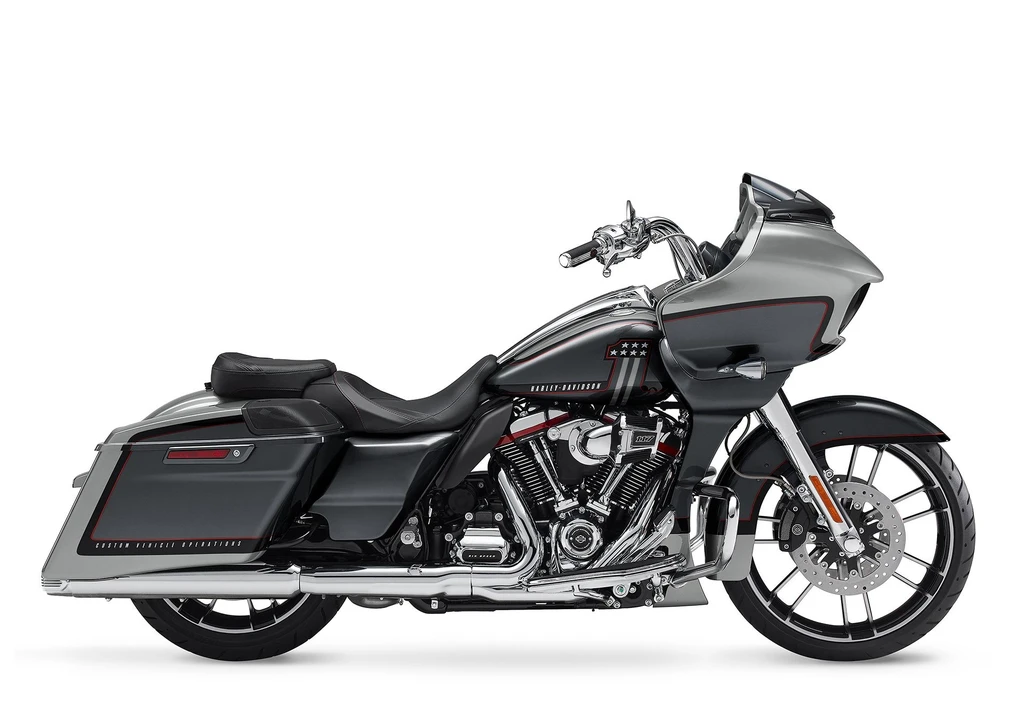

Harley Davidson CVO Road Glide (2019)

Harley Davidson CVO Road Glide (2019)

The Harley-Davidson CVO Road Glide (2019) embodies the essence of high-performance touring motorcycles, perfectly blending aggressive styling with long-haul comfort.

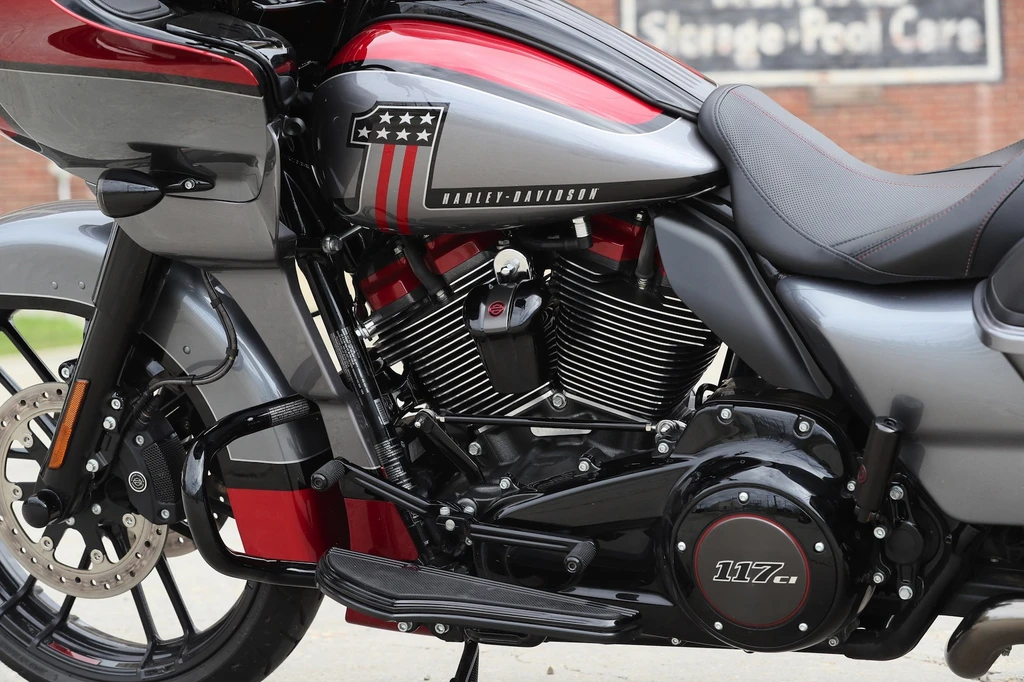

At its heart lies the powerful Milwaukee-Eight 117 engine, featuring a Heavy Breather intake and red rocker covers that exude hot-rod style. The result is an exhilarating riding experience, characterized by effortless acceleration and a deep, throaty growl.

Inside, the CVO Road Glide boasts premium BOOM! Box GTS infotainment with wireless interface, delivering crystal-clear audio performance through bi-amp speakers in the front fairing and saddlebag lids.

Ride it, and you’ll be rewarded with exceptional comfort, thanks to its emulsion rear suspension with hand-adjustable pre-load and the precision of 21-inch front wheels, perfectly matched for optimal performance and handling.

The CVO Road Glide is an exercise in excess, with paint options that defy conventional custom shops. It’s a limited-edition masterpiece engineered to turn heads, anywhere you go.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity117 cubic inches / 1923 cc
Max Torque124.6 ft-lb / 169 nm
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)884 lbs / 401 kg
Seat Height26.7 inches / 680 mm
Harley Davidson CVO Road Glide (2019)

All Specifications

Make & Model

ModelHarley Davidson CVO Road Glide
Year2019

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement117 cubic inches / 1923 cc
Bore x Stroke103.5 X 114.3 mm
Compression Ratio10.2:1
Max Torque124.6 ft-lb / 169 nm
Engine Management SystemElectronic Sequential Port Fuel Injection
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustDual, with crossover

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa dual bending valve front suspension
Rear SuspensionEmulsion rear suspension with hand-adjustable pre-load
Rake26
Trail173 mm / 6.8 in

Wheels & Brakes

Front Wheel/Rim SizeGloss Black and Contrast Chrome Knockout
Front Tire Size130/60B21 M/C63H
Rear Wheel/Rim SizeGloss Black and Contrast Chrome Knockout
Rear Tire Size180/55B18 M/C80H
Front BrakesCaliper Type 32 mm, 4-piston fixed
Rear BrakesCaliper Type 32 mm, 4-piston fixed

Dimension & Weights

Seat Height26.7 inches / 680 mm
Wheelbase64.0 inches / 1625 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight884 lbs / 401 kg
Dry Weight385 kg / 848.7 lbs

Features

  • Emulsion rear suspension with hand-adjustable pre-load
  • Milwaukee-Eight 117 power
  • Red rocker covers
  • Heavy Breather intake
  • BOOM! Box GTS infotainment system
  • Wireless interface
  • 2 amplifiers
  • 600 watts of clear audio performance
  • Bi-amp speakers in the front fairing and saddlebag lids
  • Premium paint options
  • Contrast Chrome Knockout wheels
  • Bright Chrome covers and exhaust
  • Mako Shark Fade with Contrast Anodize Knockout wheels
  • Exclusive Knockout 21-inch front wheel
  • 18-inch rear wheel
  • CVO Fade Paint treatment
  • Black Onyx physical vapor deposition finish on exhaust
