The pinnacle of American motorcycle luxury has been reached with the introduction of the 2018 Harley-Davidson CVO Road Glide.

This behemoth of a bike boasts an array of exclusive features, including emulsion rear suspension with hand-adjustable pre-load, a first-ever factory-installed 21-inch front wheel, and a one-of-a-kind exhaust finish. The luxurious paint scheme is a sight to behold, making every glance a statement. Each CVO model is handcrafted with precision and care, taking the already impressive production models to new heights of customization.

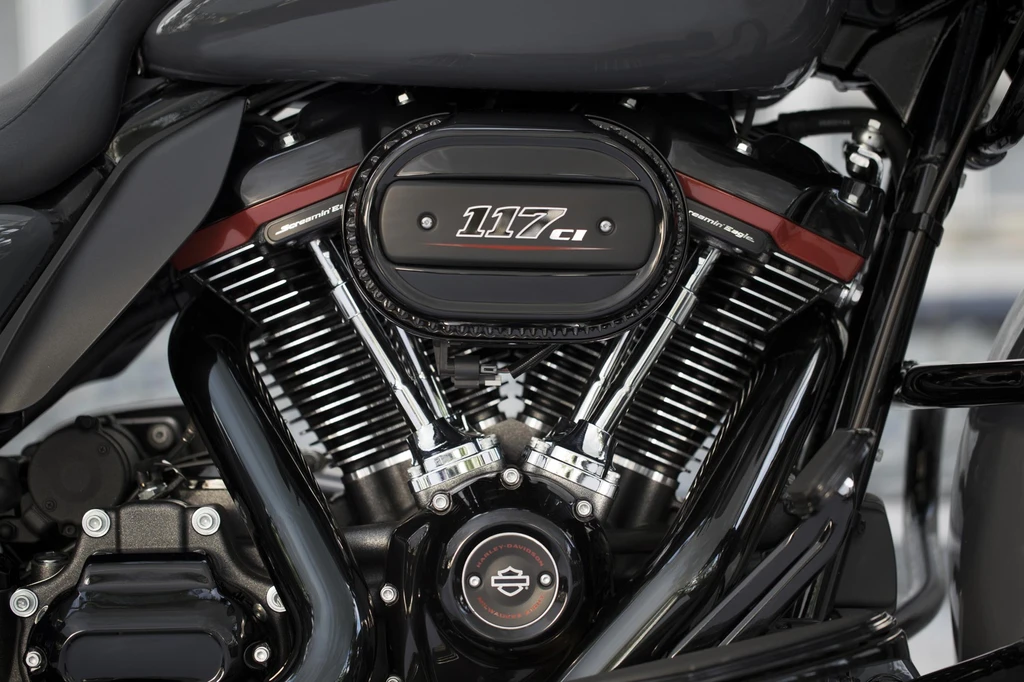

The heart of this machine beats with a V-Twin engine that redefines power and performance, featuring color-accented Rocker Box Lowers with a deep orange finish. It’s an engine so potent, it’s only available in CVO form.

Whether carving through the city streets or devouring winding country roads, the 2018 Harley-Davidson CVO Road Glide is the ultimate riding experience. It’s a statement of individuality and sophistication that demands attention on every corner.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity117 cubic inches / 1923 cc
Max Torque124.6 ft-lb / 169 nm
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)884 lbs / 401 kg
Seat Height26.7 inches / 680 mm
Harley Davidson CVO Road Glide (2018)

All Specifications

Make & Model

ModelHarley Davidson CVO Road Glide
Year2018

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement117 cubic inches / 1923 cc
Bore x Stroke103.5 X 114.3 mm
Compression Ratio10.2:1
Max Torque124.6 ft-lb / 169 nm
Engine Management SystemElectronic Sequential Port Fuel Injection
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustDual, with crossover

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa dual bending valve front suspension
Rear SuspensionEmulsion rear suspension with hand-adjustable pre-load
Rake26
Trail173 mm / 6.8 in

Wheels & Brakes

Front Wheel/Rim SizeGloss Black and Contrast Chrome Knockout
Front Tire Size130/60B21 M/C63H
Rear Wheel/Rim SizeGloss Black and Contrast Chrome Knockout
Rear Tire Size180/55B18 M/C80H
Front BrakesCaliper Type 32 mm, 4-piston fixed
Rear BrakesCaliper Type 32 mm, 4-piston fixed

Dimension & Weights

Seat Height26.7 inches / 680 mm
Wheelbase64.0 inches / 1625 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight884 lbs / 401 kg
Dry Weight385 kg / 848.7 lbs

Features

  • Emulsion rear suspension with hand-adjustable pre-load
  • 21 inch front wheel (factory-installed)
  • Unique exhaust finish
  • Luxurious, super-premium paint scheme
  • Customized paint, styling, performance, and features
  • Limited production run
  • Handcrafted masterpiece
  • Most powerful V-Twin engine ever offered from the factory
  • Colour accented Rocker Box Lowers with deep orange finish
  • Largest-ever stock engine displacement (117-cubic-inch)
  • Upgraded Screamin Eagle power
  • Milwaukee-Eight engine
  • 125 ft. lbs. of torque
  • Two-year unlimited warranty
