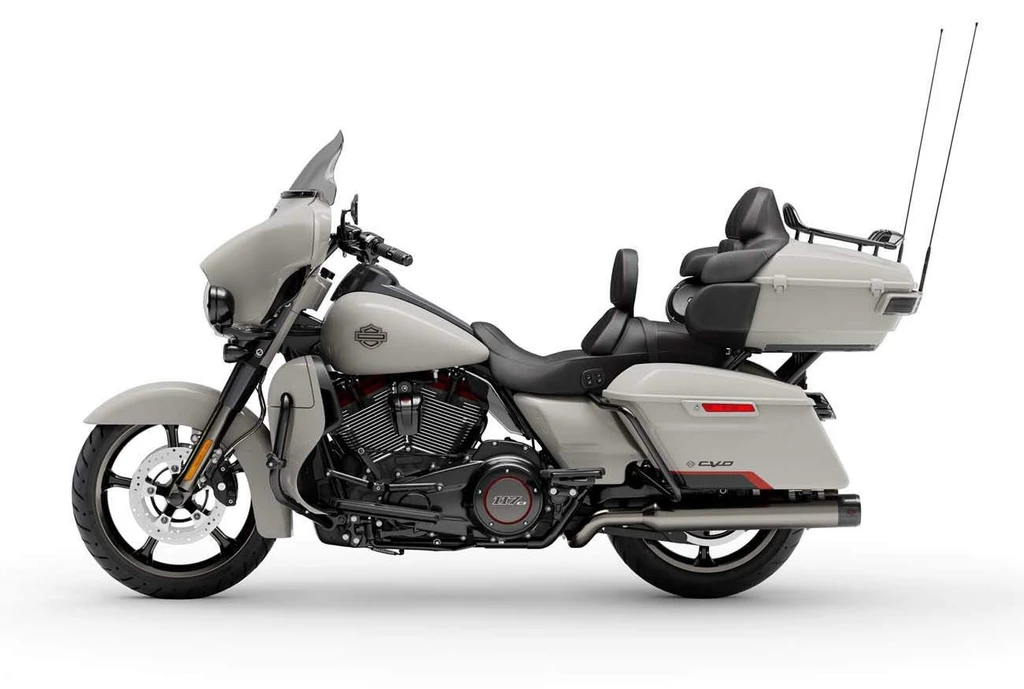

Harley Davidson CVO Limited (2019 – 2020)

Harley Davidson CVO Limited (2019 - 2020)

The Harley-Davidson CVO Limited – the epitome of grand American touring. This behemoth starts with a massive Twin-Cooled Milwaukee-Eight117 V-Twin engine, unleashing an abundance of power that never seems to wane.

A premium riding experience is further enhanced by emulsion rear suspension with hand-adjustable pre-load, ensuring a smooth and responsive ride for both the rider and passenger.

The CVO Limited’s show-stopping paint job is just the beginning – Tomahawk wheels, Kahuna Collection shifter pegs, and heated grips all contribute to an unparalleled level of luxury and comfort. BOOM! Box GTS infotainment with wireless interface and premium sound system complete the picture, as does the LED bezel on the Tourpak carrier and LED turn signals.

With its satin chrome exhaust, Blazed red rocker covers, and premium comfort features, this motorcycle is undoubtedly a statement piece. Whether cruising down the highway or navigating twisty roads, the Harley-Davidson CVO Limited embodies the perfect blend of power, style, and sophistication – it’s the ultimate touring experience, period.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity117 cubic inches / 1923 cc
Max Torque124.6 ft-lb / 169 nm
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)944 lbs / 428 kg
Seat Height29.9 inches / 760 mm
Harley Davidson CVO Limited (2019 - 2020)

All Specifications

Make & Model

ModelHarley Davidson CVO Limited
Year2019 – 2020

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement117 cubic inches / 1923 cc
Bore x Stroke103.5 X 114.3 mm
Compression Ratio10.2:1
Max Torque124.6 ft-lb / 169 nm
Engine Management SystemElectronic Sequential Port Fuel Injection
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustDual, with crossover

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa dual bending valve front suspension
Rear SuspensionEmulsion rear suspension with hand-adjustable pre-load
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

Front Wheel/Rim SizeGloss Black and Contrast Chrome Slicer
Front Tire Size130/80B17 65H
Rear Wheel/Rim SizeGloss Black and Contrast Chrome Slicer
Rear Tire Size180/65B16 81H
Front BrakesCaliper Type 32 mm, 4-piston fixed
Rear BrakesCaliper Type 32 mm, 4-piston fixed

Dimension & Weights

Seat Height29.9 inches / 760 mm
Wheelbase64.0 inches / 1625 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight944 lbs / 428 kg
Dry Weight411 kg / 906 lbs

Features

  • Twin-Cooled Milwaukee-Eight117 V-Twin engine
  • Emulsion rear suspension with hand-adjustable pre-load
  • 19 front and 18 rear Tomahawk wheels
  • Kahuna Collection shifter pegs, brake pedal cover, muffler end caps
  • Heated grips
  • Rider and passenger boards
  • BOOM! Box GTS infotainment system
  • Wireless interface
  • Premium sound system
  • LED bezel on the Tourpak carrier
  • LED turn signals
  • LED lighting surround
  • Blazed red rocker covers
  • Satin chrome exhaust
  • Contrast Chrome Tomahawk wheels (on some paint options)
  • Contrast Anodize Tomahawk wheels (on some paint options)

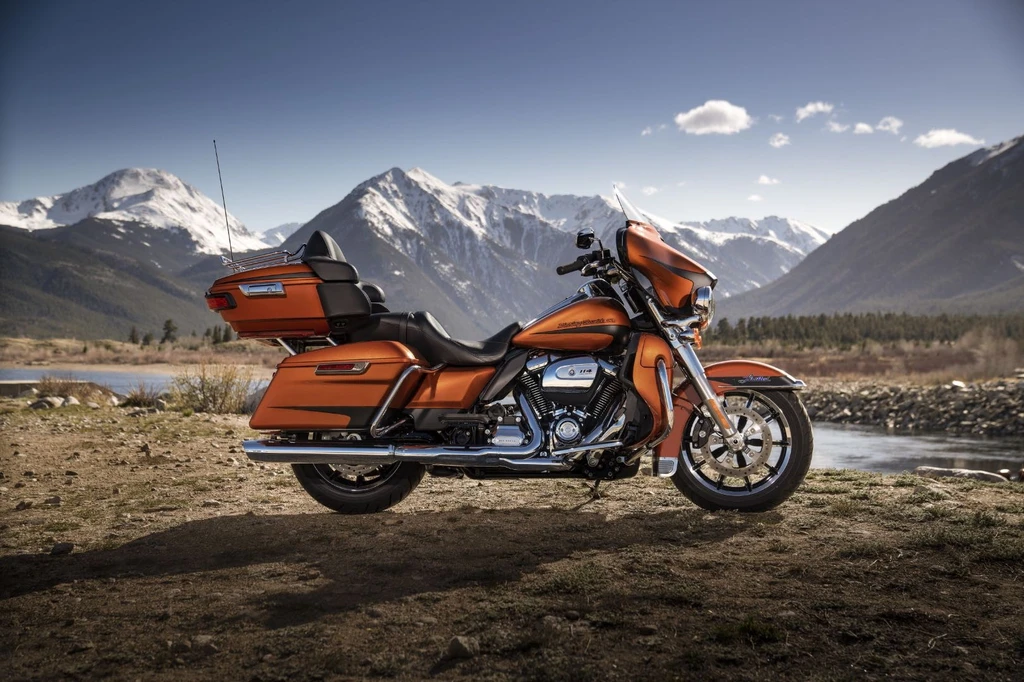

Harley Davidson CVO Limited (2019 - 2020)

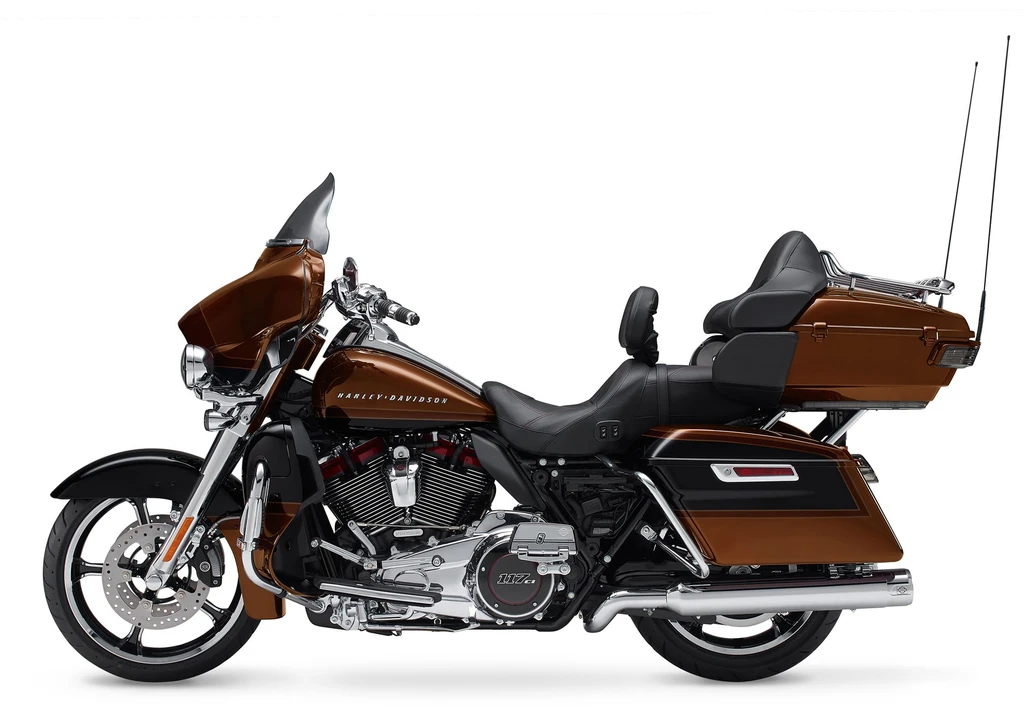

Harley Davidson CVO Limited (2019 - 2020)

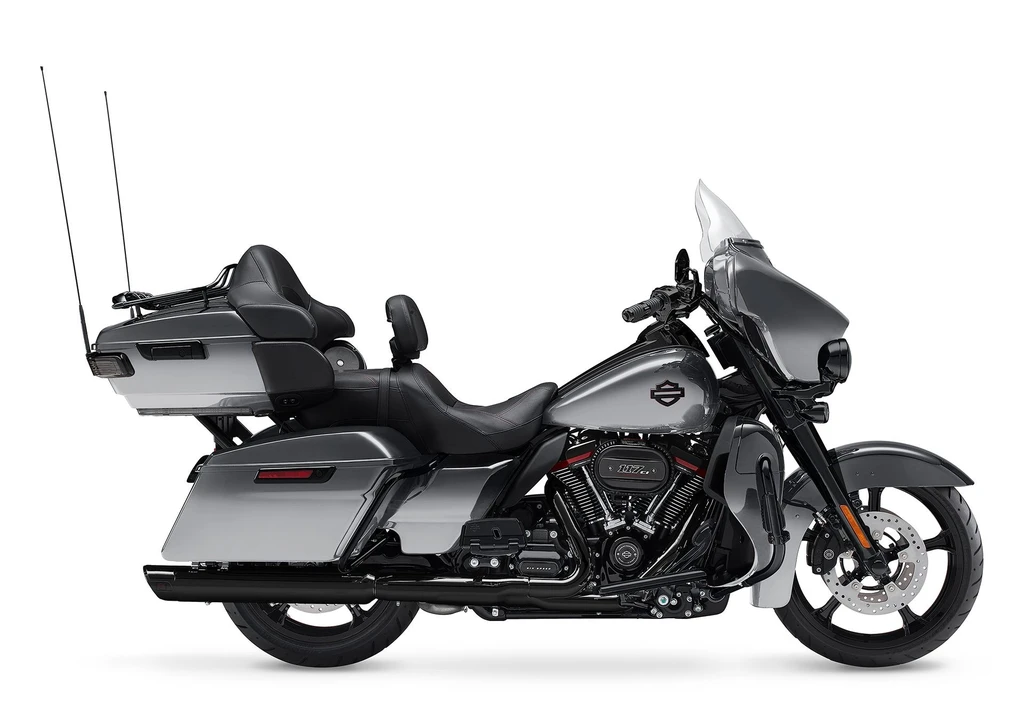

Harley Davidson CVO Limited (2019 - 2020)

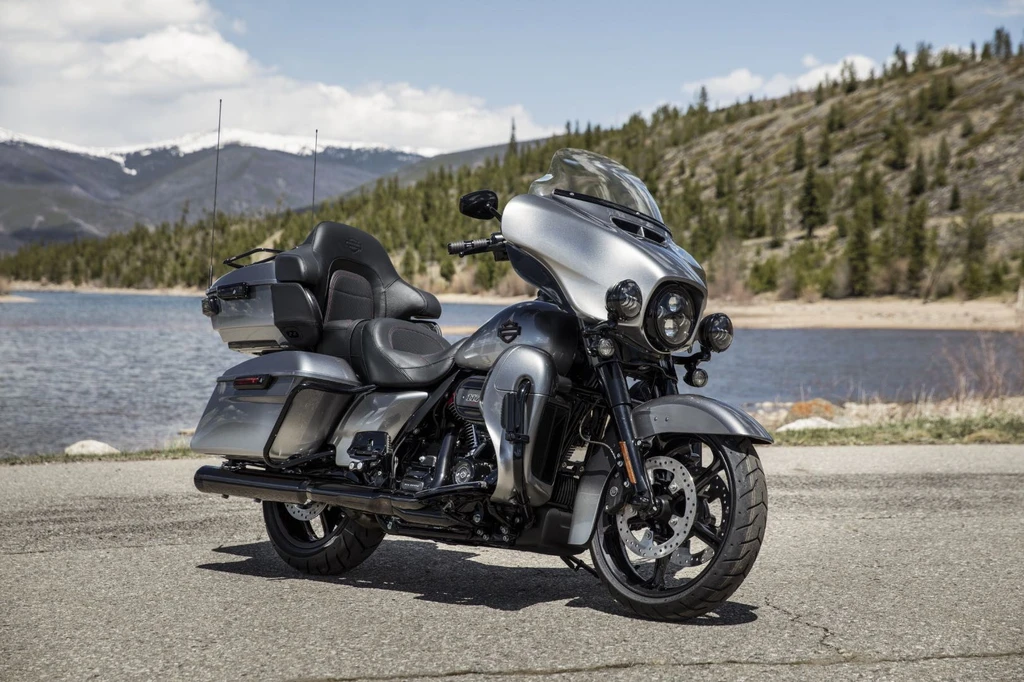

Harley Davidson CVO Limited (2019 - 2020)

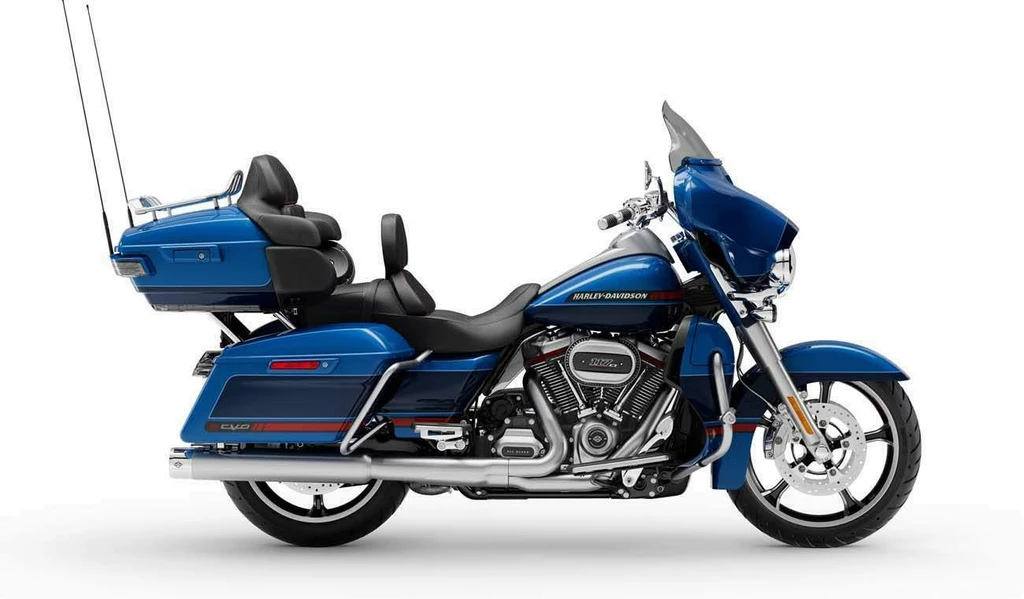

Harley Davidson CVO Limited (2019 - 2020)

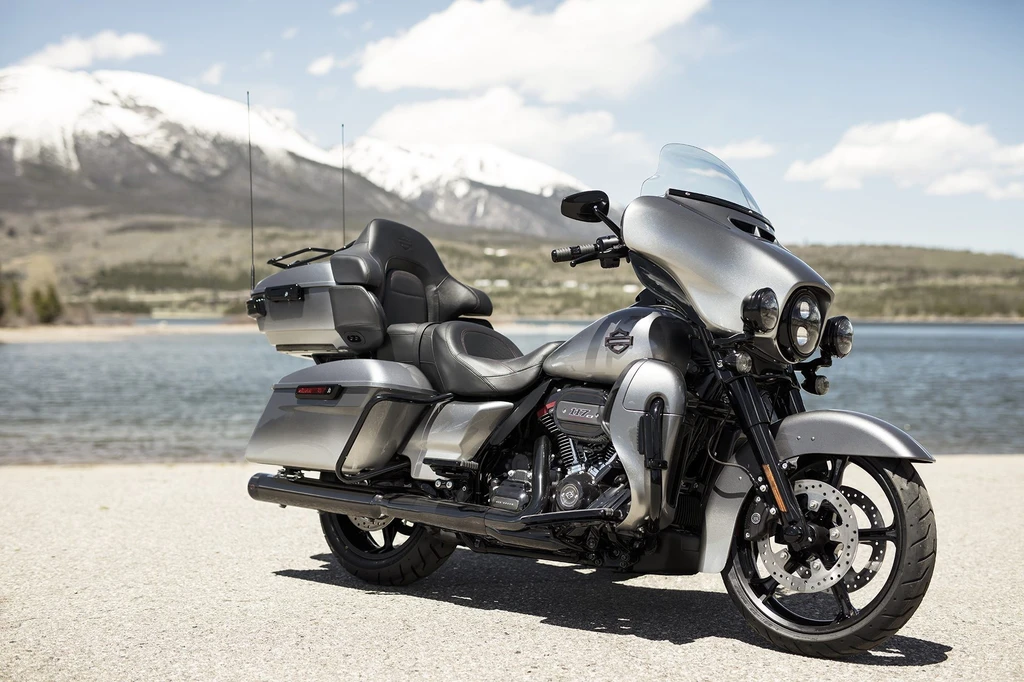

Harley Davidson CVO Limited (2019 - 2020)

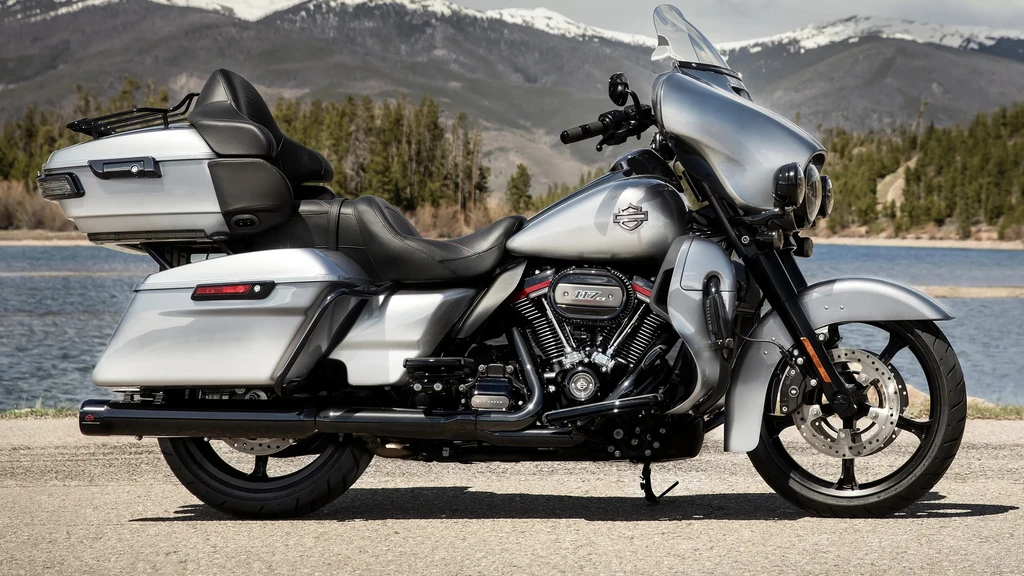

Harley Davidson CVO Limited (2019 - 2020)
