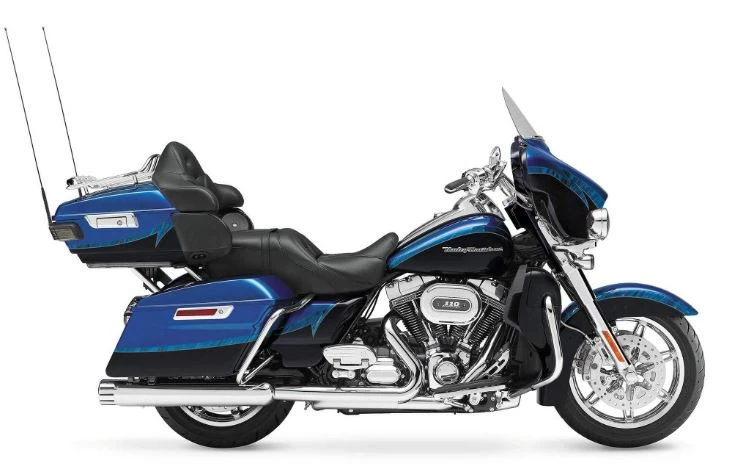

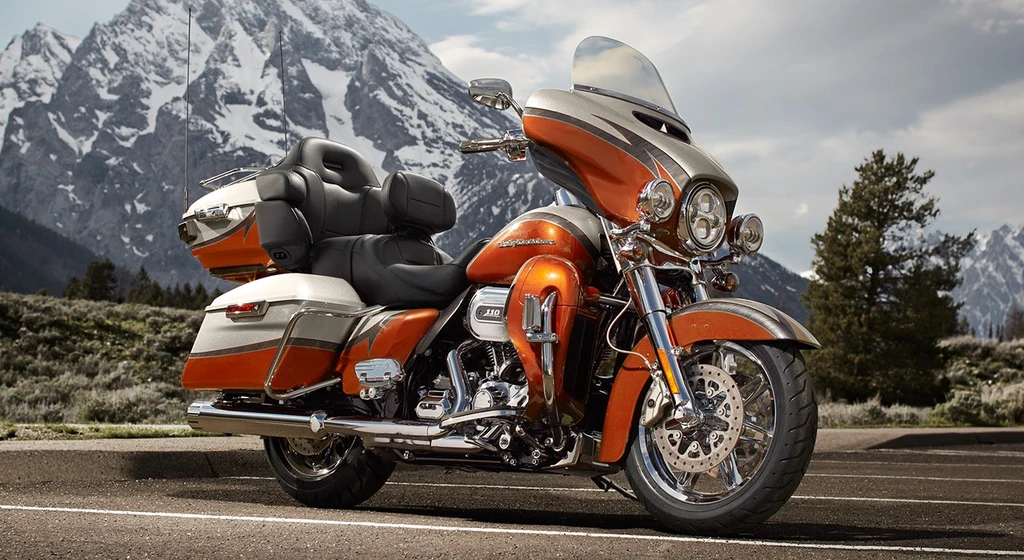

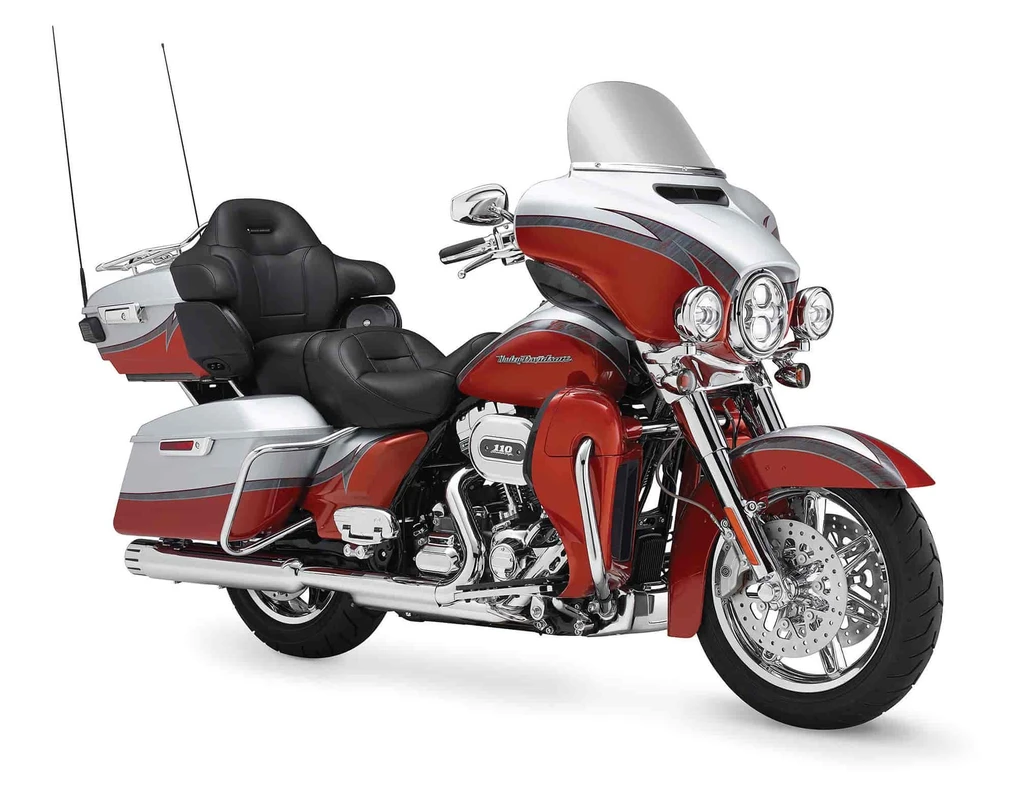

Harley Davidson CVO Limited (2014 -)

The Harley-Davidson CVO Limited is the epitome of luxury touring motorcycles, boasting an unparalleled blend of comfort, convenience, and raw power. The 110ci Screamin’ Eagle Twin-Cooled engine, wrapped in a granite powder-coated powertrain, delivers effortless acceleration and exceptional torque.

At its core, the CVO Limited features a robust swingarm and single-spar frame, designed to withstand the rigors of long-haul touring and powerful engines. Cutting-edge technology is seamlessly integrated throughout the motorcycle, from the wind-tunnel-tested Batwing fairing to the state-of-the-art Boom! Box 6.5 GT audio system.

Whether you’re carving through twisties or cruising down the highway, the CVO Limited’s exceptional ride quality and intuitive ergonomics make every mile a joy. With its exclusive paint schemes, premium chrome accents, and cutting-edge features, this motorcycle truly has it all – making it the ultimate touring experience for those who demand nothing but the best. The Harley-Davidson CVO Limited is an unapologetic statement of luxury, power, and style that redefines the very concept of touring motorcycles.

Key Specifications

Engine Type	Four stroke, Twin Cam 110 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity	1802 cc / 109.96 cub in.
Max Torque	156 Nm / 15.9 kgf-m / 115 ft. lbs @ 3750 rpm
Fuel Tank Capacity	22 7 Litres / 6 gal
Weight (Wet/Kerb)	896 lbs / 414 kg
Seat Height	27.3 inches / 695 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson CVO Limited
Year	2014 –

Engine

Engine Type	Four stroke, Twin Cam 110 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement	1802 cc / 109.96 cub in.
Bore x Stroke	101.6 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	156 Nm / 15.9 kgf-m / 115 ft. lbs @ 3750 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air/Liquid cooled,

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gear Ratios	1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875:1
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable
Rake	26
Trail	170 mm / 6.7 in.

Wheels & Brakes

Front Tire Size	BW 130/80B17 65H
Rear Tire Size	BW 180/65B16 81H
Front Brakes	2 x 300mm disc, 4 piston caliper ABS
Rear Brakes	Single 300mm disc, 4 piston caliper ABS

Dimension & Weights

Seat Height	27.3 inches / 695 mm
Wheelbase	64 inches / 1625 mm
Fuel Tank Capacity	22 7 Litres / 6 gal
Wet (kerb/curb) Weight	896 lbs / 414 kg

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Swingarm: mild steel, two-piece drawn and welded section, forged junctions, MIG welded
Air-adjustable Rear Shocks
Screamin Eagle Twin-Cooled High Output Twin Cam 110 engine
Wind-tunnel tested Batwing fairing with Splitstream vent
Reflex Linked Brakes with ABS
Floating open front brake rotors
Daymaker LED headlight and fog lights
Boom! Box 6.5 GT audio system with GPS, touchscreen, Bluetooth capability
Jukebox media compartment with USB connection
One-Touch access door on Jukebox
Restyled saddlebags with chrome One-Touch design latch
Redesigned Tour-Pak case with One-Touch latch and integrated lock
Power Locking System
Ergonomic hand controls with improved tactile feel
49 mm telescopic front forks, stiffer triple clamps, larger steering bearings
Dual control heated seat with perforated leather pattern
Redesigned passenger seating area
Electronic Cruise Control
Chrome Accessories
Black high-torque 1.4kW starter
