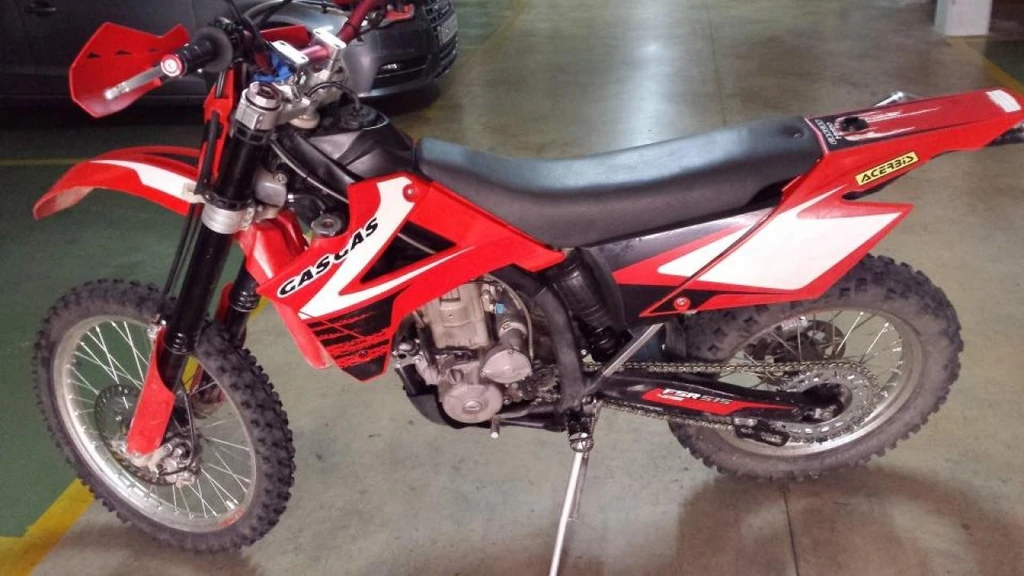

The Gas Gas EC 515 FSE is a testament to innovation and reliability, boasting a cutting-edge battery-less fuel-injected engine that has left competitors in its dust. By switching to Kokusan’s high-voltage stator with 16 windings, Gas Gas has created an electric system that not only powers the engine control module but also recharges the lights and starter motor.
The result is an incredibly robust package that can withstand even the toughest riding conditions. With a condenser that charges in just 500 degrees of rotation, the fuel pump springs to life with ease, booting the engine into action at three bar (45psi) pressure.
This sophisticated system also includes a manifold air pressure sensor, allowing the ECM to fine-tune the fuel mixture with unprecedented precision. The end result is a bike that requires no re-trimming once its parameters are downloaded, making it an absolute dream to ride and maintain.
Key Specifications
Engine Type
Four stroke, single cylinder, DOHC, 4 valve
Engine Capacity
31.4 cubic inches / 515 cc
Fuel Tank Capacity
2.5 US gallons / 8.5 L
Seat Height
35.4 inches / 900 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Gas Gas EC 515 FSE
Year
2008 –
Engine
Engine Type
Four stroke, single cylinder, DOHC, 4 valve
Displacement
31.4 cubic inches / 515 cc
Bore x Stroke
100 x 63 mm
Engine Management System
Magneti Marelli Injection
Lubrication System
Wet sump
Cooling System
Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi disc in oil bath, hydraulically operated.
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric & Kick
Chassis & Suspension
Frame Type
Deltabox built with elliptic profile CR / Mo tubing.
Front Suspension
45mm Marzocchi forks
Front Suspension Travel
11.6 inches / 295 mm
Rear Suspension
Progressive system with hlins shock absorber
Rear Suspension Travel
12.6 inches / 320 mm
Wheels & Brakes
Front Tire Size
90/90 -21
Rear Tire Size
140/80 -18
Front Brakes
Single 260mm disc 2 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Dimension & Weights
Seat Height
35.4 inches / 900 mm
Wheelbase
58.1 inches / 1475 mm
Ground Clearance
290 mm / 11.4 in
Fuel Tank Capacity
2.5 US gallons / 8.5 L
Dry Weight
118 kg / 260 lbs
Features
Battery-less system with stator powering engine management electrics
High voltage, low inertia stator with 16 windings
Half of stator windings dedicated to recharging battery, half for ECM supply
Manifold air pressure sensor for improved fuel mixture control
Set and forget EFI tuning with automatic adjustments for small mods
Fast loading of engine management programs via computer-like interface
Ability to update software at dealer level during service
Power-tuners can develop custom ECM programs for specific performance needs
Fuel-injected dirtbike design
Street-legal EFI capability
Kokusan electronic fuel injection system
500 degrees of rotation charges condenser for engine start
Fuel pump reaches 45psi with stator charging
Engine control module (ECM) receives separate charge supply
Battery supplies only lights and e-start power
