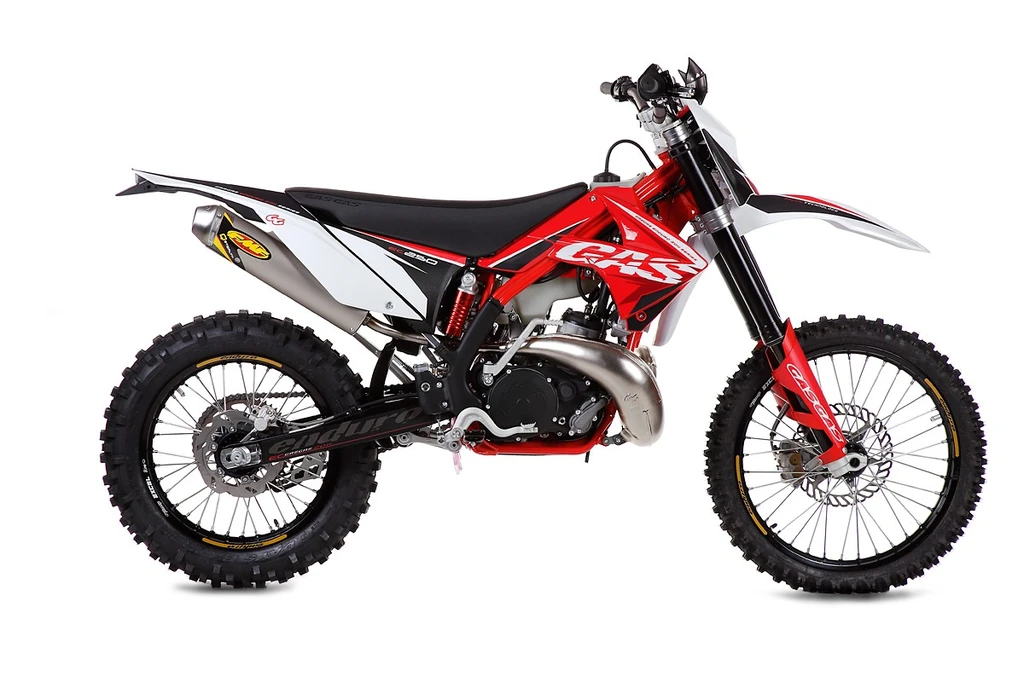

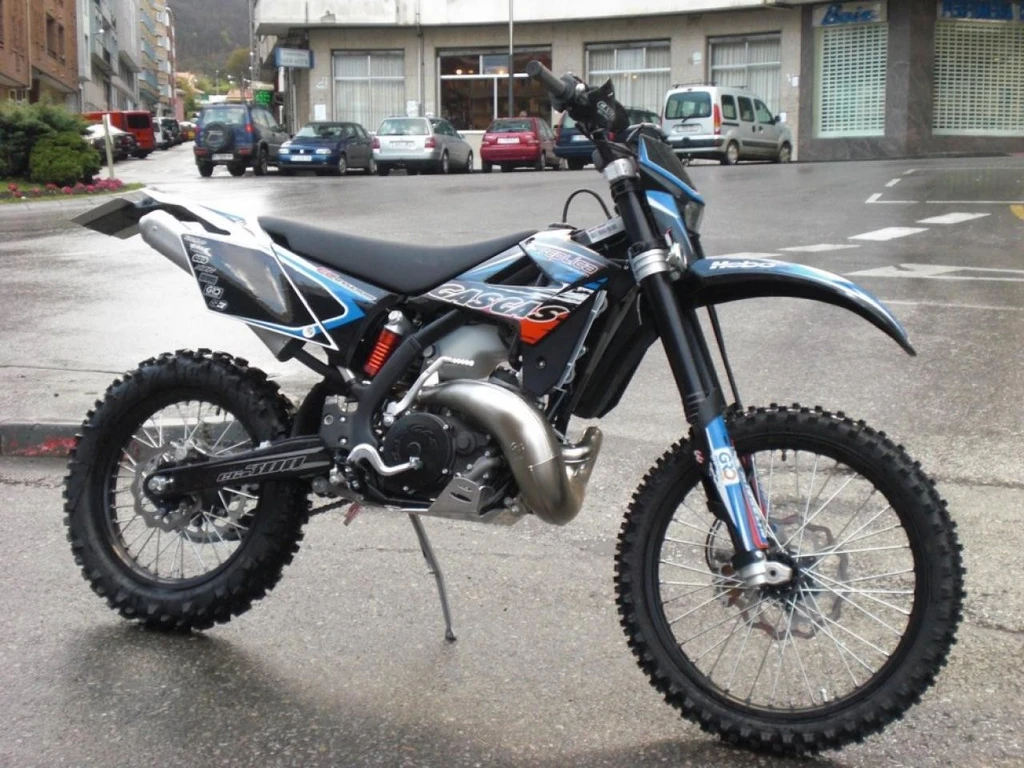

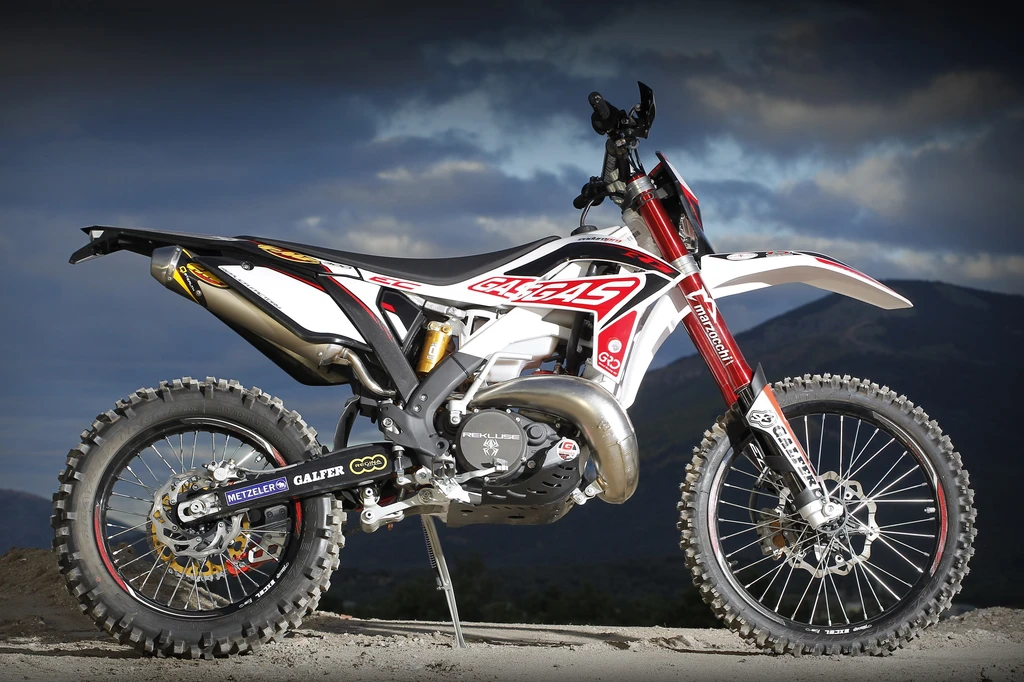

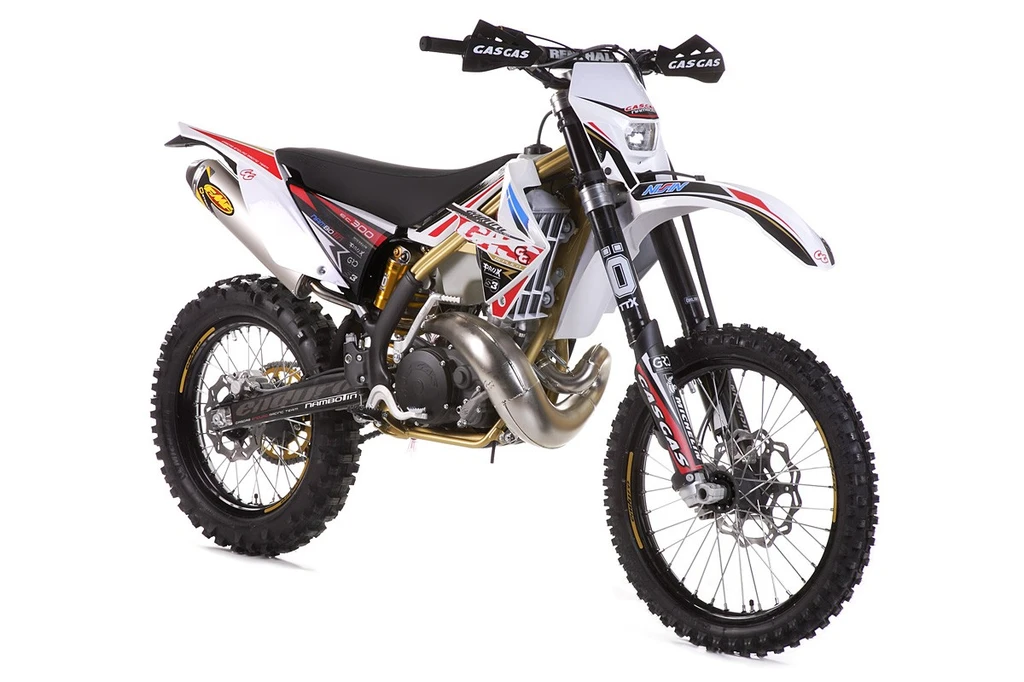

The Gas Gas EC 300 Nambotin Replica is a highly sought-after machine that embodies the spirit of competition and innovation. This exceptional bike was created in tribute to Christophe Nambotin, who dominated the E3 category in 2008. The EC 300 Nambotin Replica boasts an impressive array of high-performance components, including Sachs fork and Hlins 888 shock absorber, ensuring precise handling and control.
The engine’s character is defined by its potent power delivery, making it a joy to ride on both technical trails and open terrain. The redesigned chassis features stronger yet lighter alloy materials, enhancing the bike’s agility and responsiveness. With its exclusive Nambotin Replica graphics and top-notch components, this machine exudes an air of exclusivity and sophistication.
The Gas Gas EC 300 Nambotin Replica is a testament to the manufacturer’s commitment to pushing the boundaries of performance and style, offering riders an unparalleled riding experience that combines power, precision, and elegance.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
17.9 cubic inches / 294 cc
Max Power
50 hp / 37.2 kW @ 7340 rpm
Max Torque
26.1 ft-lb / 49 nm
Fuel Tank Capacity
2.5 US gallons / 9.5 L
Seat Height
37.0 inches / 940 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Gas Gas EC 300 Nambotin Replica
Year
2009
Engine
Engine Type
Two stroke, single cylinder
Displacement
17.9 cubic inches / 294 cc
Bore x Stroke
72 x 72 mm
Max Horsepower
50 hp / 37.2 kW @ 7340 rpm
Max Torque
26.1 ft-lb / 49 nm
Engine Management System
38mm Keihin PWK carburetor
Lubrication System
2% mixture
Cooling System
Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Hydraulic multidisc.
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Deltabox type built using cromoly, rectangular tubes, aluminum swingarm
Front Suspension
45mmUpside-down Marzocchi fork
Front Suspension Travel
11.6 inches / 295 mm
Rear Suspension
Progressive system with hlins shock absorber
Rear Suspension Travel
12.2 inches / 310 mm
Wheels & Brakes
Front Tire Size
90/90 -21
Rear Tire Size
140/80 -18
Front Brakes
Single 260mm disc 1 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Dimension & Weights
Seat Height
37.0 inches / 940 mm
Wheelbase
58.1 inches / 1476 mm
Ground Clearance
340 mm / 13.4 in
Fuel Tank Capacity
2.5 US gallons / 9.5 L
Dry Weight
103 kg / 227 lbs
Features
Reproduction of Christophe Nambotin’s EC 300 graphics
Front Sachs fork
Rear Hlins 888 shock absorber
FMF muffler
Galfer Wave Racing brakes (front and rear)
Redesigned chassis with stronger but lighter alloy features
