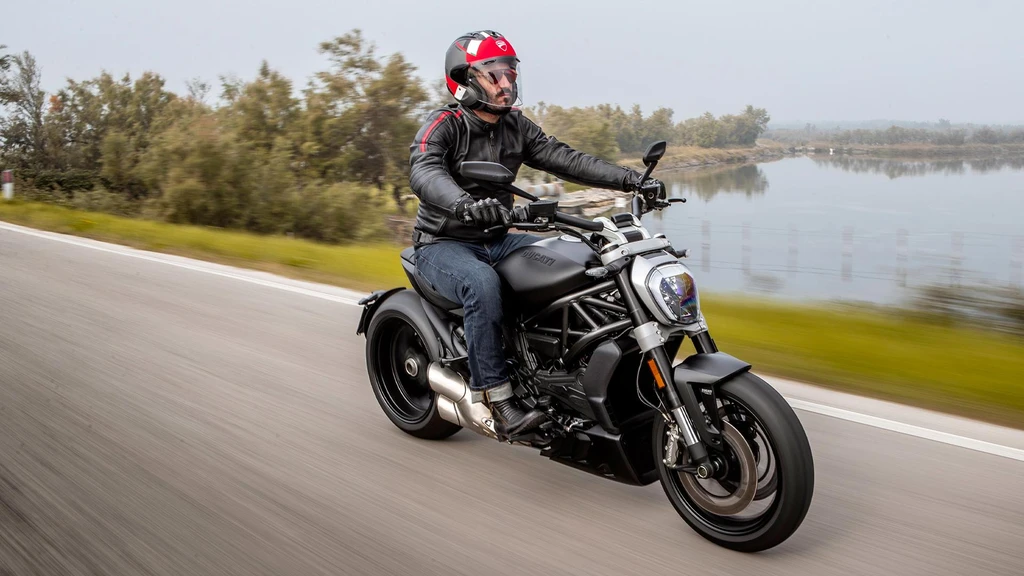

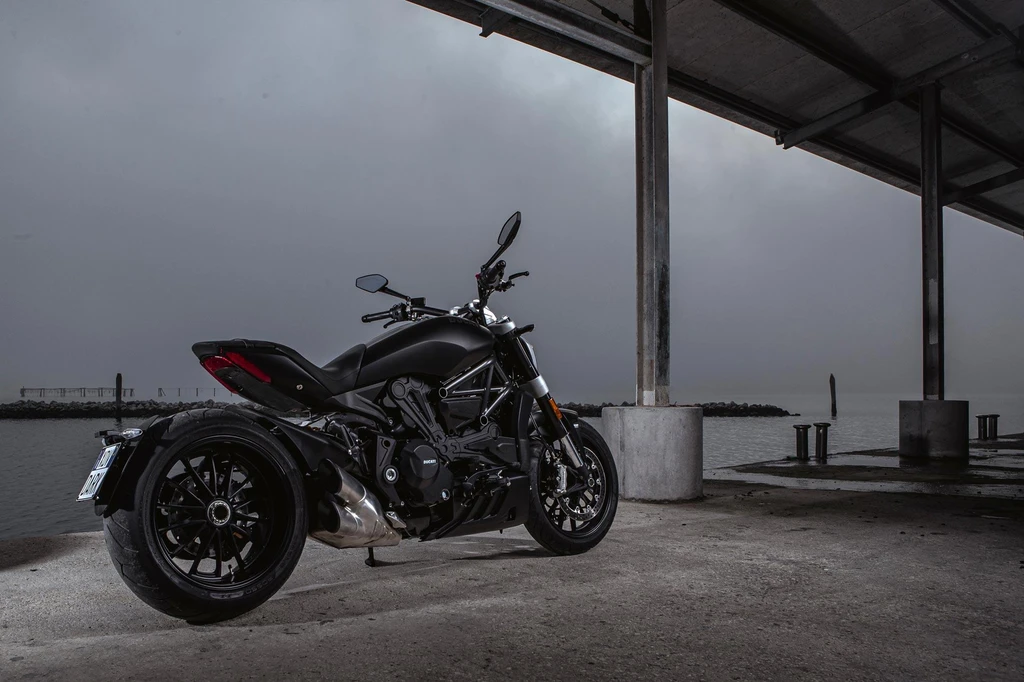

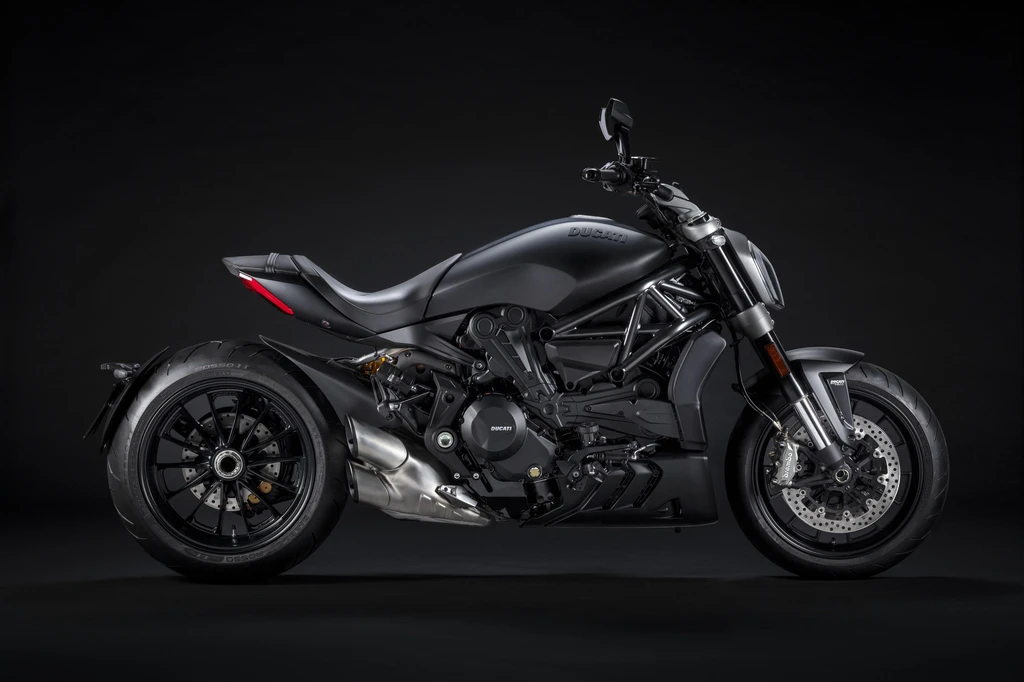

Ducati XDiavel Dark (2021)

Ducati XDiavel Dark (2021)

The Ducati XDiavel Dark embodies the essence of a true cruiser, where style and performance converge in perfect harmony. Powered by the potent 1262cc Testastretta DVT engine, this motorcycle exudes raw power and emotion, its exhaust notes echoing through the air like a symphony of torque.

Its riding experience is characterized by an intuitive responsiveness that allows riders to seamlessly shift between Sport, Touring, and Urban modes, each tailored to suit their unique needs. The Ducati Traction Control (DTC) system provides reassuring stability, while the Bosch-Brembo ABS 9.1MP Cornering braking system ensures precise control in any situation.

Innovative technologies such as Inertial Measurement Unit (IMU) and Electronic Cruise Control further enhance the riding experience, making every mile a pure delight. The XDiavel Dark is more than just a motorcycle – it’s an invitation to explore the boundaries of performance and style.

Key Specifications

Engine TypeFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90 L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Engine Capacity1262 cc / 77 cu in
Fuel Tank Capacity4.75 US gallons / 18.0 L
Weight (Wet/Kerb)545 lbs / 247 kg
Seat Height29.7 inches / 755 mm
Ducati XDiavel Dark (2021)

All Specifications

Make & Model

ModelDucati XDiavel Dark
Year2021

Engine

Engine TypeFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90 L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Displacement1262 cc / 77 cu in
Bore x Stroke106 x 71.5 mm
Compression Ratio13.0:1
Engine Management SystemElectronic fuel injection system, 56mm elliptical throttle bodiesfull with ride-by-wire system
Cooling SystemLiquid cooled
ExhaustStainless steel exhaust and muffler with dual oval exits, catalytic converter and 2 lambda probes

Performance

Top Speedn/a

Transmission

ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Gearbox6-Speed
Gear Ratios1st 37:15 / 2nd 30:17 / 3rd 27:20 / 4th 24:22 / 5th 23:24 / 6th 22:25
Final DriveBelt, front sprocket Z28, rear sprocket Z80

Electrical & Electronics System

StarterElectric
ABSBOSCH cornering ABS as standard equipment

Chassis & Suspension

Frame TypeTubular steel trellis frame
Front Suspension50mm USD adjustable forks with DLC treatment
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionSingle shock absorber, adjustable preload and rebound, remote reservoir, Single sided cast/trellis frame swingarm
Rear Suspension Travel4.3 inches / 110 mm
Rake30º
Trail130 mm / 5.1 in

Wheels & Brakes

Front Wheel/Rim SizeLight alloy, cast, 3.50 x 17
Front Tire Size120/70 ZR17 Pirelli Diablo Rosso III
Rear Wheel/Rim SizeLight alloy, cast, 8.00 x 17
Rear Tire Size240/45 ZR17 Pirelli Diablo Rosso III
Front Brakes2x 320 mm semifloating discs, radial Brembo monobloc 4-piston M4.32 callipers, PR16/19 radial master cylinder
Rear BrakesSingle 265 mm disc, Brembo 2-piston floating calliper
ABSBOSCH cornering ABS as standard equipment

Dimension & Weights

Seat Height29.7 inches / 755 mm
Wheelbase63.6 inches / 1615 mm
Fuel Tank Capacity4.75 US gallons / 18.0 L
Wet (kerb/curb) Weight545 lbs / 247 kg
Dry Weight221 kg / 487 lbs

Features

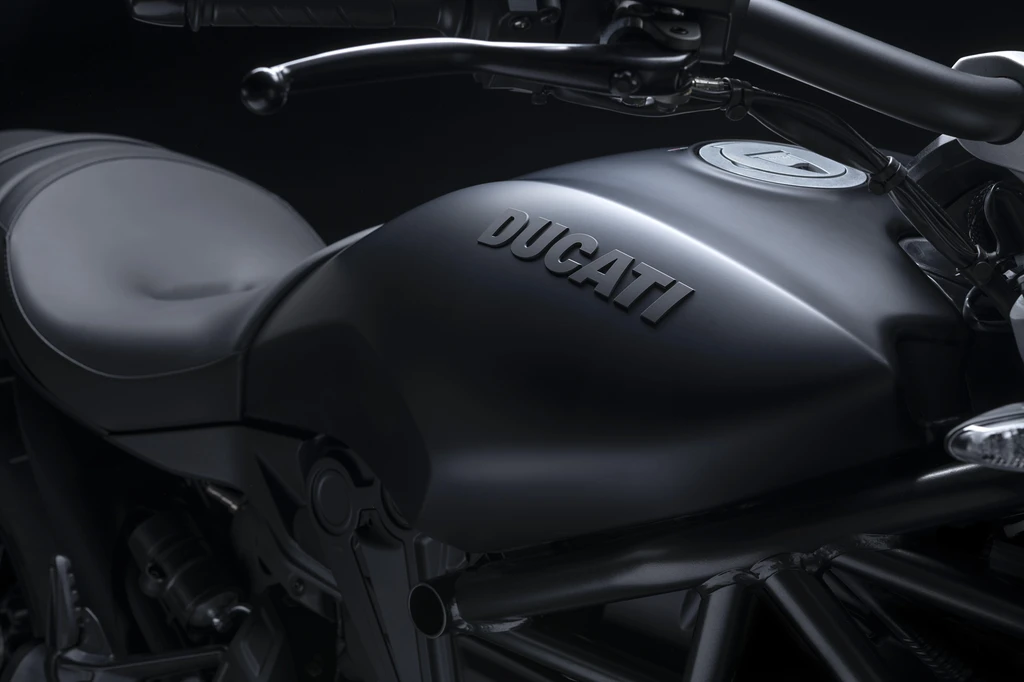

  • Dark Stealth colour scheme
  • Carbon Black frame
  • Matt black wheels
  • Ducati Testastretta DVT 1262 engine
  • Bosch Inertial Measurement Unit (IMU)
  • Bosch-Brembo ABS 9.1MP Cornering braking system
  • Adjustable suspension
  • Riding Modes (Sport, Touring, Urban)
  • Ducati Traction Control (DTC)
  • Ducati Power Launch (DPL)
  • Electronic Cruise Control
  • Full-LED front and rear lights
  • Dashboard with TFT display
  • Black anodized side frame plates and radiator covers
  • Pirelli Diablo Rosso III tyres
