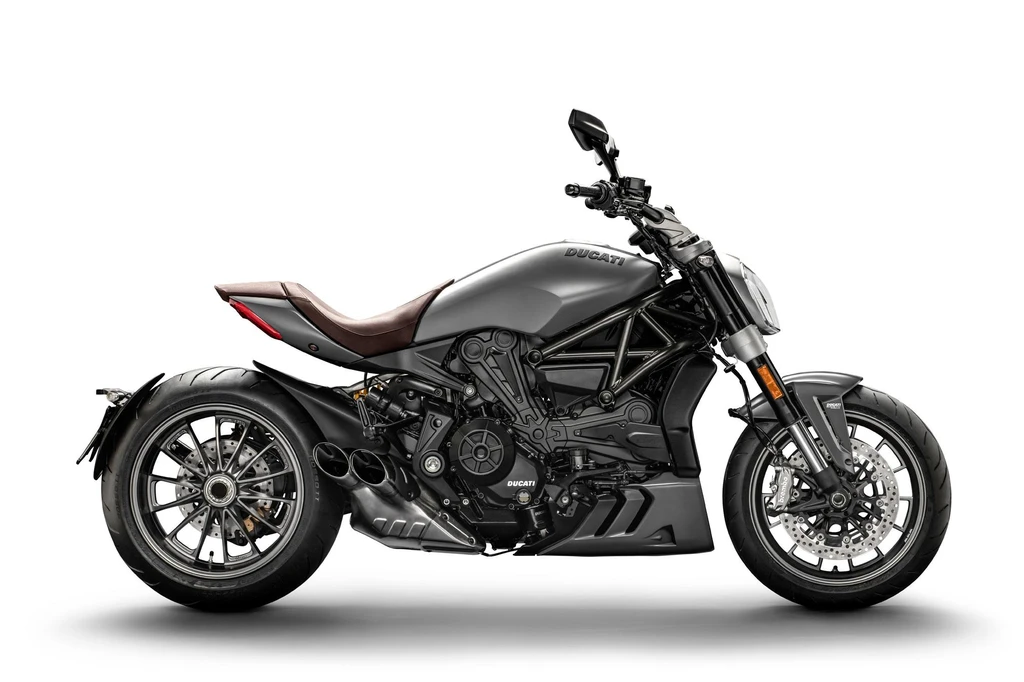

Ducati XDiavel (2017 – 2018)

Ducati XDiavel (2017 - 2018)

The Ducati XDiavel is a game-changer, merging the comfort and relaxation of a cruiser with the performance and handling of a true Italian thoroughbred.

The new Ducati Testastretta DVT 1262 engine is at the heart of this revolution, delivering superbike muscle with a flat torque curve from low revs upwards. This means effortless acceleration and thrilling performance across the rev range, all while maintaining the characteristic Italian flair and attention to detail that only a Ducati can provide.

Riding the XDiavel is an exhilarating experience, combining the best of both worlds: the relaxed ergonomics and long-distance comfort of a cruiser with the adrenaline-fueled rush of sports riding. With its 156 horsepower and 13.1 kgm of torque at just 5,000 rpm, this bike is ready to take on anything from leisurely rides to spirited adventures.

The XDiavel’s unique blend of style, technology, and performance makes it a true Ducati thoroughbred, one that will leave you breathless and yearning for more.

Key Specifications

Engine TypeFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90 L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Engine Capacity1262 cc / 77 cu in
Max Torque95 ft-lb / 128.9 nm
Fuel Tank Capacity4.75 US gallons / 18.0 L
Weight (Wet/Kerb)545 lbs / 247 kg
Seat Height29.7 inches / 755 mm
Ducati XDiavel (2017 - 2018)

All Specifications

Make & Model

ModelDucati XDiavel
Year2017 – 2018

Engine

Engine TypeFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90 L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Displacement1262 cc / 77 cu in
Bore x Stroke106 x 71.5 mm
Compression Ratio13.0:1
Max Torque95 ft-lb / 128.9 nm
Engine Management SystemBOSCH fuel injection system, full ride-by-wire system, 56mm oval throttle bodies
Cooling SystemLiquid cooled
ExhaustStainless steel exhaust and muffler with dual oval exits, catalytic converter and 2 lambda probes

Performance

Top Speedn/a

Transmission

ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Gearbox6-Speed
Gear Ratios1st 37:15 / 2nd 30:17 / 3rd 27:20 / 4th 24:22 / 5th 23:24 / 6th 22:25
Final DriveBelt, front sprocket Z28, rear sprocket Z80

Electrical & Electronics System

StarterElectric
ABSBOSCH cornering ABS as standard equipment

Chassis & Suspension

Frame TypeTubular steel trellis frame
Front Suspension50mm USD adjustable forks
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionSingle shock absorber, adjustable preload and rebound, remote reservoir. Single sided cast/trellis frame swingarm
Rear Suspension Travel4.33 inches / 110 mm
Rake30º
Trail130 mm / 5.1 in

Wheels & Brakes

Front Wheel/Rim SizeLight alloy, cast, 3.50 x 17
Front Tire Size120/70 ZR17 Pirelli Diablo Rosso II
Rear Wheel/Rim SizeLight alloy, cast, 8.00 x 17
Rear Tire Size240/45 ZR17 Pirelli Diablo Rosso II
Front Brakes2x 320 mm semifloating discs, radial Brembo monobloc 4-piston M4-32 callipers and radial master cylinder
Rear BrakesSingle 265 mm disc, 2-piston floating calliper
ABSBOSCH cornering ABS as standard equipment

Dimension & Weights

Seat Height29.7 inches / 755 mm
Wheelbase63.6 inches / 1615 mm
Fuel Tank Capacity4.75 US gallons / 18.0 L
Wet (kerb/curb) Weight545 lbs / 247 kg
Dry Weight220 kg / 485 lbs

Features

  • Ducati Testastretta DVT 1262 engine
  • 156 hp maximum power
  • 13.1 kgm torque at 5,000 rpm
  • Extremely flat torque curve from low revs upwards
  • Increased engine displacement
  • Desmodromic Variable Timing system (DVT)
  • Relocation of water pump inside intra-cylinder V
  • Forward controls for comfort and relaxation
  • 4 different footrest positions
  • 5 different seats
  • 3 different handlebars
  • Standard passenger seat and comfort seat with backrest
  • Dynamic performance and sports bike handling
  • Maximum lean angle of 40 degrees
  • Rear suspension with preload adjustment
  • Dual 320mm front brake discs with Brembo M4.32 monobloc calipers
